White Outdoor 190-063-190 Twin Bagger (2000) 190-063-000 (2000)

Model: 190-063-190 Bagger (2000) 190-063-000 (2000)

Save Part Not Listed?
product name

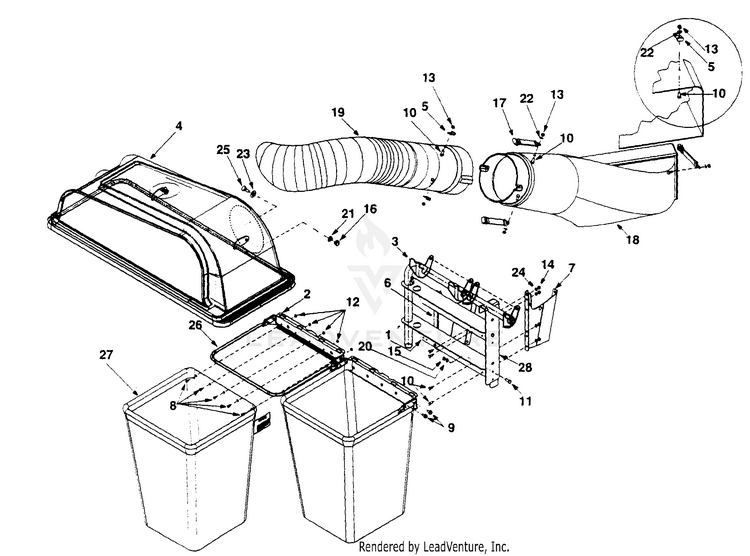

General Assembly

...
...
1
Catcher Support Tube Mtg. Brkt. MTD-16587D-0637
...
2
Hanger Bracket: Bag Frame MTD-16591A-0637
...
3
Catcher Support Tube Assembly MTD-16592-0637
...
4
COVER ASSEMBLY- NLA Model 063 Only; See "Grass Catcher Cover Assembly" Parts List & Illustration for complete breakdown. MTD-16594A
...
4
COVER ASSEMBLY NLA Model 103 Only; See "Grass Catcher Cover Assembly" Parts List & Illustration for complete breakdown. MTD-631-0007
...
5
Retainer Hook Bracket MTD-96606
...
6
SUPPORT BRACKET (LH) MTD-16610C-0637
...
7
Support Bracket: RH MTD-16611C-0637
...
8
Mach. Screw: #10-24 X 0.5" MTD-710-0473
...
9
Screw, TT:5/16-18 X 0.625" MTD-710-0604A
...
10
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
11
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
12
Hex Sems Nut: 10-24 MTD-712-0272
...
13
Hex Lock Nut MTD-712-0324
...
14
HEX NUT MTD-712-3006
...
15
HEX NUT 5/16-18 MTD-712-3010
...
16
Hex Nut: 3/8-16 Gr. 8 MTD-912-3017
...
17
Retainer Strap Assembly MTD-923-0383
...
18
Discharge Chute Model 063 Only MTD-731-0827D
...
18
Discharge Chute Model 103 Only MTD-731-0925C
...
19
Chute Tube Model 063 Only MTD-731-0899E
...
19
Chute Tube Model 103 Only MTD-731-0926B
...
20
Lock Washer: 5/16 MTD-936-0119
...
21
L-Wash. 3/8" I.D. MTD-736-0169
...
22
Spring Washer MTD-936-0175
...
23
Bell Washer Model 063 Only MTD-736-0255
...
23
Bell Washer Model 103 Only MTD-736-0253
...
24
Lock Washer: 1/4 MTD-936-0329
...
25
Shoulder Screw MTD-738-0380
...
26
Frame Tube MTD-749-0701A-0637
...
27
Catcher Bag MTD-964-0221
...
28
Catcher Support Bracket MTD-783-0601-0637

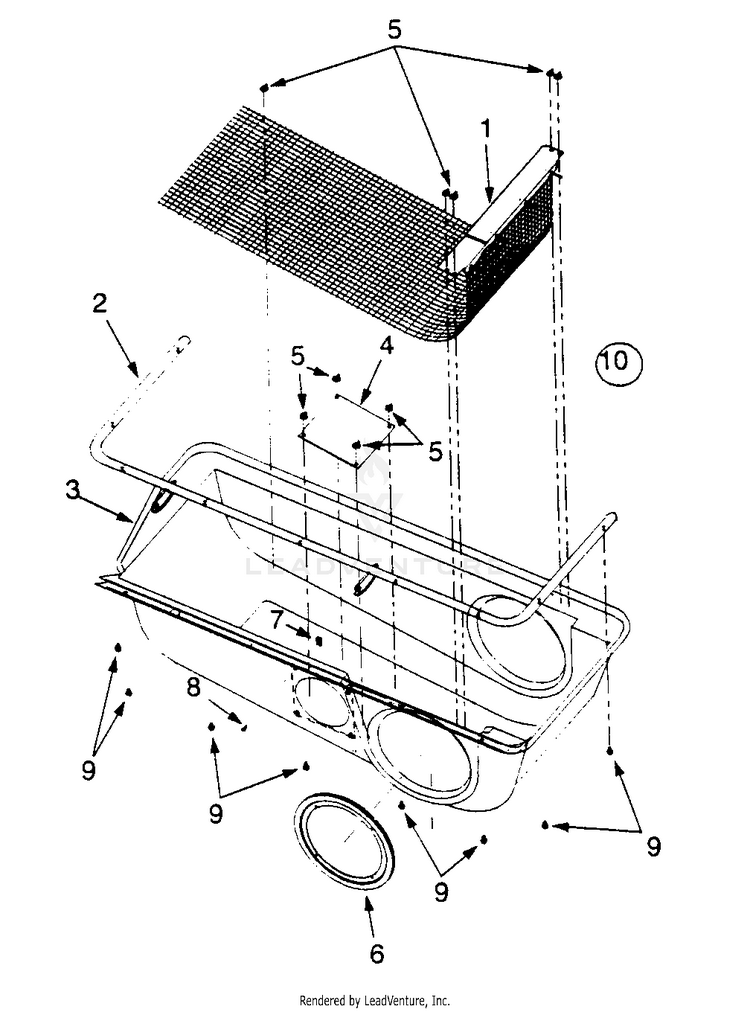

Grass Catcher Assembly

...
...
1
SCREEN ASSEMBLY NLA MTD-16847A
...
2
BRACKET ASSEMBLY-HINGE MTD-16596-0637
...
3
COVER ASSEMBLY NLA Model 063 Only MTD-731-0821A
...
3
COVER ASSEMBLY NLA Model 103 Only MTD-731-1417
...
4
PLATE-PLASTIC NLA MTD-731-0824A
...
5
Zip Twist Fastener MTD-726-0258
...
6
SEAL (7.1") Model 063 Only MTD-723-0412
...
6
Tube Seal Model 103 Only MTD-723-0413
...
7
U-Type Speed Nut MTD-712-0147
...
8
Screw, #10-16 x 0.5" Model 063 Only MTD-710-0351
...
8
Screw, #10-24 x 0.5" Model 103 Only MTD-710-0473
...
9
Hex Screw, 1/4-20 x 0.5" Model 063 Only MTD-710-0599
...
9
Hex Screw, 1/4-14 x 0.625" Model 103 Only MTD-710-0896
...
10
COVER ASSEMBLY- NLA Model 063 Only MTD-16594A
...
10
COVER ASSEMBLY NLA Model 103 Only MTD-631-0007
