White Outdoor 190-038-190 Rear Bagging Grass Catcher (1987)

Model: 190-038-190 Rear Bagging Grass Catcher (1987)

Save Part Not Listed?
product name

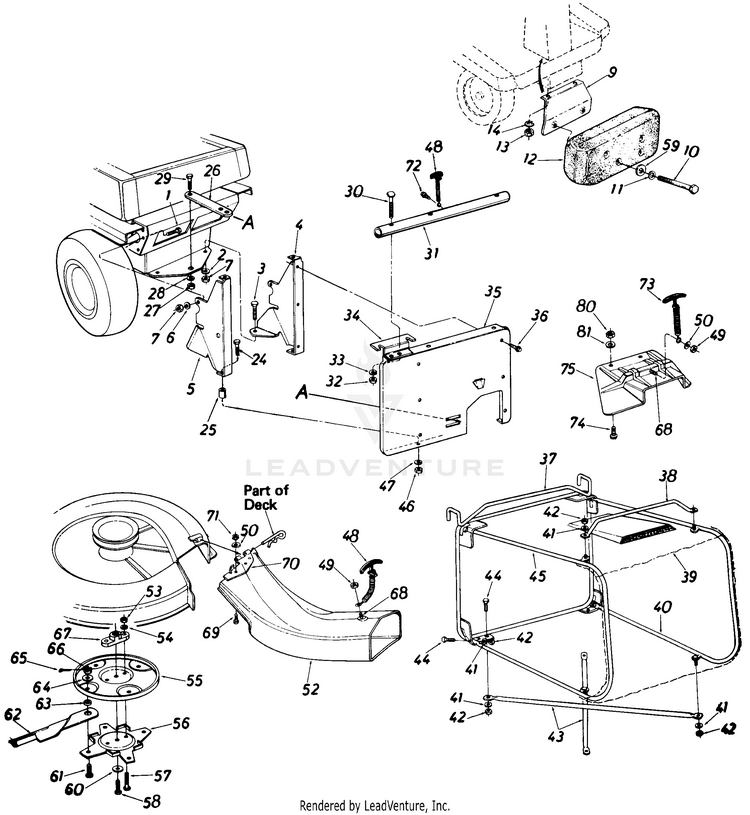

Deck Grass Catcher

...
...
1
Hex Bolt 5/16-18 x 1.0" Lg.* MTD-710-0376
...
2
L.-Wash. 5/16" I.D.* MTD-936-0119
...
3
Hex Bolt 5/16-18 x 1.0" Lg.* MTD-710-0376
...
4
SUPPORT BRACKET (RH) MTD-15970A
...
5
SUPPORT BRACKET (LH) NLA MTD-15971
...
6
L.-Wash. 5/16" I.D.* MTD-936-0119
...
7
HEX NUT 5/16-18 MTD-712-3010
...
9
BRACKET-SUPPORT NLA MTD-15539
...
10
Hex Bolt 3/8-16 x 4.5" Lg.* MTD-710-0693
...
11
Belleville Wash. .40" I.D. x .88" O.D. MTD-736-0105
...
12
COUNTERWEIGHT NLA MTD-723-0367
...
13
HEX NUT 5/16-18 MTD-712-3010
...
14
L.-Wash. 5/16" I.D.* MTD-936-0119
...
14
BRACKET-WE NLA MTD-15873
...
24
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
25
Spacer .380" I.D. x .47" O.D. x 1.0" Lg. MTD-750-0434
...
26
BRACKET-LINKAGE NLA MTD-05400
...
27
Hex Jam Nut 1/2-20 Thd. MTD-712-3029
...
28
L-Wash. 1/2" I.D. MTD-736-0921
...
29
Hex Bolt 1/2-20 x 1.0" Lg.* MTD-710-3131
...
30
Curved Carriage Bolt 5/16-18 x 1.75" Lg. MTD-710-1174
...
31
GRASS CATCHER SUPPORT TUB NLA MTD-749-0659
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
L.-Wash. 5/16" I.D.* MTD-936-0119
...
34
GRASSCATCHERSUPPORTPLATE NLA MTD-15995
...
35
PANEL-RD NLA MTD-15923
...
36
Hex Wash. Hd. Self Tap. Scr. 1/4- 0 20 x .50" Lg. MTD-710-0599
...
37
CATCHER SIDE FRAME ASS'Y.-L.H . NLA MTD-15991
...
38
CATCHER HANDLE MTD-749-0653-0637
...
39
GRASSBAG NLA MTD-764-0210
...
40
FRAME-SIDE NLA MTD-15992
...
41
Spring-Wash. .270" I.D. x .57" O.D. x .025 MTD-936-0175
...
42
Hex L.-Nut 1/2-20 Thd MTD-912-0107
...
43
BRACE-BOTTOM MTD-749-0651
...
44
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
45
FRAME-SIDE NLA MTD-15993
...
46
HEX NUT 5/16-18 MTD-712-3010
...
47
L-Wash. 5/16" I.D. MTD-936-0119
...
48
HOOD LOCK ASSEMBLY MTD-723-0296
...
49
Hex L.-Nut 1/4-20 Thd. MTD-912-0107
...
50
R-Wash. .218 I.D. x .5" O.D. MTD-736-0142
...
52
CHUTE-BANANA-RD MTD-15920
...
53
Hex Nut 5/16-24 Thd.* MTD-912-3057
...
54
L.-Wash. 5/16" I.D.* MTD-936-0119
...
55
BLADE-DISC MTD-742-0286-0637
...
56
BLADE DISC-LOWER MTD-742-0279-0637
...
57
Hex Bolt 5/16-24 x 1.0" Lg. (Grade 5) MTD-710-0888
...
58
Hex Bolt 3/8-24 x 1.0" Lg. MTD-710-1039
...
59
FLAT WASHER .395x1.120x.140:HD MTD-736-04005
...
60
BELL WASHER MTD-936-0356
...
61
SHOULDER SCREW .500X.360 MTD-938-0587
...
62
30"blade T NLA MTD-742-0266
...
63
SPACER MTD-750-0604
...
64
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
65
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
66
HEX NUT 1/2-20 MTD-912-0114
...
67
Blade Adapter MTD-748-0300
...
68
Hex Bolt 1/4-20 x .50" Lg.* MTD-910-0289
...
69
Truss Mach. Scr. 1/4-20 x .50" Lg. * MTD-710-0286
...
70
BRACKET-MTG MTD-15921-0637
...
71
HEX NUT 1/4-20 MTD-912-0287
...
72
Hex AB Tap Scr. 1/4 x .62" Lg. MTD-710-0896
...
73
HOOD LATCH ASSEMBLY MTD-923-0370
...
74
Truss Mach. Scr. 1/4-20 x 50" Lg. * MTD-710-0286
...
75
CHUTE EXTENSION MTD-731-0721
...
80
Hex L.-Nut 1/4-20 Thd. MTD-912-0107
...
81
R-Wash. .218 I.D. x .5" O.D. MTD-736-0142
