White Outdoor 190-015-190 Rider Grass Catcher (1988)

Model: 190-015-190 Rider Grass Catcher (1988)

Save Part Not Listed?
product name

Grass Catcher

...
...
1
HEX NUT 1/4-20 MTD-912-0287
...
2
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
3
R-Wash. .218 I.D. x .5" O.D. MTD-736-0142
...
4
Hex Scr. 1/4-20 x 1.50" Lg.* MTD-710-0606
...
5
FRAME-UPPE NLA MTD-11706
...
6
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
7
Lower Frame Tubing NLA MTD-11705
...
8
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
9
HexScr. 1/4-20x.75" Lg.* MTD-710-3015
...
10
Upper Opening Support NLA MTD-11701
...
11
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
12
SUPPORT-LO NLA MTD-11702
...
13
Hex Scr. 1/4-20 x .50" Lg.* MTD-910-0289
...
14
SHOULDER SCREW .437 DIA x .350 MTD-938-0141
...
15
Ext. L-Wash. 5/16" Scr.* MTD-736-0607
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
BRACKET-HANDLE (POWDER BLACK) (Handle for most riders) MTD-11707-0637
...
18
Grip-Black MTD-720-0142
...
19
ARM-FRAME- NLA MTD-11704
...
20
Arm-upper NLA MTD-11710
...
21
Hex Ins. L-Nut 1/4-20Thd. MTD-712-0324
...
22
CHAIN HOOK NLA MTD-711-0576
...
23
GRASSBAG MTD-964-0121
...
24
L-Wash. 5/16" I.D.* MTD-936-0119
...
25
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
xx
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
26
BRACKET-HI NLA MTD-11708
...
27
Internal Cotter Pin 5/8" Dia. MTD-714-0117
...
28
ARM-HOLDING-LWR NLA MTD-749-0681
...
29
Hex Wash. Hd. Self-Tap .50" Lg. MTD-710-0599
...
30
BUSHING NLA (For 500 and 600 series front engine tractors) MTD-22550
...
31
HANDLE (For 500 series rear engine tractors) MTD-15498

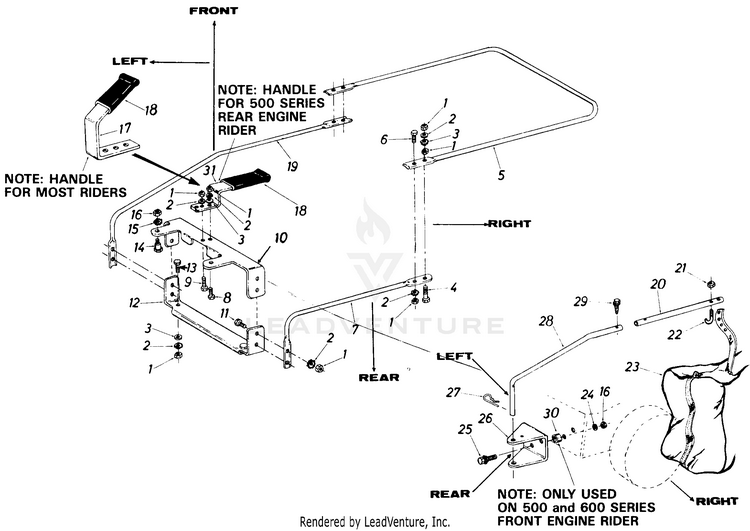

Schematic Image Zoomed
