White Outdoor 13AP60TP090 LT-5000 (2008)

Model: 13AP60TP090 LT-5000 (2008)

Back To Assemblies

Save Part Not Listed?
product name

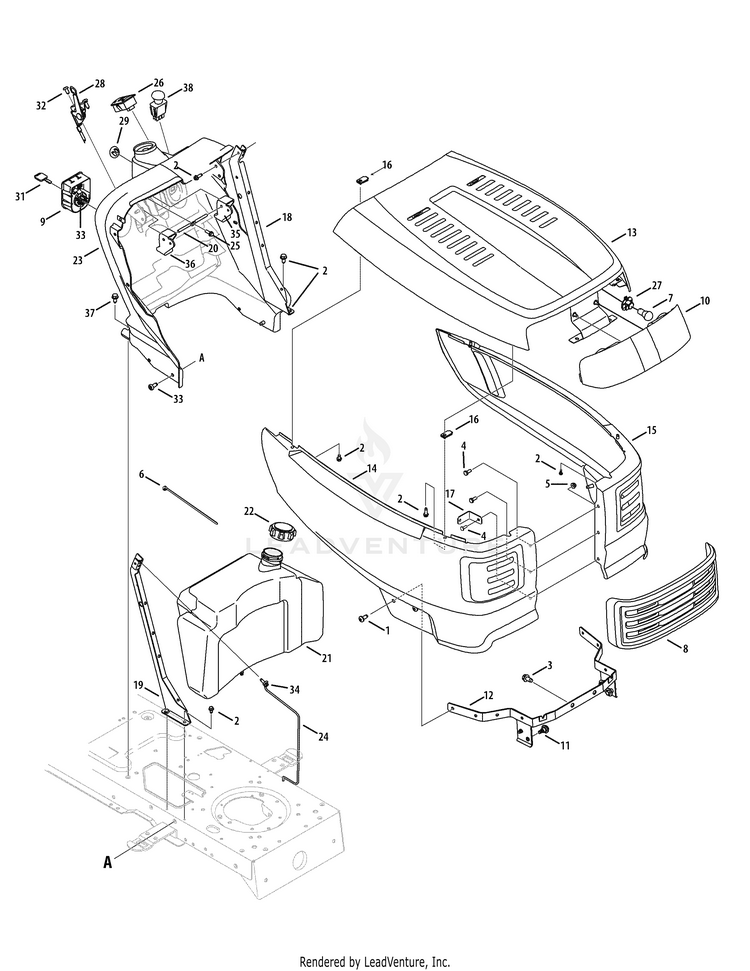

Hood & Dash Assembly

...
...
1
Screw, 5/16-18, .375 MTD-710-04593
...
2
Screw, 1/4-20, 0.500 MTD-710-0599
...
3
SCREW 5/16-18 x .750 MTD-710-04484
...
4
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
5
Flange Lock Nut, 1/4-20 MTD-712-04064
...
6
Cable Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
7
Headlamp, 12V MTD-925-0963
...
8
GRILLE INSERT MTD-731-06358
...
9
Switch Housing MTD-731-05241A
...
10
LENS-T STYLE MTD-731-06414
...
11
Screw, Shldr, .43 x .29, 5/16-18 MTD-738-04091A
...
12
Pivot Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-04606C
...
13
HOOD *CHOOSE COLOR WHEN ORDERING* MTD-783-04827
...
14
SIDE PANEL (RH) *CHOOSE COLOR WHEN ORDERING* MTD-783-04828
...
15
SIDE PANEL(LH) *CHOOSE COLOR WHEN ORDERING* MTD-783-04967
...
16
HOOD FASTENER MTD-783-05223
...
17
HOOD BRACKET MTD-783-05315-0637
...
18
DASH SUPPORT MTD-783-04323F-0637
...
19
DASH SUPPORT MTD-783-04285F-0637
...
20
Bent Lever Rod MTD-747-1196
...
21
FUEL TANK (2.5 GAL) MTD-751-10609
...
22
TANK CAP MTD-751-0603B
...
23
Dash Panel, T-Style w/ Electric PTO MTD-731-06168
...
24
SUPPORT ROD (LH) MTD-747-04161
...
25
Screw, 1/4-15, .750 MTD-710-0895
...
26
HOUR METER/SERVICE MINDER MTD-925-06170B
...
27
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
28
Throttle/Choke Control, 25.0 MTD-746-04364
...
28
THROTTLE CABLE 46.5" x 1.1 MTD-946-04542
...
29
Choke Plug MTD-731-1999
...
30
IGNITION MODULE SWITCH RMC (MAN PTO BLK) (8 pin) MTD-925-06119C
...
31
Key MTD-925-1745A
...
32
Screw, 1/4-14, 0.625 MTD-710-1017
...
33
Screw, 5/16-18, 0.750 MTD-710-1611B
...
34
Screw, 1/4-20, 0.750 MTD-710-0642
...
35
BRAKE LEVER MTD-931-04217
...
36
CRUISE LEVER MTD-931-04215
...
37
Screw, 5/16-18 x 0.500 MTD-710-0607
...
38
PTO SWITCH (BLACK KNOB) TEXT SYM MTD-925-04174A
...
xx
Wire Harness, Main Not shown MTD-925-04404A
...
xx
Headlight Wire Harness Not shown MTD-929-04083B
...
xx
LABEL-RIDER T STYL Not shown MTD-777X42188
...
xx
LABEL-RIDER T STYL Not shown MTD-777X42187
...
xx
SOLENOID-12V MTD-925-1426A
