White Outdoor 13AP60TP090 LT-5000 (2008)

Model: 13AP60TP090 LT-5000 (2008)

Back To Assemblies

Save Part Not Listed?
product name

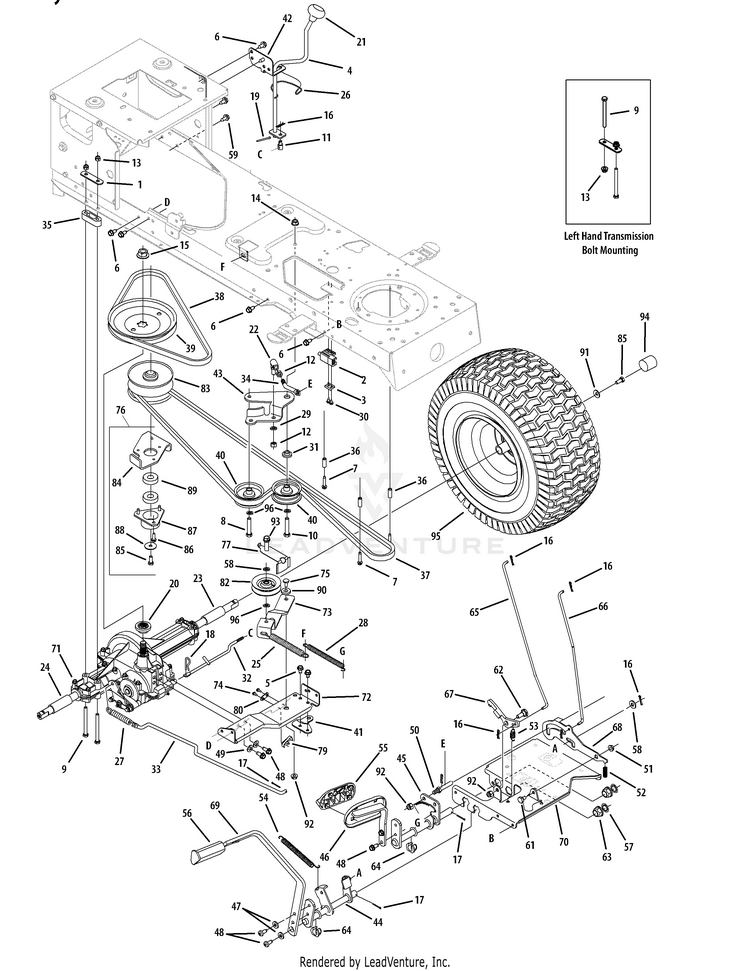

Drive System

...
...
1
Mounting Bracket, Transaxle MTD-17840-0637
...
2
Switch, Interlock MTD-925-04039
...
3
Plate, Switch MTD-17962
...
4
Lever Assembly, Shift MTD-647-04020
...
5
Screw, 5/16-18, 0.500 MTD-710-0607
...
6
SCREW 5/16-18 x .750 MTD-710-04484
...
7
Screw, 1/4-20, 1.250 MTD-710-0809
...
8
Screw, Sems, 3/8-16, 1.500 MTD-710-1007
...
9
Screw, 5/16-18, 3.50, Gr5 MTD-710-1266
...
10
Screw, 3/8-16, 2.00, Gr5 MTD-710-3144
...
11
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
12
Nut, Hex, 3/8-24, Gr5 MTD-712-0241
...
13
Nut, Flange Lock, 5/16-18, GrF MTD-712-04063
...
14
Nut, Flange Lock, 3/8-16, GrF MTD-912-0431
...
15
Nut, Flange, 9/16-18, Gr2 MTD-712-0700
...
16
Hairpin Clip MTD-714-0104
...
17
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
18
Cotter .Pin, Internal,.125 Dia. MTD-914-0209
...
19
Cotter Pin 1/8" Dia. MTD-714-0470
...
20
Pulley Hub, 5/8 Spline MTD-718-04407
...
21
Knob, Shift MTD-720-04028
...
22
Ball Joint MTD-923-3018
...
23
Sleeve,.758 x.821 x 3.3125 MTD-731-04602
...
24
Sleeve,.758 x.821 x 2.4375 MTD-731-04604
...
25
Spring, Extension,.62 Dia x 6.12 MTD-932-04370A
...
26
Spring Clip, Shifter MTD-732-0525
...
27
Spring, Extension,.59 OD x 4.00 MTD-732-0716D
...
28
Spring, Extension,.50 Dia x 6.37 MTD-732-0963
...
29
L-Wash. 3/8" I.D. MTD-736-0169
...
30
Screw, #10-16,.50 MTD-910-0224
...
31
Spacer, Shoulder, 1.00 x.38 x.38 MTD-738-0372B
...
32
Rod, Shift MTD-747-04146C
...
33
BRAKE ROD MTD-747-04164
...
34
IDLER ADJUSTMENT ROD MTD-747-1127
...
35
Spacer,.68 MTD-948-0334
...
36
Spacer,.260 x.372 x 1.030 MTD-750-0566A
...
37
Belt, V-Type MTD-954-0467A
...
38
Belt, V-Type MTD-954-0468
...
39
Pulley, V-Type, 7.25 Dia. MTD-956-04002
...
40
Idler Pulley, Flat 2.75 OD MTD-756-04224
...
41
SHIFT BRACKET MTD-783-04283A
...
42
SHIFT BRACKET F-N-R MTD-783-04360
...
43
Idler Bracket, Center Double *CHOOSE COLOR WHEN ORDERING* MTD-783-04442
...
44
BRAKE CONTROL ASSEMBLY (POWDER BLACK) MTD-647-04100-0637
...
45
SPEED CONTROL ASSEMBLY (POWDER BLACK) MTD-647-0032A-0637
...
46
CONTROL PEDAL ASSEMBLY MTD-683-0266
...
47
Lock Washer, 5/16 MTD-936-0119
...
48
Screw,5/16-18, 0.750 MTD-710-1260A
...
49
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
50
Pin, 3/8-16 x 2.68 MTD-711-04159B
...
51
HEX FLANGE NUT MTD-712-3004A
...
52
SPRING MTD-732-0335
...
53
Spring, Extension,.50 OD x 1.41 MTD-732-0955
...
54
Spring, Extension,.50 OD x 6.37 MTD-732-0963
...
55
Pad MTD-735-0662
...
56
Pad, Brake MTD-735-3049A
...
57
Washer, Flat,.64 x 1.24 x.06, Ht MTD-736-0187
...
58
Washer, Flat,.385 x.870 x.092 MTD-736-0262
...
59
Hex Screw MTD-710-04598
...
60
Washer, Flat,.344 x.750 x.120 MTD-936-3008
...
61
Screw, Shoulder.437 Dia x.162 MTD-938-0155
...
62
Shoulder Screw MTD-738-0380
...
63
Bearing, Hex Flange MTD-941-0225
...
64
Split Bearing, Hex Flange MTD-741-3065B
...
65
LOCK CONTROL BRAKE ROD MTD-747-04093A
...
66
CRUISE CONTROL ROD MTD-747-04096
...
67
CRUISE LATCH MTD-748-04039C
...
68
LOCKOUT BRACKET MTD-783-0732A
...
69
BRAKE PEDAL (POWDER BLACK) MTD-747-04641A-0637
...
70
Bracket, Steering Support MTD-783-04612-0637
...
71
TRANSAXLE MTD-618P09815
...
72
TRANSMISSION BRACKET MTD-683-04287
...
73
Bracket, Idler MTD-783-05904
...
74
Screw, #8-18 x.50 MTD-710-0227
...
75
Hex Screw, 3/8-16 x 1.25 MTD-710-3005
...
76
Variable Speed Pulley Assembly MTD-918-04423A
...
77
Belt Guard MTD-732-1013A
...
78
Nut, Lock, 3/8-16, Nylon MTD-712-0130
...
79
SAFETY SPRING SWITCH MTD-725-1644
...
80
Plate, Insulator MTD-926-0320
...
81
Spacer, Shoulder MTD-750-04294
...
82
Idler Pulley, V-Type, 5L x 3.06 MTD-756-04324
...
83
VARIABLE SPEED PULLEY (4.75 OD) MTD-656P05011
...
84
Bracket, Pulley MTD-683-04296
...
85
Screw, 5/16-24,.750 MTD-710-0627
...
86
Screw, 1/4-20, 1.500 MTD-710-0778
...
87
Cup, Bearing MTD-718-04261
...
88
Washer, Flat MTD-736-0362
...
89
Ball Bearing MTD-941-0600
...
90
Shoulder Spacer, .8840 x .190 MTD-738-04162C
...
91
Washer, Bell,.340 x.872 x.060 MTD-736-0242
...
92
Nut, Flange Lock, 3/8-16, GrF MTD-712-04065
...
93
SCREW 3/8-16 X 2.25 GR5 MTD-710-06045
...
94
HUB CAP MTD-731-2290B
...
95
Wheel Assy Comp, 20 x 10 x 8 *CHOOSE COLOR WHEN ORDERING* MTD-634-0177
...
95
Tire Only 20 x 10 x 8 *CHOOSE COLOR WHEN ORDERING* MTD-734-1873
...
95
Rim Only *CHOOSE COLOR WHEN ORDERING* MTD-634-04369
...
95
Valve Stem MTD-934-0255
...
96
Flat Washer, .407 x .812 x .135 MTD-736-3010
