White Outdoor 13AD616G190 FST-16 (1998)

Model: 13AD616G190 FST-16 (1998)

Back To Assemblies

Save Part Not Listed?
product name

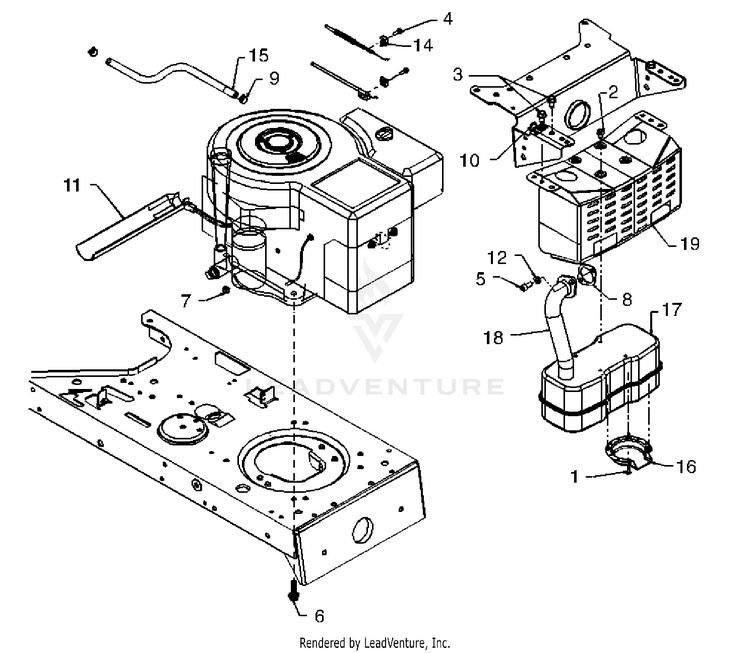

Muffler And Exhaust Assembly

...
...
1
Hex Tap Scr. #8-32 x .38" Lg. MTD-710-0148
...
2
Hex TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
3
Hex TT-Tap Scr. 5/16-18 x .62" MTD-710-0604A
...
4
Hex Wash. Scr. #10-32 x .62" MTD-710-1237
...
5
Socket Head Scr. 5/16-18 x .62" MTD-710-1314A
...
6
Hex TT-Tap Scr. 3/8-16 x 1.25" MTD-710-1315
...
7
Hex Sems Scr. 1/4-20 Thd. MTD-712-0271
...
8
Gasket MTD-BS-692236
...
9
Hose Clamp MTD-726-0205
...
10
Clamp MTD-726-0272
...
11
Oil Drain Sleeve MTD-731-1682A
...
12
Lock Washer 5/16" I.D. MTD-936-0119
...
14
Cable Clamp (B&S) MTD-BS-690798
...
15
Fuel Line 12" Lg. MTD-751-10349-13
...
16
Muffler Deflector MTD-751-0564B
...
17
Single Inlet Muffler MTD-951-0617C
...
18
EXHAUST PIPE MTD-751-0619B
...
19
Muffler Brkt. MTD-783-0615E-0637
