White Outdoor 13AD616G190 FST-16 (1998)

Model: 13AD616G190 FST-16 (1998)

Back To Assemblies


product name

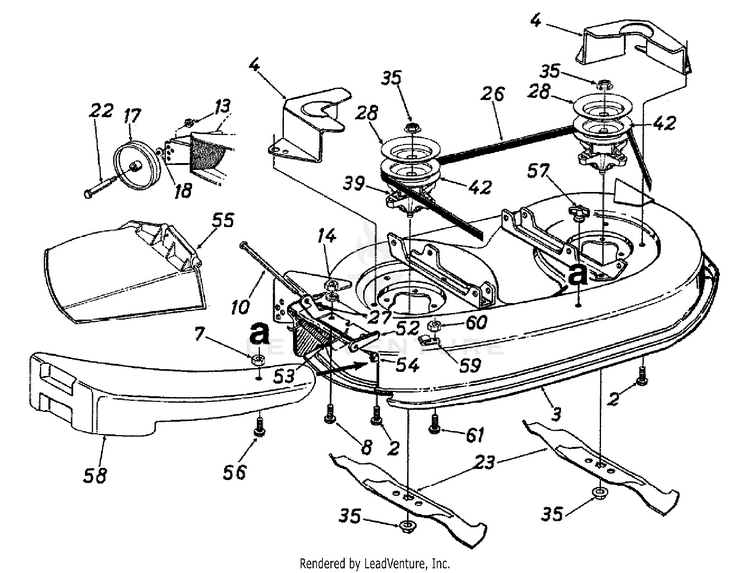

Deck And Blade Assembly

...
...
2
Hex Wash. Hd. TT-Tap Scr. 5/16-18 x .75" Lg. MTD-710-1260A

...
3
42" Deck Ass'y. *CHOOSE COLOR WHEN ORDERING* MTD-983-0141B

...
3
KIT-DECK 42" S (For Service Only) MTD-753-0698

...
4
Belt Guard Deck *CHOOSE COLOR WHEN ORDERING* MTD-783-0149B

...
7
Hex L-Nut 1/4-20 Thd. MTD-712-0291

...
8
SCREW 1/4-20 x .620 GR5 MTD-710-0751

...
10
Hinge Pin MTD-911-0792

...
13
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181

...
14

...
17
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265

...
18
Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105

...
22
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373

...
23
3 in 1 Blade MTD-942-0616A

...
26

...
27
SPRING WASHER BELL MTD-736-0270

...
28
BRAKE DISC BRACKET MTD-783-0342A

...
33
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157

...
35

...
37
L-Wash. 5/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0158

...
39
Blade Spindle Ass'y. Comp. (Incl. Ref. 28, 35, 42) MTD-918-0142C

...
42
PULLEY 5.75" DIA MTD-756-0980

...
52
Hinge Mtg. Brkt. MTD-703-1693A

...
53
Torsion Spring MTD-732-0602A

...
54
Push Nut MTD-926-0106

...
55
CHUTE ASSEMBLY (Incl. Ref.10, 52, 53, 54, 55) MTD-631-05229

...
56
SCREW 1/4-20 X1.00 GR5 MTD-710-0597

...
57
WING NUT 1/4-20 MTD-712-3087

...
58
GENUINE FACTORY PARTS® 38" & 42" Mulch Kit MTD-19A30057GFP

...
59
Retainer Hook Brkt. MTD-96606

...
60
Hex Sems Nut 1/4-20 Thd. MTD-712-0271

...
61
SCREW 1/4-20 x .620 GR5 MTD-710-0751
