White Outdoor 12C-999I190 LC-215 (2001) Self-Propelled Mower

Model: 12C-999I190 LC-215 (2001)

Save Part Not Listed?
product name

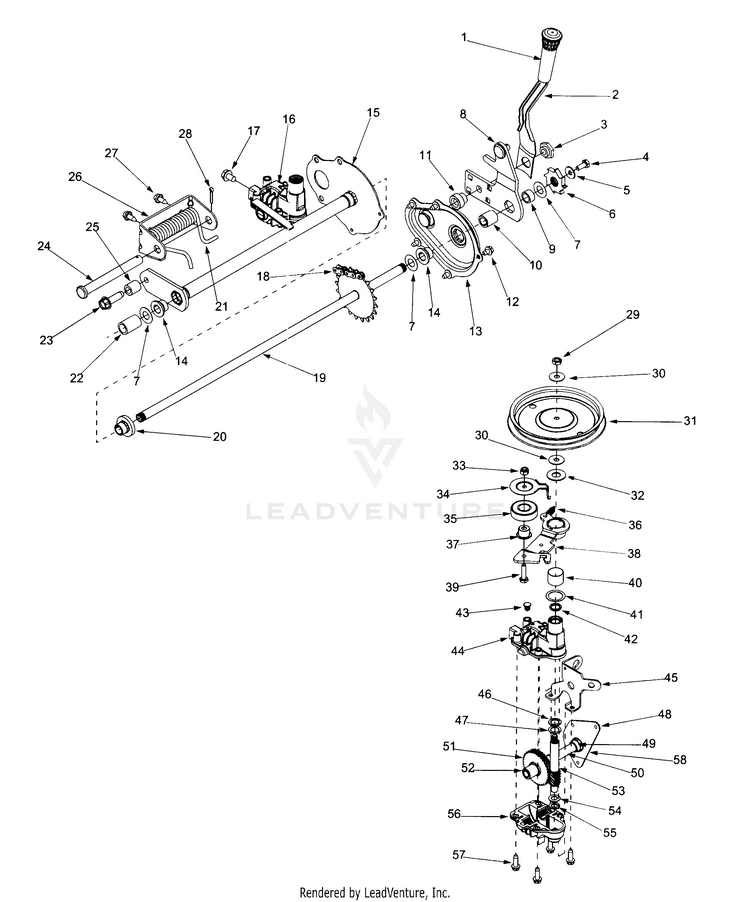

Drive & Transmission

...
...
1
Grip MTD-720-0223
...
2
SPRING LEVER MTD-732-0803A
...
3
Shoulder Nut .825 x .165 Lg. MTD-938-0529
...
4
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
5
SPRING WASHER BELL MTD-736-0270
...
6
Wheel Rachet MTD-948-0318
...
7
Fl-Wash. .50" I.D. x 1.0" O.D. MTD-736-0369
...
8
Pivot Arm Assembly MTD-682-0531-0637
...
9
Spacer .510 ID x .70 OD MTD-750-0515
...
10
Sleeve Bearing .504 ID x .830 OD MTD-741-0978
...
11
Shoulder MTD-950-1056
...
12
Tap Screw 1/4-20 x .375 MTD-710-0653
...
13
CHAIN COVER ASSEMBLY (POWDER BLACK) MTD-682-7528-0637
...
14
Flange Bearing .506 ID x .590 Lg MTD-741-0324A
...
15
Transmission Axle Assembly MTD-682-7526-0637
...
16
TRANSMISSION MTD-918-0263A
...
17
Hex Screw 5/16-18 MTD-710-0604A
...
18
Chain MTD-913-0453
...
19
Rear Axle Assembly MTD-938-0012A
...
20
Hex Flange Bearing MTD-741-0522
...
21
Torsion Spring MTD-732-0832
...
22
Spacer .550 ID x .750 OD MTD-950-0151
...
23
Screw 3/8-16 x .25 MTD-710-1315
...
24
Clevis Pin .50 Dia x 4.82 Lg. MTD-911-0835
...
25
Spacer .385 ID x .624 OD MTD-750-0807
...
26
LIFT BRACKET SPRING (POWDER BLACK) MTD-782-0568B-0637
...
27
Screw 1/4-14 x .825 MTD-710-1652
...
28
Cotter Pin MTD-914-0474
...
29
Hex Jam Nut 5/16-24 MTD-712-3025
...
30
Bell-Wash. .325" I.D. MTD-736-0425
...
31
Pulley MTD-756-0656
...
32
Flat Washer .510 ID x 1.120 OD MTD-736-3084
...
33
Hex Jam Nut 1/4-28 MTD-712-0896
...
34
Belt Keeper MTD-782-7598
...
35
Bearing MTD-941-0600
...
36
Extension Spring MTD-932-0849A
...
37
Flange Spacer MTD-750-1050
...
38
IDLER BRACKET ASSEMBLY MTD-982-0027A
...
39
Hex Cap Screw 1/4-28 x 1.0 MTD-710-0299
...
40
Bearing Sleeve MTD-741-0682A
...
41
FLAT WASHER MTD-936-0570
...
42
Oil Seal MTD-921-0329
...
43
Plug MTD-721-0325
...
44
UPPER HOUSING ASSEMBLY MTD-618-0253
...
45
CABLE GUARD BRACKET MTD-782-7601A-0637
...
46
Bearing MTD-741-0690
...
47
Thrust Washer .504 ID x .70 OD MTD-936-0616
...
48
Pivot Bracket MTD-782-7595
...
49
Flange Bearing MTD-741-0324A
...
50
OUTPUT SHAFT 6T MTD-711-1168
...
51
Gear 34T MTD-717-1469
...
52
BEARING MTD-941-0674
...
53
Pinion Shaft 10T MTD-917-1487
...
54
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
55
THRUST WASHER MTD-936-0569
...
56
LOWER HOUSING ASSEMBLY MTD-918-0252
...
57
Hex Screw 1/2-20 x .75 MTD-710-0642
...
58
OUTPUT SHAFT ASSEMBLY MTD-911-0066

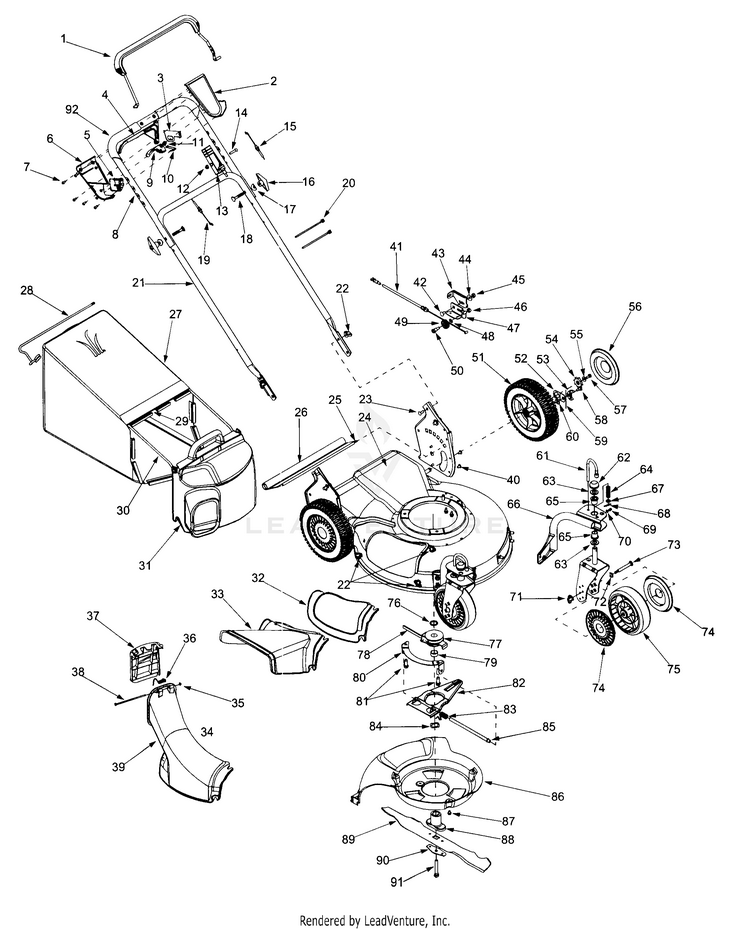

General Assembly

...
...
1
Std. Control Handle MTD-747-0824B-0637
...
2
HOUSING CONTROL KIT MTD-753-0717
...
3
6 Spd. Rack Cable Bracket MTD-16864
...
4
Control Lever MTD-731-0620A
...
5
HOUSING CONTROL KIT MTD-753-0717
...
6
HOUSING CONTROL KIT MTD-753-0717
...
7
C Sunk Tap Screw #10 x .75 Lg MTD-710-1667A
...
8
Upper Handle MTD-749-0439E-0637
...
9
6 SPEED SHIFT LEVER MTD-731-0924
...
10
Shift Lever Spring MTD-732-0627A
...
11
Gear Insert MTD-913-0397
...
12
Top Lock Nut 1/4-20 MTD-712-0324
...
13
Control Housing MTD-746-0883
...
14
SCREW 1/4-20 x 1.310 MTD-710-1270
...
15
Control Cable 46" MTD-946-1131
...
16
Wing Nut MTD-720-04072A
...
17
Saddle Wash. .32" I.D. MTD-736-0451
...
18
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
19
Drive Cable 51.0 MTD-946-0711B
...
20
Cable Tie MTD-725-0157
...
21
Lower Handle MTD-749-0907B
...
22
Wing Nut MTD-712-0397A
...
23
Carriage Bolt 1/4-20 x .75 MTD-710-0703
...
24
21" DECK (3N1) MTD-782-0046B
...
25
Trail Shield Wire MTD-732-0842
...
26
Trail Shield MTD-731-1901A
...
27
Grass Bag Assembly MTD-964-0076A
...
28
Support Rod w/ Rope Guide MTD-747-0940A-0637
...
29
Pivot Rod MTD-747-0939
...
30
Grassbag Frame MTD-747-0937-0637
...
31
Grassbag Cover MTD-631-0071
...
32
Mulch Cover MTD-931-1833A
...
33
DISCHARGE CHUTE 21" MTD-731-1832
...
34
Chute Assembly MTD-931-0066
...
35
PUSH NUT MTD-726-0111
...
36
Torsion Spring MTD-732-0819
...
37
Top Discharge Door Chute MTD-731-1874A
...
38
CHUTE DOOR PIVOT ROD MTD-747-0965
...
39
Discharge Chute MTD-931-0066
...
40
Screw 1/4-14 x .500 MTD-710-1348
...
41
6 Speed Cable MTD-946-0939A
...
42
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
43
CABLE ADJUSTMENT BRACKET MTD-782-7574A-0637
...
44
SPRING WASHER BELL MTD-736-0270
...
45
HEX NUT 1/4-20 MTD-912-0287
...
46
Hex Nut 1/4-28 Thd. MTD-712-0138
...
47
CABLE MOUNTING BRACKET MTD-782-7575B-0637
...
48
Lock Washer 1/4 MTD-936-0329
...
49
Roller Cable MTD-756-0625
...
50
Shoulder Screw .375 ID x 1/4-14 MTD-738-0924A
...
51
Wheel 9 x 2 MTD-734-2010B
...
52
Ratchet Pawl Plate MTD-16855
...
53
Pawl RH MTD-748-0381
...
53
PAWL - (LH) MTD-948-0188B
...
54
Wheel Rachet MTD-948-0318
...
55
SPRING WASHER BELL MTD-736-0270
...
56
Rear Hubcap MTD-731-0982C
...
57
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
58
Shld. Bolt .34" x 1/4 -20 Thd. MTD-738-0137A
...
59
Spring - Nylon MTD-10622B
...
60
Weld Top L-Nut 1/4-20 Thd. MTD-712-0414
...
61
Locking Pin MTD-747-0924
...
62
Push Cap MTD-726-0214
...
63
Flat Washer 5/8" ID x 1.0" OD MTD-736-0366
...
64
Compression Spring MTD-932-0306A
...
65
FLANGE BEARING .631 ID MTD-741-0685A
...
66
CASTER ASSEMBLY (RH) MTD-682-9020A
...
66
CASTER ASSEMBLY (LH) MTD-682-9021A
...
67
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
68
Hairpin Clip MTD-714-0104
...
69
Grease Fitting MTD-937-3000
...
70
Flat Washer .203 ID x .403 OD MTD-736-0931
...
71
Wing Nut 1/4-20 MTD-712-0397A
...
72
Wave Washer .53" I.D. MTD-736-0232
...
73
Caster Axle .374 Dia x 2.50" MTD-911-1146
...
74
Front Hubcap MTD-731-1888
...
75
Wheel 7 x 2 MTD-734-1857
...
76
Sleeve Spacer .88 ID x 1.13 OD MTD-950-1071
...
77
Sleeve Spacer .88 ID x 1.13 OD MTD-950-1071
...
78
Belt 3/8 x 39.24 MTD-954-0460
...
79
Sleeve Spacer .88 ID x 1.00 OD MTD-950-1070
...
80
Pivot Bracket MTD-782-7597
...
81
Screw 3/8-18 x 1.0 MTD-710-0654A
...
82
CONTROL ARM 6 SPEED MTD-782-7596A
...
83
TORSION SPRING (LH) MTD-932-0807
...
84
Wave Wash. 1.38 x .88 x .029 MTD-736-0526
...
85
Pivot Shaft MTD-711-1114
...
86
Baffle MTD-731-08190A
...
87
Screw 1/4-20 x 3.75 MTD-710-0653
...
88
Blade Adapter Kit MTD-753-0609
...
89
21" Mulching Blade MTD-942-0741A
...
90
BLADE BELL SUPPORT MTD-736-0524B-1
...
91
Hex Bolt 3/8-24 x 2.5 MTD-710-1257
...
92
FOAM GRIP - 9" MTD-720-0294A
