White Outdoor 12A-969D190 LC-215 (1998)

Model: 12A-969D190 LC-215 (1998)

Save Part Not Listed?
product name

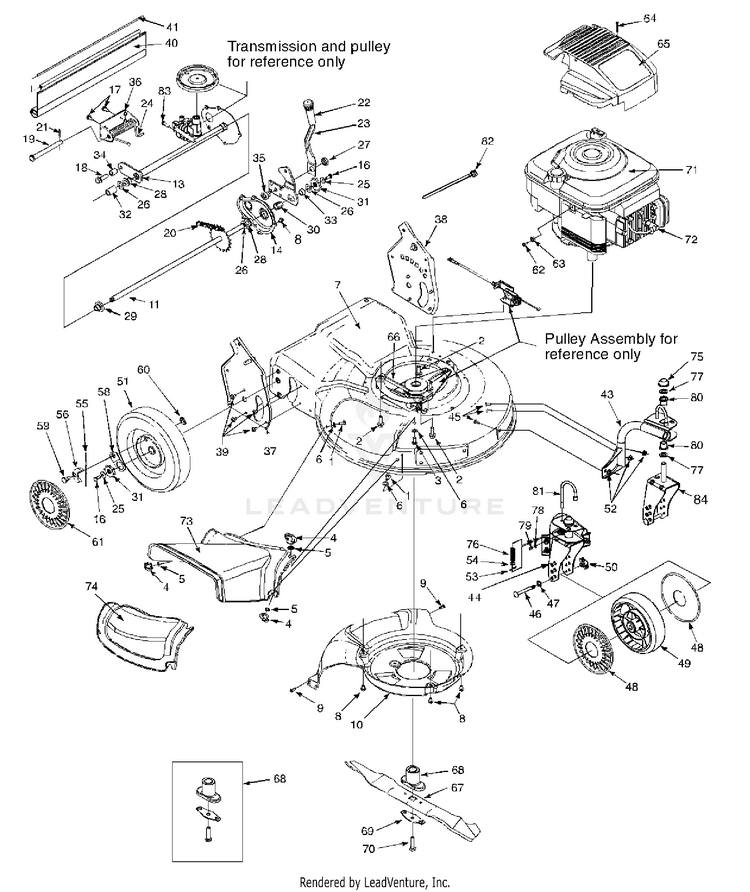

Engine And Axle Assembly

...
...
1
Scr. Carr. 1/4-20 x .62 MTD-710-0134
...
2
Scr. TT:3/8-18:1.00 MTD-710-0654A
...
3
Scr. 1/4-20 x .750 MTD-710-0703
...
4
Wing Nut 1/4-20 MTD-712-0397A
...
5
Nut, Push .25 I.D. x .50 O.D. MTD-726-0233
...
6
Wash. Fl. .334 I.D. x .62 x .03 MTD-736-0204
...
7
21" DECK (3N1) MTD-782-0046B
...
8
Scr. TT. 1/4-20 x .375 MTD-710-0653
...
9
Scr. Truss Machine TT MTD-710-0969
...
10
Baffle MTD-731-08190A
...
11
Rear Axle Assembly MTD-938-0012A
...
12
Pivot Arm Ass'y MTD-782-0566B-0637
...
13
Trans. Axle Ass'y MTD-682-7526-0637
...
14
CHAIN COVER ASSEMBLY (POWDER BLACK) MTD-682-7528-0637
...
16
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
17
Scr. AB 1/4-14 x .825 MTD-710-0896
...
18
Scr. 3/8 116 x .25 MTD-710-1315
...
19
Clevis Pin .50 Dia. x 4.82 MTD-911-0835
...
20
Chain-Endls. MTD-913-0453
...
21
Cotter Pin .125 O.D. x .75 MTD-914-0474
...
22
Grip MTD-720-0223
...
23
SPRING LEVER MTD-732-0803A
...
24
Torsion Spring MTD-732-0832
...
25
SPRING WASHER BELL MTD-736-0270
...
26
Fl-Wash. .50" I.D. x 1.0" O.D. MTD-736-0369
...
27
Nut Shld. .825 Dia. x .165 MTD-938-0529
...
28
Hx . Flg. Brg. .506 I.D. x .590 MTD-741-0324A
...
29
Hex Flange Bearing MTD-741-0522
...
30
Hx . Slv. Brg. .504 I.D. x .830 MTD-741-0978
...
31
Wheel Rachet MTD-948-0318
...
32
Spa. .550 I.D. x /750 O.D. MTD-950-0151
...
33
Spa. .51 .D. x .70 O.D. x 38 MTD-750-0515
...
34
Spa. .385 x .624 x .700 MTD-750-0807
...
35
Shld. Spa. .385 I.D. X .715 MTD-950-1056
...
36
LIFT BRACKET SPRING (POWDER BLACK) MTD-782-0568B-0637
...
37
HANDLE BRACKET (RH) MTD-682-3052
...
38
HANDLE BRACKET (LH) MTD-682-3053
...
39
Scr. AB 1/4-14 x .500 MTD-710-1348
...
40
Trail Shield MTD-731-1901A
...
41
Trail Shield Wire MTD-732-0842
...
43
CASTER ASSEMBLY (RH) MTD-682-9020A
...
43
CASTER ASSEMBLY (LH) MTD-682-9021A
...
44
Brkt. Ass'y, Wheel Caster RH MTD-682-9024
...
45
Carr. Bolt 5/16-18 x .62 MTD-710-0260A
...
46
Caster Axle .374 Dia. x 2.50" MTD-911-1146
...
47
Wave Washer .53" I.D. MTD-736-0232
...
48
Hub Cap Whole Gray MTD-731-1887
...
49
Wheel 7 x 2, Caster Black MTD-734-1857
...
50
Wing Nut 1/4-20 Thd. MTD-712-0397A
...
51
Wheel 9 x 2 Link Gray MTD-734-1981A
...
52
HEX FLANGE NUT MTD-712-3004A
...
53
Hairpin Clip MTD-714-0104
...
54
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
55
Spring - Nylon MTD-10622B
...
56
Pawl - R.H. MTD-748-0381
...
56
PAWL - (LH) MTD-948-0188B
...
58
Ratchet Pawl Plate MTD-16855
...
59
Shld. Bolt .34" x 1/4 -20 Thd. MTD-738-0137A
...
60
Weld Top L-Nut 1/4-20 Thd. MTD-712-0414
...
61
Hubcap - Gray MTD-731-0981C
...
62
Screw .620 Hx . Slt. Wsh. MTD-710-1237
...
63
Cable Clamp (B&S) MTD-BS-690798
...
64
Scr. Hi-Lo #10 x 1.25 MTD-710-1256
...
65
SHROUD MTD-751B281451
...
66
Belt MTD-954-0460
...
67
21" Mulching Blade MTD-942-0741A
...
68
Blade Adapter Kit MTD-753-0609
...
69
BLADE BELL SUPPORT MTD-736-0524B-1
...
70
Hex Bolt 3/8-24 x 2.5" Lg. MTD-710-1257
...
71
Engine MTD-NA
...
72
INSULATOR-SPARK PLUG MTD-735-0639
...
73
DISCHARGE CHUTE 21" MTD-731-1832
...
74
Mulch Cover MTD-931-1833A
...
75
Push Cap MTD-726-0214
...
76
Compression Spring MTD-932-0306A
...
77
Fl. Wash. 5/8 O.D. x 1" O.D. MTD-736-0366
...
78
Fl. Wash. .203 I.D. x .403 MTD-736-0931
...
79
Fitting - Lube MTD-937-3000
...
80
FLANGE BEARING .631 ID MTD-741-0685A
...
81
Lock Pin: Front Wheel MTD-747-0924
...
82
Cable Tie MTD-725-0157
...
83
Hex Scr. 5/16-18 MTD-710-0604A
...
84
LH CASTER BRACKET MTD-682-9026A

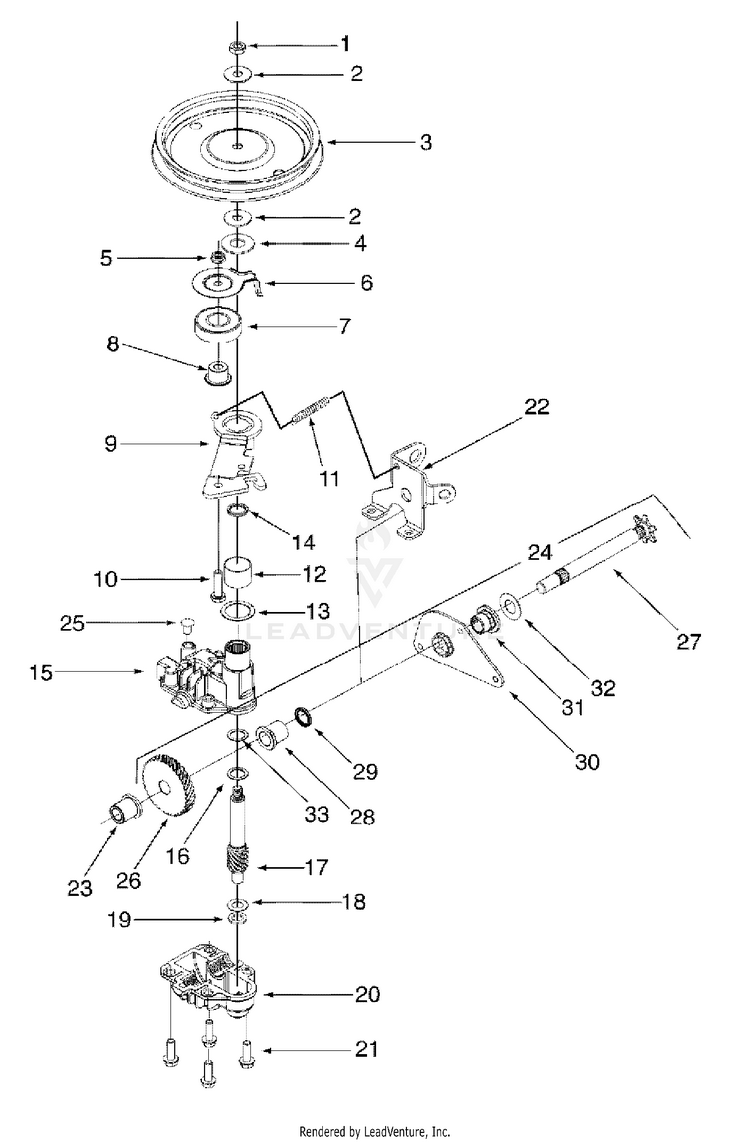

Pulley And Shaft Assembly

...
...
1
Hx . Jam Nut 5/16-24 MTD-712-3025
...
2
Bell-Wash. .325" I.D. MTD-736-0425
...
3
Pulley MTD-756-0656
...
4
Fl. Wash. .510 x 1.120 x .060 MTD-736-3084
...
5
Hx . Jam Nut 1/4-28 MTD-712-0896
...
6
Belt Keeper MTD-782-7598
...
7
Bearing MTD-941-0600
...
8
Flange Spacer MTD-750-1050
...
9
IDLER BRACKET ASSEMBLY MTD-982-0027A
...
10
Hx . Cap Scr. 1/4-28 x 1.00 Gr. 5 MTD-710-0299
...
11
Extension Spring MTD-932-0849A
...
12
Bearing Sleeve MTD-741-0682A
...
13
FLAT WASHER MTD-936-0570
...
14
Oil Seal MTD-921-0329
...
15
UPPER HOUSING ASSEMBLY MTD-618-0253
...
16
Thrust Wash. .504 x .700 x .030 MTD-936-0616
...
17
Pinion Shaft 10T. MTD-917-1487
...
18
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
19
THRUST WASHER MTD-936-0569
...
20
LOWER HOUSING ASSEMBLY MTD-918-0252
...
21
Hx . Scr. 1/2-20 x .75 MTD-710-0642
...
22
CABLE GUARD BRACKET MTD-782-7601A-0637
...
23
BEARING MTD-941-0674
...
24
OUTPUT SHAFT ASSEMBLY MTD-911-0066
...
25
Plug MTD-721-0325
...
26
Gear 34T. MTD-717-1469
...
27
OUTPUT SHAFT 6T MTD-711-1168
...
28
FLANGE BEARING MTD-741-0672
...
29
Oil Seal MTD-921-0329
...
30
Pivot Bracket MTD-782-7595
...
31
Flange Bearing MTD-741-0324A
...
32
Fl-Wash. .50" I.D. x 1.0" O.D. MTD-736-0369
...
33
Bearing MTD-741-0690

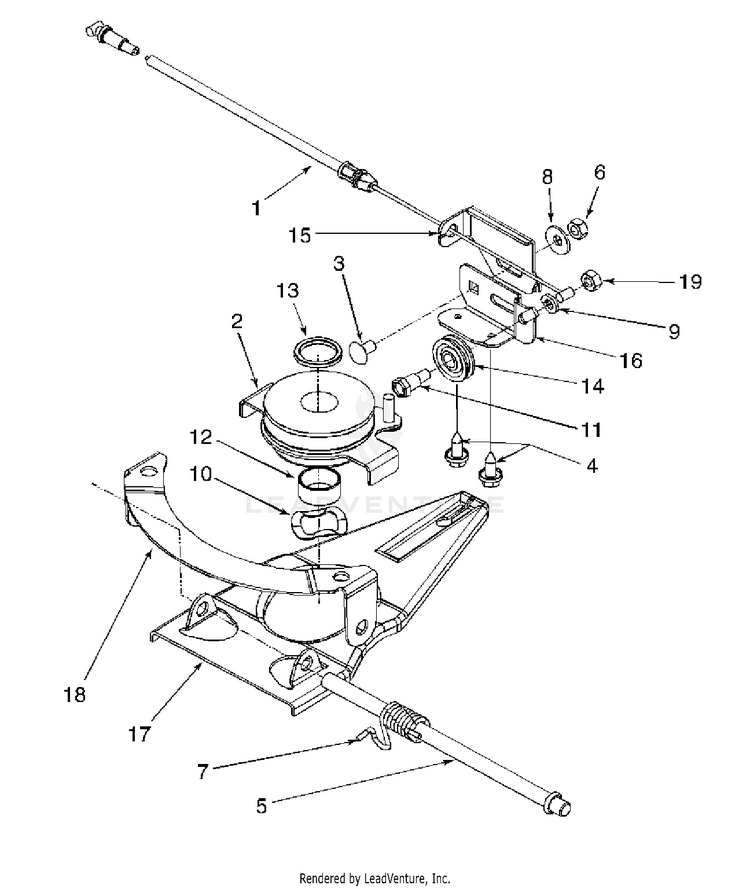

Pulley Assembly

...
...
1
6 Spd. Cable MTD-946-0939A
...
2
Pulley Ass'y Mult - Spd. MTD-956-0613A
...
3
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
4
Scr. AB 1/4-14 x .625 Hex hd. Wsh. MTD-710-0896
...
5
Pivot Shaft MTD-711-1114
...
6
HEX NUT 1/4-20 MTD-912-0287
...
7
TORSION SPRING (LH) MTD-932-0807
...
8
SPRING WASHER BELL MTD-736-0270
...
9
Lock Wash. 1/4 Reg Duty MTD-936-0329
...
10
Wave Wash. 1.38 x .88 x .029 MTD-736-0526
...
11
Shld.Scr. .375 x 1/4 - 14AB MTD-738-0924A
...
12
Slev Spcr. .88 ID 1.00 OD x .48 MTD-950-1070
...
13
Slev Spcr .88 ID x 1.13 ID x .12 MTD-950-1071
...
14
Roller Cable MTD-756-0625
...
15
CABLE ADJUSTMENT BRACKET MTD-782-7574A-0637
...
16
CABLE MOUNTING BRACKET MTD-782-7575-0637
...
17
CONTROL ARM 6 SPEED MTD-782-7596A
...
18
6 Sp. Pivot Bracket MTD-782-7597
...
19
Hex Nut 1/4-28 Thd. MTD-712-0138

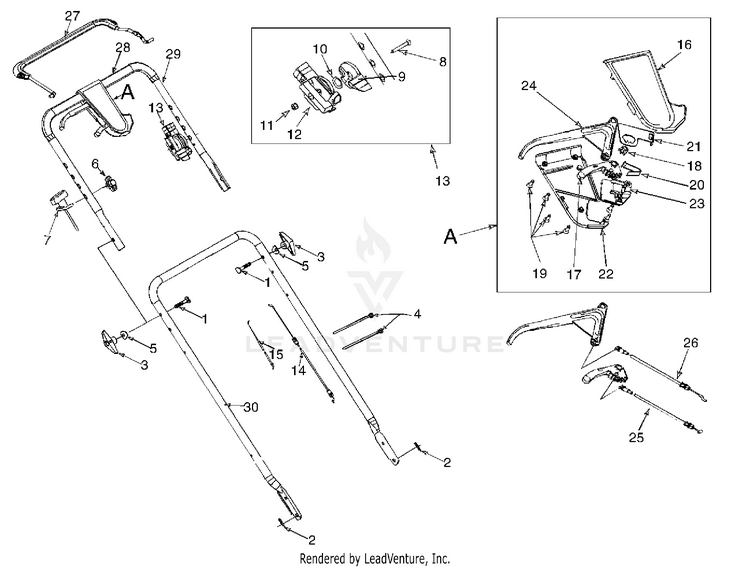

Upper And Lower Handle Assembly

...
...
1
Bolt Curv. Carr. 5/16-18 x 2.0 MTD-710-1174
...
2
Hairpin Clip MTD-714-0104
...
3
Knob Assembly MTD-720-04072A
...
4
Cable Tie MTD-725-0157
...
5
Saddle Wash. .32" I.D. MTD-736-0451
...
6
Knob Handle ERS - 1/4-20 MTD-720-0279
...
7
Rope Guide Eyebolt MTD-710-1205
...
8
Screw 1/4-20 x 1.81 MTD-710-0605
...
9
Throttle Lever MTD-946-0876
...
10
Spring Wash. Curved MTD-936-0501
...
11
Nut 1/4-20 Top lock Nut Insert MTD-712-0324
...
12
Housing, Throttle MTD-946-0875
...
13
Throttle Control (Includes references 8 -12) MTD-811-0185
...
14
Control Cable 47" Lg. MTD-946-0557
...
15
Cable, Throttle 60" Lg. MTD-946-0674A
...
16
HOUSING CONTROL KIT MTD-753-0717
...
17
6 SPEED SHIFT LEVER MTD-731-0924
...
18
Gear Insert MTD-913-0397
...
19
C Sunk Tap Scr #10 x .75 L MTD-710-0841
...
20
Shift Lever Spring MTD-732-0627A
...
21
6 Spd. Rack Cable Brkt. MTD-16864
...
22
HOUSING CONTROL KIT MTD-753-0717
...
23
HOUSING CONTROL KIT MTD-753-0717
...
24
Control Lever MTD-731-0620A
...
25
6 Spd. Cable MTD-946-0939A
...
26
S.P. Cable MTD-946-0710A
...
27
Std. Control Handle MTD-747-0824B-0637
...
28
FOAM GRIP - 9" 2 Req'd. MTD-720-0294A
...
29
UPPER HANDLE MTD-749-0438D-0637
...
30
Lower Handle MTD-749-0907B
