White Outdoor 12A-568N190 HW-456 (1998)

Model: 12A-568N190 HW-456 (1998)

Save Part Not Listed?
product name

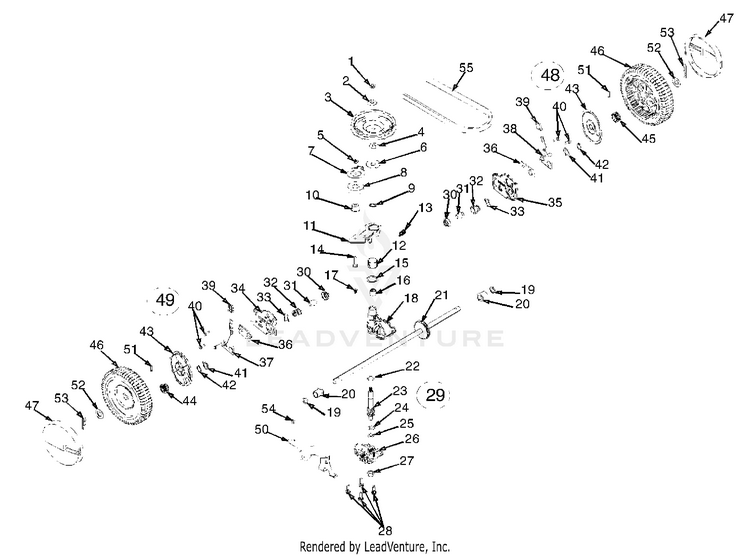

Belts And Pulleys

...
...
1
Hex Jam Nut 5/16-24 MTD-712-3025
...
2
Bell-Wash. .325" I.D. MTD-736-0425
...
3
INPUT PULLEY ASSEMBLY (3.82X .313X .68) MTD-656-0047
...
4
Bell-Wash. .325" I.D. MTD-736-0425
...
5
Hex Nut 1/4 - 28 Lock MTD-712-0896
...
6
Flat Wash .442 x 1.38 x .060 MTD-936-0406
...
7
Belt Keeper MTD-782-7598
...
8
Ball Bearing MTD-941-0600
...
9
SEAL OIL MTD-721-0457
...
10
Flange Spacer MTD-750-1050
...
11
FRONT IDLER ASSEMBLY MTD-682-0029
...
12
Bearing Sleeve MTD-741-0682A
...
13
Wash:Flat: .504 x .700 x .030 MTD-932-0849A
...
14
Hex Cap Screw 1/4-28 x 1.00 Gr. 5 MTD-710-0299
...
15
FLAT WASHER MTD-936-0570
...
16
NEEDLE BEARING MTD-741-0699
...
17
Plug 1/4 x .437 MTD-721-0325
...
18
UPPER HOUSING ASSEMBLY (Incl. #16) MTD-618-0300A
...
19
Seal:Oil: .500 x .687 x .094 MTD-921-0329
...
20
Flange Bearing .503 x .689 x .792 MTD-941-0673
...
21
OUTPUT SHAFT ASSEMBLY MTD-611-0105A
...
22
Flat Washer .504 x .700 x .030 MTD-936-0520
...
23
SHAFT PINION 10T MTD-717-1492
...
24
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
25
THRUST WASHER MTD-936-0569
...
26
HOUSING ASSEMBLY-LOWER NLA MTD-618-0299
...
27
FLANGE BEARING MTD-741-0672
...
28
SCREW 1/4-20 x .750 MTD-710-1276
...
29
TRANSMISSION ASSEMBLY (Incl. 1 thru 30) MTD-918-0298A
...
30
BEARING RETAINER MTD-732-0708
...
31
Bearing Sleeve .50 I.D. MTD-741-0604A
...
32
SUPPORT BEARING MTD-748-0355
...
33
Wave Washer MTD-736-0447
...
34
Height Adj. Plate: RH MTD-782-0512B-0637
...
35
HEIGHT ADJUSTMENT PLATE (LH) MTD-782-0511A-0637
...
36
HEIGHT ADJ. PIVOT PLATE ASS'Y. NLA MTD-682-0509
...
37
Front Lever R.H MTD-732-0706
...
38
Front Lever L.H. MTD-732-0707
...
39
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
40
Hex Cap Screw 3/8-16 x .75 MTD-710-0216
...
41
Washer DD 1.5" O.D. MTD-736-0474
...
42
Snap Ring MTD-716-0102
...
43
Wheel Dust Cap MTD-782-7551A
...
44
SPUR GEAR 14T (RH) MTD-717-1534
...
45
Gear 14T LH Fwd MTD-717-1533
...
46
Whl:Compl: 8 x 2 Link Grey Fwd MTD-734-04223A
...
47
Hubcap:Whl: Radial Spoke Grey MTD-731-0981C
...
48
Height Adj. Complete RH MTD-987-02194A
...
49
Height Adjustment Ass’y - LH MTD-987-02193A
...
50
IDLER CABLE BRACKET MTD-682-0030
...
51
Dowel Pin MTD-915-0221
...
52
Fl-Wash. .531" I.D. x 1" O.D. MTD-736-3013
...
53
Hairpin Cotter MTD-714-0101
...
54
SHOULDER SCREW .375X.25AB1/4-20 MTD-738-1002
...
55
V - Belt MTD-954-04032B

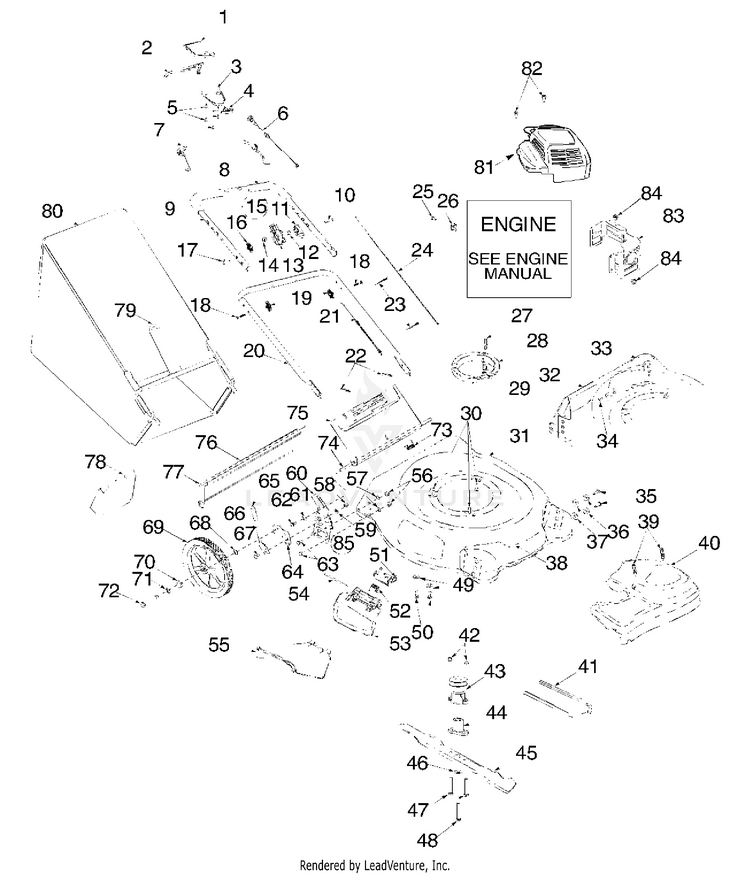

Deck, Handle And Bag Assembly

...
...
1
Upper Drive Cover MTD-753-0833
...
2
Drive Lever MTD-731-0620A
...
3
Lower Drive Cover MTD-753-0833
...
4
Mounting Cap MTD-753-0833
...
5
Screw #10-12: .75 MTD-710-0841
...
6
Drive Cable MTD-946-0960
...
7
Std. Control Handle MTD-747-0824B-0637
...
8
FOAM GRIP - 9" MTD-720-0294A
...
9
Upper Handle MTD-749-0439E-0637
...
10
Screw Oval C-Sunk 1/4-20 x 1.81 MTD-710-0605
...
11
Throttle Lever MTD-946-0876
...
12
Curved Washer .663 x .980 x .014 MTD-936-0501
...
13
Throttle Hsg. MTD-946-0875
...
14
Hex Lock Nut 1/4-20 Thd. MTD-712-0324
...
15
Throttle Comp. (Inc. Ref. 10, 11, 12, 13, 14) MTD-811-0185
...
16
Knob MTD-720-0279
...
17
Eye Bolt 1/4-20 MTD-710-1205
...
18
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
19
Knob MTD-920-0276
...
20
Lower Handle MTD-749-0907B
...
21
Throttle Cable: 55" B&S MTD-946-0671A
...
22
Hairpin Clip MTD-714-0104
...
23
Cable Tie MTD-725-0157
...
24
Control Cable: 39" B&S MTD-946-0550
...
25
Hex Screw: T: #10-32 x .625 MTD-710-1237
...
26
Cable Clamp (B&S) MTD-BS-690798
...
27
Pin-Belt Keeper MTD-711-1293
...
28
ENGINE SPACER ASSEMBLY MTD-631-0075B
...
29
Hex Nut 1/4-20 Thread MTD-712-0271
...
30
Tapp Screw w/Hex Lock Wash MTD-710-1008
...
31
21" RD DECK NLA MTD-782-0082-0662
...
32
Rear Baffle Right MTD-782-5004B
...
33
Rear Baffle Left MTD-782-5003A
...
34
Scr:AB:1/4-14: .625:Trustrx MTD-710-1017
...
35
Hex Screw 3/8-16 x .75 MTD-710-0216
...
36
Bell Wash .39 x 1.13 x .062 MTD-736-0331
...
37
Hex Nut 3/8-16 MTD-712-0798
...
38
FRONT BAFFLE MTD-782P5002B
...
39
Screw #12 x .457 MTD-710-1650
...
40
TRANSMISSION COVER MTD-731-2101A
...
41
V Belt MTD-954-04032B
...
42
Hex Nut 1/4-20 MTD-712-0324
...
43
Drive Pulley MTD-756-1146A
...
44
Blade Adapter Kit (Inc. Ref. 42, 46, 47, 48) MTD-753-05151
...
45
21" Mulching Blade MTD-942-0741A
...
46
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
47
Hex Screw 1/4-20 x 1.50 MTD-710-0606
...
48
Hex Screw 3/8-24 x 2.50 MTD-710-1257
...
49
SPRING WASHER BELL MTD-736-0270
...
50
Tapp Screw 1/4-20 x .500 MTD-710-0599
...
51
MOUNTING BRACKET MTD-782-7006
...
52
Torsion Spring .290 ID x 1.95 MTD-932-0731
...
53
MULCH PLUG ASSEMBLY MTD-682-7000
...
54
Hinge Pin MTD-747-0710A
...
55
Chute Deflector MTD-731-1409B
...
56
Hex Nut 3/8-16 MTD-712-0798
...
57
BELL WASHER MTD-936-0356
...
58
Hex Flange Lock Nut 3/8-16 MTD-712-3005
...
59
BELL WASHER MTD-936-0356
...
60
Handle Bracket Ass'y RH MTD-682-3056A
...
60
Handle Bracket Ass'y LH MTD-753-05922
...
61
SPRING WASHER BELL MTD-736-0270
...
62
Hex Screw TT 1/4-20 x .500 MTD-710-0599
...
63
Hex Screw w/wash 1/4-14 x .625 MTD-710-0896
...
64
Pivot Bar RH MTD-17488A
...
64
Pivot Bar LH MTD-17489A
...
65
Foam Grip MTD-720-0312
...
66
HEIGHT ADJUSTMENT LEVER MTD-732-0866
...
67
Shoulder Bolt .50" Dia. MTD-738-0507B
...
68
Wash. .401 x .870 x .063 MTD-736-0105
...
69
Wheel Complete 14 x 2 Gray MTD-734-1861
...
69
Bearing N/I. (2 per Wheel - Incl. w/No. 64) MTD-941-0484
...
70
Spring Washer .50 ID x 1.0 OD MTD-736-0182
...
71
FLAT WASHER MTD-936-0456
...
72
Shldr Screw .500 x 2.62 3/8-16 MTD-938-0481A
...
73
Torsion Spring MTD-932-0809
...
74
Pivot Rod MTD-747-0996
...
75
GRASSBAG DOOR MTD-782-7599B-0637
...
76
Rear Flap MTD-731-04998
...
77
TRAILSHIELD WIRE MTD-732P0700
...
78
Mulcher Plug MTD-782-5007C
...
79
Catcher Frame MTD-747-0995A-0637
...
80
Grassbag Asm 21" RD w/Logo Red MTD-964-0084
...
81
SHROUD MTD-751B281451
...
82
Screw 8-18 x 1.25 MTD-710-1256
...
83
MUFFLER GUARD NLA MTD-782-9017
...
84
Hex Screw B #10-16 x .375 MTD-710-1268
...
85
Complete Brkt Asm: RH w/Adjuster MTD-753-05922
...
85
Complete Brkt Asm: LH w/Adjuster MTD-753-05922

Label Chart

...
...
xx
Danger - Cut Finger MTD-977S30145
...
xx
Safety Label - Straight NLA MTD-777-3800A
...
xx
LABEL-MOWER WARNING MTD-777S30108
...
xx
LABEL-DECK WARNING MTD-977S30128
...
xx
LABEL-THROTTLE LTB MTD-777I20287
...
xx
WOP Hub Cap w/Icon Label NLA MTD-777D00299
...
xx
WOP HW456 Top Shroud NLA MTD-777D01161
...
xx
WOP Front Trans. Cover NLA MTD-777D01459
