White Outdoor 129-222R190 Lawn Boss 22 (1989)

Model: 129-222R190 Lawn Boss 22 (1989)

Save Part Not Listed?
product name

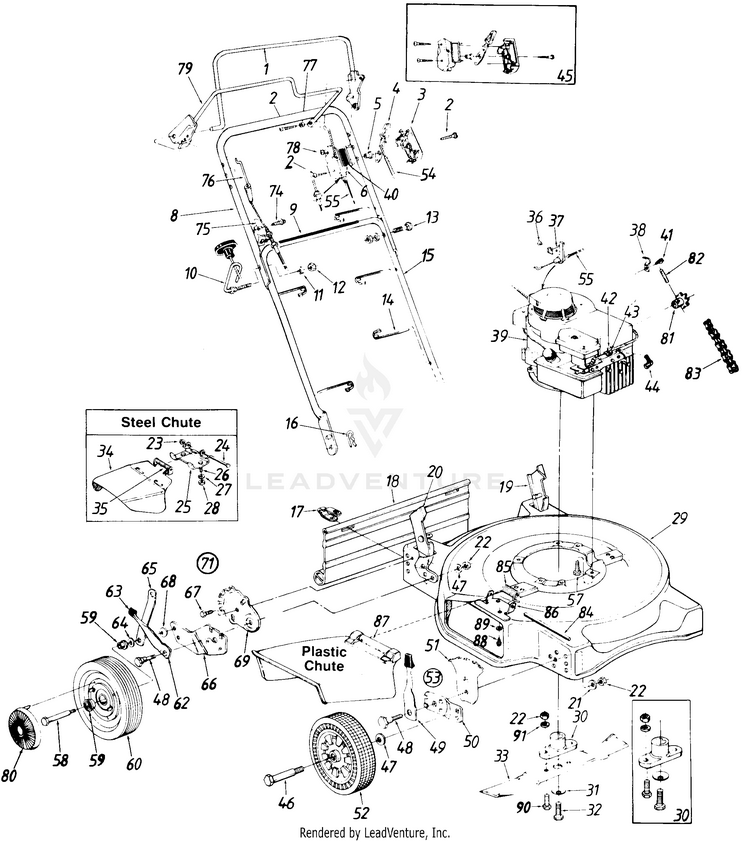

Body Assembly

...
...
1
CONTROL HANDIE ASS'Y.-L.H. NLA MTD-14321
...
2
Truss Mach. Scr. #12 x 1.5" MTD-710-0796
...
3
PANEL HALF-CONTROL MTD-731-0817A
...
4
Throttle Control Lever MTD-931-0972
...
5
CONROL DISC PIN NLA MTD-731-0524
...
6
CIUTCH PANEL HALF NLA MTD-731-0816
...
8
UPPER HANDLE MTD-749-0756A
...
9
LABEL NLA MTD-777-5776
...
10
SCREW-RECOIL HANDLE GUIDE NLA MTD-710-0842B
...
11
L-Wash. 5/16" I.D. MTD-936-0119
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671
...
14
Cable Tie MTD-725-0157
...
15
Lower Handle MTD-749-0928A-0637
...
16
Hairpin Clip MTD-714-0104
...
17
HINGE CLIP MTD-17098P
...
18
Rear Flap MTD-731-0872B
...
19
BRACKET ASSEMBLY-HNDL (LH) PWDR BLK MTD-17189B-0637
...
20
BRACKET ASSEMBLY-HNDL (RH) PWDR BLK MTD-17188B-0637
...
21
BELL WASHER MTD-936-0356
...
22
Hex Nut 3/8-16 Thd. MTD-712-0798
...
23
Push Cap 1/4" Rodt MTD-926-0106
...
24
PIVOT PIN NLA MTD-711-0555
...
25
ADAPTER PLATE NLA MTD-11130
...
26
Hex Bolt 1/4-20 x .50" Lg.t MTD-910-0289
...
27
L-Wash. 1/4" I.D.t MTD-936-0329
...
28
HEX NUT 1/4-20 MTD-912-0287
...
29
DECK ASSEMBLY-22IN MTD-97046
...
30
Blade Adapter Kit MTD-753-0484
...
31
Blade Bell-Wash. .39" I.D. x 1.12" MTD-736-0331
...
32
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044
...
33
22" BLADE MTD-942-0622
...
34
CHUTE DEFLECTOR MTD-931-1034B
...
35
TORSION SPRING NLA MTD-732-0253
...
36
RIVET MTD-728-0171
...
37
BRACKET-CA NLA MTD-14924
...
38
CASING CLAMP NLA MTD-12894A
...
39
Engine MTD-NA
...
40
LABEL - THROTTLE CONTROL NLA MTD-777-5773
...
41
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
42
CLAMP-CONDUIT NLA MTD-751-0369
...
43
Hex AB-Tap Scr. #8 x 38" Lg. MTD-710-0227
...
44
INSULATOR-SPARK PLUG MTD-735-0639
...
45
CONTROL HOUSING COMP. NLA MTD-753-0430
...
46
SCREW 3/8-16X1.875 GR2 NLA MTD-710-1020
...
47
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
48
Shoulder Bolt .50" Dia. MTD-738-0507B
...
49
Spring Lever Ass'y. w/Knob MTD-94832
...
50
Pivot Bar MTD-15262B
...
51
Height Adj. Plate MTD-787-01290A
...
52
Wheel Ass'y. Comp. MTD-NA
...
53
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
53
Height Adj. Ass'y. Comp.-L.F. MTD-753-06761
...
54
Throttle Wire-53" MTD-946-0671A
...
55
THROTTLE CABLE MTD-946-0476A
...
57
Hex L-Wash. HD. Bolt 3/8-16 x 1.0" Lg. MTD-710-0654A
...
58
SHOULDER SCREW .498 DIA x 1.640 MTD-938-0144
...
59
BALL BEARING MTD-941-0180
...
60
WHEEL ASSEMBLY W/TIRE 8 x 1.75 NLA MTD-734-1419
...
62
SPRING LEVER MTD-732-0417A
...
63
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
64
Fl-Wash. .531" I.D. x .93" MTD-936-0192
...
65
LINK 4.58" LG. NLA MTD-14760A
...
66
BAR-PIVOT (RH) *ON MTD-14765
...
66
BAR-PIVOT (LH) *ON (Not Shown) MTD-14766
...
67
HEX SCREW L-WASH HD MTD-910-0892
...
68
Bell-Wash. .380" l.D. x .88" MTD-736-0105
...
69
Index Plate MTD-14764C
...
71
ADJUSTER-H NLA MTD-16106
...
71
ADJUSTER-H NLA (Not Shown) MTD-16107
...
74
Hex Wash. AB-Tap Scr. 5/16 x.75" Lg. MTD-710-0726
...
75
CABLE BRACKET MOUNTING MTD-16309A
...
76
CLUTCH CABLE 36 GREEN MTD-946-0628
...
77
SPACER NLA MTD-750-0649
...
78
SPRING WASHER NLA MTD-736-0370
...
79
HANDLE ASSEMBLY NLA MTD-16391
...
80
HUB CAP-GRAY NLA MTD-731-0355A
...
81
SPROCKET-10T MTD-713-0308
...
82
SPRING PIN 3/16 x 1.00 MTD-915-0247
...
83
#48 CHAIN 1/2 PITCH x 50 LINKS MTD-913-0311
...
84
Hinge Pin MTD-747-0710A
...
85
Torsion Spring MTD-932-0593
...
86
PLATE-ADAPTER MTD-17032A
...
87
CHUTE DEFLECTOR MTD-931-1034B
...
88
Hex Self-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
89
SPRING WASHER BELL MTD-736-0270
...
90
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
91
L-Wash. 3/8" I.D. MTD-736-0169

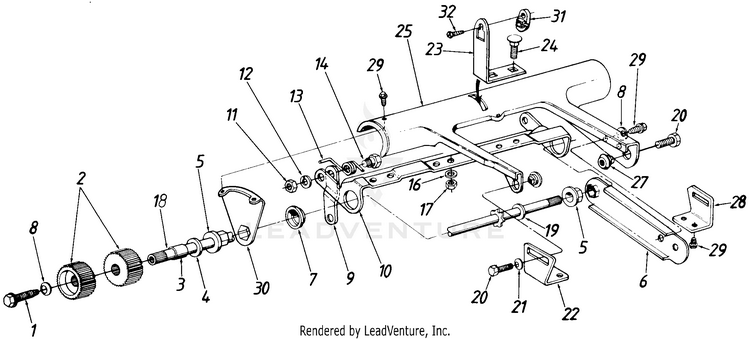

Rear Pinion Assembly

...
...
1
Hex Wash. Hd. Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
2
DRIVE PINION NLA MTD-717-0623
...
3
SLEEVE MTD-911-0500
...
4
Fl-Wash. .51" I.D. x .75" O.D. MTD-936-0108
...
5
Hex Flange Brg. .504" I.D. MTD-741-0503
...
6
SUPPORT-BEARING NLA MTD-17018
...
7
FLANGE BEARING NLA MTD-741-0504
...
8
SPRING WASHER BELL MTD-736-0270
...
9
LINK 4.58" LG. NLA MTD-14760A
...
10
DRIVE ENGAGEMENT CAM NLA MTD-16832
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
L-Wash. 5/16" I.D. MTD-936-0119
...
13
TORSION SPRING (RH) MTD-732-0569A
...
13
TORSION SPRING (LH) (Not Shown) MTD-732-0570A
...
14
Shoulder Bolt .437" Dia. MTD-738-0754
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
HEX NUT 1/4-20 MTD-912-0287
...
18
DRIVE SHAFT ASSEMBLY NLA MTD-738-0732
...
19
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
20
SCREW 5/16-18 x .625 GR5 MTD-710-0759
...
21
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
22
PIVOT BRACKET (RH) NLA MTD-16531A
...
23
ARM-ENGAGEMENT NLA MTD-16756
...
24
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
25
COVER-PINION PIVOT NLA MTD-17019
...
27
NUT-SHLD NLA MTD-738-0739
...
28
PIVOT BRACKET (LH) NLA MTD-14759A
...
29
HEX SCREW L-WASH HD MTD-910-0892
...
30
BRACKET-AXLE BEARI NLA MTD-17017
...
31
HOLD DOWN-BARREL (RH) MTD-746-0606
...
32
Hex B-Tap Scr. #10 x .44" MTD-710-0919
