White Outdoor 125-148N190 21" Lawn Boss LC-148N (1995)

Model: 125-148N190 21"" Lawn Boss LC-148N (1995)

Save Part Not Listed?
product name

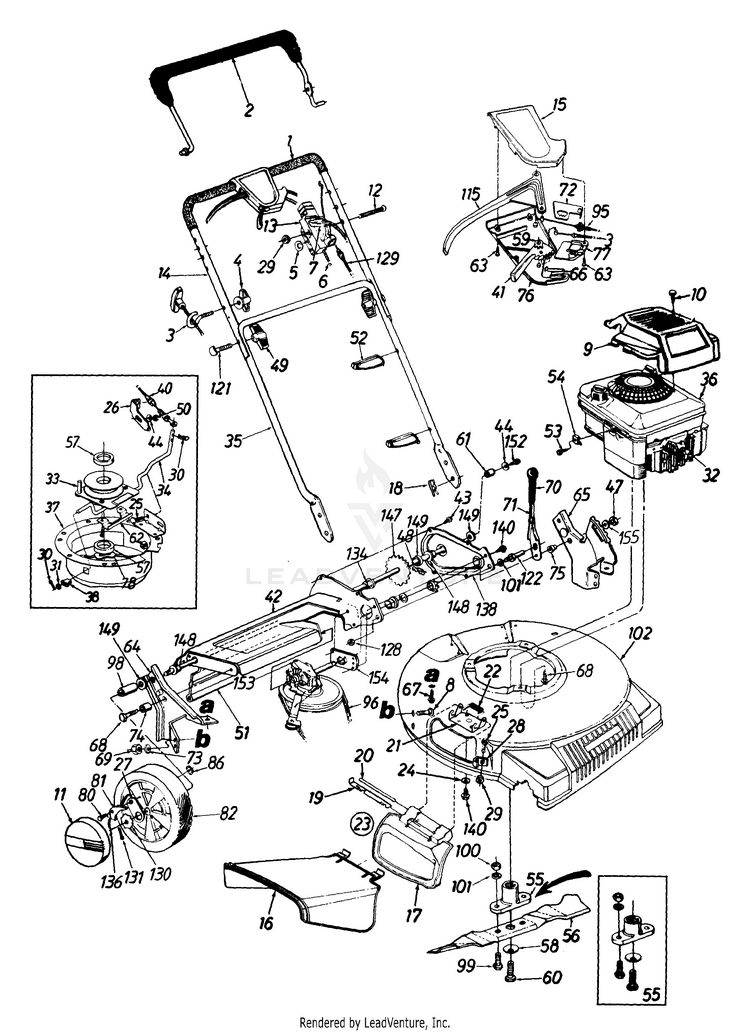

Main Assembly

...
...
1
FOAM GRIP - 9" MTD-720-0294A
...
2
Std. Control Handle MTD-747-0824B-0637
...
3
Rope Guide MTD-710-1205
...
4
Handle Knob 1/4-20 Thd. MTD-720-0279
...
5
Curved Spring Wash. .66" I.D. MTD-936-0501
...
6
Throttle Wire - 55" Lg. MTD-946-0671A
...
7
Throttle Lever MTD-946-0876
...
8
Carriage Bolt 5/16-18 x .62" Lg. MTD-710-0260A
...
9
SHROUD MTD-751B281451
...
10
Hi-Lo Screw #10 x 1.25" Lg. MTD-710-1256
...
11
Hub Cap MTD-731-0981C
...
12
Oval C-Sunk Mach. Ser. MTD-710-0605
...
13
Throttle Body MTD-946-0875
...
14
UPPER HANDLE MTD-749-0539C-0637
...
15
HOUSING CONTROL KIT MTD-753-0717
...
16
Side Chute Deflector MTD-731-1409B
...
17
MULCH PLUG ASSEMBLY MTD-682-7000
...
18
Hairpin Clip MTD-714-0104
...
20
Hinge Pin MTD-747-0710A
...
21
MOUNTING BRACKET MTD-782-7006
...
22
Torsion Spring MTD-932-0731
...
23
MULCH PLUG ASSEMBLY Incl. Ref. 17, 20, 21, 22 MTD-682-7000
...
24
SPRING WASHER BELL MTD-736-0270
...
25
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
26
BRACKET-ADJ CABLE MTD-17070-0637
...
27
Pawl Plate MTD-16855
...
28
CHUTE STOP BRACKET NLA MTD-782-7009
...
29
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
30
Cotter Pin 3/32" Dia. x .75" MTD-914-0507
...
31
Fl-Wash. .328" I.D. x .68" MTD-736-0278
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
33
PULLEY MTD-956-0612
...
34
SHIFT ROD MTD-747-0882A
...
35
Lower Handle MTD-749-0928A-0637
...
36
Engine - 5.5 H.P. MTD-NA
...
37
HOUSING ASSEMBLY MTD-682-7514-0637
...
38
FLANGED BUSHING MTD-931-1137
...
40
CABLE-SPEED CONTROL MTD-746-0706
...
41
6 SPEED SHIFT LEVER MTD-731-0924
...
42
CHAIN AXLE ASSEMBLY MTD-982-7513
...
43
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
44
SPRING WASHER BELL MTD-736-0270
...
47
HEX LOCK NUT 3/8-2 MTD-912-0296
...
48
#48 CHAIN-1/2 PITCH MTD-913-0361
...
49
Hand Knob MTD-720-04072A
...
50
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
51
REAR FLAP NLA MTD-731-1483
...
52
Cable Tie MTD-725-0157
...
53
Hex Wash. Hd. Scr. #10-32 x .62" Lg. MTD-710-1237
...
54
Cable Clamp (B&S) MTD-BS-690798
...
55
KIT-BLADE NLA MTD-753-0519
...
56
21" Mulching Blade MTD-942-0721
...
57
SPACER MTD-950-0968
...
58
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
59
Gear Insert MTD-913-0397
...
60
Hex Bolt 3/8-24 x 2.5" Lg. (Gr. 8) MTD-710-1257
...
61
Spacer .513" J.D. MTD-748-0190
...
62
SHIFT PLATE BRACKET MTD-782-7563-0637
...
63
C-Sunk Tap Scr. #10 x .75" Lg. MTD-710-0841
...
64
BRACKET ASSEMBLY-WHL (RH) COLOR MTD-682-3006A
...
65
L.H. HANDLE WHEEL BRKT. ASS'Y. NLA MTD-682-3007A
...
66
Shift Lever Spring MTD-732-0627A
...
67
Hex 8-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex TT-Tap Scr. 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
70
Grip MTD-720-0223
...
71
LEVER-HGT ADJ NLA MTD-732-0725
...
72
6 Spd. Rack Cable Brkt. MTD-16864
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
SPACER MTD-950-0736
...
75
SHOULDER SPACER MTD-750-0624
...
76
HOUSING CONTROL KIT MTD-753-0717
...
77
HOUSING CONTROL KIT MTD-753-0717
...
78
Wave Wash. 1.38 x .88 x .029 MTD-736-0526
...
?79
Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653
...
80
BOLT, SHOULDER, 1/4-20 x 2.65 LG NLA MTD-738-0137
...
81
PAWL - (LH) MTD-948-0188B
...
81
Pawl - L.H. MTD-748-0381
...
82
WHEEL W/SLEEVE NLA MTD-734-1794
...
82
BEARING NLA MTD-741-0486B
...
86
Weld Top L-Nut 1/4-20 Thd. MTD-712-0414
...
95
S.P. Cable MTD-946-0710A
...
96
V-Belt MTD-954-0343
...
98
SLEEVE MTD-911-0313
...
99
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055
...
100
Hex Nut 3/8-24 Thd. MTD-712-0241
...
101
L-Wash. 3/8" I.D. MTD-736-0169
...
102
21" DECK ASS'Y NLA MTD-682-0023
...
115
Control Lever MTD-731-0620A
...
121
Curved Hd. Bolt 5/16-18 x 2" Lg. MTD-710-1174
...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
128
Hex Jam Nut 3/8-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0711
...
129
Control Cable - 39" MTD-946-0550
...
130
Ratchet Wheel 1.62" O.D. MTD-948-0318
...
131
Cotter Pin 1/8" Dia. x 1" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-714-0115
...
134
Hex Flange Bearing MTD-741-0522
...
136
Spring - Nylon MTD-10622B
...
138
COVER ASSEMBLY-CHAIN NLA MTD-682-7506
...
140
Hex TT-Tap Scr. 1/4-20 x .50" MTD-710-0599
...
147
REAR AXLE SHAFT ASSEMBLY 22T MTD-938-0864
...
148
Hex Flange Brg. .506" I.D. MTD-741-0324A
...
149
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
152
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
153
TRANSMISSION See Breakdown MTD-917-0417B
...
154
CUP BEARING HEX MTD-16500A-0637
...
155
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300

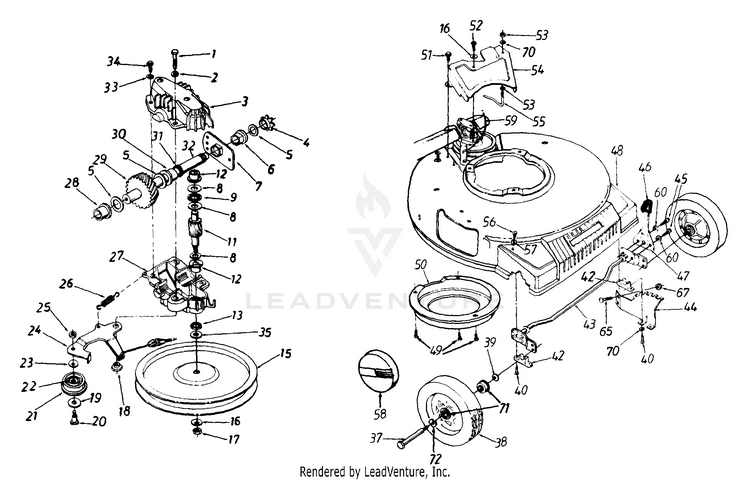

Transmission

...
...
1
Hex Patch Bolt 1/4-20 x 1.25" Part of Transmission Complete Ref. No. 36. MTD-710-1062
...
2
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
3
HOUSING HALF UPPER Part of Transmission Complete Ref. No. 36. MTD-717-0418A
...
4
SPROCKET-7T Part of Transmission Complete Ref. No. 36. MTD-713-0400
...
5
Fl-Wash. 5/8" I.D. x .030 Part of Transmission Complete Ref. No. 36. MTD-936-0336
...
6
Hex Flange Brg. .631" I.D. Part of Transmission Complete Ref. No. 36. MTD-941-0413
...
7
CUP BEARING HEX Part of Transmission Complete Ref. No. 36. MTD-16500A-0637
...
8
Thrust Wash. .382" I.D. x .70" O.D. Part of Transmission Complete Ref. No. 36. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. Part of Transmission Complete Ref. No. 36. MTD-741-0479
...
11
PINION SHAFT 11T Part of Transmission Complete Ref. No. 36. MTD-917-1216
...
12
Flange Bearing Part of Transmission Complete Ref. No. 36. MTD-748-0208A
...
13
OIL SEAL -.375 ID Part of Transmission Complete Ref. No. 36. MTD-721-0212
...
15
PULLEY MTD-756-0330A
...
16
SPRING WASHER BELL MTD-736-0270
...
17
Jam Nut, 1/4-28, LH MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 MTD-738-0440
...
19
Fl-Wash. 390" I.D. x 1.0" MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" MTD-738-0826
...
21
Fl-Idler Plastic 1.50" Dia. MTD-956-0008
...
22
Needle Brg. .375" x .31 MTD-741-0556
...
24
IDLER BRACKET ASSEMBLY MTD-17052A
...
25
Hex Nut 1/4-28 Thd. MTD-712-0138
...
26
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
27
HOUSING HALF-LOWER NLA Part of Transmission Complete Ref. No. 36. MTD-717-0419A
...
28
Flange Bearing .566 Dia. Part of Transmission Complete Ref. No. 36. MTD-941-0415
...
29
SHAFT & GEAR ASSEMBLY Part of Transmission Complete Ref. No. 36. MTD-717-0616A
...
30
Flange Bearing .629 Dia. Part of Transmission Complete Ref. No. 36. MTD-741-0414
...
31
Oil Seal .625 Dia. Part of Transmission Complete Ref. No. 36. MTD-721-0213
...
32
SHAFT & GEAR ASSEMBLY Part of Transmission Complete Ref. No. 36. MTD-717-0616A
...
33
L-Wash. #10 I.D. Part of Transmission Complete Ref. No. 36. MTD-936-0722
...
34
Hex B-Tap Scr. #10 x .62" Part of Transmission Complete Ref. No. 36. MTD-710-0651
...
35
HEX WASHER MTD-936-0410
...
36
TRANSMISSION MTD-917-0417B
...
37
Axle Bolt for Plastic Rim MTD-738-0102
...
38
WHEEL W/BALLBRG NLA MTD-734-1793
...
39
Bell-Wash. .380" I.D. x .88 MTD-736-0105
...
40
Hex Wash. Hd. Scr. 1/4 x 1" Lg. MTD-710-1241
...
42
Block Bushing MTD-741-0492A
...
43
AXLE ASSEMBLY-FR POWDER MTD-17733-0637
...
44
HEIGHT ADJUSTMENT BRACKET MTD-782-0516
...
45
Hex TT-Tap Scr. 1/4-20 x .38" MTD-710-0653
...
46
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
47
LEVER-SPRING NLA MTD-732-0639
...
48
PLASTIC FRONT END NLA MTD-731-1422
...
49
Hex 6-Tap Scr. 1/4" x .38" MTD-710-0352
...
50
BELT COVER MTD-782-7558-0637
...
51
Hex Wash. Hd. TT-Scr. 1/4-20 MTD-710-0599
...
52
Hex Wash. Hd. B-Tap Scr. 1/4 x .62" (Spec.) MTD-710-0896
...
53
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
54
BELT GUARD MTD-17058A-0637
...
55
BELT GUARD MTD-747-0549
...
56
Torx Truss Hd. Scr. 5/16 x .75" MTD-710-1242
...
57
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
58
Hub Cap MTD-731-0981C
...
59
S.P. Cable MTD-946-0710A
...
60
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
65
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
67
Hex Flange L-Nut 1/4-20 Thd. MTD-912-3027
...
70
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
71
Wheel Bearing MTD-941-0484
...
72
Wave Washer MTD-936-0504
