White Outdoor 124E898O190 21" Self-Propelled Mower (Gas) (1994)

Model: 124E898O190 21"" Mower (Gas) (1994)

Save Part Not Listed?
product name

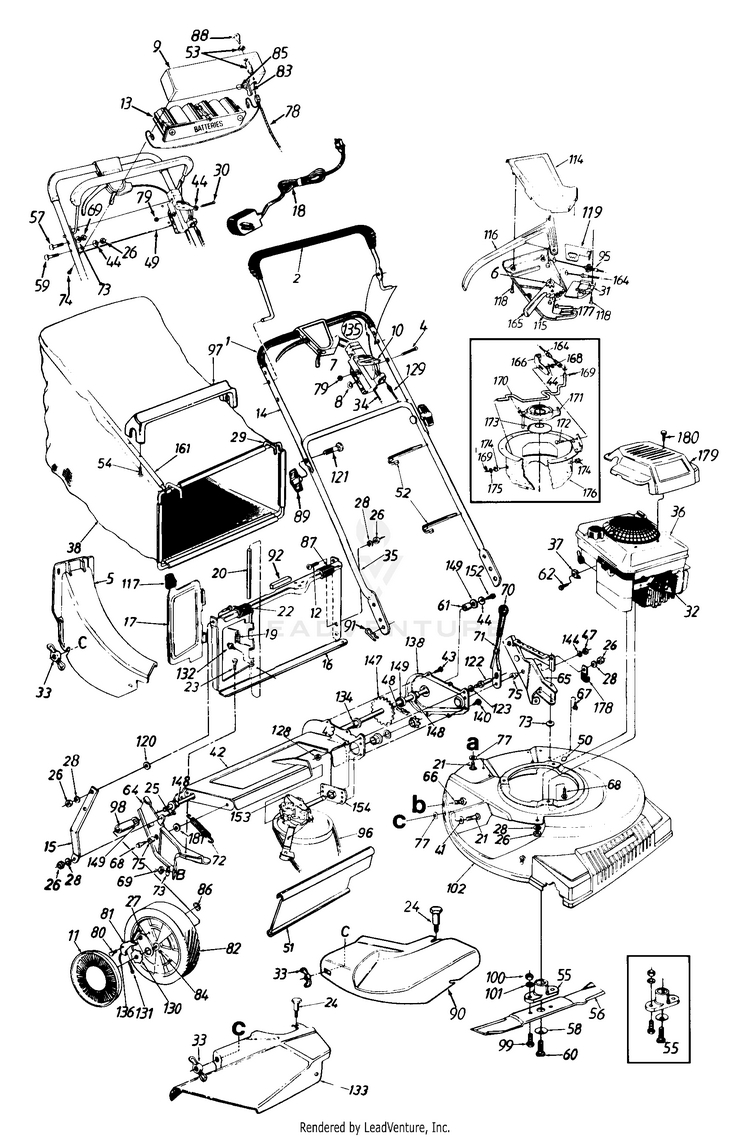

Complete Assembly 898O

...
...
1
FOAM GRIP - 9" MTD-720-0294A
...
2
Std. Control Handle MTD-747-0824B-0637
...
4
Oval C-Sunk Scr. MTD-710-0605
...
5
CHUTE ASSEMBLY MTD-731-1023
...
6
3 Tooth Rack Gear Insert MTD-913-0397
...
7
Throttle Body MTD-946-0875
...
8
Spr. Wash..66" I.D. MTD-936-0501
...
9
UPPER BATTERY TRAY MTD-731-0891A
...
10
Throttle Lever MTD-946-0876
...
11
Hub Cap MTD-731-0981C
...
12
Truss Mach. Scr. 1/4-20 x .62" MTD-710-0946
...
13
Battery Pack - 12 Volt MTD-925-1276
...
14
Upper Handle MTD-749-0439E-0637
...
15
BRACKET-PANEL SUP MTD-16129A-0637
...
16
PANEL ASSEMBLY-CATCHER MTD-16862
...
17
DOOR-TOP DISCHARGE MTD-17095A-0637
...
18
Battery Charger MTD-925-0727
...
19
Torsion Spring MTD-732-0483A
...
20
ROD NLA MTD-747-0514
...
21
Carriage Bolt 1/4-20 x .62" For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0134
...
22
Truss Mach. Scr. 1/4-20 x .75" MTD-710-0924
...
23
Hex AB-Tap Scr. 1/4-20 x .38" MTD-710-0896
...
24
Shoulder Bolt MTD-738-0704
...
25
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
26
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
27
Pawl Plate MTD-16855
...
28
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
29
Front Grass Catcher Frame MTD-747-0705-0637
...
30
Hex Bolt 1/4-20 x 2" Lg. MTD-710-0501
...
31
HOUSING CONTROL KIT MTD-753-0717
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
33
Wing Nut MTD-712-0397A
...
34
Throttle Cable 61" MTD-946-0674A
...
35
Lower Handle MTD-749-0907B
...
36
Engine MTD-NA
...
37
Cable Clamp (B&S) MTD-BS-690798
...
38
GRASS CATCHER BAG MTD-964-0082
...
41
Fl-Wash..344" I.D. x .62" MTD-736-0204
...
42
AXLE ASSEMBLY-CHAIN MTD-17055B
...
43
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
44
SPRING WASHER BELL MTD-736-0270
...
45
Hex AB-Tap Scr. 1/4 x .62" MTD-710-0896
...
47
HEX LOCK NUT 3/8-2 MTD-912-0296
...
48
#48 CHAIN 1/2 PITCH MTD-913-0353
...
49
BATTERY TRAY MTD-782-9012-0637
...
50
PLUG MTD-731-0564
...
51
REAR FLAP MTD-731-1488
...
52
Cable Tie MTD-725-0157
...
53
KEY SWITCH MTD-925-0873
...
54
SCREW #12 x 14 x 1.250 MTD-710-1025
...
55
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
56
21" Mulching Blade MTD-942-0721
...
57
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671
...
58
BELL WASHER MTD-936-0453
...
59
Carr. Bolt 1/4-20 x 1.25" Lg. MTD-710-0111
...
60
Hex Bolt 7/16-20 x 1.5" MTD-710-0757
...
61
Spacer .513" I.D. MTD-748-0190
...
62
Hex Wash. Hd. Scr. #10-32 x .62" Lg. MTD-710-1237
...
63
L-Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
64
BRACKET ASSEMBLY (RH) MTD-16136C-0637
...
65
BRACKET ASSEMBLY (LH) MTD-16137C-0637
...
66
Carriage Bolt 5/16-18 x .62" For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0260A
...
67
Hex B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex TT- Tap Scr. 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
70
Grip MTD-720-0223
...
71
HEIGHT ADJUSTMENT LEVER MTD-732-0606
...
72
EXTENSION SPRING MTD-932-0481
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
Truss Mach. Tap Scr. 1" Lg. MTD-710-0969
...
75
SHOULDER SPACER MTD-750-0624
...
77
Bolt Retainer 1/4 x .50" O.D. MTD-726-0233
...
78
WIRE HARNESS MTD-925-1442
...
79
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
80
BOLT, SHOULDER, 1/4-20 x 2.65 LG NLA MTD-738-0137
...
81
PAWL - (LH) MTD-948-0188B
...
82
WHEEL W/SLEEVE NLA MTD-734-1794
...
83
PLUG MTD-925-1206
...
84
BEARING NLA MTD-741-0486B
...
85
FUSE HOLDER MTD-925-1428
...
85
7.5 AMP FUSE Not shown MTD-925-0298
...
86
Weld Top L-Nut 1/4-20 Thd. MTD-712-0414
...
87
PANEL BAG CLIP MTD-731-0880
...
88
Ignition Key MTD-925-0201
...
89
Hand Knob MTD-920-0276
...
90
MULCH PLUG MTD-731-1343A
...
91
Hairpin Clip MTD-714-0104
...
92
STR.-FOAM PVC 1.1/ MTD-722-0139
...
95
S.P. Cable - 50" Lg. MTD-946-0710A
...
96
V-Belt MTD-954-0343
...
97
BAG HANDLE BLACK MTD-731-0801
...
98
SLEEVE MTD-911-0313
...
99
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055
...
100
Hex Nut 3/8-24 Thd. MTD-712-0241
...
101
L-Wash. 3/8" I.D. MTD-736-0169
...
102
DECK-ASSEMBLY-21IN NLA MTD-17051B
...
114
HOUSING CONTROL KIT MTD-753-0717
...
115
HOUSING CONTROL KIT MTD-753-0717
...
116
Control Lever MTD-731-0620A
...
117
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
118
Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
119
6-Speed Rack Cable Brkt. MTD-16864
...
120
Fl-Wash. .285" I.D. x 1.25" O.D. MTD-736-0211
...
121
Curved Hd. Bolt 5/16-18 x 2" Lg. MTD-710-1174
...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
123
L-Wash. 3/8" I.D. MTD-736-0169
...
128
Hex Jam Nut 3/8-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0711
...
129
Control Cable - 44" MTD-946-0912
...
130
Ratchet Wheel 1.62" O.D. MTD-948-0318
...
131
Cotter Pin 1/8" Dia. x 1" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-714-0115
...
132
Hex B-Tap Scr. #10 x .38" Lg. MTD-910-0429
...
133
SIDE CHUTE DEFLECTOR ASS'Y. NLA MTD-731-0885
...
134
Hex Flange Bearing MTD-741-0522
...
135
Throttle Box Comp. Incl. Ref. 4,7,8,10,79 MTD-811-0185
...
136
Spring - Nylon MTD-10622B
...
138
COVER-CHAIN NLA MTD-17053A
...
140
Hex S-Tap Scr. 1/4-20 x .50" MTD-710-0599
...
144
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
147
SHAFT ASSEMBLY-REAR-20T MTD-938-0719A
...
148
Hex Flange Brg..506" I.D. MTD-741-0324A
...
149
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
152
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
153
TRANSMISSION See "Transmission" illustration and parts list. MTD-917-0417B
...
154
CUP BEARING HEX MTD-16500A-0637
...
161
Rear Catcher Frame MTD-749-0764A-0637
...
164
CABLE-SPEED CONTROL MTD-746-0706
...
165
6 SPEED SHIFT LEVER MTD-731-0924
...
166
BRACKET-ADJ CABLE MTD-17070-0637
...
168
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
169
Cot-Pin 3/32" Dia. x .75" Lg. MTD-914-0507
...
170
SHIFT ROD (LH) MTD-747-0684
...
171
MOVEABLE PULLEY ASSEMBLY MTD-941-0500A
...
172
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
173
MOVABLE PULLEY MTD-756-0503
...
174
FLANGED BUSHING MTD-931-1137
...
175
Fl-Wash..328" I.D. x .68" O.D. MTD-736-0278
...
176
HOUSING ASSEMBLY MTD-682-7514-0637
...
177
Shift Lever Spring MTD-732-0627A
...
178
CLAMP MTD-726-0175
...
179
SHROUD MTD-751B281451
...
180
Screw #10 x 1.25" Lg. MTD-710-1256
...
181
Fl-Wash..383" I.D. x 1" O.D. MTD-736-0258

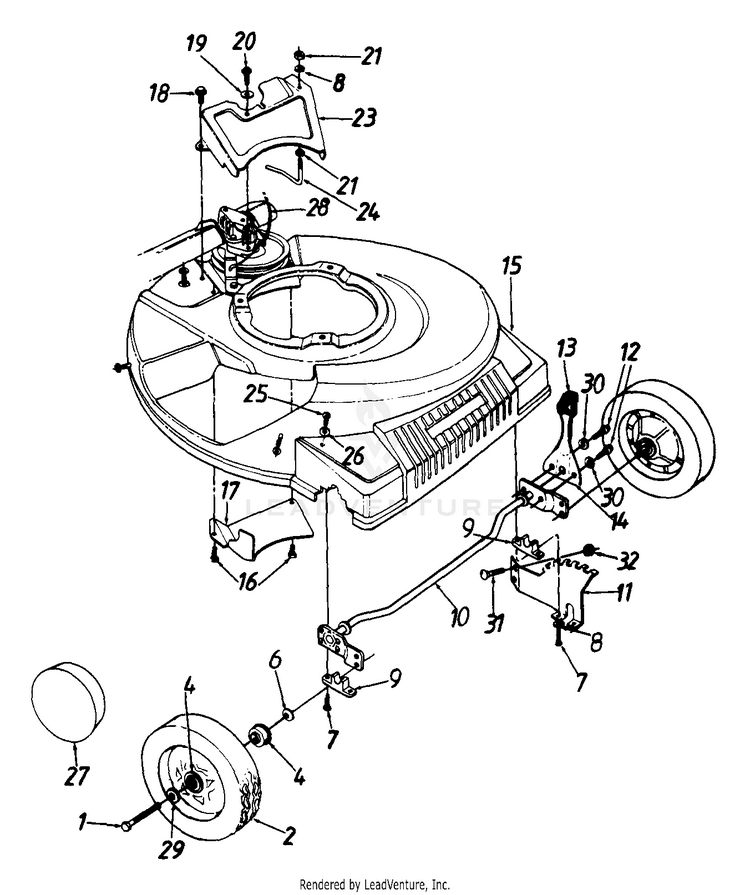

Deck 898O

...
...
1
Axle Bolt for Plastic Rim MTD-738-0102
...
2
WHEEL W/BALLBRG NLA MTD-734-1793
...
4
Flange Ball Brg..501" I.D. MTD-941-0484
...
6
Bell-Wash..380" I.D. x .88 MTD-736-0105
...
7
Hex Wash. Hd. Scr. 1/4-20 x 1" Lg. MTD-710-1241
...
8
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
9
Block Bushing MTD-741-0492A
...
10
AXLE ASSEMBLY-FR POWDER MTD-17733-0637
...
11
HEIGHT ADJUSTMENT BRACKET MTD-782-0516
...
12
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653
...
13
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
14
LEVER-SPRING NLA MTD-732-0639
...
15
PLASTIC FRONT END NLA MTD-731-1422
...
16
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
17
BELT COVER MTD-17065A-0637
...
18
Hex Wash. Hd. TT-Scr. 1/4-20 MTD-710-0599
...
19
SPRING WASHER BELL MTD-736-0270
...
20
Hex Wash. Hd. B-Tap Scr. 1/4 x .62" (Spec.) MTD-710-0896
...
21
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
23
BELT GUARD MTD-17058A-0637
...
24
BELT GUARD MTD-747-0549
...
25
Torx Truss Hd. Scr. 5/16 x .75" MTD-710-1242
...
26
Bell-Wash..345" I.D. x .88" O.D. MTD-736-0242
...
27
Hub Cap MTD-731-0981C
...
28
S.P. Cable 50" Lg. MTD-946-0710A
...
29
Wave Wash..51" I.D. x .75" O.D. MTD-936-0504
...
30
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
31
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
32
Hex L-Nut 1/4-20 Thd. MTD-912-3027

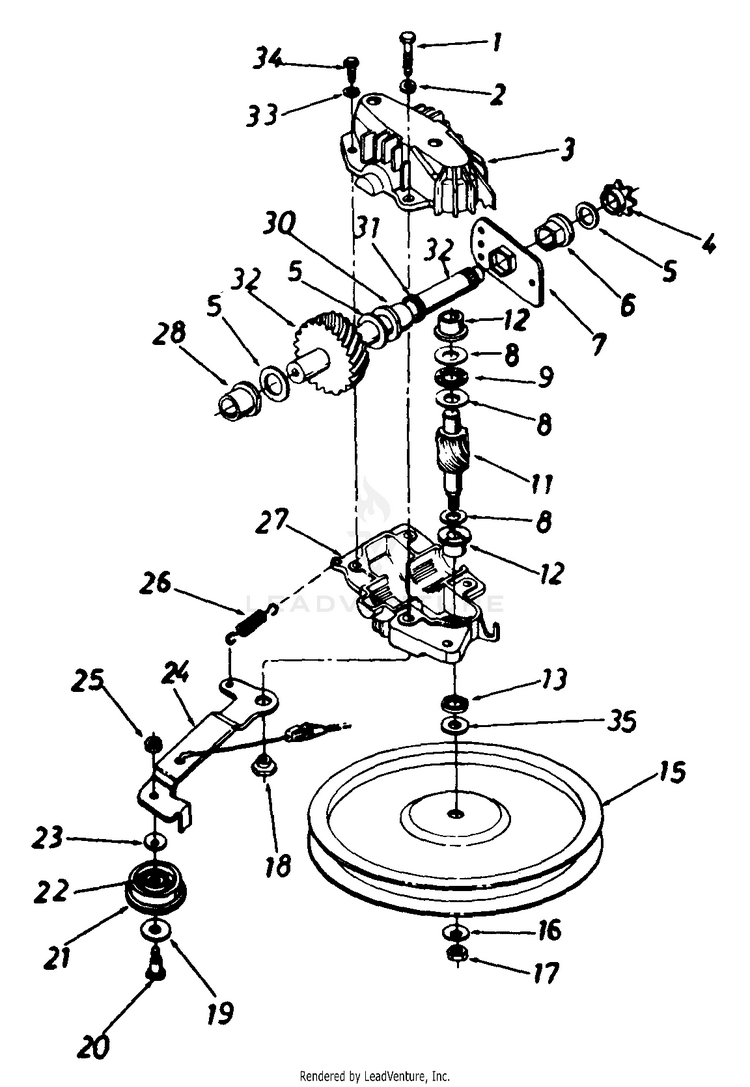

Transmission

...
...
1
Hex Bolt 1/4-20 x 1.25" Lg. w/Patch MTD-710-1062
...
2
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
3
HOUSING HALF UPPER MTD-717-0418A
...
4
SPROCKET-7T MTD-713-0400
...
5
Fl-Wash. 5/8" I.D. x .030 MTD-936-0336
...
6
Hex Flange Brg. .631" I.D. MTD-941-0413
...
7
CUP BEARING HEX MTD-16500A-0637
...
8
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. MTD-741-0479
...
11
PINION SHAFT 11T MTD-917-1216
...
12
Flange Bearing MTD-748-0208A
...
13
OIL SEAL -.375 ID MTD-721-0212
...
15
PULLEY Not Part of Complete Transmission MTD-756-0330A
...
16
SPRING WASHER BELL Not Part of Complete Transmission MTD-736-0270
...
17
Jam Nut, 1/4-28, LH Not Part of Complete Transmission MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 Not Part of Complete Transmission MTD-738-0440
...
19
Fl-Wash. 390" I.D. x 1.0" Not Part of Complete Transmission MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" Not Part of Complete Transmission MTD-738-0826
...
21
Fl-Idler Plastic 1.50" Dia. Not Part of Complete Transmission MTD-956-0008
...
22
Needle Brg. .375" x .31 Not Part of Complete Transmission MTD-741-0556
...
23
SPRING WASHER BELL Not Part of Complete Transmission MTD-736-0270
...
24
IDLER BRACKET ASSEMBLY Not Part of Complete Transmission MTD-17052A
...
25
Hex Nut 1/4-28 Thd. Not Part of Complete Transmission MTD-712-0138
...
26
Extension Spring .33 OD x 1.12 Lg. Not Part of Complete Transmission MTD-732-0357A
...
27
HOUSING HALF-LOWER NLA MTD-717-0419A
...
28
Flange Bearing .566 Dia. MTD-941-0415
...
30
Flange Bearing .629 Dia. MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
32
SHAFT & GEAR ASSEMBLY MTD-717-0616A
...
33
L-Wash. #10 I.D. MTD-936-0722
...
34
Hex Tap Scr. #10 x .62" MTD-710-0651
...
35
HEX WASHER Not Part of Complete Transmission MTD-936-0410
...
xx
TRANSMISSION MTD-917-0417B
