White Outdoor 121-528R190 22" ERS SP Hi-Wheel Push Mower (1991)

Model: 121-528R190 22"" ERS Push Mower (1991)

Save Part Not Listed?
product name

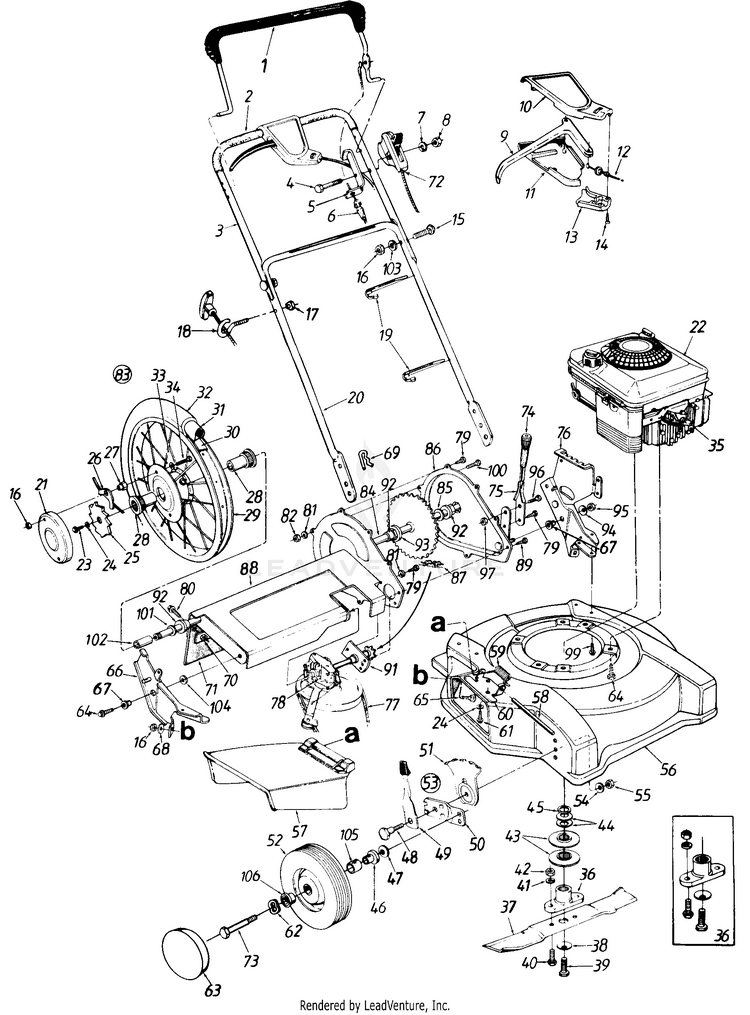

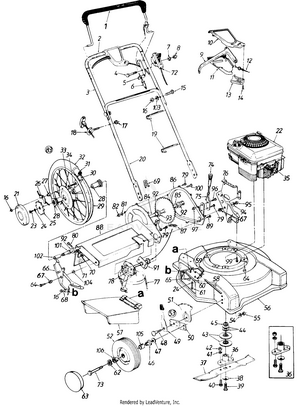

Mower Assembly

...
...
1
CONTROL HANDLE ASSEMBLY MTD-747-0748
...
2
FOAM GRIP - 9" MTD-720-0294A
...
3
UPPER HANDLE NLA MTD-749-0757
...
4
HEX SCREW 1/4-20 x 1.875 NLA MTD-710-1216
...
5
BRACKET-CA NLA MTD-17174
...
6
Control Cable-36" Lg. MTD-946-0553
...
7
Spring Wash. .265" I.D. MTD-936-0175
...
8
HEX NUT 1/4-20 MTD-912-0287
...
9
Control Lever MTD-731-0620A
...
10
Control Cover Half-Upper MTD-753-0833
...
11
Control Cover Half-Lower MTD-753-0833
...
12
CLUTCH CABLE CONTROL NLA MTD-746-0712A
...
13
Cable Mounting Cap MTD-753-0833
...
14
Fl-"C" Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
15
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
18
Rope Guide MTD-710-1205
...
19
Cable Tie MTD-725-0157
...
20
Lower Handle MTD-749-0928A-0637
...
21
COVER-WHEE NLA MTD-14967
...
22
Engine MTD-NA
...
23
SCREW 1/4-20X.75 GR5 MTD-710-0812
...
24
SPRING WASHER BELL MTD-736-0270
...
25
WHEEL RACHET MTD-748-0312
...
26
PAWL MTD-748-0315
...
27
HEX NUT NLA MTD-712-0329
...
28
FLANGE BEARING MTD-941-0485
...
29
WHEEL RIM 16.0 x 2 MTD-734-1399
...
30
RIM STRIP MTD-734-1400
...
31
TUBE-16 x 2.12 NLA MTD-734-1397
...
32
CHEVRON TIRE 16 x 2.125 NLA MTD-734-1396
...
33
Intern. L-Wash. 5/16" I.D. MTD-936-0104
...
34
Hex Bolt 5/16-18 x 1.0" (Gr. 5) MTD-710-0376
...
35
INSULATOR-SPARK PLUG MTD-735-0639
...
36
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
37
22" BLADE MTD-942-0622
...
38
BELL WASHER MTD-936-0453
...
39
Hex Bolt 7/16-20 x 1.5" Lg. (Gr. 5) MTD-710-0757
...
40
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055
...
41
L-Wash. 3/8" I.D. MTD-736-0169
...
42
Hex Nut 3/8-24 Thd. MTD-712-0241
...
43
HALF SERRATED PULLEY MTD-956-0502
...
44
BELL WASHER 1.008X 1.625 x .0 MTD-936-0450
...
45
SPACER-CRANKSHAFT MTD-748-0332
...
46
Ball Bearing 1/2" I.D. MTD-941-0484
...
47
Bell-Wash. .38" I.D. MTD-736-0105
...
48
Shoulder Bolt .50" Dia. MTD-738-0507B
...
49
Spring Lever Ass'y. w/Knob MTD-94832
...
50
Pivot Bar MTD-15262B
...
51
HeightAdj. Plate MTD-787-01290A
...
52
WHEEL ASSEMBLY NLA MTD-734-1259
...
53
Height Adj. Ass'y. Comp.-R.H. MTD-753-06761
...
53
Height Adj. Ass'y. Comp.-L.H. (Not Shown) MTD-753-06761
...
54
BELL WASHER MTD-936-0356
...
55
Hex Nut 3/8-16 Thd. MTD-712-0798
...
56
22" Deck Ass'y. NLA MTD-682-0001
...
57
CHUTE DEFLECTOR MTD-931-1034B
...
58
Hinge Pin MTD-747-0710A
...
59
Torsion Spring MTD-932-0593
...
60
PLATE-ADAPTER MTD-17032A
...
61
Hex TT-Tap Scr. 1/4-20 x .5" MTD-710-0599
...
62
Wave Washer .53" I.D. MTD-736-0232
...
63
HUB CAP NLA MTD-731-0124A
...
64
Hex TT-Tap Scr. 3/8-16 x 1" MTD-710-0654A
...
65
Carriage Bolt 5/16-18 x .62" Lg. MTD-710-0260A
...
66
BRACKET ASSEMBLY (RH) MTD-16136C-0637
...
67
SHOULDER SPACER MTD-750-0624
...
68
Bell-Wash. 5/16" I.D. MTD-736-0242
...
69
Hairpin Clip MTD-714-0104
...
70
STRIP ASSEMBLY RETAINING NLA MTD-16563A
...
71
FLAP-RR NLA MTD-731-1172
...
72
THROTTLE CONTROL 58.8" MTD-946-0821A
...
73
Front Axle Bolt MTD-738-1020
...
74
Grip MTD-720-0223
...
75
HEIGHT ADJUSTMENT LEVER MTD-732-0655
...
76
BRACKET (LH) NLA MTD-682-3004
...
77
V Belt MTD-954-0369
...
78
TRANSMISSION (See Breakdown) MTD-917-0417B
...
79
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
80
Hex AB-Tap Scr. 1/4 x .62" Lg. MTD-710-0896
...
81
L-Wash. 1/4" I.D. MTD-936-0329
...
82
HEX NUT 1/4-20 MTD-912-0287
...
83
WHEEL ASSEMBLY W/TIRE NLA MTD-734-1398
...
84
AXLE ASSEMBLY MTD-713-0425
...
85
Fl-Wash. .635" I.D. x 1.0" O.D. MTD-936-0256
...
86
CHAINCASE AND ARM ASS'Y. NLA MTD-682-7501
...
87
#48 CHAIN 1/2 PITC MTD-713-0135
...
88
SUPPORT ASSEMBLY-DRIVE NLA MTD-682-7500
...
89
Hex Wash. Hd. TT-Tap Scr.1/4-20 x .5" Lg. MTD-710-0599
...
91
CUP BEARING HEX MTD-16500A-0637
...
92
Hex Flange Brg. .631 " 1 .D. MTD-941-0413
...
93
SPACER-.630 x 1.25 MTD-748-0313
...
94
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
95
HEX LOCK NUT 3/8-2 MTD-912-0296
...
96
HEX SCREW 3/8-16 x .625 GR5 NLA MTD-710-0201
...
97
Flanged L-Nut 3/8-16 Thd. MTD-912-0431
...
99
Hex B-Tap Scr. 5/16-18 x .5" MTD-710-0603
...
100
Hex Bolt 1/4-20 x .5" Lg. MTD-910-0289
...
101
FLAT WASHER .632 ID x .935 ODX.048 MTD-736-0302
...
102
Spacer .628" I.D. x .875" MTD-750-0547
...
103
L-Wash. 1/4" I.D. MTD-936-0119
...
104
Fl-Wash. .38" I.D. x 1" O.D. MTD-736-0258
...
105
Spacer .375" I.D. x 1.04" O.D. MTD-750-0434
...
106
FORTIFLEX BEARING MTD-741-0267

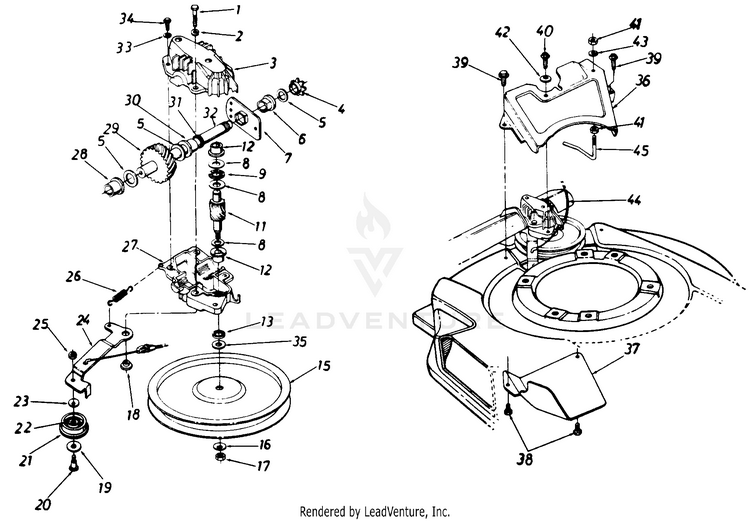

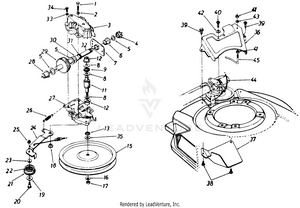

Transmission Assembly

...
...
1
Hex Patch Bolt 1/4-20 x 1.25" MTD-710-1062
...
2
L-Wash. 1/4" I.D. NLA MTD-726-0329
...
3
HOUSING HALF UPPER MTD-717-0418A
...
4
SPROCKET-7T MTD-713-0400
...
5
Fl-Wash. 5/8" I.D. x .030 MTD-936-0336
...
6
Hex Flange Brg. .631" I.D. MTD-941-0413
...
7
CUP BEARING HEX MTD-16500A-0637
...
8
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. MTD-741-0479
...
11
PINION SHAFT 11T MTD-917-1216
...
12
Flange Bearing MTD-748-0208A
...
13
OIL SEAL -.375 ID MTD-721-0212
...
15
PULLEY (Not part of complete transmission ) MTD-756-0330A
...
16
SPRING WASHER BELL (Not part of complete transmission ) MTD-736-0270
...
17
Jam Nut, 1/4-28, LH (Not part of complete transmission ) MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 (Not part of complete transmission ) MTD-738-0440
...
19
Fl-Wash. 390" I.D. x 1.0" (Not part of complete transmission ) MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" (Not part of complete transmission ) MTD-738-0826
...
21
Fl-ldler Plastic 1.50" Dia. (Not part of complete transmission ) MTD-956-0558
...
22
Needle Brg. .375" x .31 (Not part of complete transmission ) MTD-741-0556
...
23
SPRING WASHER BELL (Not part of complete transmission ) MTD-736-0270
...
24
IDLER BRACKET ASSEMBLY (Not part of complete transmission ) MTD-17052A
...
25
Hex Nut 1/4-28 Thd. (Not part of complete transmission ) MTD-712-0138
...
26
Extension Spring .33 OD x 1.12 Lg. (Not part of complete transmission ) MTD-732-0357A
...
27
HOUSING HALF-LOWER NLA MTD-717-0419A
...
28
Flange Bearing .56 Dia. MTD-941-0415
...
29
SHAFT & GEAR ASSEMBLY MTD-717-0616A
...
30
Flange Bearing .629 Dia. MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
32
SHAFT & GEAR ASSEMBLY MTD-717-0616A
...
33
L-Wash. #10 I.D. MTD-936-0722
...
34
Hex B-Tap Scr. #10 x .62" MTD-710-0651
...
35
HEX WASHER (Not part of complete transmission ) MTD-936-0410
...
36
BELT GUARD NLA (Not part of complete transmission ) MTD-17718
...
37
BELT COVER NLA MTD-17064
...
38
Hex B-Tap Scr. 1/4 x .38" Lg. (Not part of complete transmission ) MTD-710-0352
...
39
Hex AB-Tap Scr. 1/4 x .60" Lg. (Not part of complete transmission ) MTD-710-0599
...
40
Hex B-Tap Scr. 1/4 x .62" Lg. MTD-710-0896
...
41
HEX NUT 1/4-20 (Not part of complete transmission ) MTD-912-0287
...
42
SPRING WASHER BELL (Not part of complete transmission ) MTD-736-0270
...
43
L-Wash. 1/4" I.D. (Not part of complete transmission ) MTD-936-0329
...
44
S.P. Cable-48" Lg. (Not part of complete transmission ) MTD-946-0710A
...
45
BELT GUARD (Not part of complete transmission ) MTD-747-0549
...
xx
TRANSMISSION MTD-917-0417B
