White Outdoor 120-476B190 21" BBC SP Rd Mower (1990)

Model: 120-476B190 21"" BBC SP Rd Mower (1990)

Save Part Not Listed?
product name

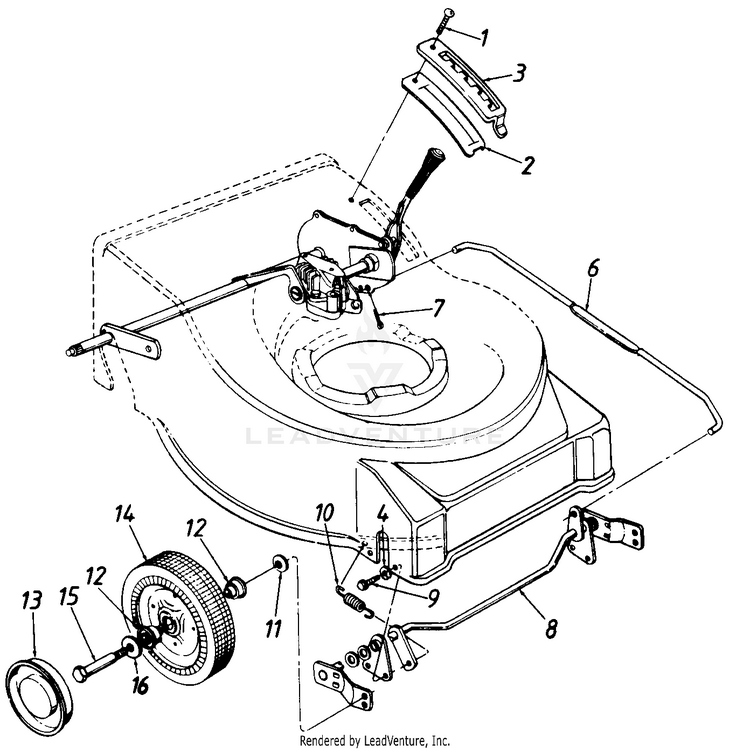

Height Adjustment Assembly

...
...
1
Torx Mach. AB-Tap Scr. 1/4 X .62" Lg.* MTD-710-1017
...
2
SEAL-HGT A NLA MTD-721-0216
...
3
PLATE-HGT NLA MTD-17323
...
4
L-Wash. 1/4" I.D.* MTD-936-0329
...
6
ROD-HGT ADJ NLA MTD-747-0699
...
7
Cotter Pin 3/32" Dia. MTD-914-0507
...
8
AXLE ASSEMBLY BLACK MTD-17022-0637
...
9
Hex L-Wash. Hd. AB-Tap Scr. 1/4 X .88" Lg. MTD-710-0352
...
10
EXTENSION SPRING 2 89" LG. NLA MTD-732-0589
...
11
Bell-Wash. .380" I.D. x .88" MTD-736-0105
...
12
BALL BEARING MTD-941-0180
...
13
Hub Cap MTD-731-0981C
...
14
Wheels - Front MTD-753-08093
...
15
Axle Bolt for Plastic Rim MTD-738-0102
...
16
Wave Washer .53" I.D. MTD-736-0232

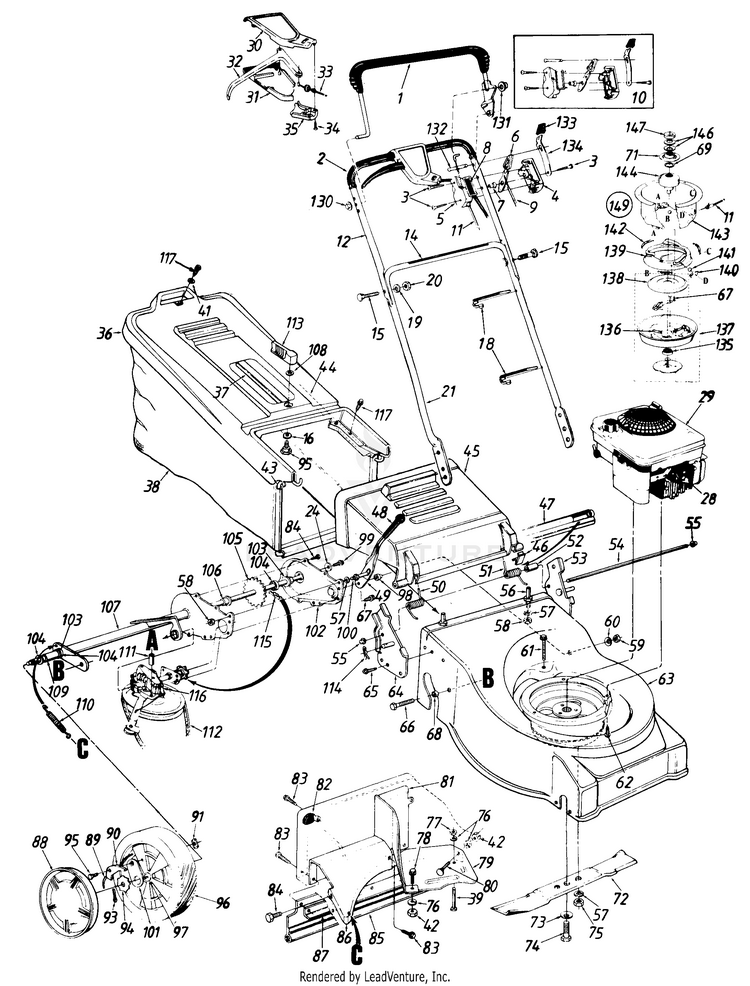

Mower Assembly

...
...
1
BAIL (LH) NLA MTD-731-0609
...
2
FOAM GRIP - 9" MTD-720-0294A
...
3
Truss Mach. B-Tap Scr. #12 x 1.5" Lg. MTD-710-0796
...
4
PANEL HALF-CONTROL MTD-731-0817A
...
5
CLUTCH PANEL HALF NLA MTD-731-0816A
...
6
Throttle Control Lever MTD-931-0972
...
7
CONROL DISC PIN NLA MTD-731-0524
...
8
Control Label-Throttle NLA MTD-777-5772
...
9
Throttle Wire-58" Lg. MTD-946-0674A
...
10
KIT-THROTTLE CONTROL NLA MTD-753-0431
...
11
52" CLUTCH CABLE MTD-946-0407
...
12
Upper Handle MTD-749-0439E-0637
...
14
Instruction Label-Handle NLA MTD-777-5775
...
15
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671
...
16
Bowed Washer MTD-936-0286
...
18
Cable Tie MTD-725-0157
...
19
L-Wash. 5/16" I.D. MTD-936-0119
...
20
HEX NUT 5/16-18 MTD-712-3010
...
21
Lower Handle MTD-749-0907B
...
24
SPRING WASHER BELL MTD-736-0270
...
28
INSULATOR-SPARK PLUG MTD-735-0639
...
29
Engine MTD-NA
...
30
Control Cover Half-Upper MTD-753-0833
...
31
Control Cover Half-Lower MTD-753-0833
...
32
Control Lever MTD-731-0620A
...
33
Drive Cable-53" Lg. MTD-946-0711B
...
34
Flat C-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
35
Cable Mtg. Cap MTD-753-0833
...
36
HARDTOP BAG COVER MTD-631-0003
...
37
HARDTOP BAG COVER MTD-631-0003
...
38
Grass Bag MTD-964-0252
...
39
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
41
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
42
HEX NUT 1/4-20 MTD-912-0287
...
43
CATCHER FRAME MTD-764-0411-0637
...
44
REAR CATCHER FRAME NLA MTD-749-0736B
...
45
CHUTE DEFLECTOR MTD-931-0859A
...
46
DEFLECTOR PLUG MTD-731-0970B
...
47
EXTRUSION SEAL MTD-731-0858
...
48
Grip MTD-720-0223
...
49
SPRING LEVER MTD-732-0580
...
50
TORSION SPRING (RH) MTD-732-0578B
...
51
TORSION SPRING (LH) MTD-932-0577B
...
52
Spacer .255" I.D. MTD-750-0566A
...
53
BRACKET ASSEMBLY MTD-12297B-0637
...
54
HINGE PIN MTD-747-0698B
...
55
Cap Speed Nut MTD-926-0106
...
56
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
57
L-Wash. 3/8" I.D. MTD-736-0169
...
58
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
59
HEX LOCK NUT 3/8-2 MTD-912-0296
...
60
Bell-Wash. .38" I.D. x .88" MTD-736-0105
...
61
Hex Wash. Hd. Tap Scr. 1/4-20 x 1.5" Lg. MTD-710-0778
...
62
Hex L-Wash. Hd. Scr. 3/8-16 x l.O" Lg. MTD-710-0654A
...
63
638/N 21" Deck Ass'y. NLA MTD-16997A
...
64
BRACKET ASSEMBLY MTD-12296B-0637
...
65
HEX SCREW L-WASH HD MTD-910-0892
...
66
HEX SCREW 3/8 x 7/8 MTD-910-1006
...
67
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
68
SPACER MTD-950-0736
...
69
SERRATED WASHER MTD-936-0409
...
71
MOVABLE PULLEY MTD-756-0503
...
72
21" Blade MTD-942-0621
...
73
BELL WASHER NLA MTD-736-0412
...
74
Hex Bolt 7/16-20 x 2.0" Lg. (Gr. 5) MTD-710-1002
...
75
Hex Nut 3/8-24 Thd. MTD-712-0241
...
76
L-Wash. 1/4" I.D.* MTD-936-0329
...
77
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
78
Hex Bolt 1/4-20 x .85" Lg. MTD-710-3015
...
79
BAFFLE-BELT NLA MTD-17013
...
80
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
81
BAFFLE-RR-PANEL NLA MTD-17006
...
82
PLUG-CORNER NLA MTD-731-0931
...
83
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
84
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
85
Rear Flap MTD-731-0669
...
86
BAFFLE-RR-CHUTE MTD-17008-0637
...
87
RETAINING STRIP MTD-14847-0637
...
88
Hub Cap MTD-731-0981C
...
89
Spring - Nylon MTD-10622B
...
90
PAWL - (LH) MTD-948-0188B
...
91
Weld Top L-Nut 1/4-20 Thd. MTD-712-0414
...
93
Cotter Pin 1/8" Dia. x 1" Lg. MTD-714-0115
...
94
Ratchet Wheel 1.62" O.D. MTD-948-0318
...
95
BOLT, SHOULDER, 1/4-20 x 2.65 LG NLA MTD-738-0137
...
96
Wheel Ass'y. Comp.-Rear MTD-734-1826
...
97
BEARING NLA MTD-741-0486B
...
98
SHOULDER SPACER MTD-750-0624
...
99
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
100
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
101
Pawl Plate MTD-16855
...
102
COVER-CHAIN NLA MTD-17053A
...
103
Hex Flange Brg. .506" I.D. MTD-741-0324A
...
104
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
105
SHAFT ASSEMBLY-REAR-20T MTD-938-0719A
...
106
Hex Flange Bearing MTD-741-0522
...
107
CHAIN AXLE ASS'. NLA MTD-17009
...
108
Internal L-Wash. 1/4" I.D. MTD-736-0498
...
109
Spacer.513" I.D. MTD-748-0190
...
110
EXTENSION SPRING MTD-932-0481
...
111
Spacer.325" l.D. MTD-950-0589
...
112
V-Belt MTD-954-0346
...
113
LOCKING KNOB MTD-920-0224
...
114
Hairpin Clip MTD-714-0104
...
115
#48 CHAIN 1/2 PITCH MTD-913-0353
...
116
TRANSMISSION (See Breakdown) MTD-917-0417B
...
117
HEX SCREW L-WASH HD MTD-910-0892
...
130
Push Cap MTD-726-0135
...
131
PUSH CAP NLA MTD-726-0245
...
132
LOCKING PIN NLA MTD-731-0607
...
133
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
134
SPRING-LOCKOUT NLA MTD-732-0401
...
135
Ball Brg. .669" I.D. x 1.574" MTD-941-0600
...
136
SPRING NLA MTD-732-0396
...
137
HOUSING-CL NLA MTD-14300A
...
138
CONE-CLUTC NLA MTD-14304A
...
139
Brake Cup Cone NLA MTD-719-0283
...
140
BALL-BLOCK NLA MTD-731-0520
...
141
STEEL BALL NLA MTD-741-0326
...
142
EXTENSION SPRING NLA MTD-732-0397
...
143
Clutch Housing NLA MTD-14309B
...
144
ADAPTER-FIXED PULL NLA MTD-756-0504
...
146
BELL WASHER 1.008X 1.625 x .0 MTD-936-0450
...
147
SPACER-CRANKSHAFT MTD-748-0332
...
149
CLUTCH ASSEMBLY NLA MTD-812-00001

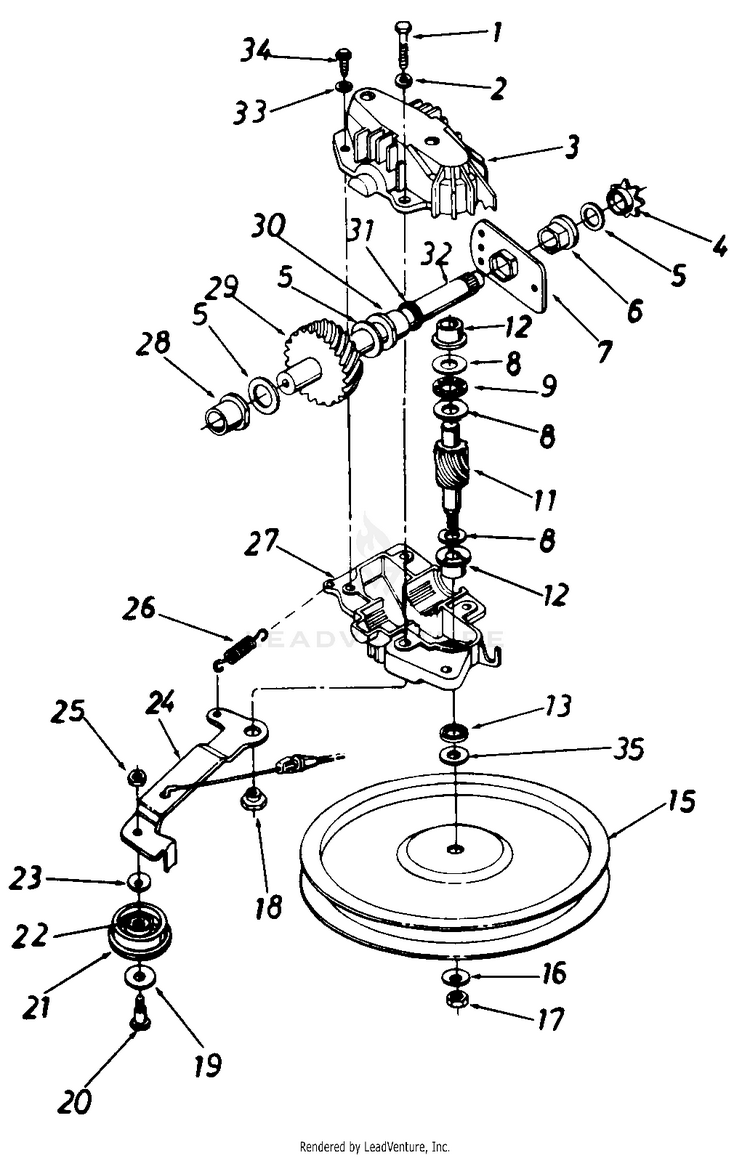

Transmission Assembly

...
...
1
Hex Bolt 1/4-20 x 1.25" Lg. w/Patch MTD-710-1062
...
2
L-Wash. 1/4" I.D. MTD-936-0329
...
3
HOUSING HALF UPPER MTD-717-0418A
...
4
SPROCKET-7T MTD-713-0400
...
5
Fl-Wash. 5/8" I.D. x .030 MTD-936-0336
...
6
Hex Flange Brg. .631" I.D. MTD-941-0413
...
7
CUP BEARING HEX MTD-16500A-0637
...
8
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. MTD-741-0479
...
11
PINION SHAFT 11T MTD-917-1216
...
12
Flange Bearing MTD-748-0208A
...
13
OIL SEAL -.375 ID MTD-721-0212
...
15
PULLEY (Not part of complete transmission) MTD-756-0330A
...
16
SPRING WASHER BELL (Not part of complete transmission) MTD-736-0270
...
17
Jam Nut, 1/4-28, LH (Not part of complete transmission) MTD-712-04326
...
18
Shld. Spacer.375" Dia. x .170 (Not part of complete transmission) MTD-738-0440
...
19
Fl-Wash. 390" I.D. x 1.0" (Not part of complete transmission) MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" (Not part of complete transmission) MTD-738-0826
...
21
Fl-ldler Plastic 1.50" Dia. (Not part of complete transmission) MTD-956-0558
...
22
Needle Brg. .375" x .31 (Not part of complete transmission) MTD-741-0556
...
23
SPRING WASHER BELL (Not part of complete transmission) MTD-736-0270
...
24
IDLER BRACKET ASSEMBLY (Not part of complete transmission) MTD-17052A
...
25
Hex Nut 1/4-28 Thd. (Not part of complete transmission) MTD-712-0138
...
26
Extension Spring .33 OD x 1.12 Lg. (Not part of complete transmission) MTD-732-0357A
...
27
HOUSING HALF-LOWER NLA MTD-717-0419A
...
28
Flange Bearing .566 Dia. MTD-941-0415
...
29
SHAFT & GEAR ASSEMBLY MTD-717-0616A
...
30
Flange Bearing .629 Dia. MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
32
SHAFT & GEAR ASSEMBLY MTD-717-0616A
...
33
L-Wash. #10 I.D. MTD-936-0722
...
34
Hex B-Tap Scr. #10 x .62" MTD-710-0651
...
35
HEX WASHER (Not part of complete transmission) MTD-936-0410
...
xx
TRANSMISSION MTD-917-0417B
