White Outdoor 11C-109B190 LC-106 (2001) Walk Behind Mower

Model: 11C-109B190 LC-106 (2001)

Save Part Not Listed?
product name

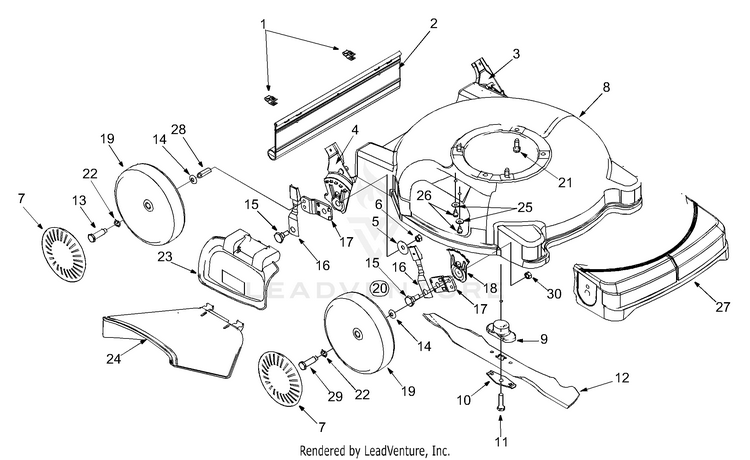

General Assembly

...
...
1
HINGE CLIP MTD-17098P
...
2
Rear Flap Model LC-106 Only MTD-731-0872B
...
2
FLAP ASSEMBLY Model LC-40 Only MTD-731-1028
...
3
BRACKET ASSEMBLY Model LC-106 Only MTD-987-02107A
...
3
KIT-SERVICE HANDLE BRK Model LC-40 Only MTD-753-05962
...
4
HANDLE BRACKET ASSEMBLY (RH) Model LC-106 Only MTD-987-02106A
...
4
KIT-SERVICE HANDLE BRK Model LC-40 Only MTD-753-05962
...
5
UNKNOWN MTD-NA
...
6
Hex Nut 3/8-16 Thd. MTD-712-0798
...
7
Hub Cap: Grey MTD-731-0981C
...
8
20" DECK ASSEMBLY Model LC-106 Only MTD-682-0139
...
8
DECK ASSEMBLY-18" 3-N-1 NLA Model LC-40 Only MTD-682-0018B
...
9
Blade Adapter Kit (Incl. Ref. 13-15) 753-06315 MTD-753-06315
...
10
BLADE BELL SUPPORT 736-0524B MTD-736-0524B-1
...
11
Hex Bolt 7/16-20 x 1.5" MTD-710-1044
...
12
20" Mulching Blade Model LC-106 Only MTD-742-0740-0637
...
12
18" BLADE (MULCH) Model LC-40 Only MTD-742-0738-0637
...
13
Axle Bolt Model LC-40 Only MTD-738-0213
...
14
Bell Washer .400" ID x .88" MTD-736-0105
...
15
Shoulder Bolt .50" Dia. MTD-738-0507B
...
16
Spring Lever Ass'y w/Knob MTD-94832
...
17
Pivot Bar MTD-15262B
...
18
Height Adj. Plate MTD-787-01290A
...
19
Wheel Assembly MTD-734-2008A
...
20
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
20
Height Adj. Ass'y. Comp. L.F. MTD-753-06761
...
21
Hex Lock Wash. Hd. Screw 3/8- 16 x 1.0" Lg. MTD-710-0654A
...
22
Wave Washer MTD-936-0504
...
23
MULCH PLUG ASSEMBLY MTD-682-7002
...
24
Chute Deflector MTD-731-1409B
...
25
SPRING WASHER BELL MTD-736-0270
...
26
Hex Wash. Hd. TT Screw 1/4- 20 x .5" Lg. MTD-710-0599
...
27
COVER DECK FRT NLA Model LC-106 Only MTD-731-1948
...
28
Spacer MTD-950-0535
...
29
Axle Bolt for Plastic Rim MTD-738-0102
...
30
Hex Flange L-Nut 3/8-16 Thd. MTD-912-0431

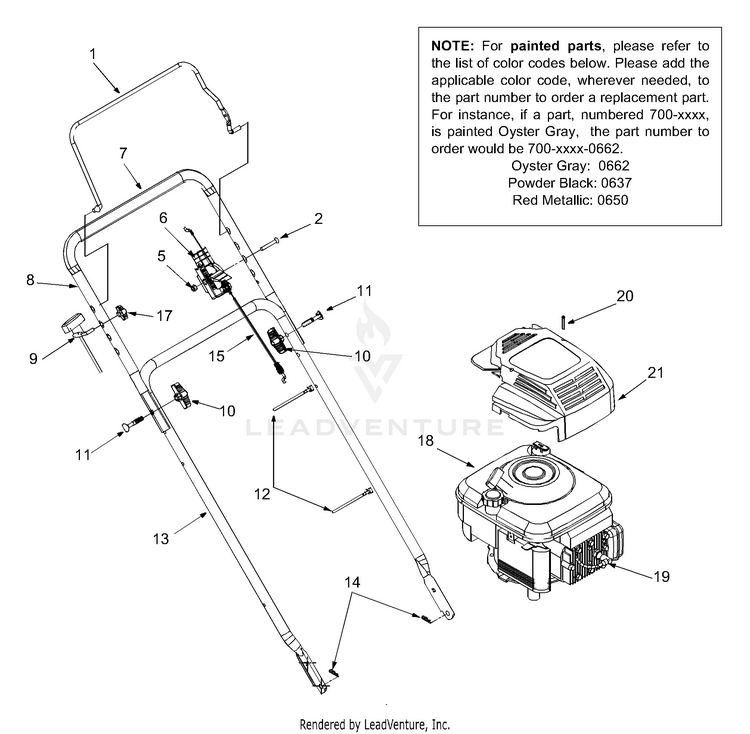

Handle & Controls

...
...
1
Std. Control Handle MTD-747-0824B-0637
...
2
SCREW 1/4-20 x 1.310 MTD-710-1270
...
5
Hex Lock Nut MTD-712-0324
...
6
Control Housing MTD-746-0883
...
7
Foam Grip MTD-720-0295
...
8
UPPER HANDLE NLA MTD-749-0705
...
9
Rope Guide MTD-710-1205
...
10
Hand Knob MTD-720-0314
...
11
Carriage Bolt MTD-710-1174
...
12
Cable Tie MTD-725-0157
...
13
Lower Handle MTD-749-0928A-0637
...
14
Hairpin Clip MTD-714-0104
...
15
Control Cable 39" Lg. MTD-946-0554
...
17
Handle Knob MTD-720-0279
...
18
Engine MTD-NA
...
19
INSULATOR-SPARK PLUG MTD-735-0639
...
20
HEX SCREW WASHER MTD-751B095225
...
21
SHROUD Model LC-106 Only MTD-751B281451
...
xx
ENGINE SHROUD QUA NLA Model LC-40 Only MTD-751B281866
...
xx
Hub Cap Label NLA MTD-777D00299
...
xx
LC-106 Engine Shroud NLA MTD-777D003382
...
xx
LC-40 Engine Shroud NLA MTD-777D003381
...
xx
LABEL-DANGER MTD-777S30118
...
xx
Discharge Door NLA MTD-777S30277
