White Outdoor 11B-106F190 LC-106 (1998)

Model: 11B-106F190 LC-106 (1998)

Save Part Not Listed?
product name

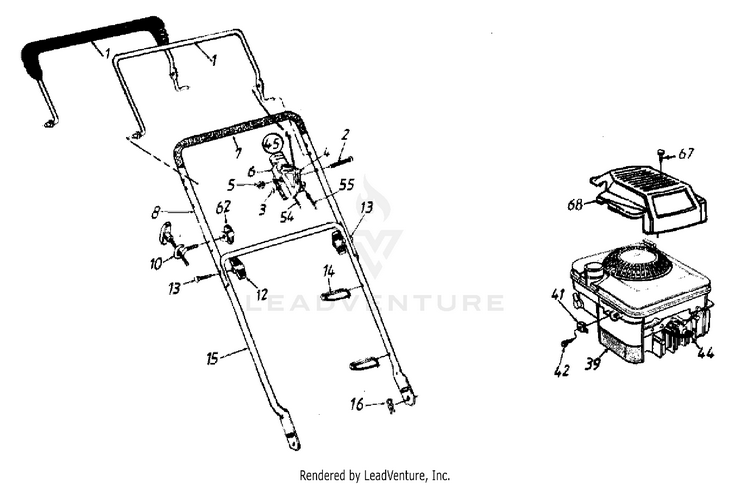

Control Handle And Engine Assembly

...
...
1
Std. Control Handle For model 106F only MTD-747-0824B-0637
...
1
Control Handle Ass'y. For model 702A only MTD-747-0824B-0637
...
2
Oval C-Sunk Screw MTD-710-0605
...
3
Spring Washer MTD-936-0501
...
4
Throttle Lever MTD-946-0876
...
5
Hex Lock Nut MTD-712-0324
...
6
Throttle Body MTD-946-0875
...
7
Foam Grip MTD-720-0295
...
8
UPPER HANDLE (POWDER BLACK) MTD-749-0538E-0637
...
10
Rope Guide MTD-710-1205
...
12
Hand Knob MTD-920-0276
...
13
Carriage Bolt MTD-710-1174
...
14
Cable Tie MTD-725-0157
...
15
Lower Handle MTD-749-0928A-0637
...
16
Hairpin Clip MTD-714-0104
...
39
Engine MTD-NA
...
41
Cable Clamp (B&S) MTD-BS-690798
...
42
Hex TT Screw #10-32 x .62" MTD-710-1237
...
44
INSULATOR-SPARK PLUG MTD-735-0639
...
45
Throttle Box Comp. (Includes references 2, 3, 4, 5, and 6.) MTD-811-0185
...
54
Throttle Cable MTD-946-0671A
...
55
Control Cable MTD-946-0553
...
62
Handle Knob MTD-720-0279
...
67
Hi-Lo Screw MTD-710-1256
...
68
SHROUD For model 106F only MTD-751B281451
...
xx
LABEL-THROTTLE LTB MTD-777I20287
...
xx
DANGER - BEHIND DECK NLA MTD-777-0870
...
xx
Danger Label (Cut Hand) For model 702A only MTD-777S30181
...
xx
LABEL-MOWER WARNING MTD-777S30108
...
xx
Warning Label For model 702A only MTD-777S30295
...
xx
LABEL-DANGER CURVE For model 106F only MTD-777S30142
...
xx
LABEL-MOWER DANGER For model 702A only MTD-777S30115
...
xx
Decorative Label (Shroud) NLA For model 106F only MTD-777-4719
...
xx
Decor. Label (Hubcap) NLA For model 702A only MTD-777-4852

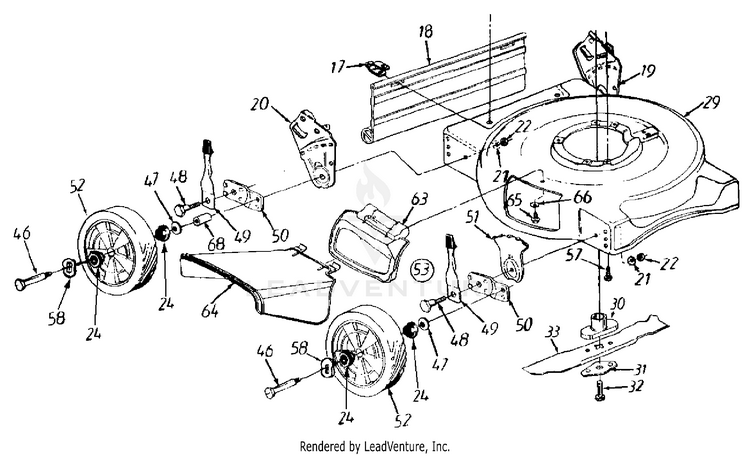

Deck Assembly

...
...
17
HINGE CLIP MTD-17098P
...
18
Rear Flap For model LC 106 only MTD-731-0872B
...
18
FLAP ASSEMBLY For model LC 40 only MTD-731-1028
...
19
BRACKET ASSEMBLY For model LC 106 only MTD-987-02107A
...
19
KIT-SERVICE HANDLE BRK For model LC 40 only MTD-753-05962
...
20
HANDLE BRACKET ASSEMBLY (RH) For model LC 106 only MTD-987-02106A
...
20
KIT-SERVICE HANDLE BRK For model LC 40 only MTD-753-05962
...
21
BELL WASHER MTD-936-0356
...
22
Hex Nut 3/8-16 Thd. MTD-712-0798
...
23
Hub Cap: Radial Grey MTD-731-0981C
...
24
Bearing MTD-941-0484
...
29
20" DECK ASSEMBLY (OYSTER GRAY) For model LC 106 only. MTD-682-0139-0662
...
29
DECK-ASSEMBLY-18 (OYSTER GRAY) NLA For model LC 40 only MTD-682-0018-0662
...
30
Blade Adapter Kit MTD-753-06315
...
31
BLADE BELL SUPPORT MTD-736-0524B-1
...
32
Hex Bolt 7/16-20 x 1.5" MTD-710-1044
...
33
20" Mulching Blade MTD-742-0740-0637
...
33
18" BLADE (MULCH) MTD-742-0738-0637
...
46
Axle Bolt for Plastic Rim MTD-738-0102
...
47
Bell Washer .400" ID x .88" MTD-736-0105
...
48
Shoulder Bolt .50" Dia. MTD-738-0507B
...
49
Spring Lever Ass'y w/Knob MTD-94832
...
50
Pivot Bar MTD-15262B
...
51
Height Adj. Plate MTD-787-01290A
...
52
Wheel Assembly MTD-734-1978
...
53
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
53
Height Adj. Ass'y. Comp. L.F. & R.R. MTD-753-06761
...
57
Hex Lock Washerhead Screw 3/8-16 x 1.0" Lg. MTD-710-0654A
...
58
Wave Washer MTD-936-0504
...
63
MULCH PLUG ASSEMBLY MTD-682-7002
...
64
Chute Deflector MTD-731-1409B
...
65
SPRING WASHER BELL MTD-736-0270
...
66
Hex Washerhead TT Screw 1/4-20 x .5" Lg. MTD-710-0599
...
67
Shoulder Screw (Rear Wheel) For model LC 40 only MTD-738-0213
...
68
Spacer For model LC 40 only MTD-950-0535
...
69
COVER DECK FRONT NLA For model LC 106 only. MTD-731-1950

190-106-000 (1998)

...

No Parts Available for this Schematic

190-110-000 (1998)

...

No Parts Available for this Schematic
