White Outdoor 11A-599B190 HW-615 (1999) Walk Behind Mower

Model: 11A-599B190 HW-615 (1999)

Save Part Not Listed?
product name

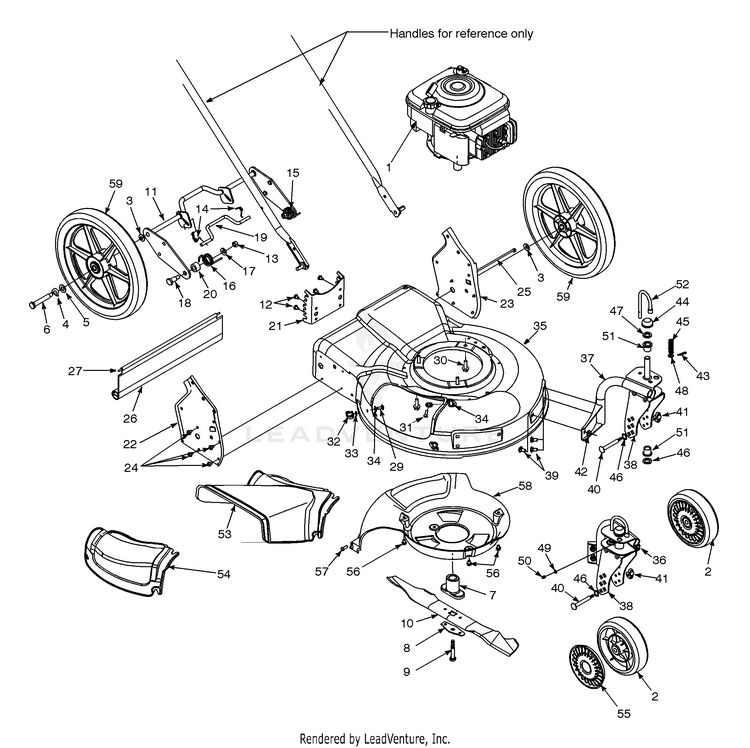

General Assembly

...
...
1
Engine MTD-NA
...
1
SHROUD MTD-751B281451
...
2
Wheel, Front Caster 7 X 2 MTD-734-1857
...
3
Bell Washer .401 X .870 X .063 MTD-736-0105
...
4
Spring Washer .50 I.D. x 1.0 O.D. x.022 MTD-736-0182
...
5
FLAT WASHER .510 x .995 MTD-736-0272
...
6
Shoulder Screw .500 x 2.62: 3/8 - 16 MTD-938-0481A
...
7
Blade Adapter MTD-748-0377E
...
8
BLADE BELL SUPPORT MTD-736-0524B-1
...
9
Hex Bolt 3/8 - 24 x 2.5 Gr. 8 MTD-710-1257
...
10
Blade 21", Mulching MTD-942-0741A
...
11
HI-WHEEL HEIGHT ADJ. SUPPORT NLA MTD-647-0028
...
12
AB Screw 1/4-14 x .50 MTD-710-1348
...
13
Hex Nut 3/8-16 MTD-912-3017
...
14
TORSION SPRING .312 DIA MTD-932-0845
...
15
TORSION SPRING (RH) 1.125 ID MTD-732-0843
...
16
TORSION SPRING (LH) 1.125 MTD-732-0844
...
17
Bell Washer .401 x .870 x .063 MTD-736-0105
...
18
Shoulder Screw .500 x .840 MTD-938-0145
...
19
HANDLE-HEI MTD-747-0971
...
20
SPACER .500 x 1.00 MTD-750-1090
...
21
HEIGHT ADJUSTMENT BRACKET MTD-782-0572-0637
...
22
HANDLE BRACKET ASSEMBLY MTD-682-3054
...
23
BRACKET ASSEMBLY-HNDL NLA MTD-682-3055
...
24
AB Screw 1/4-14 MTD-710-1348
...
25
Cable Tie MTD-725-0157
...
26
Trail Shield MTD-731-1901A
...
27
Trail Shield Wire MTD-732-0842
...
29
Carriage Screw MTD-710-0134
...
30
TT Screw 3/8 -16 x 1.00 MTD-710-0654A
...
31
Carriage Screw 1/4-20 x .75 MTD-710-0703
...
32
Wing Nut MTD-712-0397A
...
33
Push Nut MTD-726-0233
...
34
Flat Washer MTD-736-0204
...
35
DECK-TOP DIS 21"W/OYST GRAY NLA MTD-782-0049-0662
...
36
CASTER ASSEMBLY (RH) MTD-682-9020A
...
37
CASTER ASSEMBLY (LH) MTD-682-9021A
...
38
Caster Bracket Assembly MTD-682-9024
...
39
Carriage Bolt 5/16-18 x .62 MTD-710-0260A
...
40
Caster Axle .374 x 2.59 MTD-911-1146
...
41
Wing Nut MTD-712-0397A
...
42
HEX FLANGE NUT MTD-712-3004A
...
43
Hairpin Clip MTD-714-0104
...
44
Push Cap MTD-726-0214
...
45
Compression Spring MTD-932-0306A
...
46
Wave Washer .53" I.D. MTD-736-0232
...
47
UNKNOWN MTD-NA
...
48
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
49
Fl. Wash. .203 I.D. x.403 x .040 MTD-736-0931
...
50
Lube Fitting MTD-937-3000
...
51
FLANGE BEARING .631 ID MTD-741-0685A
...
52
Lock Pin, Front Wheel MTD-747-0924
...
53
DISCHARGE CHUTE 21" MTD-731-1832
...
54
Mulching Cover MTD-931-1833A
...
55
Hubcap MTD-731-1887
...
56
Hex Screw, TT 1/4-20 x .375 MTD-710-0653
...
57
HL Screw MTD-710-0969
...
58
Rear Baffle MTD-731-08190A
...
59
Hi-Wheel 14 X 2 MTD-734-1861

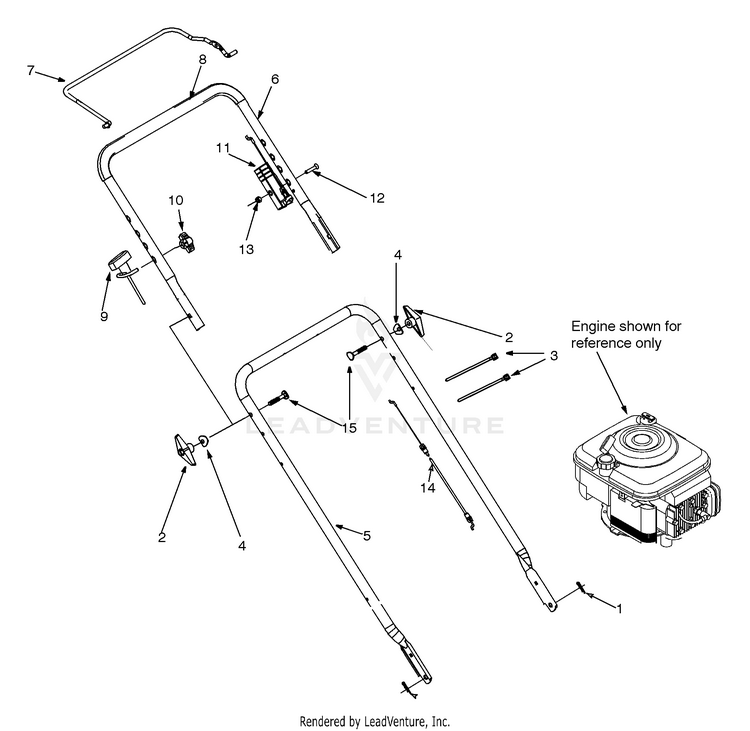

Handle

...
...
1
Hairpin Clip MTD-714-0104
...
2
Wing Nut MTD-720-04072A
...
3
Cable Tie MTD-725-0157
...
4
Saddle Wash. .32" I.D. MTD-736-0451
...
5
Lower Handle MTD-749-0907B
...
6
UPPER HANDLE MTD-749-0438D-0637
...
7
Std. Control Handle MTD-747-0824B-0637
...
8
Foam Grip MTD-720-0295
...
9
Rope Guide MTD-710-1205
...
10
Handle Knob MTD-720-0279
...
11
Housing Control MTD-746-0883
...
12
SCREW 1/4-20 x 1.310 MTD-710-1270
...
13
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
14
Control Cable MTD-946-0912
...
15
Carriage Bolt MTD-710-1174
