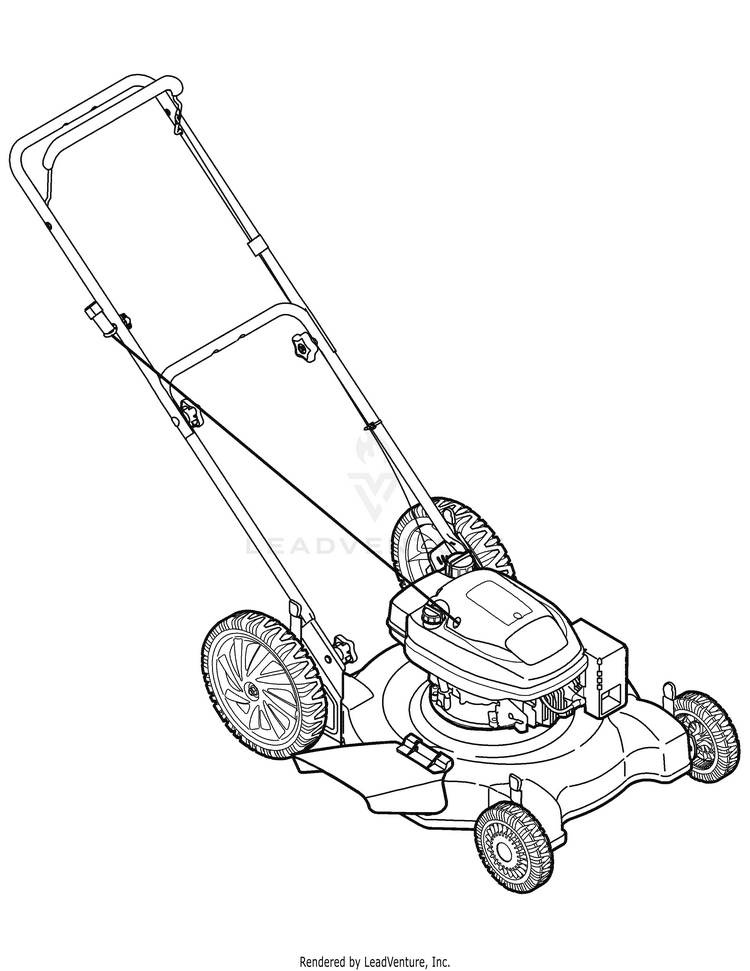

White Outdoor 11A-505A790 W-505 (2006) Walk Behind Mower

Model: 11A-505A790 W-505 (2006)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM RJ19LM MTD-759-3338
...
xx
Air Filter MTD-TC-36905
...
xx
Control Cable MTD-946-0946
...
xx
Blade Adapter MTD-748-0376E
...
xx
Blade MTD-742-0742A-0637
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1044
...
xx
Wheel (Front) MTD-734-04176A
...
xx
Wheel (Rear) MTD-734-04093
...
xx
Hub Cap MTD-731-0981C
...
xx
Trailshield MTD-731-2537
...
xx
CHUTE DEFLECTOR MTD-931-1034B
...
xx
Mulch Plug Assembly MTD-631-04045

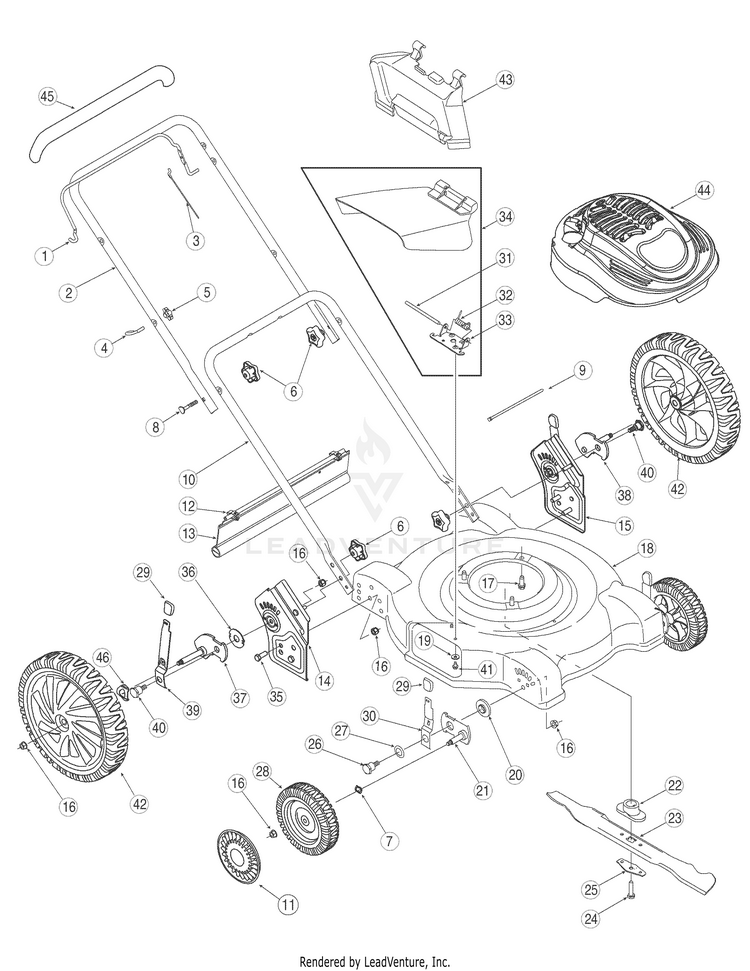

General Assembly

...
...
1
Blade Control *CHOOSE COLOR WHEN ORDERING* MTD-747-1161A
...
2
Upper Handle *CHOOSE COLOR WHEN ORDERING* MTD-749-1092A
...
3
Blade Control Cable - 48.25" MTD-946-0946
...
4
Eye Bolt MTD-710-1205
...
5
Wing Nut MTD-720-0279
...
6
Wing Nut MTD-720-04072A
...
7
Wave Washer, .510 x .750 x .017 MTD-936-0504
...
8
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
9
Cable Tie MTD-725-0157
...
10
Lower Handle MTD-749-04037
...
11
Hub Cap MTD-731-0981C
...
12
HINGE CLIP MTD-17098P
...
13
Trail Shield MTD-731-2537
...
14
HANDLE BRACKET (RH) MTD-982-3062A
...
15
Handle Bracket Assembly - LH MTD-982-3063A
...
16
Flange Lock Nut, 3/8 -16 MTD-712-04065
...
17
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
18
22" DECK ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-687-02048A
...
19
SPRING WASHER BELL MTD-736-0270
...
20
Height Adjuster Bearing MTD-741-0751
...
21
Pivot Arm Assembly MTD-987-02094
...
22
Blade Adapter, 1/4 inch keyway MTD-748-04096
...
22
Blade Adapter, 3/16 inch keyway MTD-748-04135
...
23
Blade MTD-742-0742A-0637
...
24
Hex Cap Screw 3/8-24 x 1.5 MTD-710-1044
...
25
BLADE BELL SUPPORT MTD-736-0524B-1
...
26
Shoulder Screw 3/8 - 16 x .302 MTD-738-1172
...
27
Bell Washer.760 ID x 1.25 OD MTD-736-0741
...
28
Front Wheel Assembly 7 x 2.125 MTD-734-04176A
...
29
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
30
Front Spring Lever MTD-732-1026
...
31
Hinge Pin MTD-747-0710A
...
32
Torsion Spring MTD-732-1014C
...
33
PLATE-ADAPTER MTD-17032A
...
34
CHUTE DEFLECTOR MTD-931-1034B
...
35
Hex Cap Screw 3/8-16 x .75 MTD-710-0216
...
36
THRUST BEARING MTD-741-0717
...
37
PIVOT ARM ASSEMBLY (RH) MTD-687-02080
...
38
PIVOT ARM ASSEMBLY (LH) MTD-687-02079
...
39
SPRING LEVER MTD-732-0984B
...
40
Shoulder Screw 3/8 - 16 x.442 MTD-738-1127B
...
41
Screw 1/4-20 x.50 MTD-710-0599
...
42
Rear Wheel Assembly 12 X 2.125 MTD-734-04093
...
43
Mulching Baffle MTD-631-04045
...
44
Engine Shroud MTD-731-05097
...
45
Deluxe Bail Cover MTD-731-04859
...
46
Spring Washer,.500 x 1.00 X .022 MTD-736-0182
