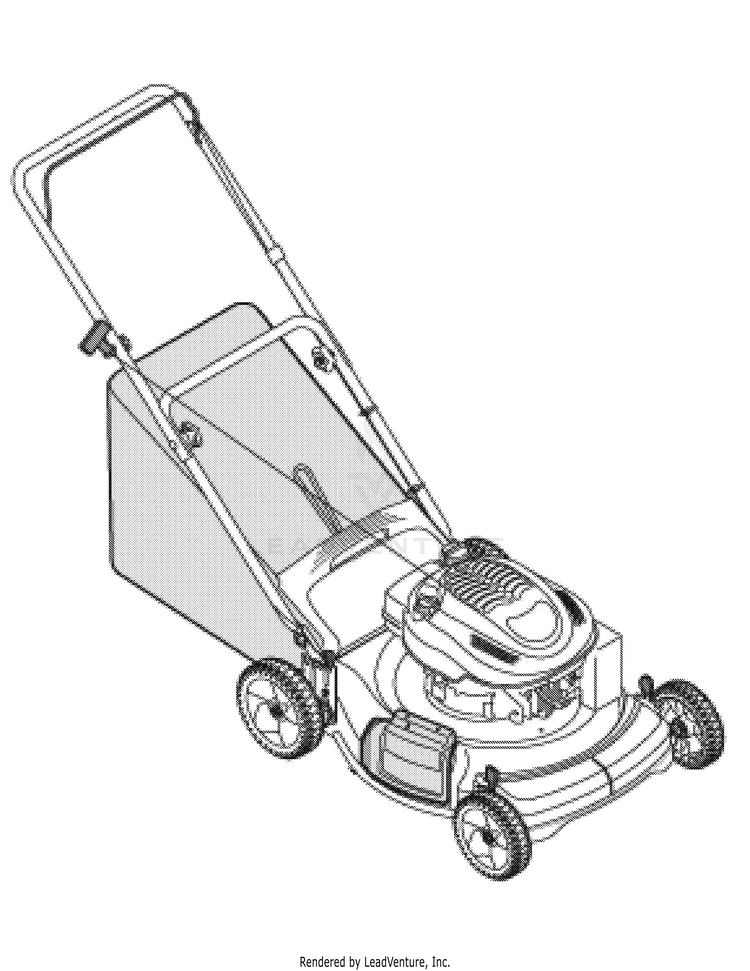

White Outdoor 11A-439S290 (2007) Walk Behind Mower

Model: 11A-439S290 (2007)

Save Part Not Listed?
product name

.Quick Reference 439S

...
...
xx
SPARK PLUG RJ19LM 802592S MTD-759-3338
...
xx
Pre Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Filter MTD-BS-298090S
...
xx
Cable Control (Brake) MTD-946-1130
...
xx
Blade MTD-942-0741A
...
xx
Blade Bolt MTD-710-1257
...
xx
Blade Adapter MTD-748-0377E
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Wheel (Front) MTD-734-1987
...
xx
Wheel (Rear) MTD-734-1987
...
xx
Trail Shield MTD-731-05642A
...
xx
Side Discharge Chute MTD-731-04177
...
xx
Grass Bag Assembly MTD-964-04007A
...
xx
Mulch Plug Assembly (Attachment) MTD-987-02055

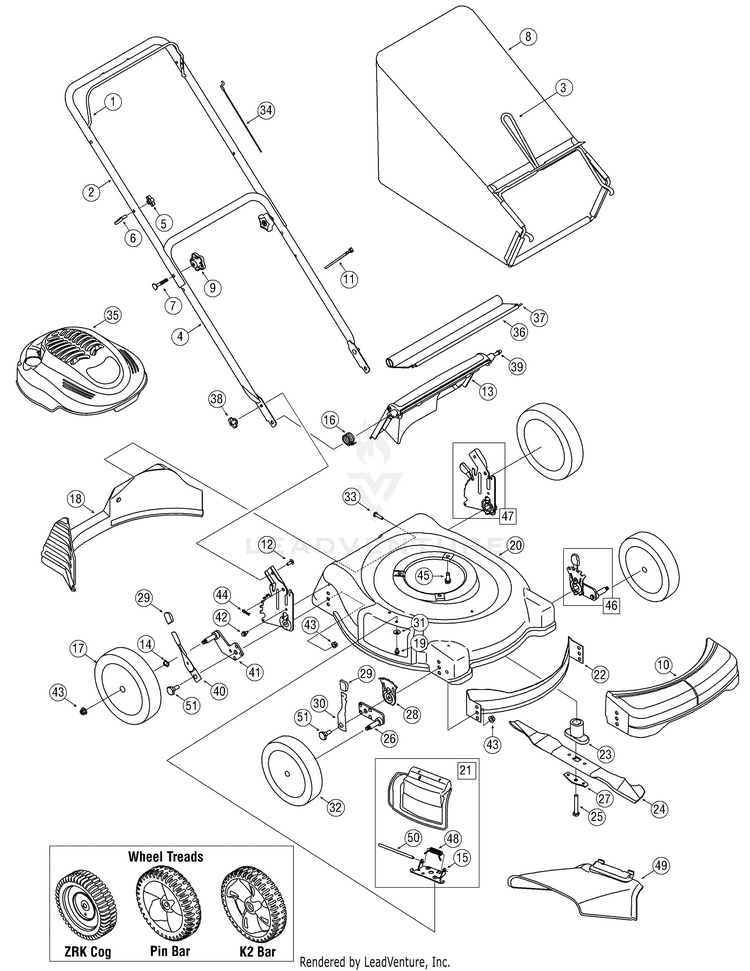

General Assembly

...
...
1
Blade Control Handle *CHOOSE COLOR WHEN ORDERING* MTD-747-1161A
...
2
Upper Handle *CHOOSE COLOR WHEN ORDERING* MTD-749-1092A
...
3
Grass Catcher Frame MTD-747-04080A
...
4
Lower Handle MTD-749-0928A-0637
...
5
Wing Nut MTD-720-0279
...
6
Rope Guide MTD-710-1205
...
7
Carriage Bolt, 5/16-18 x 2 MTD-710-1174
...
8
Grass Bag Assembly MTD-964-04007A
...
9
Hand Knob MTD-720-04072A
...
10
FRONT END COVER If Equipped MTD-731-1506A
...
11
Cable Tie MTD-725-0157
...
12
Carriage Bolt ,1/4-20 MTD-710-0703
...
13
Rear Discharge Door NLA MTD-631-04225
...
14
Wave Washer If Equipped MTD-936-0504
...
15
PLATE-ADAPTER MTD-17032A
...
16
Torsion Spring - RH MTD-732-04090A
...
17
Rear Wheel, 8 x 1.8, K2 Bar MTD-734-1987
...
18
REAR BAFFLE 21" MTD-731-04150C
...
19
Screw, 1/4-20 x .500 MTD-710-0599
...
20
21" DECK *CHOOSE COLOR WHEN ORDERING* MTD-787-01279
...
21
Hinged Mulch Plug Assembly MTD-987-02055
...
22
FRONT BAFFLE MTD-782P5002B
...
23
Blade Adapter MTD-748-04082
...
24
Mulching Blade MTD-942-0741A
...
25
Hex Screw , 3/8-24 x 2.5 MTD-710-1257
...
26
PIVOT ARM ASSEMBLY (RH) MTD-987-02076A
...
26
Pivot Arm Assy LH (7" wheel) Not Shown MTD-987-02077A
...
26
Pivot Arm Assy RH (8" wheel) MTD-987-02077A
...
26
PIVOT ARM ASSEMBLY (RH) Not Shown MTD-987-02076A
...
27
BLADE BELL SUPPORT MTD-736-0524B-1
...
28
Front Adjustment Plate MTD-787-01290A
...
29
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
30
Spring Lever Assembly MTD-94832
...
31
SPRING WASHER BELL MTD-736-0270
...
32
Front Wheel, 7 x 1.8, K2 Bar MTD-734-1988
...
33
Screw, 1/4-15 x 1.000 MTD-710-1241
...
34
Control Cable 40 inch MTD-946-1130
...
34
Control Cable 53 inch MTD-946-1137
...
35
Engine Shroud If Equipped MTD-931-04525
...
36
Trailshield MTD-731-05642A
...
37
TRAILSHIELD WIRE MTD-732P0700
...
38
Wing Nut, 1/4-20 MTD-712-0397A
...
39
Rear Door Pivot Rod MTD-747-04587
...
40
Spring Lever MTD-732-04175
...
41
Pivot Arm Assembly - RH MTD-987-02071A
...
41
Pivot Arm Assembly - LH Not Shown MTD-987-02070A
...
42
AB Screw MTD-710-1652
...
43
Flange Lock Nut, 3/8-16 MTD-712-04065
...
44
Hairpin Clip MTD-714-0104
...
45
TT Sems Screw, 3/8-16 x 1.0 MTD-710-0654A
...
46
Ht. Adj. Assy. Front LH (7" wheel) MTD-987-02099C
...
46
Ht. Adj. Assy. Front RH (7" wheel) Not Shown MTD-987-02100C
...
46
Ht. Adj. Assy. Front LH (8" wheel) MTD-987-02075B
...
46
Ht. Adj. Assy. Front RH (8" wheel) Not Shown MTD-987-02074B
...
47
HANDLE BRACKET ASSEMBLY (LH) MTD-987-02270A
...
47
HANDLE BRACKET ASSEMBLY (RH) Not Shown MTD-987-02271A
...
48
Torsion Spring MTD-732-1014C
...
49
Side Chute MTD-731-04177
...
50
Hinge Pin MTD-747-0710A
...
51
Shoulder Bolt .50" Dia. MTD-738-0507B
