White Outdoor 119-074R190 Lawn Boss 20 (1989)

Model: 119-074R190 Lawn Boss 20 (1989)

Save Part Not Listed?
product name

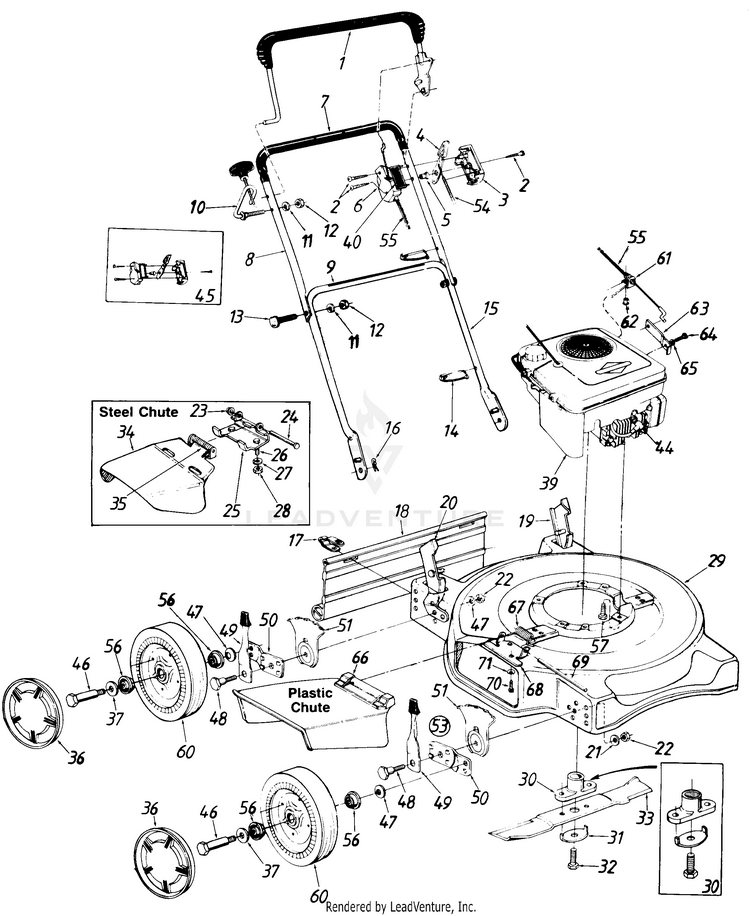

Rotary Mower

...
...
1
BAIL (LH) NLA MTD-731-0609
...
2
Truss Mach. Scr. #12 x 1.5" Lg. MTD-710-0796
...
3
PANEL HALF-CONTROL MTD-731-0817A
...
4
Throttle Control Lever MTD-931-0972
...
5
CONROL DISC PIN NLA MTD-731-0524
...
6
CIUTCH PANEL HALF NLA MTD-731-0816
...
7
Grip MTD-720-0295
...
8
UPPER HANDLE MTD-749-0756A
...
9
LABEL NLA MTD-777-5776
...
10
SCREW-RECOIL HANDLE GUIDE NLA MTD-710-0842B
...
11
L-Wash. 5/16" I.D.* MTD-936-0119
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671
...
14
Cable Tie MTD-725-0157
...
15
Lower Handle MTD-749-0928A-0637
...
16
Hairpin Clip MTD-714-0104
...
17
HINGE CLIP MTD-17098P
...
18
Rear Flap MTD-731-0872B
...
19
BRACKET ASSEMBLY-HNDL (LH) PWDR BLK MTD-17189B-0637
...
20
BRACKET ASSEMBLY-HNDL (RH) PWDR BLK MTD-17188B-0637
...
21
BELL WASHER MTD-936-0356
...
22
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
23
Push Cap 1/4" Rod MTD-926-0106
...
24
PIVOT PIN NLA MTD-711-0555
...
25
ADAPTER PLATE NLA MTD-11130
...
26
Hex Bolt 1/4-20 X .50" Lg.* (Optional Parts) MTD-910-0289
...
27
L-Wash. 1/4" I.D.* (Optional Parts) MTD-936-0329
...
28
HEX NUT 1/4-20 (Optional Parts) MTD-912-0287
...
29
DECK ASSEMBLY-20IN MTD-17036
...
30
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
31
KIT-BLADE MOUNTING MTD-753-0525
...
32
Hex Bolt 7/16-20 x 1.5" Lg. MTD-710-0757
...
33
20" BLADE MTD-942-0620
...
34
CHUTE DEFLECTOR (Optional Parts) MTD-931-1034B
...
35
TORSION SPRING NLA MTD-732-0253
...
36
Hub Cap MTD-731-0981C
...
37
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
39
Engine MTD-NA
...
40
Control Label-Throttle NLA MTD-777-5774
...
44
INSULATOR-SPARK PLUG MTD-735-0639
...
45
CONTROL HOUSING COMP. NLA MTD-753-0430
...
46
Axle Bolt for Plastic Rim MTD-738-0102
...
47
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
48
Shoulder Bolt .50" Dia. MTD-738-0507B
...
49
Spring Lever Ass'y. w/Knob MTD-94832
...
50
Pivot Bar MTD-15262B
...
51
Height Adj. Plate MTD-787-01290A
...
53
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
53
Height Adj. Ass'y. Comp.-L.H. MTD-753-06761
...
54
Throttle Cable-47" MTD-946-1115
...
55
CONTROL CABLE MTD-946-0477A
...
56
BALL BEARING MTD-941-0180
...
57
Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg. MTD-710-0654A
...
60
Wheels - Front MTD-753-08093
...
61
BRACKET-CA NLA MTD-16703
...
62
RIVET MTD-728-0171
...
63
Mounting Brkt. NLA MTD-16704
...
64
Truss Mach. Scr. #10-24 x .5" Lg. MTD-710-0473
...
65
L-Wash. #10 I.D. MTD-936-0722
...
66
CHUTE DEFLECTOR MTD-931-1034B
...
67
Torsion Spring MTD-932-0593
...
68
PLATE-ADAPTER MTD-17032A
...
69
Hinge Pin MTD-747-0710A
...
70
Hex Self-Tap Scr. 1/4-20 X .5" Lg. MTD-710-0599
...
71
SPRING WASHER BELL MTD-736-0270
