White Outdoor 118-434R190 Lawn Boss 21 (1988)

Model: 118-434R190 Lawn Boss 21 (1988)

Save Part Not Listed?
product name

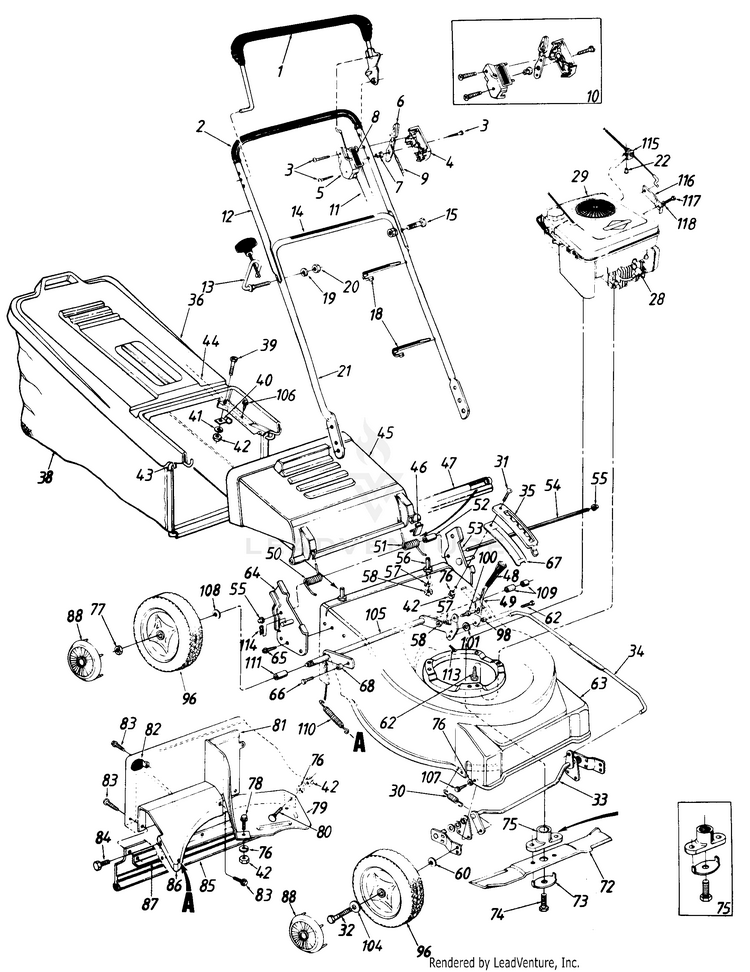

Rotary Mower

...
...
1
BAIL (LH) NLA MTD-731-0609
...
2
Grip MTD-720-0295
...
3
Truss Mach. B-Tap Scr. #12 x 1.5" Lg. MTD-710-0796
...
4
PANEL HALF-CONTROL MTD-731-0817A
...
5
CIUTCH PANEL HALF NLA MTD-731-0816
...
6
Throttle Control Lever MTD-931-0972
...
7
CONROL DISC PIN NLA MTD-731-0524
...
8
Control Label-Throttle NLA MTD-777-5774
...
9
Throttle Wire-53" Lg. MTD-946-0671A
...
10
CONTROL HOUSING COMP. NLA MTD-753-0430
...
11
49" CONTROL CABLE MTD-946-0478A
...
12
UPPER HANDLE MTD-749-0438D-0637
...
13
OPE GUIDE BOLT NLA MTD-710-0842
...
14
LABEL NLA MTD-777-5776
...
15
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671
...
18
Cable Tie MTD-725-0157
...
19
L-Wash. 5/16" I.D. MTD-936-0119
...
20
HEX NUT 5/16-18 MTD-712-3010
...
21
Lower Handle MTD-749-0907B
...
22
RIVET MTD-728-0171
...
28
INSULATOR-SPARK PLUG MTD-735-0639
...
29
Engine MTD-NA
...
30
EXTENSION SPRING 2 89" LG. NLA MTD-732-0589
...
31
Truss Mach. Scr. 1/4-20 x .62" Lg. MTD-710-0946
...
32
Axle Bolt for Plastic Rim MTD-738-0102
...
33
AXLE ASSEMBLY BLACK MTD-17022-0637
...
34
ROD-HGT ADJ NLA MTD-747-0699
...
35
PLATE-HGT NLA MTD-17323
...
36
HARDTOP BAG COVER MTD-631-0003
...
38
Grass Bag MTD-964-0252
...
39
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
40
CABLE CLAMP NLA MTD-12894
...
41
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
42
HEX NUT 1/4-20 MTD-912-0287
...
43
CATCHER FRAME MTD-764-0411-0637
...
44
REAR CATCHER FRAME NLA MTD-749-0736
...
45
CHUTE DEFLECTOR MTD-931-0859A
...
46
DEFLECTOR PLUG MTD-731-0970B
...
47
EXTRUSION SEAL MTD-731-0858
...
48
Grip MTD-720-0223
...
49
SPRING LEVER MTD-732-0580
...
50
TORSION SPRING (RH) MTD-732-0578B
...
51
TORSION SPRING (LH) MTD-932-0577B
...
52
Spacer .255" I.D. MTD-750-0566A
...
53
BRACKET ASSEMBLY MTD-12297B-0637
...
54
HINGE PIN MTD-747-0698B
...
55
Cap Speed Nut MTD-926-0106
...
56
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
57
L-Wash. 3/8" I.D. MTD-736-0169
...
58
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
60
Bell-Wash. .38" l.D. x .88" O.D. MTD-736-0105
...
62
Hex L-Wash. Hd. Scr. 3/8-16 x l" Lg. MTD-710-0654A
...
63
21" Deck Ass'y. NLA MTD-16997
...
64
BRACKET ASSEMBLY MTD-12296B-0637
...
65
HEX SCREW L-WASH HD MTD-910-0892
...
66
HEX SCREW 3/8 x 7/8 MTD-910-1006
...
67
SEAL-HGT A NLA MTD-721-0216
...
68
Spacer .385" I.D. MTD-750-0526
...
72
21" Blade MTD-942-0621
...
73
KIT-BLADE MOUNTING MTD-753-0525
...
74
Hex Bolt 7/16-20 x 1.5" Lg. MTD-710-0757
...
75
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
76
L-Wash. 1/4" l.D. MTD-936-0329
...
77
Hex Lock Nut 1/2-20 Thread MTD-712-0346
...
78
Hex Bolt 1/4-20 x .85" Lg. MTD-710-3015
...
79
BAFFLE-BELT NLA MTD-17013
...
80
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
81
BAFFLE-RR-PANEL MTD-17007-0637
...
82
PLUG-CORNER NLA MTD-731-0931
...
83
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
84
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
85
Rear Flap MTD-731-0669
...
86
BAFFLE-RR-CHUTE MTD-17008-0637
...
87
RETAINING STRIP MTD-14847-0637
...
88
HUB CAP NLA MTD-731-0124
...
88
Hub Cap (8 x 2) MTD-731-0981C
...
96
T TREAD NLA MTD-734-1260
...
96
Wheels - Front MTD-753-08093
...
98
SHOULDER SPACER MTD-750-0624
...
100
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
101
Fl-Wash. .375" l.D. x 1.0" MTD-736-0258
...
104
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
105
AXLE ASSEMBLY-REAR MTD-17031
...
106
Hex AB-Tap Scr. 1/4" x .62 Lg. MTD-710-0896
...
107
Hex L-Wash. HD AB-Tap Scr. 1/4 x.38" Lg. MTD-710-0352
...
108
Fl-Wash. .510" l.D. x .75" O.D. MTD-936-0108
...
109
SLEEVE MTD-911-0500
...
110
EXTENSION SPRING MTD-932-0481
...
111
SLEEVE MTD-911-0313
...
113
Cotter Pin 3/32" Dia. x .75" MTD-914-0507
...
114
Hairpin Clip MTD-714-0104
...
115
BRACKET-CA NLA MTD-16703
...
116
Mounting Brkt. NLA MTD-16704
...
117
Truss Mach. Scr. #10 x .5" Lg. MTD-710-0473
...
118
L-Wash. #10 I.D. MTD-936-0722
