White Outdoor 118-072A190 Lawn Boss 20 (1988)

Model: 118-072A190 Lawn Boss 20 (1988)

Save Part Not Listed?
product name

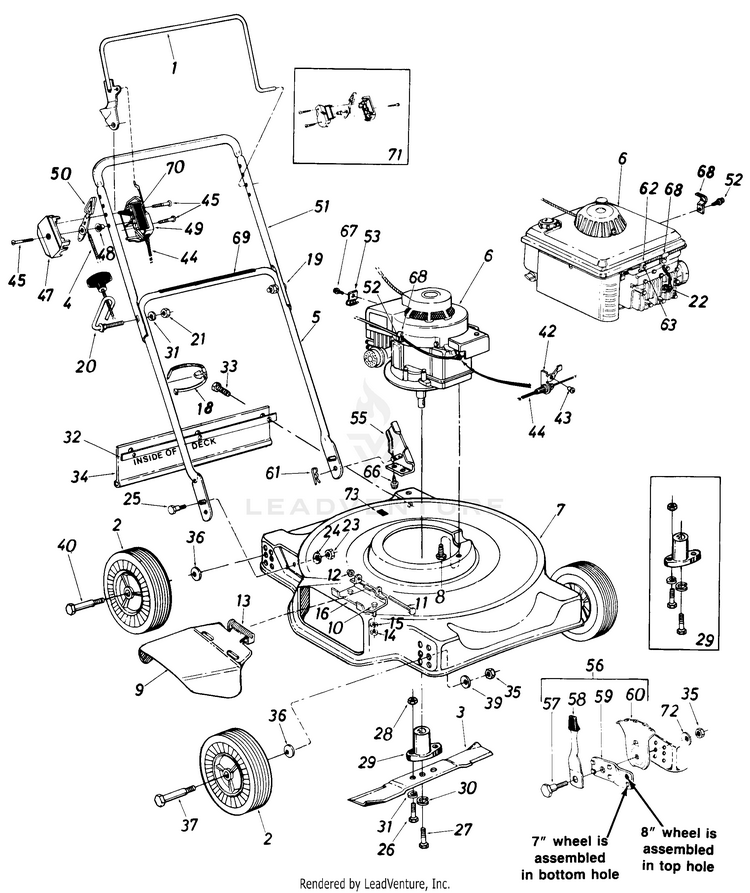

Mower Assembly

...
...
1
HANDLE ASSEMBLY NLA MTD-14320
...
2
Wheel Ass'y. Comp. MTD-NA
...
2
8" REAR WHEEL ASS'Y. (STEEL WHEEL) NLA MTD-734-0894
...
2
Wheel Bearings MTD-741-0262
...
3
20" BLADE NLA MTD-742-0123
...
4
Throttle Control Wire-39" MTD-946-0630A
...
5
Lower Handle MTD-749-0928A-0637
...
6
Engine MTD-NA
...
7
DECK ASSEM NLA MTD-14995
...
8
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg. MTD-710-0654A
...
9
CHUTE DEFLECTOR MTD-931-1034B
...
10
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
11
PIVOT PIN NLA MTD-711-0555
...
12
Push Cap .25" Rod MTD-926-0106
...
13
TORSION SPRING NLA MTD-732-0253
...
14
HEX NUT 1/4-20 MTD-912-0287
...
15
L-Wash. 1/4" I.D. MTD-936-0329
...
16
ADAPTER PLATE NLA MTD-11130
...
18
Cable Tie MTD-725-0157
...
19
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671
...
20
OPE GUIDE BOLT NLA MTD-710-0842
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
UNKNOWN MTD-NA
...
23
UNKNOWN MTD-NA
...
24
UNKNOWN MTD-NA
...
25
UNKNOWN MTD-NA
...
26
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) Special MTD-710-0888
...
27
Hex Bolt 3/8-24 x 2.25n Lg. (Grade 5) MTD-710-0331
...
28
Hex Nut 5/16-24 Thd. MTD-912-3057
...
29
Blade Adapter Kit NLA MTD-753-0348
...
30
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
31
L-Wash. 5/16n l.D. MTD-936-0119
...
32
RETAINER STRIP NLA MTD-14846
...
33
Hex Wash. Hd. AB-Tap Scr. 1/4 " X .62n Lg. MTD-710-0896
...
34
FLAP ASSEMBLY MTD-731-1029
...
35
Hex Nut 3/8-16 Thd. MTD-712-0798
...
36
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
37
Axle Bolt for Plastic Rim MTD-738-0102
...
39
UNKNOWN MTD-NA
...
40
SHOULDER SCREW .498 DI MTD-738-0509
...
42
BRACKET-CA NLA MTD-14924
...
43
RIVET MTD-728-0171
...
44
49" CONTROL CABLE MTD-946-0478A
...
45
Truss Mach. Scr. #12 x 1.50" MTD-710-0796
...
47
PANEL HALF-CONTROL MTD-731-0817A
...
48
CONROL DISC PIN NLA MTD-731-0524
...
49
CIUTCH PANEL HALF NLA MTD-731-0816
...
50
Throttle Control Lever MTD-931-0972
...
51
UPPER HANDLE (POWDER BLACK) MTD-749-0538E-0637
...
52
Hex "B" Tap Scr. #10 x .38" MTD-910-0429
...
53
CLAMP-CONDUIT NLA MTD-751-0369
...
55
BRACKET AS NLA MTD-12935
...
55
BRACKET ASSY-HDLE NLA MTD-12936
...
56
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
56
Height Adjuster Ass'y. Comp.-L.H. (Not Shown) MTD-753-06761
...
57
Shoulder Bolt .50" Dia. MTD-738-0507B
...
58
Spring Lever Ass'y. w/Knob MTD-94832
...
59
Pivot Bar (7" wheel is assembled in bottom hole)(8" wheel is assembled in top hole) MTD-15262B
...
60
Index Plate MTD-787-01290A
...
61
Hairpin Clip MTD-714-0104
...
62
UNKNOWN MTD-NA
...
63
Hex Self-Tap Scr. #8 x .62" MTD-710-0651
...
66
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
67
Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg. MTD-710-0227
...
68
CABLE CLAMP NLA MTD-12894
...
69
LABEL NLA MTD-777-5776
...
70
LABEL - THROTTLE CONTROL NLA MTD-777-5773
...
71
CONTROL HOUSING COMP. NLA MTD-753-0430
...
72
BELL WASHER MTD-936-0356
...
73
PLUG MTD-731-0564
