product name

White Outdoor 115-104-190 21" BBC Push Mower (1985)

Model: 115-104-190 21"" BBC Push Mower (1985)

Save Part Not Listed?
product name

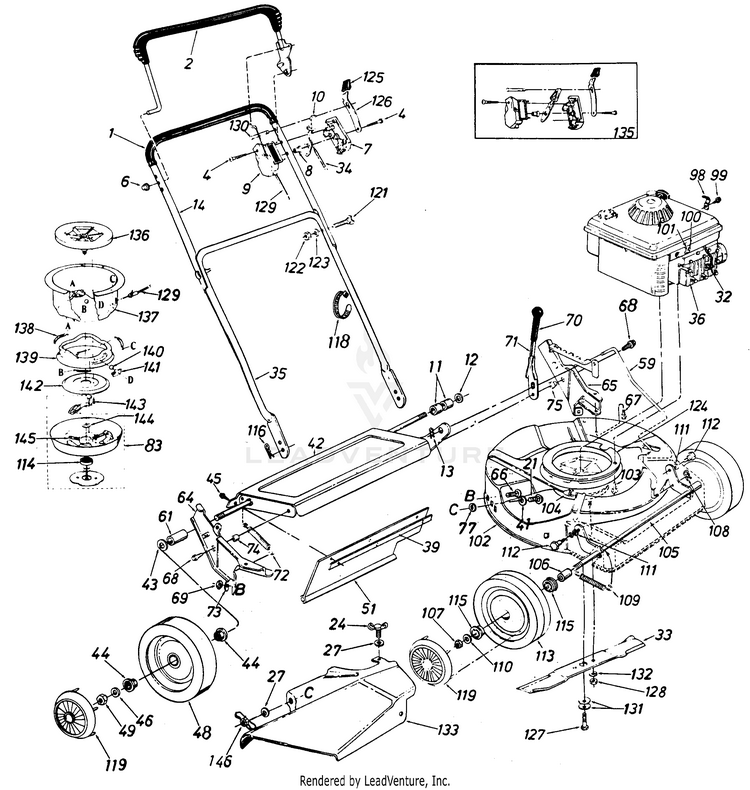

Rotary Mower Assembly 104

...
...
1
Grip NLA MTD-718-0145
...
2
BAIL (LH) NLA MTD-731-0609
...
4
Truss Mach. Scr. #12 x 1.50" Lg. MTD-710-0796
...
6
Cap Speed Nut .31 Dia. MTD-726-0135
...
7
CONTROL PANEL HALF NLA MTD-731-0523
...
8
CONROL DISC PIN NLA MTD-731-0524
...
9
CLUTCH PANEL HALF NLA MTD-731-0526
...
10
Throttle Control Lever MTD-931-0972
...
11
SLEEVE MTD-911-0500
...
12
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
13
Hairpin Clip MTD-714-0104
...
14
Upper Handle Chrome NLA MTD-749-0437
...
21
Carriage Bolt 1/4-20 x .62" Lg.* MTD-710-0134
...
24
Wing Bolt 1/4-20 x .62" Lg. NLA MTD-710-0934
...
24
HEX NUT 1/4-20 MTD-912-0287
...
27
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
27
L-Wash. 1/4" I.D.* MTD-936-0329
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
33
21" BLADE NLA MTD-742-0290
...
34
Throttle Control Wire 58.0" Lg. MTD-946-0674A
...
35
Lower Handle Chrome MTD-749-0907B
...
36
Engine MTD-NA
...
39
STRIP-RETA MTD-14835
...
41
Fl-Wash. .344" I.D. x .62" O.D. MTD-736-0204
...
42
AXLE ASSEMBLY- NLA MTD-16131
...
43
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
44
BALL BEARING MTD-941-0180
...
45
Hex AB-Tap Scr. 1/4 x .62" Lg. MTD-710-0896
...
46
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
46
HEX LOCK NUT 3/8-2 MTD-912-0296
...
48
ASS'Y. COMP. (GEAR TREAD) NLA MTD-734-1026
...
49
Hex L-Nut 1/2-20 Thd. MTD-712-0200A
...
51
FLAP-REAR MTD-731-0672A
...
59
ROD-HGT ADJ 1.50 x 19.42 NLA MTD-747-0510
...
61
SPACER NLA MTD-748-0191
...
64
BRACKET ASSEMBLY (RH) MTD-16136C-0637
...
65
BRACKET ASSEMBLY (LH) MTD-16137C-0637
...
66
Carriage Bolt 5/16-18 x .62"* MTD-710-0260A
...
67
Hex Wash. Hd. B-Tap Scr. 5/1 6-1 8 MTD-710-0603
...
68
Hex Wash. Hd. TT-Tap Scr. 3/8-1 6 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
GRIP NLA MTD-720-0143
...
71
HEIGHT ADJUSTMENT LEVER MTD-732-0473B
...
72
EXTENSION SPRING MTD-932-0481
...
73
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
74
Spacer.385" I.D. x .502" O.D. x .:270" Lg. MTD-750-0526
...
75
SHOULDER SPACER MTD-750-0624
...
77
Bolt Retainer 1/4 x .50" O.D. MTD-726-0233
...
83
CLUTCH BLADE HOUSING ASS'Y. NLA MTD-14300
...
98
CABLE CLAMP NLA MTD-12894
...
99
Hex B-Tap Scr. #10 x .38" Lg . MTD-910-0429
...
100
Hex Sems Bolt #10-32 x .62" Lg. MTD-710-0899A
...
101
CASING CLAMP NLA MTD-751-0333
...
102
DECK ASSEMBLY-TOP NLA MTD-16126
...
103
Hex Wash Hd. TT-Tap Scr. 3/8-1 6 MTD-710-0654A
...
104
SPEED NUT 1/4-20 MTD-712-0185
...
105
Front Axle Ass'y. NLA MTD-10662
...
106
SLEEVE MTD-911-0313
...
107
Hex L-Nut 1/2-20 Thd. MTD-712-0200A
...
108
Hairpin Clip MTD-714-0104
...
109
EXTENSION SPRING MTD-732-0482
...
110
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
111
LOCK WASHER 3/8 X.56 OD MTD-736-0221
...
112
SHOULDER SCREW .623 X NLA MTD-738-0615
...
113
Front Wheel Ass'y. Comp 7 x 1.75 MTD-734-1264
...
114
Ball Brg. .669" I.D. x 1.574" MTD-941-0600
...
115
BALL BEARING MTD-941-0180
...
116
Hairpin Clip MTD-714-0104
...
118
CABLE TIE NLA MTD-726-0192
...
119
HUB CAP NLA MTD-731-0124
...
121
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671
...
122
HEX NUT 5/16-18 MTD-712-3010
...
123
L-Wash. 5/16" I.D.* MTD-936-0119
...
124
BLADE BRAKE CLUTCH ASS'Y. COMP. NLA MTD-717-0485
...
125
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
126
SPRING-LOCKOUT NLA MTD-732-0401
...
127
Hex Cent. L-Bolt 3/8-24 x 2.00" (Grade 8) MTD-710-0818
...
128
Hex Nut 3/8-24 Thd. MTD-712-0241
...
129
CLUTCH CABLE MTD-746-0400
...
130
LOCKING PIN NLA MTD-731-0607
...
131
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
132
L-Wash. 3/8" I.D. MTD-736-0169
...
133
SIDE CHUTE DEFLECTOR NLA MTD-16148
...
135
KIT-THROTTLE NLA MTD-753-0361
...
136
ADAPTER-FAN NLA MTD-719-0256
...
137
HOUSING-CL NLA MTD-14307
...
138
EXTENSION SPRING NLA MTD-732-0397
...
139
Brake Cup Cone NLA MTD-14305
...
140
STEEL BALL NLA MTD-741-0326
...
141
BALL-BLOCK NLA MTD-731-0520
...
142
CLUTCH CONE NLA MTD-14304
...
143
Hex Tap L-Scr. 1/4-20 x .75" Lg . MTD-710-0875
...
144
FLAT WASHER .687 x 1.060 x .032 NLA MTD-736-0333
...
145
SPRING NLA MTD-732-0396
...
146
WING NUT 1/4-20 NLA MTD-712-0109
