White Outdoor 115-102-190 21" ERS Push Mower (1985)

Model: 115-102-190 21"" ERS Push Mower (1985)

Save Part Not Listed?
product name

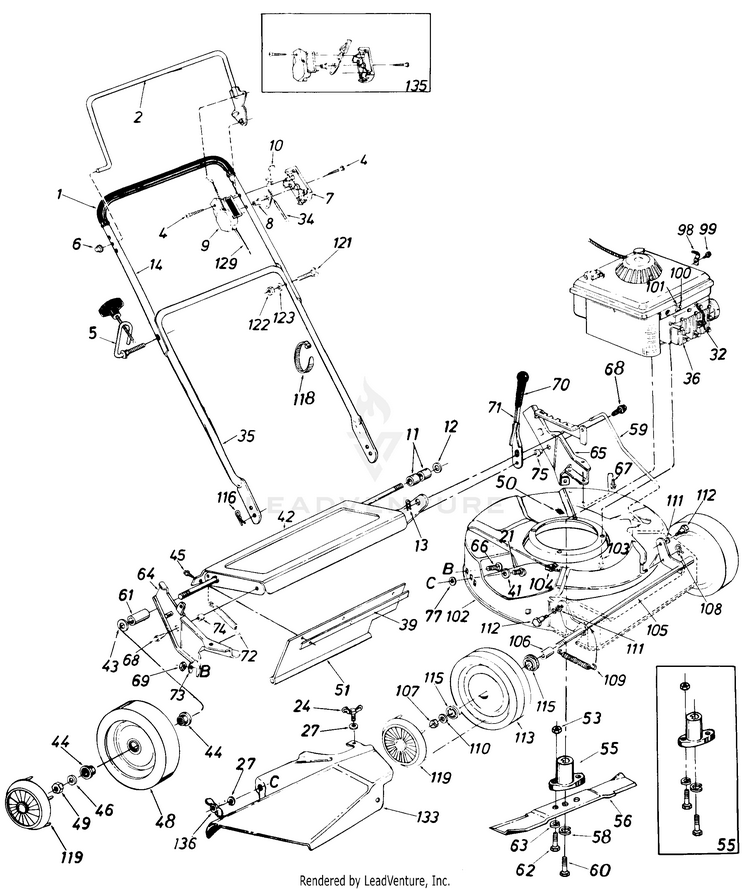

Rotary Mower Assembly 102

...
...
1
Grip NLA MTD-718-0145
...
2
CONTROL HANDIE ASS'Y.-L.H. NLA MTD-14321
...
4
Truss Mach. Scr. #12 x 1.50" Lg. MTD-710-0796
...
5
OPE GUIDE BOLT NLA MTD-710-0842
...
6
Cap Speed Nut .31 Dia. MTD-726-0135
...
7
CONTROL PANEL HALF NLA MTD-731-0523
...
8
CONROL DISC PIN NLA MTD-731-0524
...
9
CLUTCH PANEL HALF NLA MTD-731-0526
...
10
Throttle Control Lever MTD-931-0972
...
11
SLEEVE MTD-911-0500
...
12
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
13
Hairpin Clip MTD-714-0104
...
14
Upper Handle Chrome NLA MTD-749-0437
...
21
Carriage Bolt 1/4-20 x .62" Lg.* MTD-710-0134
...
24
Wing Bolt 1/4-20 x .62" Lg. NLA MTD-710-0934
...
24
HEX NUT 1/4-20 MTD-912-0287
...
27
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
27
L-Wash. 1/4" I.D.* MTD-936-0329
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
34
Throttle Control Wire 58.0" MTD-946-0674A
...
35
Lower Handle Chrome MTD-749-0907B
...
36
Engine MTD-NA
...
39
STRIP-RETA MTD-14835
...
41
Fl-Wash. .344" I.D. x .62" O.D. MTD-736-0204
...
42
AXLE ASSEMBLY- NLA MTD-16131
...
43
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
44
Flange Bearing 1/2" I.D. MTD-741-0262
...
45
Hex AB-Tap Scr. 1/4 x .62" Lg. MTD-710-0896
...
46
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
48
8" REAR WHEEL ASS'Y. (STEEL WHEEL) NLA MTD-734-0894
...
49
Hex L-Nut 1/2-20 Thd. MTD-712-0200A
...
50
PLUG MTD-731-0564
...
51
FLAP-REAR MTD-731-0672A
...
53
Hex Nut 5/16-24 Thd.* MTD-912-3057
...
55
Blade Adapter Kit NLA MTD-753-0348
...
56
21" BLADE NLA MTD-742-0289
...
58
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
59
ROD-HGT ADJ 1.50 x 19.42 NLA MTD-747-0510
...
60
Hex Bolt 3/8-24 x 2.25" Lg (Grade 5) MTD-710-0331
...
61
SPACER NLA MTD-748-0191
...
62
Hex Bolt 5/16-24 x 1.00" Lg (Grade 5) MTD-710-0888
...
63
L-Wash. 5/16" I.D. MTD-936-0119
...
64
BRACKET ASSEMBLY (RH) MTD-16136C-0637
...
65
BRACKET ASSEMBLY (LH) MTD-16137C-0637
...
66
Carriage Bolt 5/16-18 x .62" Lg.* MTD-710-0260A
...
67
Hex Wash. Hd. B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex Wash. Hd. TT-Tap Scr. 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
GRIP NLA MTD-720-0143
...
71
HEIGHT ADJUSTMENT LEVER MTD-732-0473B
...
72
EXTENSION SPRING MTD-932-0481
...
73
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
74
Spacer .385" I.D. x .502" O.D. x .270" Lg. MTD-750-0526
...
75
SHOULDER SPACER MTD-750-0624
...
77
Bolt Retainer 1/4 x .50" O.D. MTD-726-0233
...
98
CABLE CLAMP NLA MTD-12894
...
99
Hex B-Tap Scr. #10 x .38" Lg. MTD-910-0429
...
100
Hex Sems Bolt #10-32 x .62" Lg. MTD-710-0899A
...
101
CASING CLAMP NLA MTD-751-0333
...
102
21" Deck Ass'y NLA MTD-16125
...
103
Hex Wash Hd. TT-Tap Scr. 3/8-16 MTD-710-0654A
...
104
SPEED NUT 1/4-20 MTD-712-0185
...
105
Front Axle Ass'y. NLA MTD-10662
...
106
SLEEVE MTD-911-0313
...
107
Hex L-Nut 1/2-20 Thd. MTD-712-0200A
...
108
Hairpin Clip MTD-714-0104
...
109
EXTENSION SPRING MTD-732-0482
...
110
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
111
LOCK WASHER 3/8 X.56 OD MTD-736-0221
...
112
SHOULDER SCREW .623 X NLA MTD-738-0615
...
113
7" FRONT WHEEL ASS'Y. (STEEL WHEEL) NLA MTD-734-0892
...
115
Flange Bearing 1/2" I.D. MTD-741-0262
...
116
Hairpin Clip MTD-714-0104
...
118
CABLE TIE NLA MTD-726-0192
...
119
HUB CAP NLA MTD-731-0124
...
121
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671
...
122
HEX NUT 5/16-18 MTD-712-3010
...
123
L-Wash. 5/16" I.D.* MTD-936-0119
...
129
CONTROL CABLE MTD-946-0477A
...
133
SIDE CHUTE DEFLECTOR NLA MTD-16148
...
135
CONTROL HOUSING COMP. NLA MTD-753-0360
...
136
WING NUT 1/4-20 NLA MTD-712-0109
