White Outdoor 115-074A190 20" Lawn Boss SD-074 (1995)

Model: 115-074A190 20"" Lawn Boss SD-074 (1995)


product name

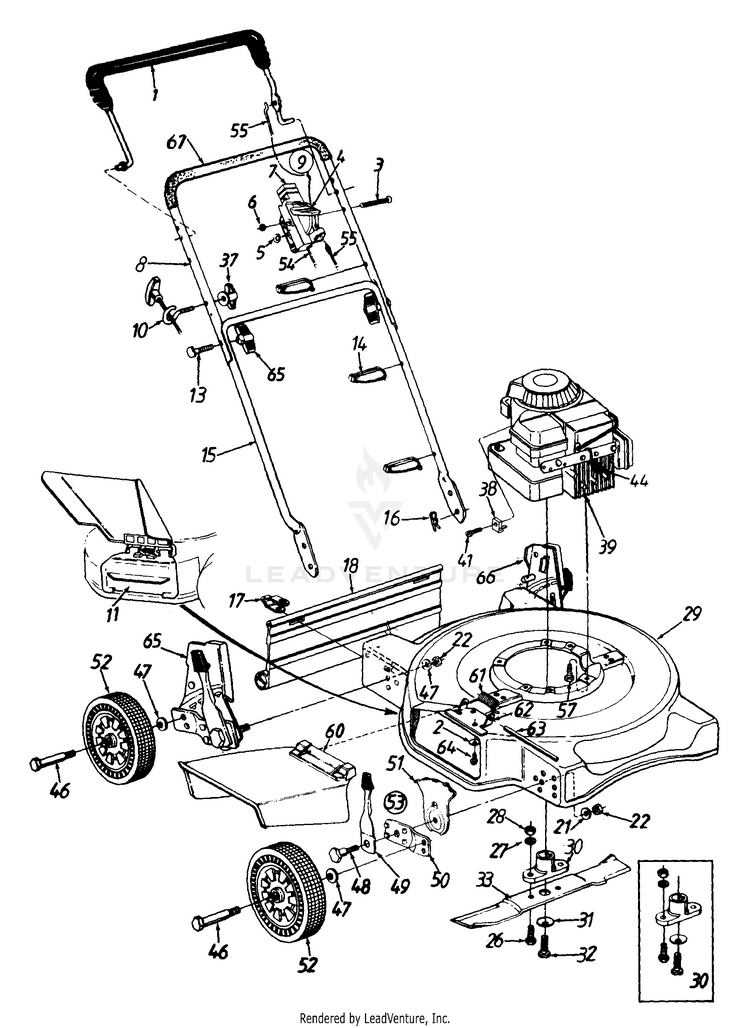

Main Assembly

...
...
1
Std. Control Handle MTD-747-0824B-0637

...
2
SPRING WASHER BELL MTD-736-0270

...
3
Oval C-Sunk Mach. Scr. MTD-710-0605

...
4
Throttle Lever MTD-946-0876

...
5
Spr. Wash. .66" I.D. MTD-936-0501

...
6
Hex L-Nut 1/4-20 Thd. MTD-712-0324

...
7
Throttle Body MTD-946-0875

...
8
UPPER HANDLE (POWDER BLACK) MTD-749-0538E-0637

...
9
Throttle Box Comp. Incl. Ref. 3, 4, 5, 6, 7 MTD-811-0185

...
11
UNKNOWN MTD-NA

...
10
Rope Guide MTD-710-1205

...
12
Hand Knob MTD-920-0276

...
13
Curved Hd. Bolt 5/16-18 x 2" Lg. MTD-710-1174

...
14
Cable Tie MTD-725-0157

...
15
Lower Handle MTD-749-0928A-0637

...
16
Hairpin Clip MTD-714-0104

...
17
HINGE CLIP MTD-17098P

...
18
Rear Flap MTD-731-0872B

...
19
BRACKET ASSEMBLY-HNDL (LH) PWDR BLK MTD-17189B-0637

...
20
BRACKET ASSEMBLY-HNDL (RH) PWDR BLK MTD-17188B-0637

...
21
BELL WASHER MTD-936-0356

...
22
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on the parts list. MTD-712-0798

...
23

...
26
SCREW 3/8-24 C 1.00 GR5 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on the parts list. MTD-710-1055

...
27
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on the parts list. MTD-736-0169

...
28
Hex Nut 3/8-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on the parts list. MTD-712-0241

...
29
20" DECK ASS'Y. NLA MTD-682-0033

...
30
Blade Adapter Kit MTD-753-0484

...
31
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452

...
32
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044

...
33
20" BLADE MTD-942-0620

...
33
20" BLADE (MULCH) Optional MTD-742-0720-0637

...
37
Wing Nut 1/4-20 Thd. MTD-712-0397A

...
38
Cable Clamp (B&S) MTD-BS-690798

...
39
Engine MTD-NA

...
41
Hex Wash. Hd. Tap Scr. #10-32 x .62" Lg. MTD-710-1237

...
44
INSULATOR-SPARK PLUG Optional MTD-735-0639

...
46
Axle Bolt for Plastic Rim MTD-738-0102

...
47
Bell-Wash. .400" I.D. x .88" MTD-736-0105

...
48
Shoulder Bolt .50" Dia. MTD-738-0507B

...
49
Spring Lever Ass'y. w/Knob MTD-94832

...
50
Pivot Bar MTD-15262B

...
51
Height Adj. Plate MTD-787-01290A

...
52
WHEEL W/BALLBRG NLA MTD-734-1793

...
52
BALL BEARING MTD-941-0180

...
52
Wave Washer MTD-936-0504

...
53
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761

...
53
Height Adj. Ass'y. Comp. - L.F. MTD-753-06761

...
54
Throttle Cable - 51" MTD-946-0671A

...
55
Control Cable - 39" MTD-946-0550

...
57
Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg. MTD-710-0654A

...
60
CHUTE DEFLECTOR MTD-931-1034B

...
61
Torsion Spring MTD-932-0593

...
62
PLATE-ADAPTER MTD-17032A

...
63
Hinge Pin MTD-747-0710A

...
64
Hex Self-Tap Scr. 1/4-20 x .5" MTD-710-0599

...
65
HANDLE BRACKET ASSEMBLY (RH) MTD-987-02106A

...
66
BRACKET ASSEMBLY MTD-987-02107A

...
67
Foam Grip MTD-720-0295
Schematic Image Zoomed
