product name

White Outdoor 115-050-190 20" ERS Push Mower (1985)

Model: 115-050-190 20"" ERS Push Mower (1985)

Save Part Not Listed?
product name

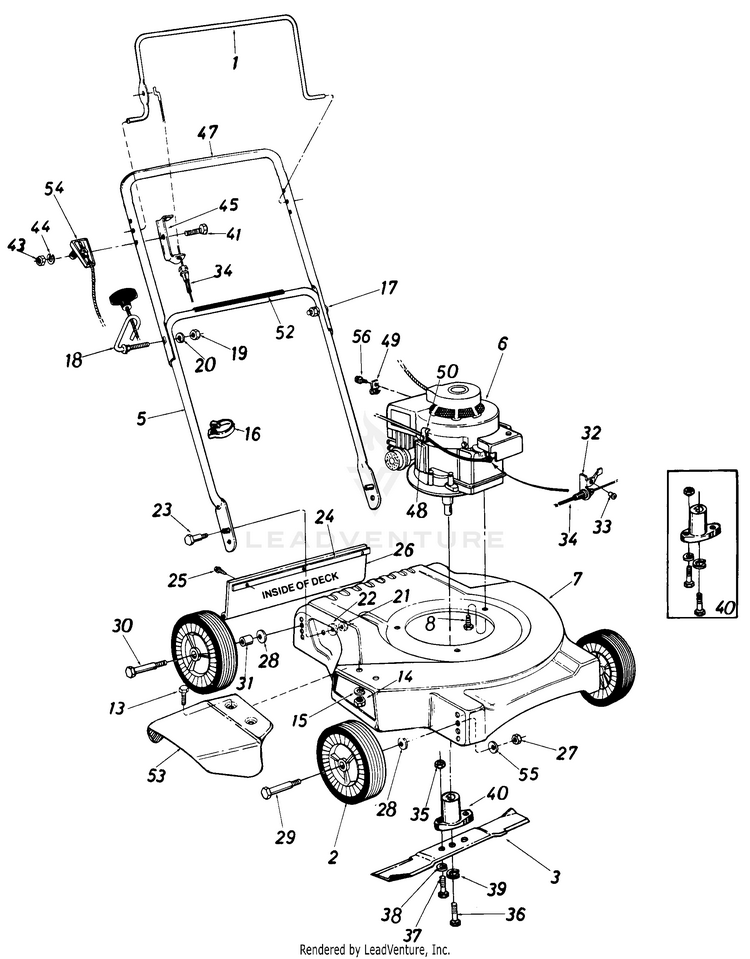

Rotary Mower Assembly

...
...
1
HANDLE-CONTROL NLA MTD-747-0500
...
2
WHEEL ASSEMBLY W/TIRE NLA MTD-734-1176
...
3
20" BLADE NLA MTD-742-0123
...
5
Lower Handle MTD-749-0928A-0637
...
6
Engine MTD-NA
...
7
20" Deck NLA MTD-16202
...
8
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg. MTD-710-0654A
...
13
Hex Bolt 1/4-20 x .50" Lg.* MTD-910-0289
...
14
HEX NUT 1/4-20 MTD-912-0287
...
15
L-Wash. 1/4" I.D.* MTD-936-0329
...
16
CABLE TIE NLA MTD-726-0192
...
17
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671
...
18
OPE GUIDE BOLT NLA MTD-710-0842
...
19
HEX NUT 5/16-18 MTD-712-3010
...
20
L-Wash. 5/16" I.D.* MTD-936-0119
...
21
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
22
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
23
Shld. Bolt .437" x .286" MTD-738-0296
...
24
STRIP-RETA NLA MTD-14836
...
25
Hex Wash. Hd. Self-Tap Scr. 1/4" x .62" Lg. MTD-710-0896
...
26
FLAP ASSEMBLY- NLA MTD-731-0670
...
27
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
28
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
29
Front Axle Shld. Bolt MTD-738-0213
...
30
SHOULDER SCREW .498 DI MTD-738-0509
...
31
Spacer MTD-750-0515
...
32
BRACKET-CA NLA MTD-14924
...
33
RIVET MTD-728-0171
...
34
Control Cable 43.0" Lg. MTD-946-0551
...
35
Hex Nut 5/16-24 Thd.* MTD-912-3057
...
36
Hex Bolt 3/8-24 x 1.00" Lg. (Grade 5) MTD-710-1039
...
37
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) MTD-710-0888
...
38
L-Wash. 5/16" I.D.* MTD-936-0119
...
39
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
40
BLADE ADAPTER KIT MTD-753-0343B
...
41
SCREW 1/4-28 x 1.75 GR5 NLA MTD-710-0559
...
43
Hex Nut 1/4-28 Thd. MTD-712-0138
...
44
L-Wash. 1/4" I.D. MTD-936-0175
...
45
BRACKET-CA NLA MTD-16201
...
47
UPPER HANDLE (POWDER BLACK) MTD-749-0538E-0637
...
48
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
49
CLAMP-CONDUIT NLA MTD-751-0369
...
50
CABLE CLAMP NLA MTD-12894
...
52
LABEL-10/2 NLA MTD-777-3455
...
53
CHUTE DEFLECTOR MTD-931-1034B
...
54
Throttle Control Ass'y. Comp. MTD-946-0645A
...
55
Bell-Wash. .39" I.D. x 1.13" O.D. MTD-736-0331
...
56
Hex AB-Tap Scr. #8 x .38" Lg . MTD-710-0227
