White Outdoor 114-108C190 20" Push Mower (Gas) (1994)

Model: 114-108C190 20"" Push Mower (Gas) (1994)


product name

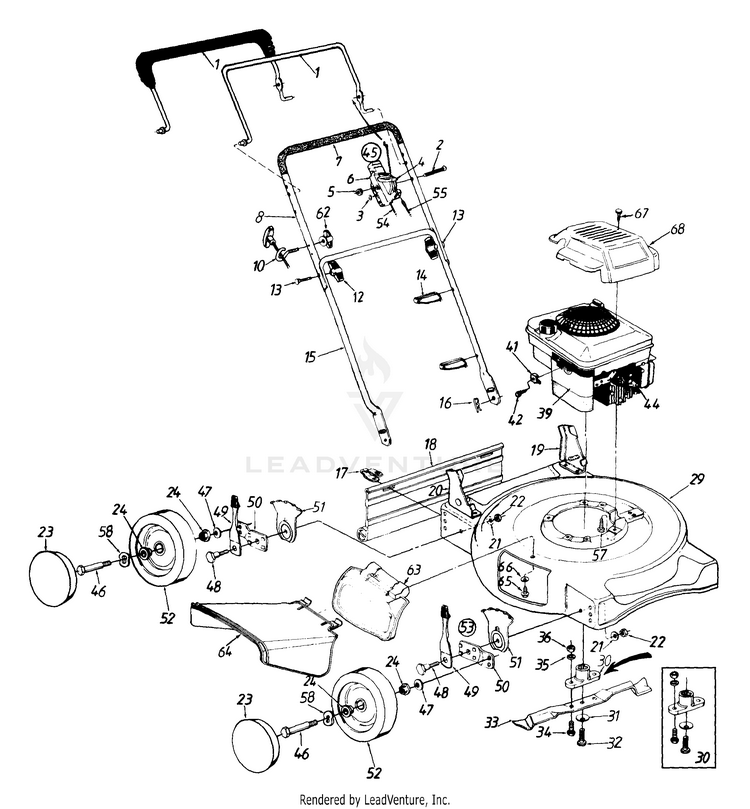

Rotary Mower

...
...
1
Std. Control Handle MTD-747-0824B-0637

...
2
Oval C-Sunk Scr. MTD-710-0605

...
3
Spr. Wash. .66" I.D. MTD-936-0501

...
4
Throttle Lever MTD-946-0876

...
5
Hex L-Nut 1/4-20 Thd. MTD-712-0324

...
6
Throttle Body MTD-946-0875


...
8
UPPER HANDLE (POWDER BLACK) MTD-749-0538E-0637

...
10
Rope Guide MTD-710-1205

...
12
Hand Knob MTD-920-0276

...
13
Curved Hd. Bolt 5/16-18 x 2" Lg. MTD-710-1174

...
14
Cable Tie MTD-725-0157

...
15
Lower Handle MTD-749-0928A-0637

...
16
Hairpin Clip MTD-714-0104

...
17
HINGE CLIP MTD-17098P

...

...
19
BRACKET AS NLA MTD-12935B

...
20
HANDLE BRACKET ASS'Y. (RH) NLA MTD-12936B

...
21
BELL WASHER MTD-936-0356

...
22
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798

...
23

...
24
BALL BEARING MTD-941-0180

...
29
20" Deck Ass'y. NLA MTD-682-0016

...
30
BELL WASHER MTD-936-0453

...
31
BELL WASHER MTD-936-0453

...
32
Hex Bolt 7/16-20 x 1.5" Lg. MTD-710-0757

...
33
20" BLADE (MULCH) MTD-742-0720-0637

...
34
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055

...
35
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size. MTD-736-0169

...
36
Hex Nut 3/8-24 Thd. MTD-712-0241

...
39
Engine MTD-NA

...
41
Cable Clamp (B&S) MTD-BS-690798

...
42
Hex Self-Tap Scr. #10-32 x .62" MTD-710-1237

...
44
INSULATOR-SPARK PLUG MTD-735-0639

...
45
Throttle Box Comp. Incl. Ref. 2, 3, 4, 5, 6 MTD-811-0185

...
46
Axle Bolt for Plastic Rim MTD-738-0102

...
47
Bell-Wash. .400" I.D. x .88" MTD-736-0105

...
48
Shoulder Bolt .50" Dia. MTD-738-0507B

...
49
Spring Lever Ass'y. w/Knob MTD-94832

...
50
Pivot Bar MTD-15262B

...
51
Height Adj. Plate MTD-787-01290A

...
52
WHEEL W/BALLBRG NLA MTD-734-1793

...
53
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761

...
53
Height Adj. Ass'y. Comp. - L F. & R.R. MTD-753-06761

...
54
Throttle Cable - 51" MTD-946-0671A

...
55
Control Cable - 39" MTD-946-0550

...
57
Hex L-Wash Hd. Scr. 3/8-16 x 1.0" Lg. MTD-710-0654A

...
58
Wave Washer .51" I.D. MTD-936-0504

...
?59
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg. MTD-710-0603

...
62
Handle Knob 1/4-20 Thd. MTD-720-0279

...
63
MULCH PLUG ASSEMBLY MTD-682-7000

...
64
Chute Deflector MTD-731-1409B

...
65
SPRING WASHER BELL MTD-736-0270

...
66
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599

...
67
Hi-Lo Scr. #10 x 1.25" Lg. MTD-710-1256

...
68
