White Outdoor 113-428C190 21" ERS RD Mower (1993)

Model: 113-428C190 21"" ERS RD Mower (1993)


product name

Mower

...
...
1
Std. Control Handle MTD-747-0824B-0637

...
2
Rope Guide Bolt MTD-710-1205

...
3
Hex L-Nut 1/4-20 Thd. MTD-712-0324

...
4
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671

...
5
L-Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
6
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
7
Oval C-Sunk Mach. Scr. MTD-710-0605

...
8
Spr. Wash. .66" I.D. MTD-936-0501

...
9
Hex L-Nut 1/4-20 Thd. MTD-712-0291

...
10
Throttle Lever MTD-946-0876

...
11
UPPER HANDLE (POWDER BLACK) MTD-749-0538E-0637

...
12
Foam Grip MTD-720-0295

...
13
Lower Handle MTD-749-0928A-0637

...
14
Cable Tie MTD-725-0157

...
15
Rear Catcher Frame MTD-764-0310A-0637

...
16
Control Cable - 36" MTD-946-0553

...
17
Throttle Control Wire - 55" MTD-946-0671A

...
18
FRONT CATCHER FRAME (POWDER BLACK) MTD-764-0311-0637

...
20
Hairpin Clip MTD-714-0104

...
21
Door Spring - R.H. MTD-732-0678

...
22
SPRING-DOOR (LH) MTD-932-0677

...
23
REAR DISCHARGE DOOR MTD-782-7000

...
24
Cable Clamp (B&S) MTD-BS-690798

...
25
Throttle Body MTD-946-0875

...
26
Throttle Box Comp. (Incl. Ref. 7, 8, 9, 10, 25) MTD-811-0185

...
27
Engine MTD-NA

...
28
Hex Wash. Hd. Scr. #10-32 x .62" Lg. MTD-710-1237

...
29
INSULATOR-SPARK PLUG MTD-735-0639

...
30
TRAILSHIELD WIRE MTD-732P0700

...
31
Rear Flap MTD-731-04998

...
32
SPLINED BLADE ADAPTER KIT MTD-753-0485

...
33
Hex Bolt 7/16-20 x 1.5" Lg. MTD-710-0757

...
34
BELL WASHER MTD-936-0453

...
35
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055

...
36
21" Mulching Blade MTD-942-0721

...
37
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169

...
38
Hex Nut 3/8-24 Thd. MTD-712-0241

...
39
BELL WASHER MTD-936-0356

...
40
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798

...
41
Height Adj. Plate MTD-787-01290A

...
42
Pivot Bar MTD-15262B

...
43
Spring Lever Ass'y. w/Knob MTD-94832

...
44
Shoulder Bolt .50" Dia. MTD-738-0507B

...
45
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105

...
46
Axle Bolt for Plastic Rim MTD-738-0102

...
47
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1

...
48
SPRING LEVER MTD-732-0417A

...
49
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761

...
49
Height Adj. Ass'y. Comp.- L.H. (Not shown) MTD-753-06761

...
50
BAR-PIVOT (RH) *ON MTD-14765

...
xx
BAR-PIVOT (LH) *ON MTD-14766

...
51
FRONT BAFFLE MTD-782P5002B

...
52
Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg. MTD-710-0654A

...
53
Rear Baffle MTD-782-5003A

...
54
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017

...
55
HEX SCREW L-WASH HD MTD-910-0892

...
56
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) MTD-682-0516-0637

...
57
KIT-HANDLE BRACKET MTD-753-05994

...
58
21" R D. DECK NLA MTD-782-0310

...
59
Wheels - Front MTD-753-08093

...
59
BALL BEARING MTD-941-0180

...
60

...
61
GRASSBAG MTD-964-0433

...
62
HARDTOP COVER MTD-731-1876

...
63
Pan Hd. Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286

...
64
Hex Nylon L-Nut 1/4-20 Thd. MTD-712-0324

...
65
MOUNTING BRACKET MTD-782-9011-0637

...
66
Mulching Baffle Plug MTD-782-5007C

...
67
Mulching Baffle - R.R. MTD-782-5004B

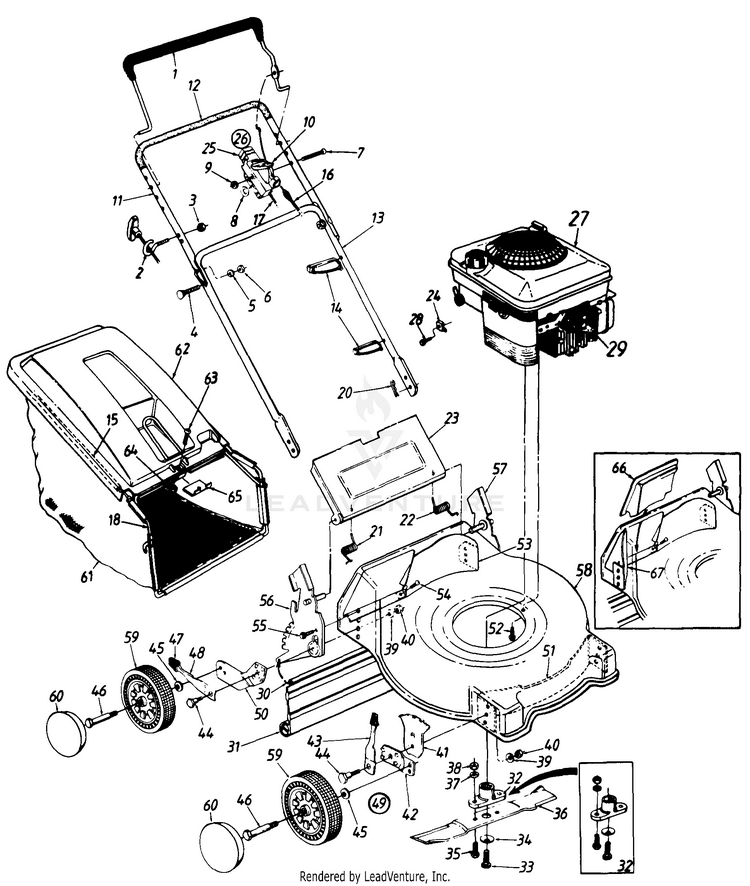

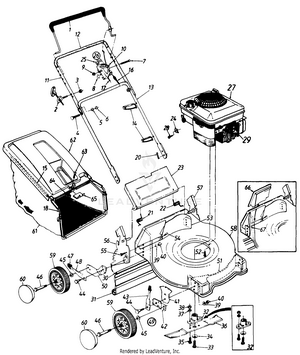

Schematic Image Zoomed
