product name

White Outdoor 112A508R190 22" ERS Push Hi-Wheel Mower (1992)

Model: 112A508R190 22"" Hi-Wheel Mower (1992)


product name

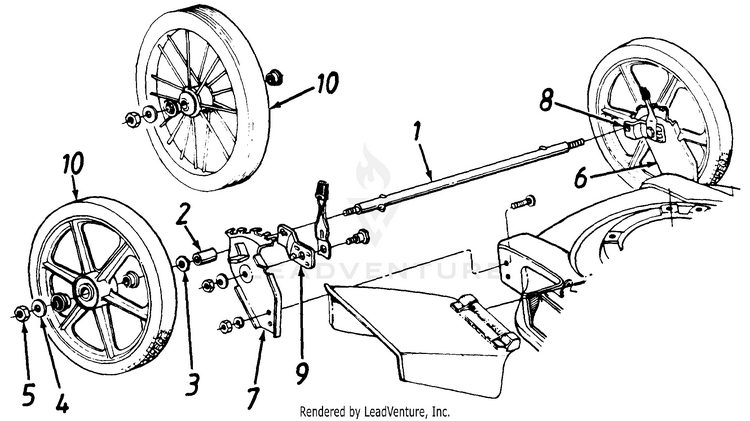

Rear Axle

...
...
1

...
2
Spacer .550 I.D. x .755 O.D. MTD-950-0151

...
3
Wave Washer .510 I.D. x .750 O.D. MTD-936-0504

...
4
Flat Washer .406 I.D. x .810 O.D. MTD-736-3050

...
5
Hex Ins Top-L Jam Nut 3/8-16 MTD-912-3020

...
6
HANDLE BRACKET ASSEMBLY (LH) (POWDER BLACK) MTD-682-0517-0637

...
7
HANDLE BRACKET ASSEMBLY (RH) NLA MTD-682-0518

...
8
PIVOT BAR MTD-782-0519A

...
9
PIVOT BAR MTD-782-0520A

...
10
WHEEL ASSEMBLY W/TIRE 16IN PLASTI NLA MTD-634-0002

...
10
WHEEL ASSEMBLY W/TIRE STEEL SPOKE MTD-734-1661

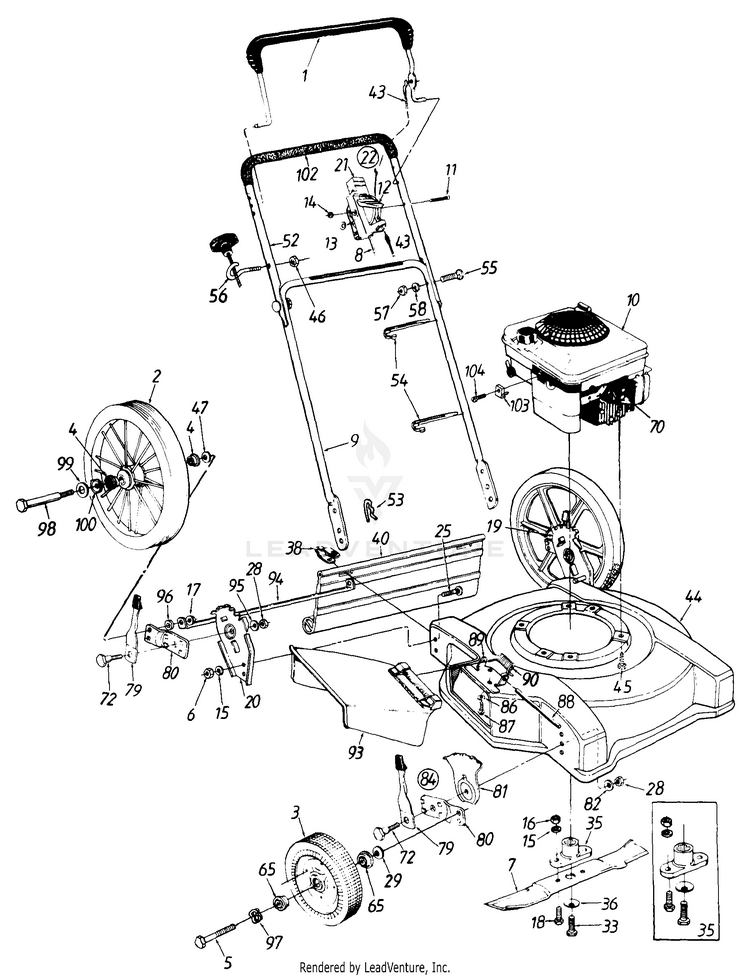

Rotary Mower

...
...
1
Std. Control Handle MTD-747-0824B-0637

...
2
WHEEL ASSEMBLY W/TIRE STEEL SPOKE MTD-734-1661

...
3
8" Front Wheel Ass'y. (Steel) NLA MTD-734-7268

...
4
Ball Bearing 1/2" I.D. MTD-941-0484

...
5
Axle Bolt for Plastic Rim MTD-738-0102

...
6
Hex Nut 3/8-24 Thd. MTD-712-0241

...
7
22" BLADE MTD-942-0622

...
8
Throttle Control Wire 51" Lg. MTD-946-0671A

...
9
Lower Handle MTD-749-0928A-0637

...
10
Engine MTD-NA

...
11
Oval C-Sunk Mach. Scr. MTD-710-0605

...
12
Throttle Lever MTD-946-0876

...
13
Spr. Wash. .66" I.D. MTD-936-0501

...
14
Hex L-Nut 1/4-20 Thd. MTD-712-0291

...
15
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169

...
16
Hex Nut 3/8-24 Thd. MTD-712-0241

...
17
Flange L-Nut 3/8-18 Thd. MTD-912-0431

...
18
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055

...
19
BRACKET ASSEMBLY (LH) NLA MTD-682-3003

...
20
BRACKET ASSEMBLY (RH) NLA MTD-682-3002

...
21
Throttle Body MTD-946-0875

...
22
Throttle Box Comp. (Incl. Ref. 11, 12, 13, 14, 21) MTD-811-0185

...
25
SCREW 3/8-24 x .80 MTD-710-0793

...
28
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798

...
29
Bell-Wash. .400" I.D. x .88" MTD-736-0105

...
33
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044

...
35
Blade Adapter Kit MTD-753-0484

...
36
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452

...
38
HINGE CLIP MTD-17098P

...
40
TRAILSHED NLA MTD-731-1026

...
43
Control Cable - 39" MTD-946-0550

...
44
22" Deck Ass'y. NLA MTD-682-0220

...
45
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg. MTD-710-0654A

...
46
Hex Nylon L-Nut 1/4-20 Thd. MTD-712-0324

...
47
Bell-Wash. .38" I.D. x .88" MTD-736-0105

...
52
UPPER HANDLE (POWDER BLACK) MTD-749-0538E-0637

...
53
Hairpin Clip MTD-714-0104

...
54
Cable Tie MTD-725-0157

...
55
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671

...
56
Rope Guide MTD-710-1205

...
57
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
58
L-Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
65
BALL BEARING MTD-941-0180

...
70
INSULATOR-SPARK PLUG MTD-735-0639

...
72
Shoulder Bolt .50" Dia. MTD-738-0507B

...
79
Spring Lever Ass'y. w/Knob MTD-94832

...
80
Pivot Bar MTD-15262B

...
81
Height Adj. Plate MTD-787-01290A

...
82
BELL WASHER MTD-936-0356

...
84
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761

...
84
Front Height Adj. Ass'y. Comp. - L.H. (Not shown) MTD-753-06761

...
86
SPRING WASHER BELL MTD-736-0270

...
87
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599

...
88
Hinge Pin MTD-747-0710A

...
89
PLATE-ADAPTER MTD-17032A

...
90
Torsion Spring MTD-932-0593

...
93
CHUTE DEFLECTOR MTD-931-1034B

...
94
STABILIZER-HI WHEEL MTD-749-0860-0637

...
95
Bell-Wash. .39" I.D. x 1.13" MTD-736-0331

...
96
SPACER NLA MTD-750-0796

...
97
Wave Washer .53" I.D. MTD-736-0232

...
98
SHOULDER SCREW MTD-938-0822

...
99
FLAT WASHER MTD-936-0456

...
100
Spr. Wash. .5" I.D. x 1.0" MTD-736-0182

...
102
Foam Grip MTD-720-0295

...
103
Cable Clamp (B&S) MTD-BS-690798

...
104
Hex Wash. Hd. Tap Scr. #10-32 x .62" Lg. MTD-710-1237

...
106
Hex AB-Tap Scr. #8 x .50" MTD-710-0227

...
xx
HUB CAP-GRAY NLA (Not shown) MTD-731-0355A
