White Outdoor 112-108R190 21" ERS Push Mulching Mower (1992)

Model: 112-108R190 21"" Mulching Mower (1992)


product name

Rotary Mower

...

...
2
Std. Control Handle MTD-747-0824B-0637

...
3
Rope Guide Bolt MTD-710-1205

...
4
Hex L-Nut 1/4-20 Thd. MTD-712-0324

...
5
Hex L-Nut 1/4-20 Thd. MTD-712-0291

...
8
Oval C-Sunk Mach. Scr. MTD-710-0605

...
9
Throttle Lever MTD-946-0876

...
10
Spr. Wash. .66" I.D. MTD-936-0501

...
11

...
12
Throttle Body MTD-946-0875

...
14
UPPER HANDLE (POWDER BLACK) MTD-749-0538E-0637

...
16
Hex Ins. L-Nut 3/8-16 Thd. MTD-912-3020

...
17

...
18
Hairpin Clip MTD-714-0104

...
19
Throttle Control Wire - 55" Lg. MTD-946-0671A

...
20
Throttle Box Comp. (Incl. Ref. 5, 8, 9, 10, 12) MTD-811-0185

...
22
Axle Bolt for Plastic Rim MTD-738-0102

...
23
Wave Washer .53" I.D. MTD-736-0232

...
24
PLASTIC FRONT END MTD-931-0865C

...
25
Truss B-Tap Scr. 5/16 x .75" Lg. MTD-710-1242

...
28
Bell-Wash. .38" I.D. x .88" MTD-736-0105

...
29
AXLE ASSEMBLY-FR POWDER MTD-17733-0637

...
32
INSULATOR-SPARK PLUG MTD-735-0639

...
35
Lower Handle MTD-749-0928A-0637

...
36
Engine MTD-NA

...
37
Cable Clamp (B&S) MTD-BS-690798

...
38
Hex Wash. Hd. Scr. #10-32 x .62" Lg. MTD-710-1237

...
39
STRIP-RETA MTD-14835

...
45
Hex AB-Tap Scr. #10-32 x .62" Lg. MTD-710-0896

...
47
LEVER-SPRING NLA MTD-732-0639

...
48
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1

...
51
FLAP-REAR MTD-731-0672A

...
52
Cable Tie MTD-725-0157

...
55
KIT-BLADE NLA MTD-753-0519

...
56
21" Mulching Blade MTD-942-0721

...
58
BELL WASHER MTD-936-0453

...
60
Hex Bolt 7/16-20 x 2.5" Lg. MTD-710-0561

...
61
L-Wash. 1/4" I.D. NLA For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on the parts list. MTD-736-0389

...
63
L-Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on the parts list. MTD-936-0119

...
64
BRACKET ASSY-HDLE-RH NLA MTD-682-3006

...
65
BRACKET ASSEMBLY-HDLE (LH) NLA MTD-682-3007

...
66
Carriage Bolt 5/16-18 x .62" For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on the parts list. MTD-710-0260A

...
67
Hex B-Tap Scr. 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on the parts list. MTD-710-0603

...
68
Hex TT-Tap Scr. 3/8-16 MTD-710-0654A

...
69
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on the parts list. MTD-712-3010

...

...
71
SPRING LEVER MTD-732-0580

...
73
Bell-Wash. 5/16" I.D. MTD-736-0242

...
74
Hex Wash. Hd. B-Tap Scr. 1/4-20 x 1" Lg. MTD-710-0788

...
75
SHOULDER SPACER MTD-750-0624

...
82
Wheels - Front MTD-753-08093

...
84
BALL BEARING MTD-941-0180

...
96
Block Bushing MTD-741-0492A

...
98

...
99
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055

...
100
Hex Nut 3/8-24 Thd. MTD-712-0241

...
101
L-Wash. 3/8" I.D. MTD-736-0169

...
102
21" DECK ASS'Y NLA MTD-782-0016

...
118
Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653

...
121
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671

...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805

...
123
L-Wash. 3/8" I.D. MTD-736-0169

...
128
Hex Jam Nut 3/8-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on the parts list. MTD-712-0711

...
129
Control Cable - 39" MTD-946-0550

...
138
AXLE ASSEMBLY-RR NLA MTD-682-7508

...
153
Ext. L-Wash. 1/4" I.D. MTD-736-0222

...
154
BRACKET-HG NLA MTD-17059

...
155
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300

...
xx
WHITE Mulcher Label NLA MTD-777-0216

...
xx
Danger Label NLA MTD-777-9191

...
xx
Hub Cap Labels NLA MTD-777-6808

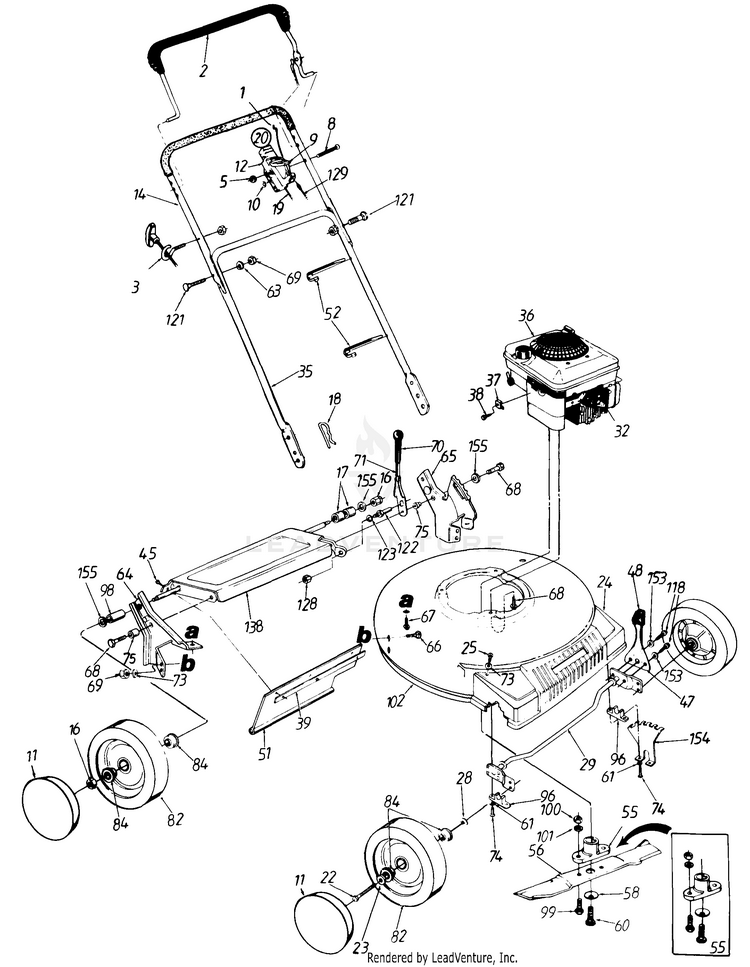

Schematic Image Zoomed
