White Outdoor 111-508R190 22" ERS Push Hi-Wheel Mower (1991)

Model: 111-508R190 22"" Hi-Wheel Mower (1991)

Save Part Not Listed?
product name

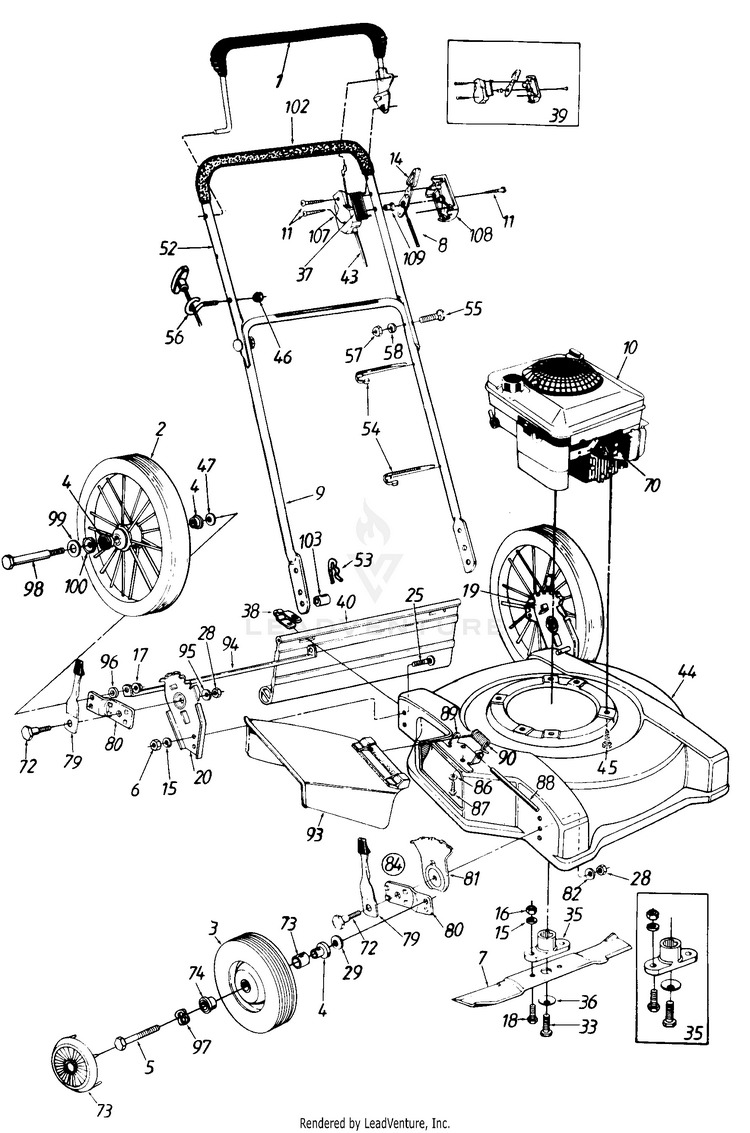

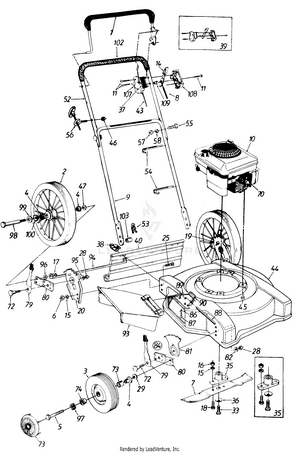

Mower Assembly

...
...
1
BAIL (LH) NLA MTD-731-0609
...
2
WHEEL ASSEMBLY W/TIRE STEEL SPOKE MTD-734-1661
...
3
WHEEL ASSEMBLY NLA MTD-734-1259
...
4
Bearing 1/2" I.D. MTD-941-0484
...
5
SCREW 3/8-16X1.875 GR2 NLA MTD-710-1020
...
6
Hex Nut 3/8-24 Thd. MTD-712-0241
...
7
22" BLADE MTD-942-0622
...
8
Throttle Control Wire 53" MTD-946-0671A
...
9
Lower Handle MTD-749-0928A-0637
...
10
Engine MTD-NA
...
11
Truss Mach. Scr. #12 x 1.5" Lg. MTD-710-0796
...
11
HEX NUT 1/4-20 MTD-912-0287
...
14
Throttle Control Lever MTD-931-0972
...
15
L-Wash. 3/8" I.D. MTD-736-0169
...
16
Hex Nut 3/8-24 Thd. MTD-712-0241
...
17
Flange L-Nut 3/8-18 Thd. MTD-912-0431
...
18
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055
...
19
BRACKET ASSEMBLY (RH) NLA MTD-682-3002
...
20
BRACKET ASSEMBLY (LH) NLA MTD-682-3003
...
25
SCREW 3/8-24 x .80 MTD-710-0793
...
28
Hex Nut 3/8-16 Thd. MTD-712-0798
...
29
Bell-Wash. .400" 1 .D. x .88" MTD-736-0105
...
33
Hex Bolt 7/16-20 x 1.5" Lg. MTD-710-0757
...
35
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
36
BELL WASHER MTD-936-0453
...
37
LABEL-ERS THROT. CONT. MTD-777-5812
...
38
HINGE CLIP MTD-17098P
...
39
CONTROL HOUSING COMP. NLA MTD-753-0430
...
40
TRAILSHED NLA MTD-731-1026
...
43
THROTTLE CABLE MTD-946-0476A
...
44
22" DeckAss'y. NLA MTD-682-0220
...
45
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg. MTD-710-0654A
...
46
Hex Nylon L-Nut 1/4-20 Thd. MTD-712-0324
...
47
Bell-Wash. .38" I.D. x .88" MTD-736-0105
...
52
UPPER HANDLE MTD-749-0756A
...
53
Hairpin Clip MTD-714-0104
...
54
Cable Tie MTD-725-0157
...
55
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671
...
56
Rope Guide MTD-710-1205
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
L-Wash. 5/16" I.D. MTD-936-0119
...
70
INSULATOR-SPARK PLUG MTD-735-0639
...
72
Shoulder Bolt .50" Dia. MTD-738-0507B
...
73
Spacer MTD-750-0434
...
74
FORTIFLEX BEARING MTD-741-0267
...
79
Spring Lever Ass'y. w/Knob MTD-94832
...
80
Pivot Bar MTD-15262B
...
81
HeightAdj. Plate MTD-787-01290A
...
82
BELL WASHER MTD-936-0356
...
84
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
84
Front Height Adj. Ass'y. Comp.-L.H. (Not Shown) MTD-753-06761
...
86
SPRING WASHER BELL MTD-736-0270
...
87
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
88
Hinge Pin MTD-747-0710A
...
89
PLATE-ADAPTER MTD-17032A
...
90
Torsion Spring MTD-932-0593
...
93
CHUTE DEFLECTOR MTD-931-1034B
...
94
STABILIZER-HI WHEEL MTD-749-0860-0637
...
95
Bell-Wash. .39" I.D. x 1.13" MTD-736-0331
...
96
SPACER NLA MTD-750-0796
...
97
Wave Washer .53" I.D. MTD-736-0232
...
98
SHOULDER SCREW MTD-938-0822
...
99
SADDLE WASHER NLA MTD-736-0486
...
100
Spr. Wash. .5" I.D. x 1.0" MTD-736-0182
...
102
Foam Grip MTD-720-0295
...
107
CLUTCH PANEL HALF NLA MTD-731-0816A
...
108
PANEL HALF-CONTROL MTD-731-0817A
...
109
CONROL DISC PIN NLA MTD-731-0524
