White Outdoor 111-108R190 21" ERS Push Mulching Mower (1991)

Model: 111-108R190 21"" Mulching Mower (1991)

Save Part Not Listed?
product name

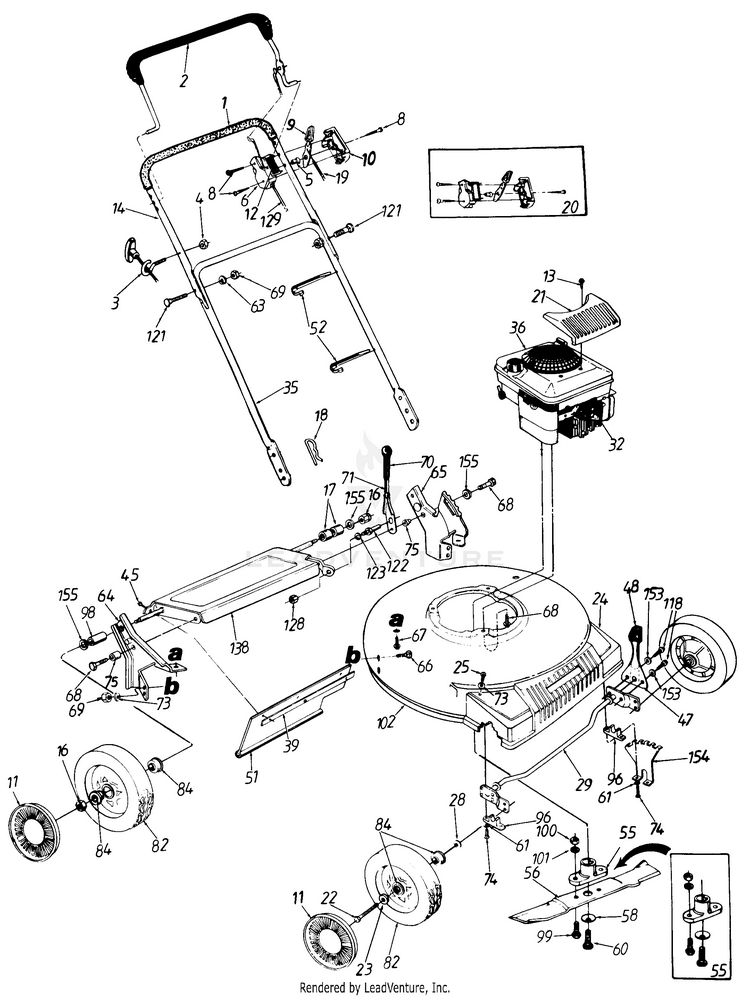

Mower Assembly

...
...
1
Grip MTD-720-0295
...
2
BAIL (LH) NLA MTD-731-0609
...
3
Rope Guide Bolt MTD-710-1205
...
4
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
5
CONROL DISC PIN NLA MTD-731-0524
...
6
CLUTCH PANEL HALF NLA MTD-731-0816A
...
8
Truss Mach. Scr. #12 x 1.5" Lg. MTD-710-0796
...
9
Throttle Control Lever MTD-931-0972
...
10
PANEL HALF-CONTROL MTD-731-0817A
...
11
Hub Cap MTD-731-0981C
...
12
LABEL-ERS THROT. CONT. MTD-777-5812
...
13
SCREW #6-20 x .625 MTD-710-0936
...
14
UPPER HANDLE MTD-749-0756A
...
16
Hex Ins. L-Nut 3/8-16 Thd. MTD-912-3020
...
17
SLEEVE MTD-911-0500
...
18
Hairpin Clip MTD-714-0104
...
19
Throttle Control Wire 51" Lg. MTD-946-0671A
...
20
CONTROL HOUSING COMP. NLA MTD-753-0430
...
21
ENGINE COVER NLA MTD-720-0271
...
22
Axle Bolt for Plastic Rim MTD-738-0102
...
23
Wave Washer .53" I.D. MTD-736-0232
...
24
FRONT END MTD-931-1281A
...
25
Truss B-Tap Scr. 5/16 x .75" Lg. MTD-710-1242
...
28
Bell-Wash. .38" I.D. x .88" MTD-736-0105
...
29
AXLE ASSEMBLY-FR POWDER MTD-17733-0637
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
35
Lower Handle MTD-749-0928A-0637
...
36
Engine MTD-NA
...
39
STRIP-RETA MTD-14835
...
45
Hex AB-Tap Scr. 1/4 x .62" MTD-710-0896
...
47
LEVER-SPRING NLA MTD-732-0639
...
48
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
51
FLAP-REAR MTD-731-0672A
...
52
Cable Tie MTD-725-0157
...
55
KIT-BLADE NLA MTD-753-0519
...
56
21" Mulching Blade MTD-942-0721
...
58
BELL WASHER MTD-936-0453
...
60
Hex Bolt 7/16-20 x 2.5" MTD-710-0561
...
61
L-Wash. 1/4" I.D. NLA MTD-736-0389
...
63
L-Wash. 5/16" I.D. MTD-936-0119
...
64
BRACKET ASSY-HDLE-RH NLA MTD-682-3006
...
65
BRACKET ASSEMBLY-HDLE (LH) NLA MTD-682-3007
...
66
Carriage Bolt 5/16-18 x .62" MTD-710-0260A
...
67
Hex B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex TT-Tap Scr. 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
Grip MTD-720-0223
...
71
SPRING LEVER MTD-732-0580
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
Hex Wash. Hd. B-Tap Scr. 1/4-20 x 1" Lg. MTD-710-0788
...
75
SHOULDER SPACER MTD-750-0624
...
82
Wheels - Front MTD-753-08093
...
84
BALL BEARING MTD-941-0180
...
96
Block Bushing MTD-741-0492A
...
98
SLEEVE MTD-911-0313
...
99
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055
...
100
Hex Nut 3/8-24 Thd. MTD-712-0241
...
101
L-Wash. 3/8" I.D. MTD-736-0169
...
102
21" DECK ASS'Y NLA MTD-782-0016
...
118
Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653
...
121
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671
...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
123
L-Wash. 3/8" I.D. MTD-736-0169
...
128
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
129
THROTTLE CABLE MTD-946-0476A
...
138
AXLE ASSEMBLY-RR NLA MTD-682-7508
...
153
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
154
BRACKET-HG NLA MTD-17059
...
155
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
