White Outdoor 111-098R190 20" ERS Push Mulching Mower (1991)

Model: 111-098R190 20"" Mulching Mower (1991)

Save Part Not Listed?
product name

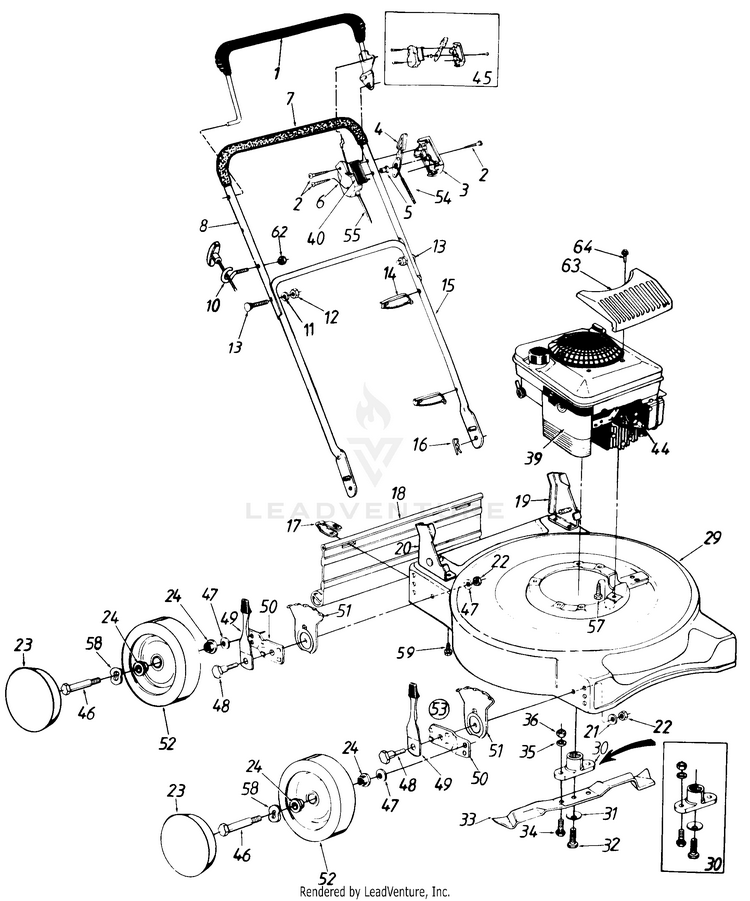

Mower Assembly

...
...
1
BAIL (LH) NLA MTD-731-0609
...
2
Truss Mach. Scr. #12 x 1.5" Lg. MTD-710-0796
...
3
PANEL HALF-CONTROL MTD-731-0817A
...
4
Throttle Control Lever MTD-931-0972
...
5
CONROL DISC PIN NLA MTD-731-0524
...
6
CLUTCH PANEL HALF NLA MTD-731-0816A
...
7
Grip MTD-720-0295
...
8
UPPER HANDLE MTD-749-0756A
...
10
Rope Guide MTD-710-1205
...
11
L-Wash. 5/16" I.D. MTD-936-0119
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671
...
14
Cable Tie MTD-725-0157
...
15
Lower Handle MTD-749-0928A-0637
...
16
Hairpin Clip MTD-714-0104
...
17
HINGE CLIP MTD-17098P
...
18
Rear Flap MTD-731-0872B
...
19
BRACKET AS NLA MTD-12935A
...
20
BRACKET ASSY-HDLE NLA MTD-12936A
...
21
BELL WASHER MTD-936-0356
...
22
Hex Nut 3/8-16 Thd. MTD-712-0798
...
23
Hub Cap (Beige) MTD-731-0982C
...
23
Hub Cap (Gray) MTD-731-0981C
...
24
BALL BEARING MTD-941-0180
...
29
20" Deck Ass'y. NLA MTD-682-0002
...
30
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
31
BELL WASHER MTD-936-0453
...
32
Hex Bolt 7/16-20 x 1.5" Lg. MTD-710-0757
...
33
20" BLADE (MULCH) MTD-742-0720-0637
...
34
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055
...
35
L-Wash. 3/8" I.D. MTD-736-0169
...
36
Hex Nut 3/8-24 Thd. MTD-712-0241
...
39
Engine MTD-NA
...
40
LABEL-ERS THROT. CONT. MTD-777-5812
...
44
INSULATOR-SPARK PLUG MTD-735-0639
...
45
CONTROL HOUSING COMP. NLA MTD-753-0430
...
46
Axle Bolt for Plastic Rim MTD-738-0102
...
47
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
48
Shoulder Bolt .50" Dia. MTD-738-0507B
...
49
Spring Lever Ass'y. w/Knob MTD-94832
...
50
Pivot Bar MTD-15262B
...
51
Height Adj. Plate MTD-787-01290A
...
52
Wheel Ass'y. Comp. (Beige) MTD-734-1517B
...
52
Wheels - Front MTD-753-08093
...
53
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
53
Height Adj. Ass'y. Comp.- 0 L.F. & R.R. MTD-753-06761
...
54
Throttle Cable-51" MTD-946-0671A
...
55
CONTROL CABLE NLA MTD-746-0475A
...
57
Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg. MTD-710-0654A
...
58
Wave Washer .53" I.D. MTD-736-0232
...
59
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg. MTD-710-0603
...
62
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
63
COVER-ENGINE-QUANTUM NLA (Optional) MTD-720-0265
...
64
SCREW #6-20 x .625 (Used w/Ref. #63) MTD-710-0936
