White Outdoor 110-050R190 20" ERS Push Mower (1990)

Model: 110-050R190 20"" ERS Push Mower (1990)

Save Part Not Listed?
product name

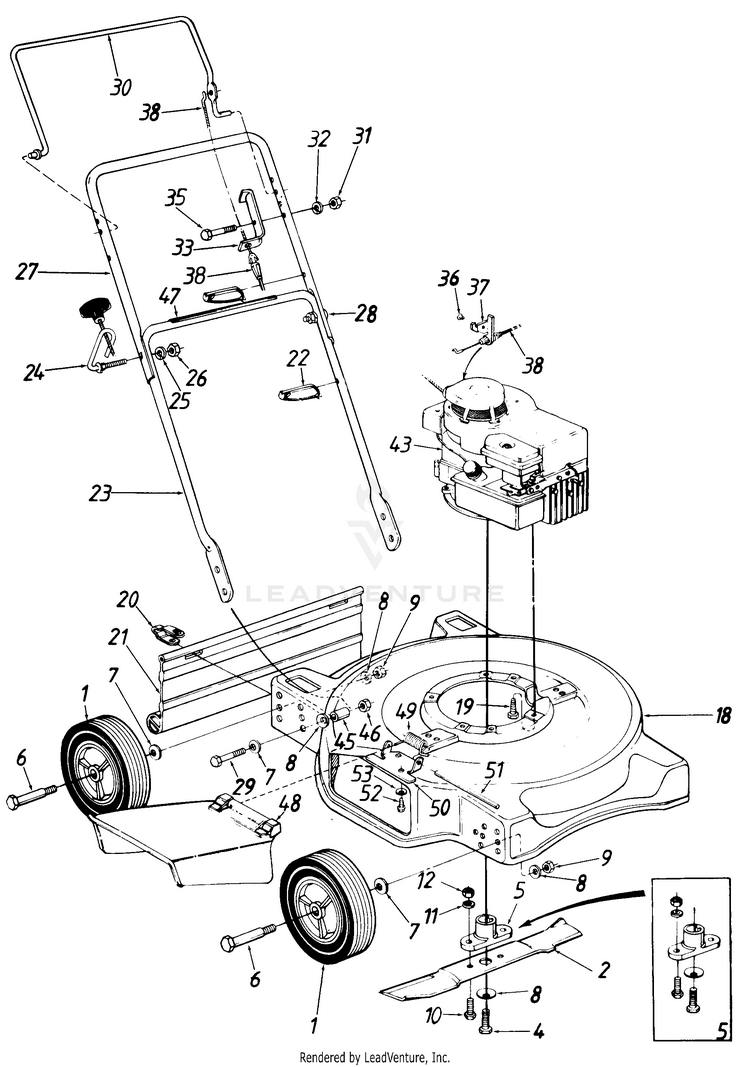

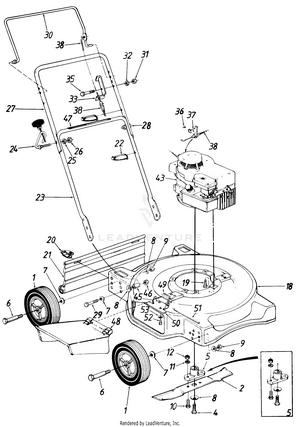

Mower Assembly

...
...
1
WHEEL ASSEMBLY W/TIRE NLA MTD-734-1170
...
2
20" BLADE MTD-942-0620
...
4
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044
...
5
Blade Adapter Kit (Keyed) MTD-753-0484
...
6
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
7
Bell-Wash. .380" I.D. x .88" MTD-736-0105
...
8
Bell-Wash. .39" I.D. x 1.13 MTD-736-0331
...
9
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
10
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055
...
11
L-Wash. 3/8" I.D. MTD-736-0169
...
12
Hex Nut 3/8-24 Thd. MTD-712-0241
...
18
DECK ASSEMBLY-20IN MTD-17036
...
19
Hex Wash. Hd. Scr. 3/8-16 x 1" Lg. MTD-710-0654A
...
20
HINGE CLIP MTD-17098P
...
21
Rear Flap 16.75" Lg. MTD-731-0872B
...
22
Cable Tie MTD-725-0157
...
23
Lower Handle MTD-749-0928A-0637
...
24
SCREW-RECOIL HANDLE GUIDE NLA MTD-710-0842B
...
25
L-Wash. 5/16" I.D. MTD-936-0119
...
26
HEX NUT 5/16-18 MTD-712-3010
...
27
UPPER HANDLE MTD-749-0756A
...
28
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 NLA MTD-710-0671
...
29
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-0459A
...
30
CONTROL HANDLE ASSEMBLY MTD-747-0748
...
31
HEX NUT 1/4-20 MTD-912-0287
...
32
Spr. Wash. .265" l.D. x .562" MTD-936-0175
...
33
BRACKET-CA NLA MTD-17174
...
35
Hex Bolt 1/4-20 x 1.25" Lg.* MTD-710-0106
...
36
RIVET MTD-728-0171
...
37
BRACKET-CA NLA MTD-14924
...
38
Control Cable-36" MTD-946-0553
...
43
Engine-B&S 92502-3165-01 MTD-NA
...
45
SPACER NLA MTD-750-0727
...
46
Hex L-Nut 3/8-24 Thd. MTD-912-0355
...
47
LABEL MTD-777-5776
...
48
CHUTE DEFLECTOR MTD-931-1034B
...
49
Torsion Spring MTD-932-0593
...
50
PLATE-ADAPTER MTD-17032A
...
51
Hinge Pin MTD-747-0710A
...
52
Hex Self-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
53
SPRING WASHER BELL MTD-736-0270
