Whirlpool ZDIC150ZBBD

Model: ZDIC150ZBBD

Save Part Not Listed?
product name

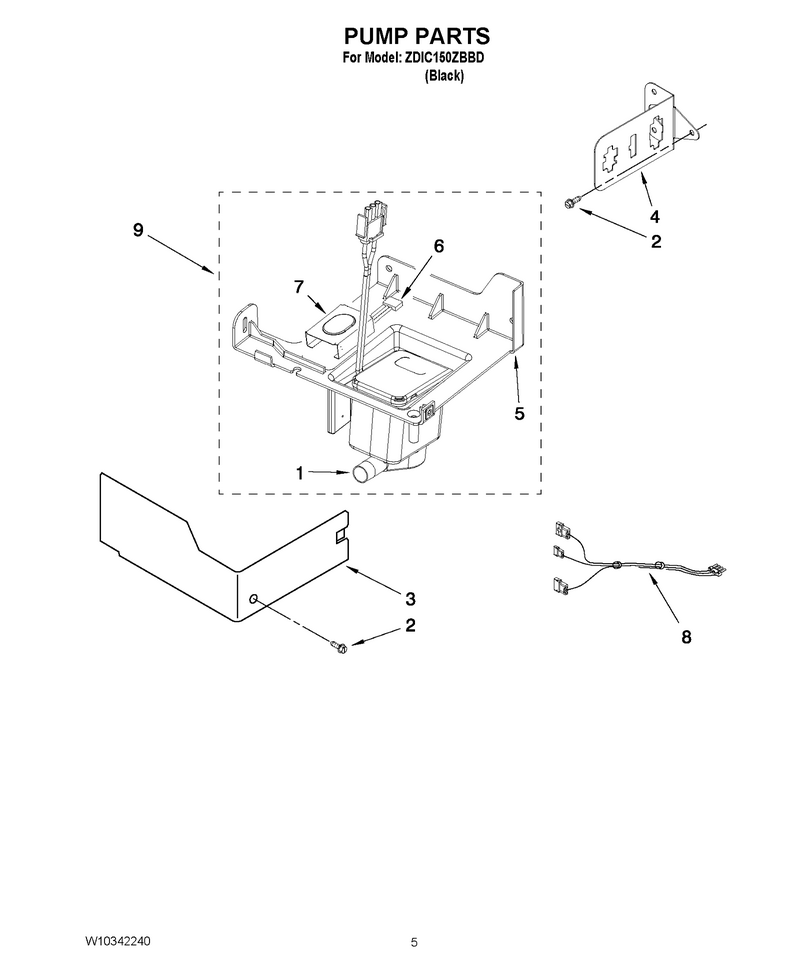

03 - Pump Parts

...
...
1
Pump WPL-W11566405
...
2
Screw WPL-WP3400884
...
3
Cover, Pump WPL-2185677
...
4
Bracket, Connector WPL-2313844
...
5
Bracket WPL-W11204894
...
6
Sensor WPL-WPW10548509
...
7
Protector, Wire WPL-W10340982
...
8
Harns-Pump WPL-WP2310092
...
9
Pump Assembly WPL-2313702

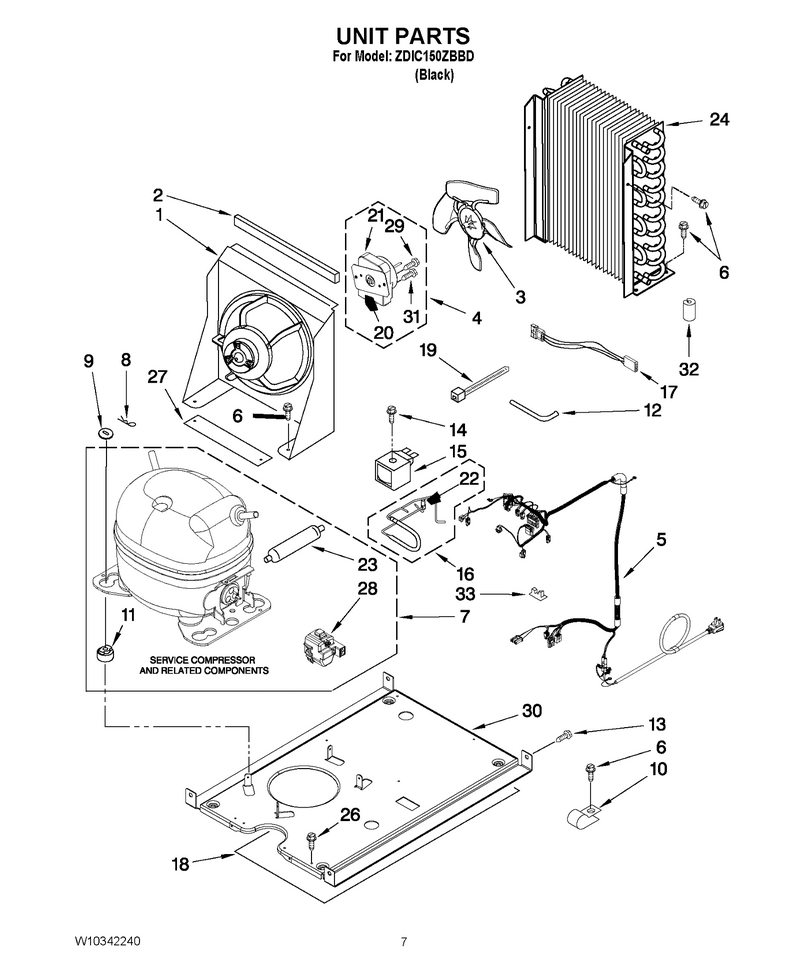

05 - Unit Parts

...
...
NI
Refrigerant Charge (6.5 Oz. (R134a)) WPL-N/P
...
1
Bracket WPL-WP2185532
...
2
Pad, Foam WPL-2185675
...
3
Blade-Fan WPL-WP2188935
...
4
Motor, Fan WPL-W10124096
...
5
Harness WPL-WPW10193296
...
6
Screw WPL-WP489069
...
7
Compressor WPL-WPW10605286
...
8
Clip, Mounting WPL-A201435
...
9
Shim (4) WPL-A201441
...
10
Clamp, Power Cord WPL-2185960
...
11
Grommet (4) WPL-2185965
...
12
Tube, Process WPL-W10528572
...
13
Screw WPL-WP489464
...
14
Screw WPL-489472
...
15
Coil-Solnd WPL-WPW10206473
...
16
Valve-Gas WPL-WPW10534030
...
17
Wire-Jumpr WPL-WP2187629
...
18
Shield, Heat WPL-W10282061
...
19
Tie-Wire WPL-WPW10339879
...
20
Plate, Motor WPL-2301979
...
21
Motor, Fan WPL-W10124096
...
22
Valve-Gas WPL-WP759113
...
23
Drier-Tube WPL-W10843121
...
24
Condenser WPL-WP2313624
...
26
Screw WPL-WP489128
...
27
Pad, Foam (2) WPL-2217397
...
28
Start-Dev WPL-WPW10136197
...
29
Screw WPL-8281197
...
30
Base, Unit WPL-2217445
...
31
Screw WPL-WP8281196
...
32
Grommet WPL-W10852725
...
33
Clip, Wiring WPL-1115375

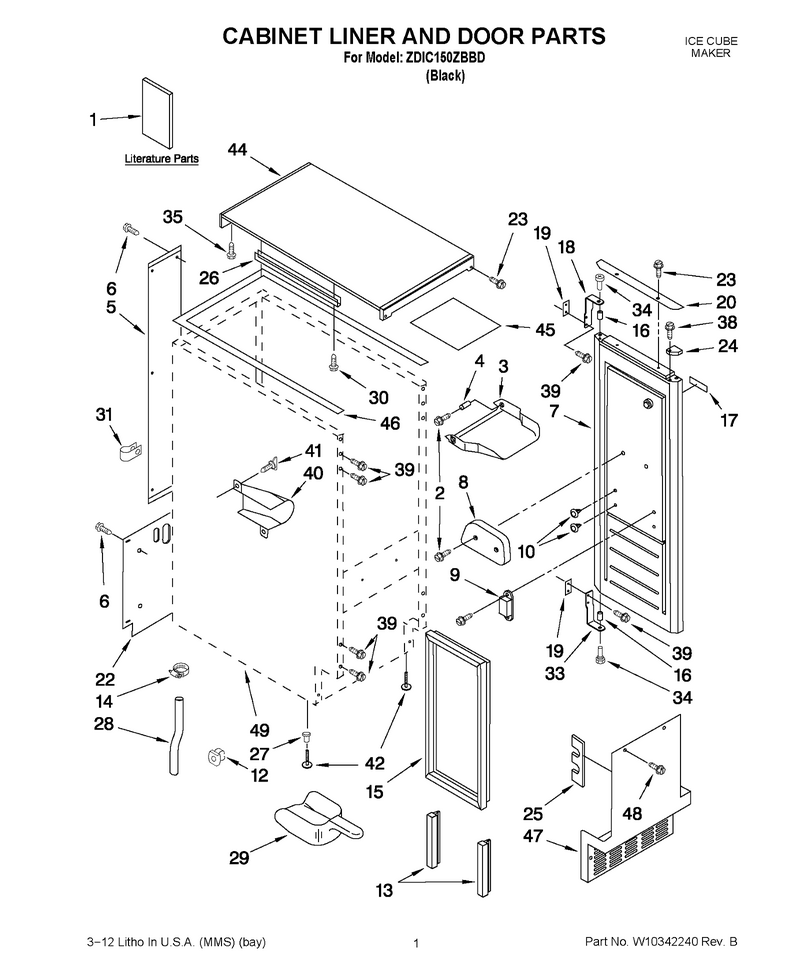

01 - Cabinet Liner And Door Parts

...
...
1
Tech Sheet WPL-W10206445
...
2
Screw WPL-WP3400886
...
3
Door-Inner WPL-WP2185742
...
4
Spacer WPL-2185678
...
5
Cover, Wiring WPL-2217394
...
6
Screw WPL-WP489442
...
7
Dor-Fip Bl WPL-W10320412Q
...
8
Cam, Door WPL-2185695
...
9
Catch-Asm WPL-W11223751
...
10
Button-Plg WPL-WP2151652
...
12
Nut, Push-In WPL-W10136999
...
13
Gasket, Bottom WPL-2217367
...
14
Clamp WPL-WP489503
...
15
Gasket-Dor WPL-WP2217294
...
16
Hinge Sleeve/ Door Stop (Bottom) WPL-2185932
...
17
Nameplate WPL-2217290
...
18
Hinge, Top WPL-2185710
...
19
Shim, Hinge WPL-2185709
...
20
Handle, Door (Black) WPL-2185875B
...
22
Cover-Unit WPL-WPW10136199
...
23
Screw WPL-WP8281186
...
24
Filler, Endcap Right Side (Black) WPL-2185656B
...
25
Pad-Foam, WPL-W10532250
...
26
Channel, Wiring WPL-2185691
...
27
Nut, Leg Leveler WPL-3400240
...
28
Tube WPL-WP2185989
...
29
Scoop WPL-W11420408
...
30
Screw WPL-WP3400884
...
31
Clamp WPL-WP488366
...
33
Hinge, Bottom WPL-2185711
...
34
Pin, Hinge WPL-2185712
...
35
Screw WPL-WP250830
...
38
Screw 8-18 X 3/4 WPL-348689
...
39
Screw WPL-WP489464
...
40
Holder, Scoop WPL-2185927
...
41
Thumbscrew, 10-32 X 3/4 WPL-681534
...
42
Levler-Leg WPL-8193716
...
44
Top (Black) WPL-W10320111
...
45
Shield, Electrical WPL-2185690
...
46
Gasket-Top WPL-W11624957
...
47
Grille WPL-WP2185571B
...
48
Screw WPL-WP489474
...
49
Cabinet & Liner (Not Serviced) WPL-N/P

...
...
NI
Sealer, Gum (22 Pcs. 3/16`` X 7``) WPL-212643

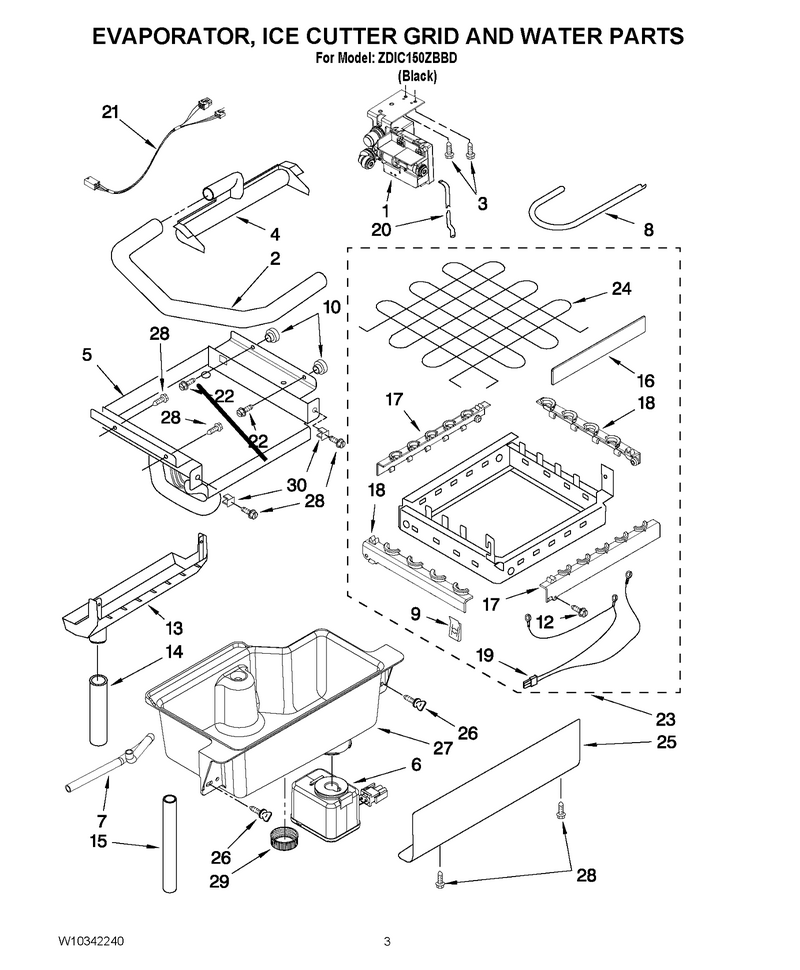

02 - Evaporator, Ice Cutter Grid And Water Parts

...
...
1
Valve WPL-W10585391
...
2
Tube WPL-W10863947
...
3
Screw WPL-WP488163
...
4
Tube WPL-W10863947
...
5
Evaporator WPL-WPW10218037
...
6
Pump WPL-W11566407
...
7
Tube WPL-WP2313851
...
8
Tube-Water WPL-WPW10418868
...
9
Nut, Speed WPL-488660
...
10
Spacer WPL-836667
...
12
Screw WPL-WP489443
...
13
Pan-Water WPL-WP2185625
...
14
Hose WPL-WP2185626
...
15
Hose WPL-WP2313890
...
16
Guide, Ice Grid WPL-2313604
...
17
Spacer WPL-8201790
...
18
Spacer WPL-8201791
...
19
Harness, Grid WPL-2185681
...
20
Tube WPL-WPW10217922
...
21
Harness WPL-WP2310169
...
22
Screw WPL-WP3400886
...
23
Grid-Cuttr WPL-WP2313637
...
24
Cuttr-Wire WPL-4387020
...
25
Cover, Grid WPL-2185570
...
26
Thumbscrew, 10-32 X 3/4 WPL-681534
...
27
Pan-Water WPL-WP2324334
...
28
Screw WPL-WP3400884
...
29
Cap-Drain WPL-WP2185696
...
30
Nut WPL-WP3400909

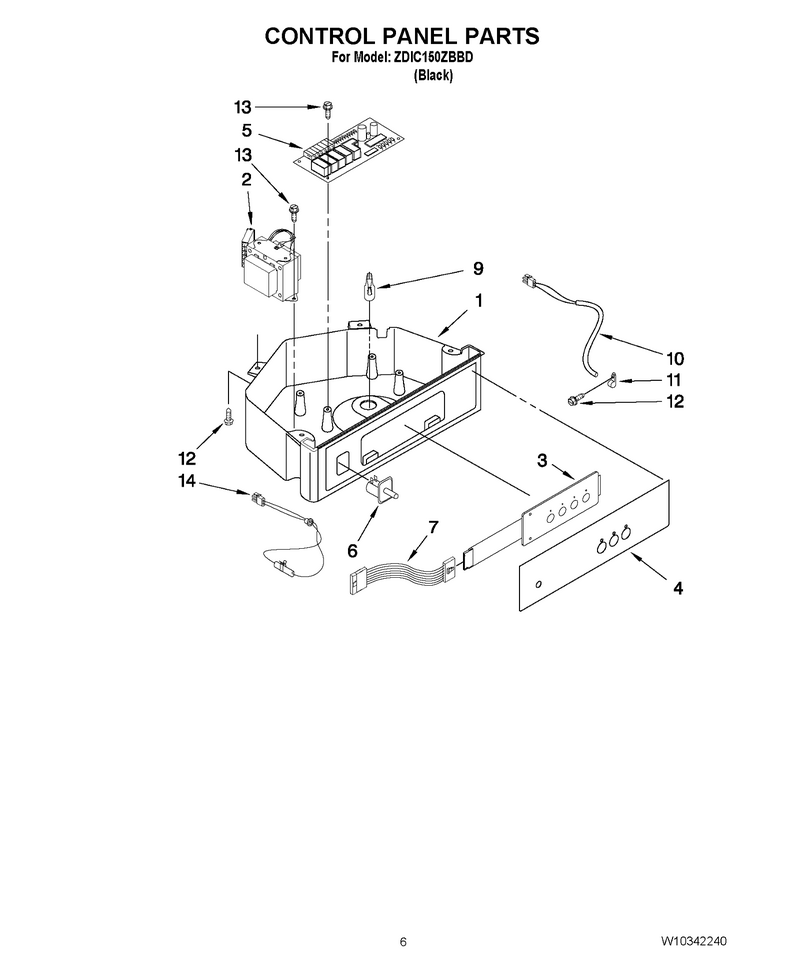

04 - Control Panel Parts

...
...
1
Box, Control WPL-W10340993
...
2
Transformr WPL-WP2310139
...
3
Assembly, Switch (Also Order No.4) WPL-2304124
...
4
Overlay WPL-W10206467
...
5
Cntrl-Elec WPL-WPW10226156
...
6
Switch WPL-WP2149705
...
7
Harness WPL-WP2187585
...
9
Bulb WPL-745362
...
10
Thermistor WPL-WPW10503764
...
11
Clamp WPL-2185825
...
12
Screw WPL-WP3400884
...
13
Screw WPL-WP489443
...
14
Thermistor WPL-WP2313635
