Whirlpool YWMMF5930PV00

Model: YWMMF5930PV00

Save Part Not Listed?
product name

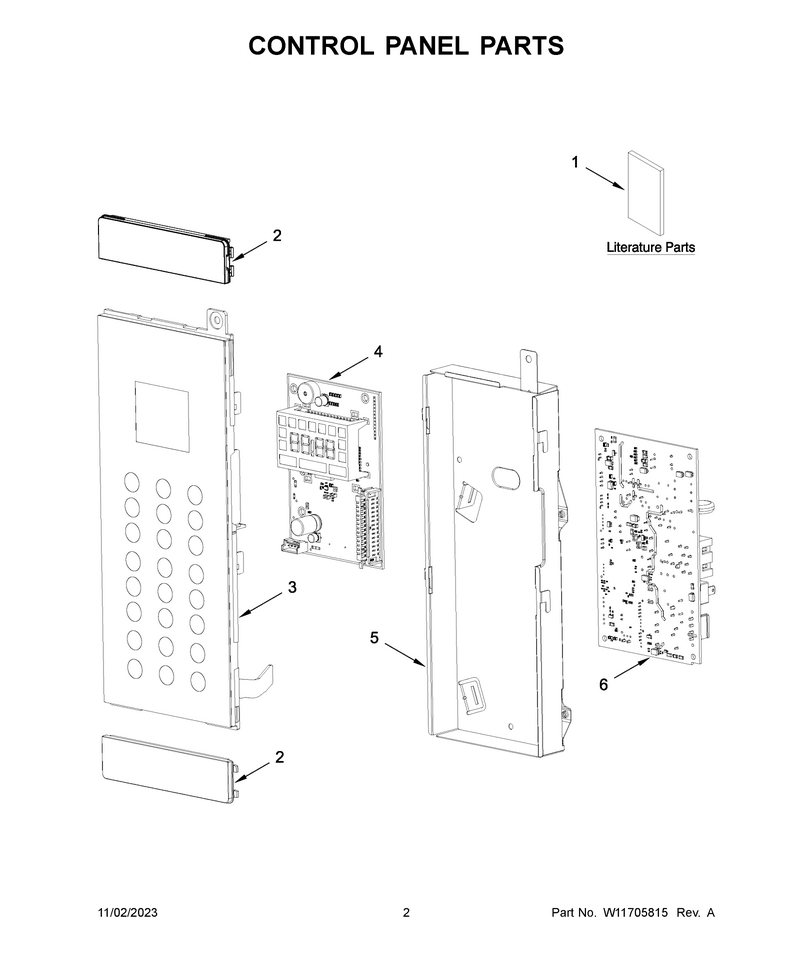

02 - Control Panel Parts

...
...
1
Guide, Owner's WPL-W11595046
...
1B
Sheet, Tech WPL-W11640771
...
1A
Guide, Quick Start WPL-W11595048
...
2
Cover, Console WPL-W11593035
...
3
Assembly, Console WPL-W11662172
...
4
Cntrl-Elec WPL-W11705239
...
5
Backer, Control WPL-W11593036
...
6
Cntrl-Elec WPL-W11699780

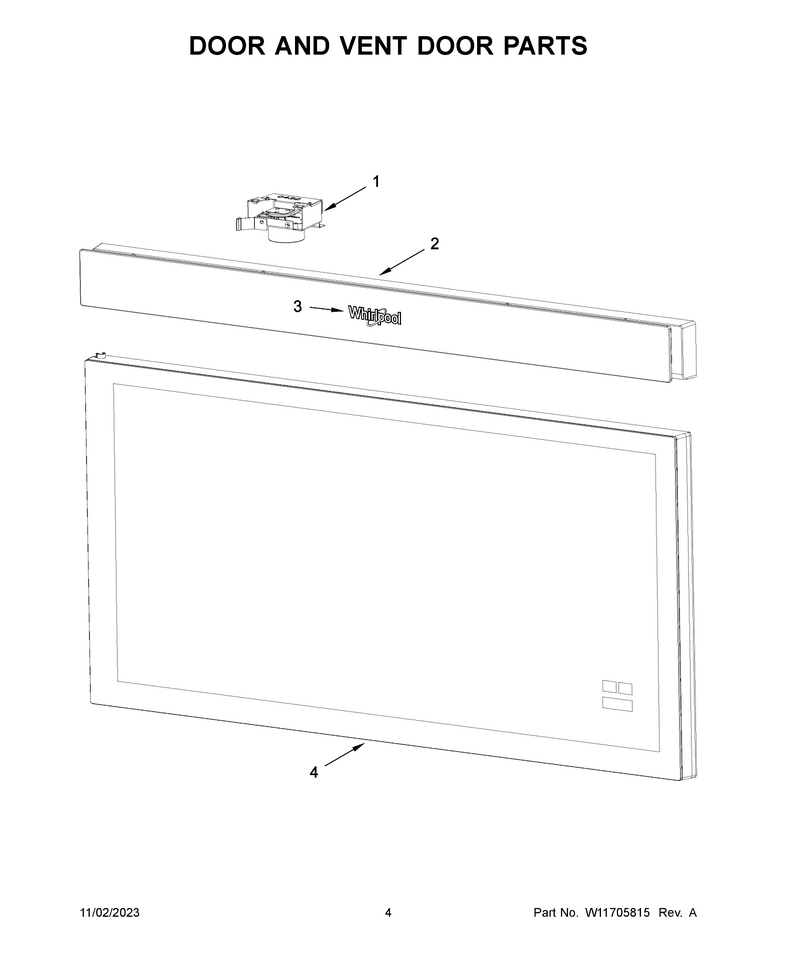

03 - Door And Vent Door Parts

...
...
1
Motor-Fan WPL-W11662713
...
2
Door, Venting (White) WPL-W11662376
...
2A
Door, Venting (Stainless) WPL-W11662351
...
2B
Door, Venting (Black Stainless) WPL-W11662353
...
3
Nameplate WPL-W11178521
...
4A
Door, Complete (Black) (Stainless And Black Stainless Models) WPL-W11593208
...
4
Door, Complete (White) WPL-W11655400

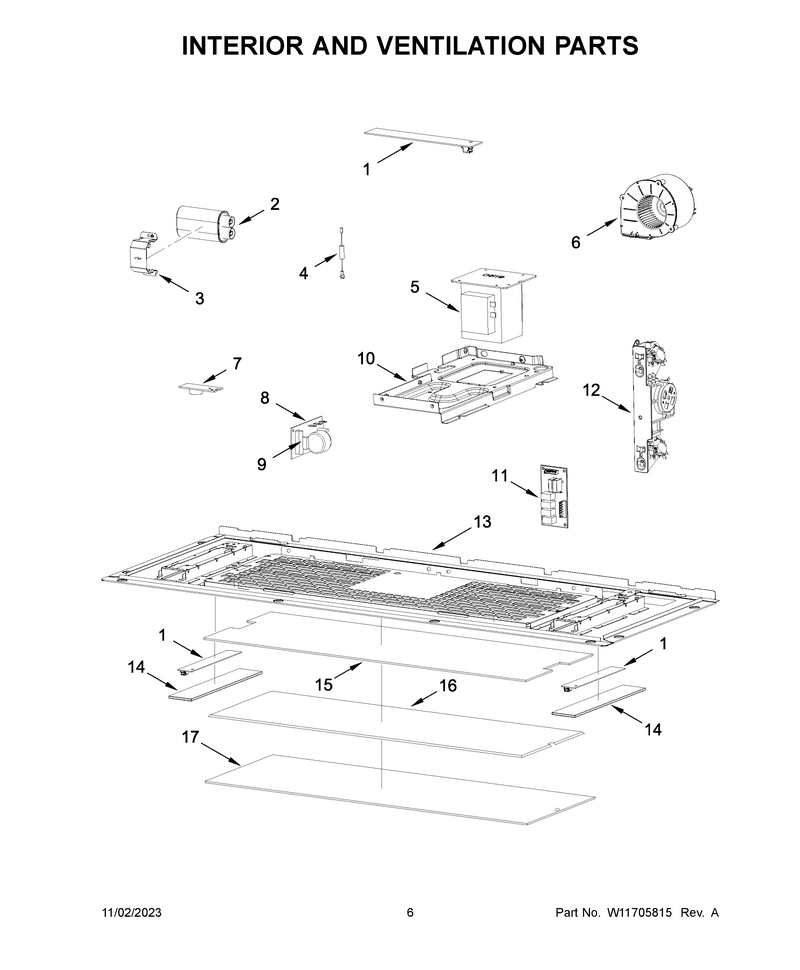

04 - Interior And Ventilation Parts

...
...
1
Light WPL-W11662697
...
2
Capacitor, High Voltage WPL-8206562
...
3
Bracket, Capacitor WPL-W11095808
...
4
Diode WPL-W11256462
...
5
Transformer, High Voltage WPL-W11575449
...
6
Motor-Fan WPL-W11662648
...
7
Thermistor WPL-W10163422
...
8
Filter WPL-WPW10531156
...
9
Fuse-Thrml WPL-W11707984
...
10
Plate, Hvt Support WPL-W11586579
...
11
Console WPL-W11676832
...
12
Interlock WPL-W11662685
...
13
Plate, Bottom WPL-W11593188
...
14
Glass, Light WPL-W11593189
...
15
Filter WPL-W11662714
...
16
Filter WPL-W11662703
...
17
Cover WPL-W11662702

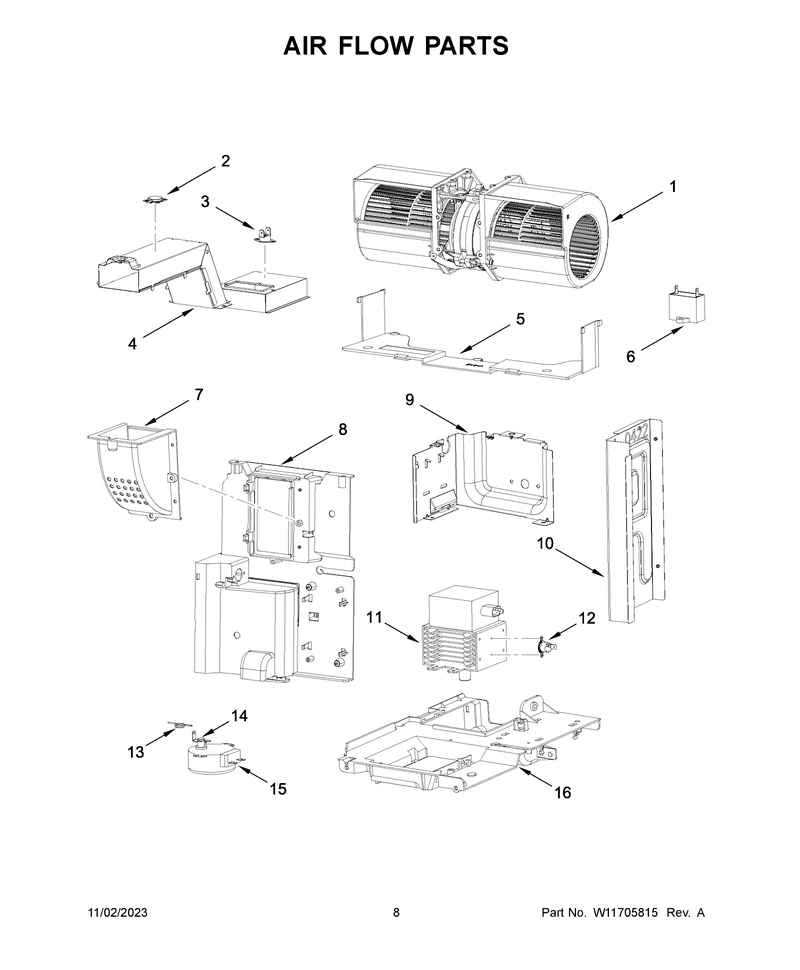

05 - Air Flow Parts

...
...
1
Motor-Fan WPL-W11662632
...
2
Sensor, Humidity WPL-W10557536
...
3
Thrmst-Fix WPL-W11661583
...
4
Guide-Air WPL-W11666236
...
5
Cover WPL-W11662643
...
6
Capacitor, Hood Motor WPL-W11405830
...
7
Guide-Air WPL-W11662646
...
8
Guide-Air WPL-W11662679
...
9
Channel, Right Hood WPL-W11586584
...
10
Guide-Air WPL-W11662662
...
11
Magnetron WPL-W11391712
...
12
Thrmst-Fix WPL-W11443128
...
13
Spring WPL-W11662717
...
14
Blade-Stir WPL-W11662715
...
15
Motor, Stirring WPL-W11590176
...
16
Support WPL-W11662695

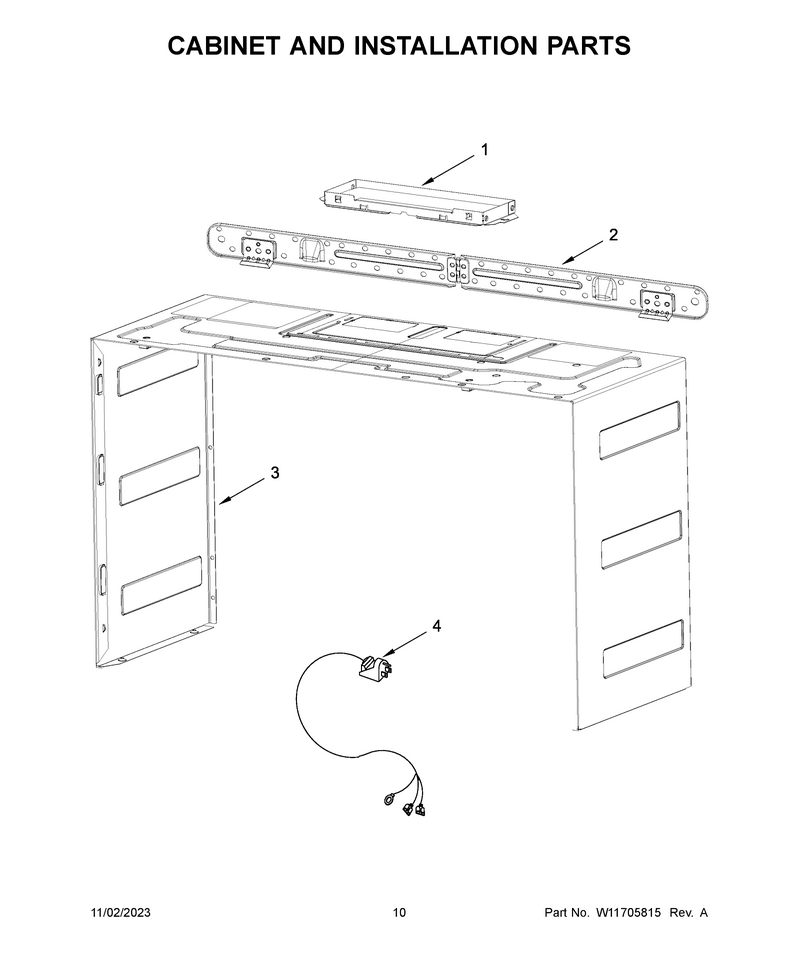

06 - Cabinet And Installation Parts

...
...
NI
Miscellaneous Parts, Harness, Hood Led To Acu WPL-W11353989
...
1
Damper WPL-W10843943
...
2
Plate, Mounting WPL-W11593197
...
3
Case, Outer (White) WPL-W11633705
...
3A
Case, Outer (Black) WPL-W11593183
...
4
Cord-Power WPL-W11705231
