Whirlpool YWMH78519LZ00

Model: YWMH78519LZ00

Save Part Not Listed?
product name

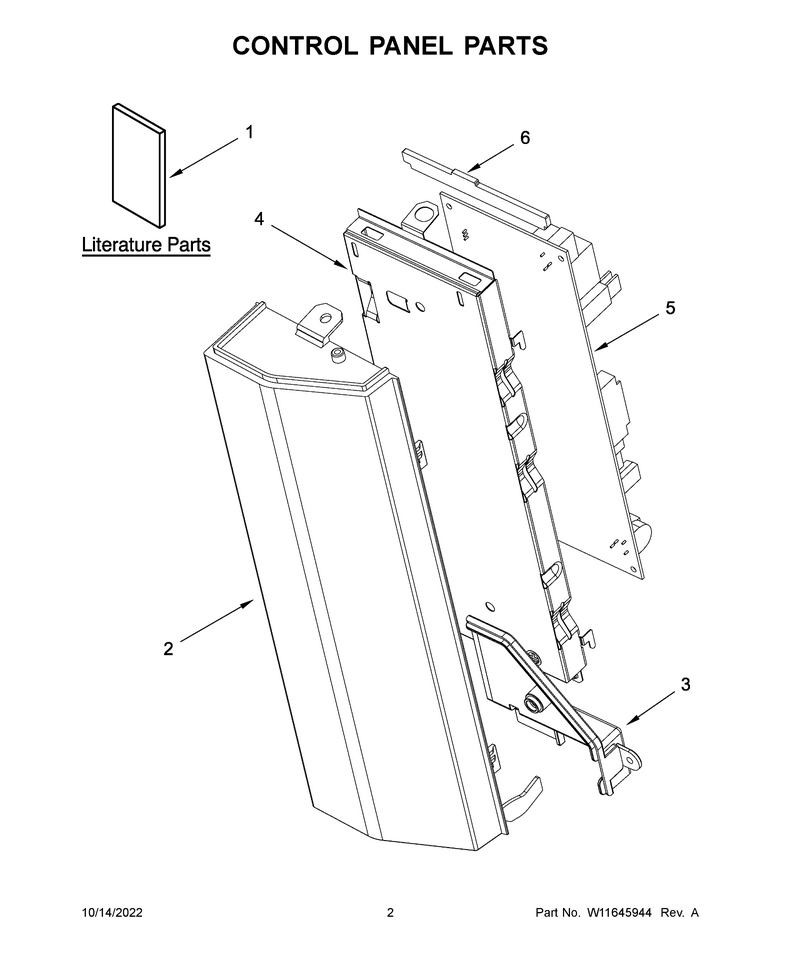

02 - Control Panel Parts

...
...
1
Instructions, Installation WPL-W11496338
...
1A
Use And Care Guide WPL-W11603632
...
1B
Quick Reference Guide WPL-W11603646
...
1C
Tech Sheet WPL-W11603651
...
2
Cover, Control (Black) WPL-W10478239
...
3
Duct, Cooling Front WPL-W10533504
...
4
Background, Control WPL-W10540727
...
5
Cntrl-Elec WPL-W11646742
...
6
Seal, Control WPL-W10540721

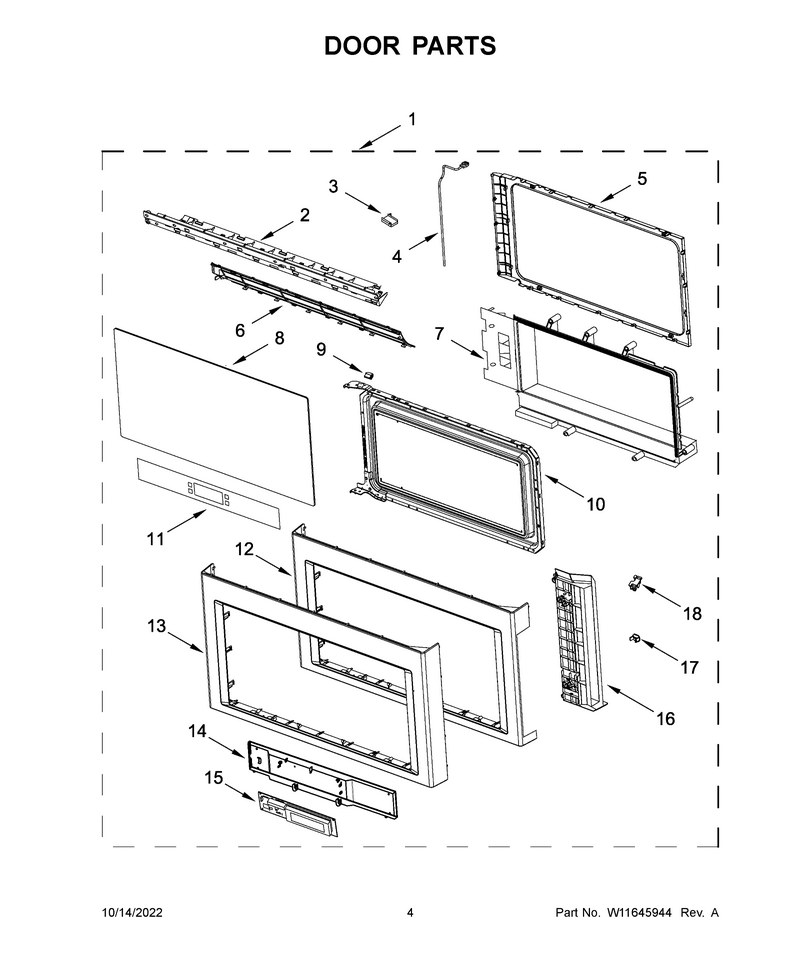

03 - Door Parts

...
...
1
Door, Complete (Stainless) WPL-W11644961
...
2
Bracket, Door WPL-W10476546
...
3
Bracket, Door Cable WPL-W10770971
...
4
Cable, Door User Interface WPL-W11320318
...
5
Frame, Inner WPL-W10897612
...
6
Frame, Back Decorating (Black) WPL-W10476550
...
7
Cover, Pcba WPL-W11643345
...
8
Glass, Outer Door WPL-W11600911
...
9
Stopper, Door WPL-W10643448
...
10
Door-Inner WPL-W11045518
...
11
Swtch-Memb WPL-W11646747
...
12
Door-Outer WPL-W11646762
...
13
Door-Outer WPL-W11646760
...
14
Holder, Pcba WPL-W11602074
...
15
Pcba, User Interface WPL-W11582285
...
16
Hndle-Door WPL-W11646744
...
17
Cover, Screw (Black) WPL-W10542546
...
18
Holder, Door Cable WPL-W10770972

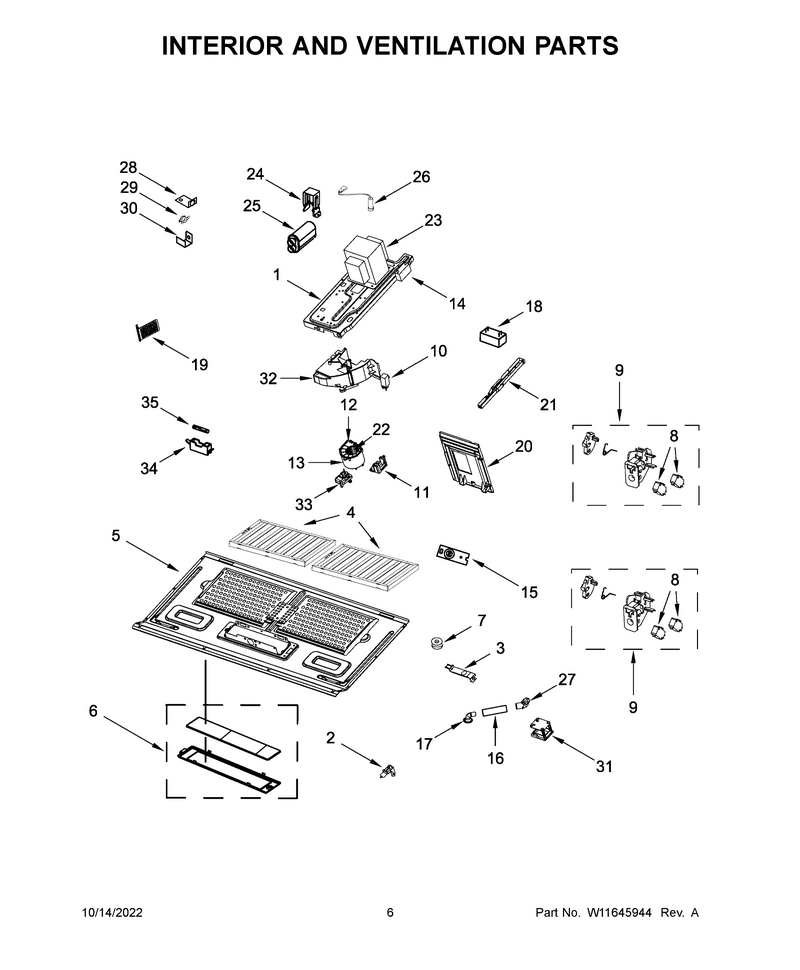

04 - Interior And Ventilation Parts

...
...
1
Chassis WPL-W10908578
...
2
Lamp, Halogen WPL-W11409090
...
3
Bracket, Smart Pop WPL-W10525853
...
4
Filter, Grease WPL-W10535950
...
5
Plate, Bottom WPL-W10571126
...
6
Assembly, Lamp Glass And Holder WPL-W10240330
...
7
Spacer, Smart Pop WPL-W10510237
...
8
Following Parts Not Illustrated WPL-N/P
...
9
Interlock WPL-W11197766
...
10
Actuator WPL-W10458325
...
11
Holder, Ntc WPL-W10533480
...
12
Cover, Cooling Fan WPL-W10533502
...
13
Housing, Cooling Fan WPL-W10533501
...
14
Capacitor, Motor WPL-W11405831
...
15
Thermistor, Pcba WPL-W10536989
...
16
Tube, Smart Pop Sound WPL-W10510235
...
17
Terminal, Smart Pop WPL-W10510234
...
18
Resistor, Cement WPL-W11259891
...
19
Valve, Door WPL-W10533486
...
20
Deflector, Air WPL-W10533107
...
21
Bracket, Cavity WPL-W10540718
...
22
Wheel, Cooling Fan WPL-W10533503
...
23
Capactr-Mg WPL-W11744484
...
24
Bracket, Capacitor WPL-W10556823
...
25
Capacitor, High Voltage WPL-W10706929
...
26
Diode WPL-W11256462
...
27
Terminal, Pcba Smart Pop WPL-W10510233
...
28
Cover, Thermostat WPL-W10259248
...
29
Thermostat, Convection WPL-W11268275
...
30
Clip WPL-8206223
...
31
Cntrl-Elec WPL-W11416049
...
32
Air Guide, Magnetron WPL-W10631701
...
33
Motor-Fan WPL-W11230994
...
34
Holder, Fuse WPL-W10245194
...
35
Fuse-Thrml WPL-W11707984

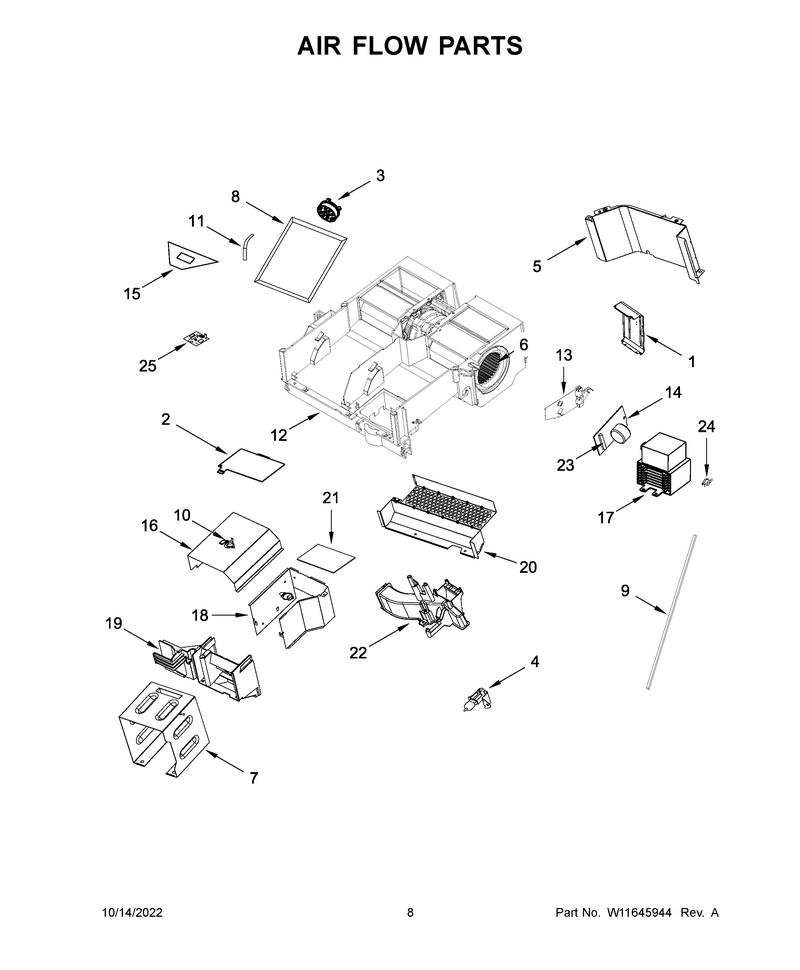

05 - Air Flow Parts

...
...
1
Deflector, Air WPL-W11300398
...
2
Cover, Lamp WPL-8206382
...
3
Sensor, Humidity WPL-W10557536
...
4
Lamp, Halogen WPL-W11409090
...
5
Plate, Air Guide WPL-W10533487
...
6
Motor-Fan WPL-W11613599
...
7
Housing, Damper WPL-W10712444
...
8
Filter WPL-8206230A
...
9
Seal, Foam WPL-W10571180
...
10
Thrmst-Fix WPL-W11661583
...
11
Sensor, Convection WPL-W10557537
...
12
Baseplate, Air Guide WPL-W10632409
...
13
Cover, Right Duct WPL-W11293488
...
14
Board, Filter WPL-W10572027
...
15
Socket, Motor Wire WPL-W10810142
...
16
Outlet, Cavity (Back) WPL-W10533112
...
17
Magnetron WPL-W11708328
...
18
Duct, Cavity (Rear) WPL-W10533113
...
19
Duct, Cavity (Front) (For Black Model) WPL-W10892383
...
20
Shield, Finger WPL-W10715053
...
21
Glass, Lamp WPL-W10531724
...
22
Assembly, Airguide Grille WPL-W10758887
...
23
Fuse-Thrml WPL-W11707984
...
24
Thrmst-Fix WPL-W11553234
...
25
Cntrl-Elec WPL-WPW10565479

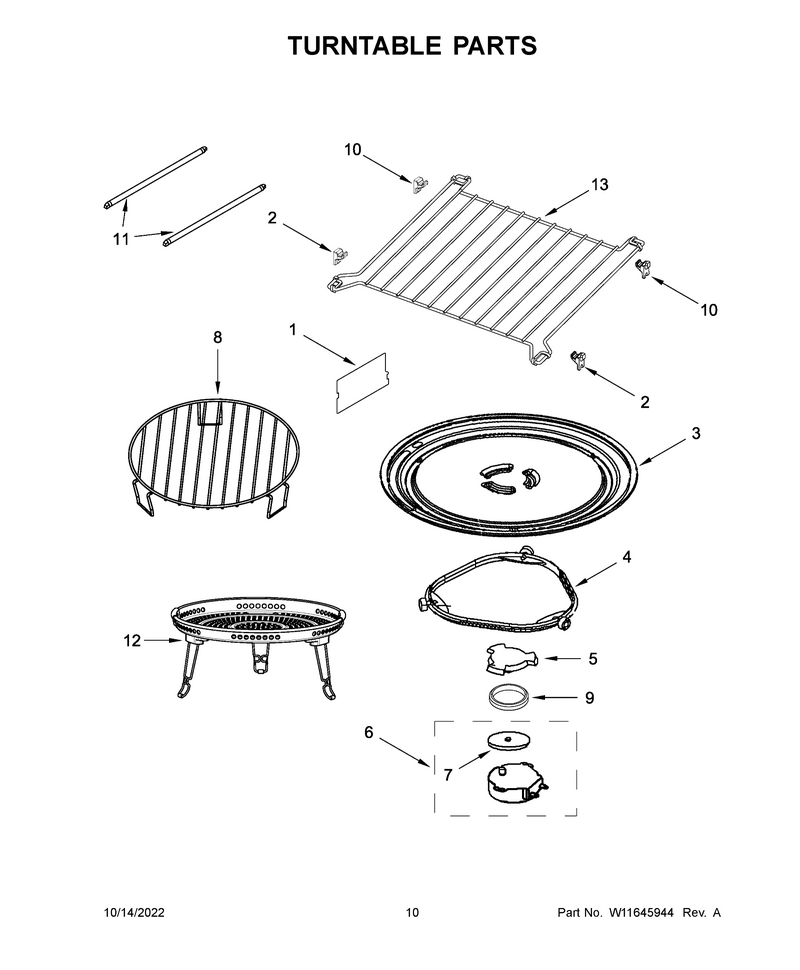

06 - Turntable Parts

...
...
1
Covr-Inlet WPL-W11662373
...
2
Hook, Microwave (Left Front And Right Front) WPL-W10740485
...
3
Tray-Cook WPL-W11402532
...
4
Ring, Turntable WPL-W10679313
...
5
Driver, Turntable WPL-W10337248
...
6
Motor-Turn WPL-WPW10466420
...
7
Seal, Waterproof WPL-8184109
...
8
Rack, Convection WPL-W10440082
...
9
Seal, Turntable Block WPL-W10568148
...
10
Hook, Microwave (Left Rear & Right Rear) WPL-W10573936
...
11
Heater, Quartz Grill WPL-W10510202
...
12
Fry-Basket WPL-W11646743
...
13
Rack WPL-W10860255

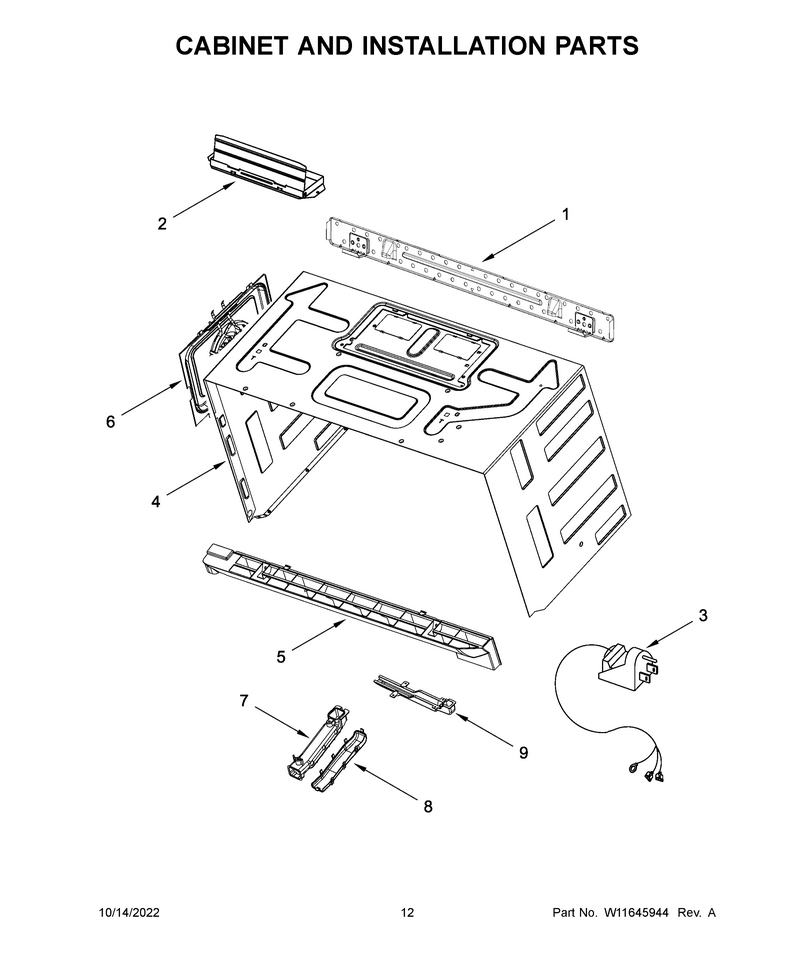

07 - Cabinet And Installation Parts

...
...
NI
Miscellaneous Parts, Wire, Quartz Grill WPL-W11306561
...
1
Plate, Mounting WPL-W11025649
...
2
Damper WPL-W10843943
...
3
Cord, Power WPL-W10708076
...
4
Wraper-Cab WPL-W11662678
...
5
Grille, Vent (Black) WPL-W10701701
...
6
Chamber WPL-WPW10571554
...
7
Duct, Cooling (Upper) WPL-W10740434
...
8
Duct, Cooling (Bottom) WPL-W10533489
...
9
Air Duct, Turntable Motor WPL-W10570212
