Whirlpool YWMH31017HZ06

Model: YWMH31017HZ06

Save Part Not Listed?
product name

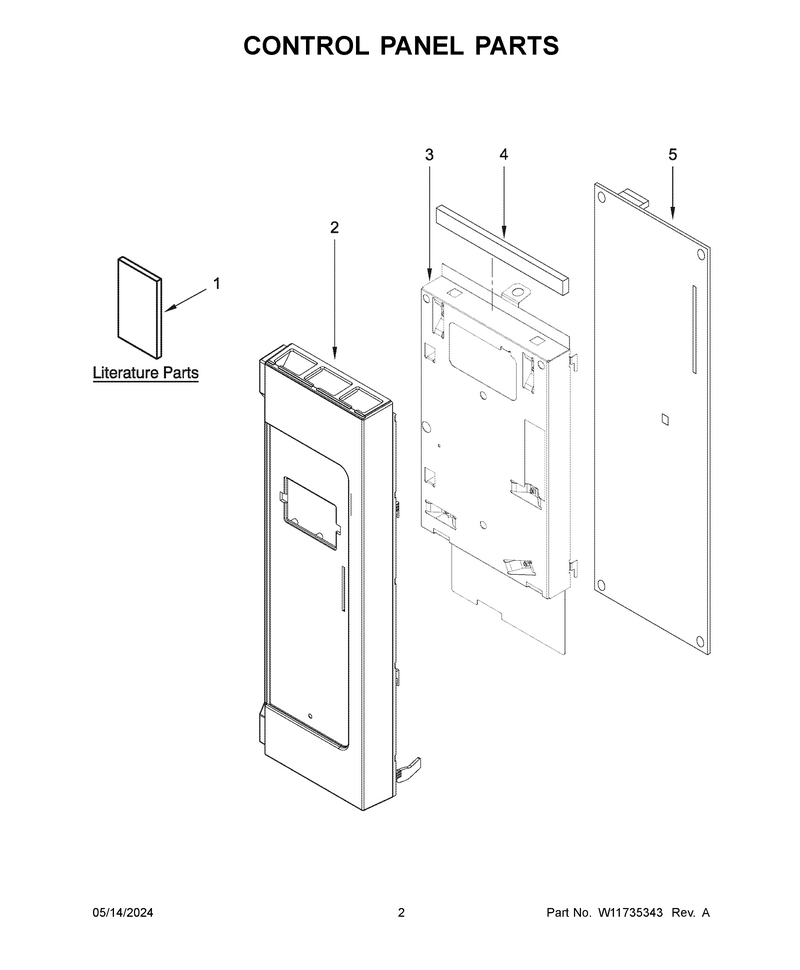

02 - Control Panel Parts

...
...
1
Installation Instructions WPL-W11485888
...
1C
Tech Sheet WPL-W11279373
...
1A
Use And Care Guide WPL-W10918339
...
1B
Cooking Guide Label WPL-W10835579
...
2
Panl-Cntrl WPL-W11175577
...
3
Brkt-Cntrl WPL-W11676791
...
4
Seal-Foam WPL-W11685342
...
5
Pcba, Appliance Control Unit WPL-W10849831

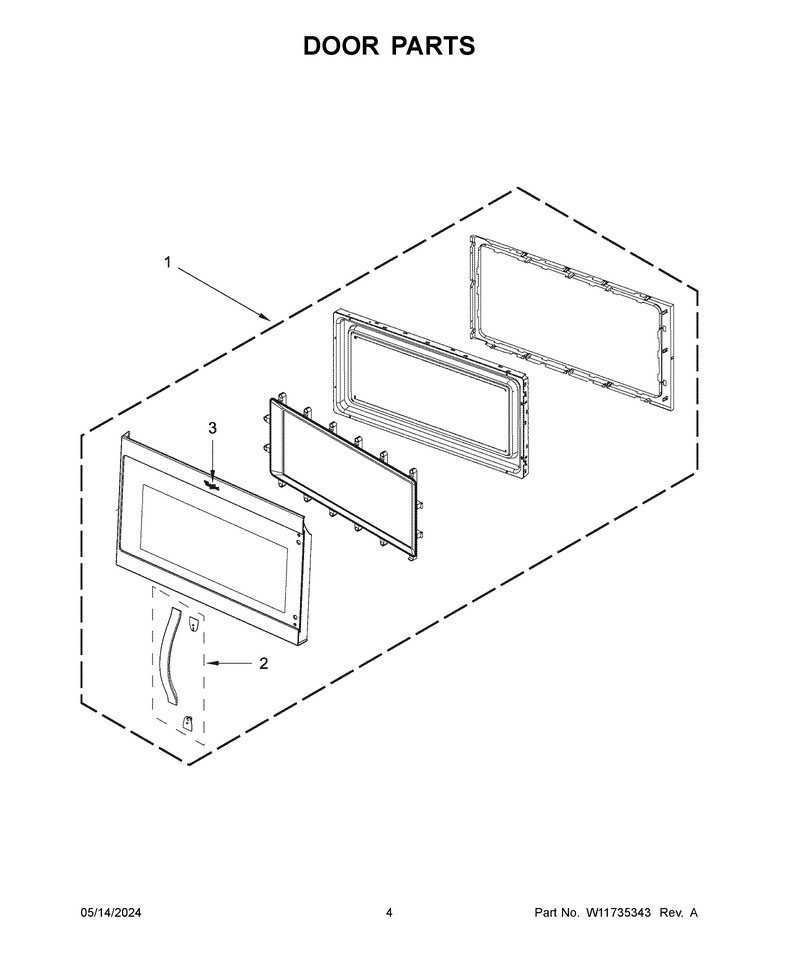

03 - Door Parts

...
...
1
Complete Door (Stainless) WPL-W11173823
...
2
Handle (Stainless) WPL-W11102990
...
3
Nameplate WPL-W11178521

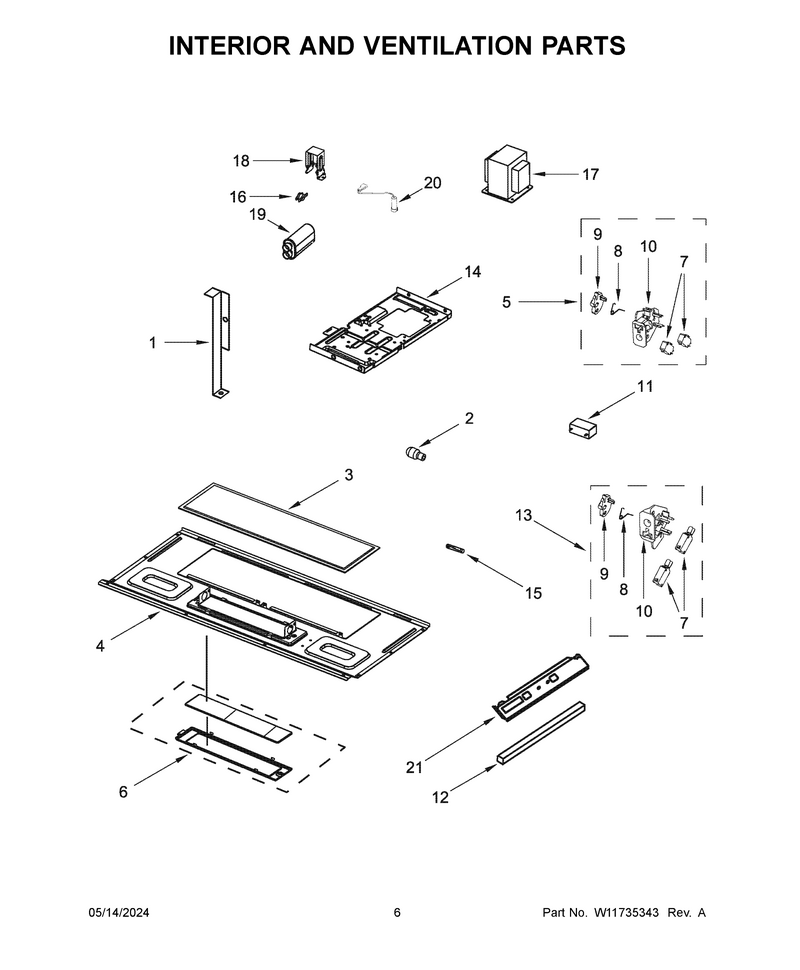

04 - Interior And Ventilation Parts

...
...
1
Bracket, Top Cavity WPL-W10313275
...
2
Bulb-Light WPL-8206232A
...
3
Filter WPL-W10208631A
...
4
Plate, Bottom WPL-W11450485
...
5
Interlock WPL-W11551558
...
6
Assembly, Lamp Glass And Holder WPL-W10240330
...
7
Switches, Interlock (Not Serviced, Order Interlock Assemblies) WPL---
...
8
Spring, Interlock WPL-W10156812
...
9
Plate, Cam WPL-W10562613
...
10
Interlock WPL-WP8206419
...
10A
Interlock WPL-WPW10156813
...
11
Capacitor, Hood Motor WPL-W11405832
...
12
Seal, Cooling WPL-W10571179
...
13
Interlock WPL-W11551761
...
14
Chassis WPL-W11520831
...
15
Fuse-Thrml WPL-W11707984
...
16
Thrmst-Fix WPL-W11574181
...
17
Transformr WPL-W11545871
...
18
Bracket, Capacitor WPL-W10532063
...
19
Capacitor, High Voltage WPL-8206562
...
20
Diode WPL-W11256462
...
21
Support, Ntc WPL-W11521327

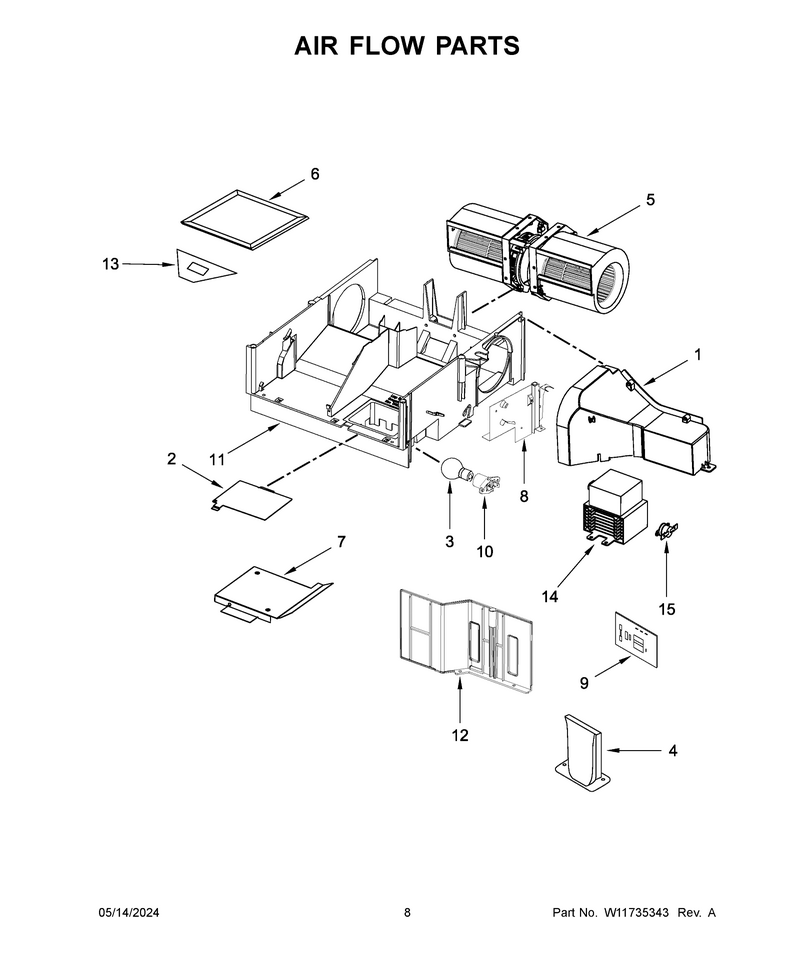

05 - Air Flow Parts

...
...
1
Deflector, Air WPL-W10471570
...
2
Cover, Lamp WPL-8206382
...
3
Bulb-Light WPL-8206232A
...
4
Plate, Waterproof WPL-W11381953
...
5
Motor-Fan WPL-W11441128
...
6
Filter WPL-W10892387
...
7
Guide, Air WPL-W10138797
...
8
Cover, Right Duct WPL-W11293488
...
9
Filter, Noise WPL-W10422269
...
10
Holder, Lamp WPL-W10210871
...
11
Baseplate, Air Guide WPL-W10828030
...
12
Shield, Finger WPL-W11520832
...
13
Socket, Motor Wire WPL-W10810142
...
14
Magnetron WPL-W10754299
...
15
Thermostat, Magnetron WPL-W10832024

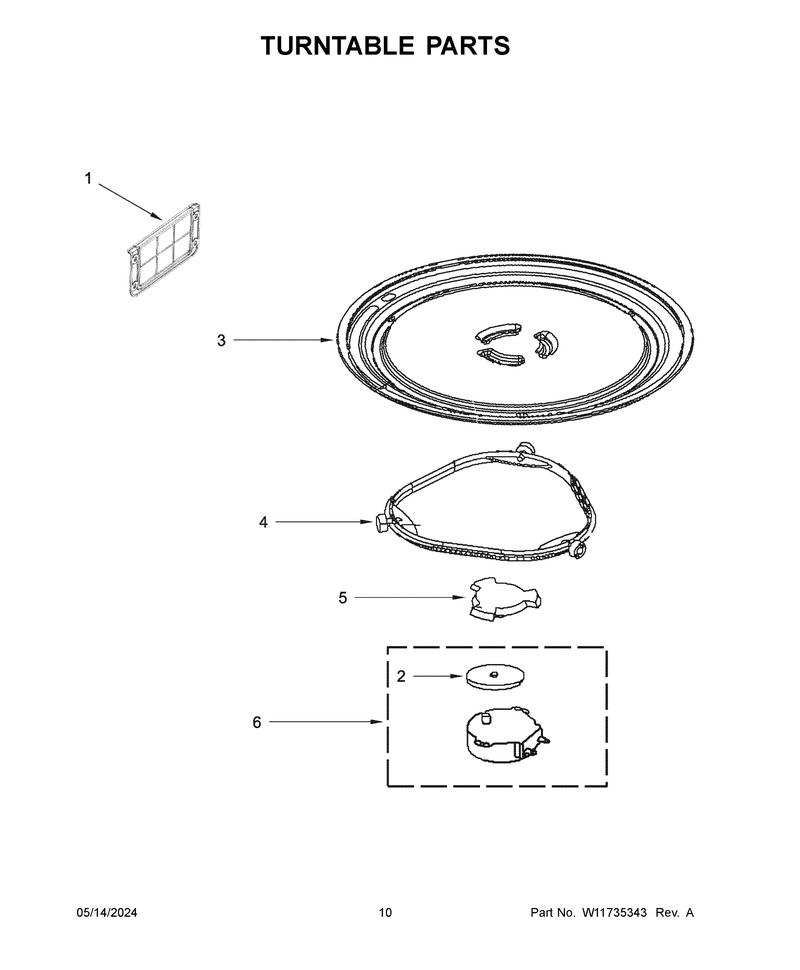

06 - Turntable Parts

...
...
1
Cover, Waveguide WPL-W11238817
...
2
Seal, Waterproof WPL-8184109
...
3
Tray-Cook WPL-W11367904
...
4
Ring-Turn WPL-W11252182
...
5
Support WPL-W11245707
...
6
Motor, Turntable WPL-W10642989

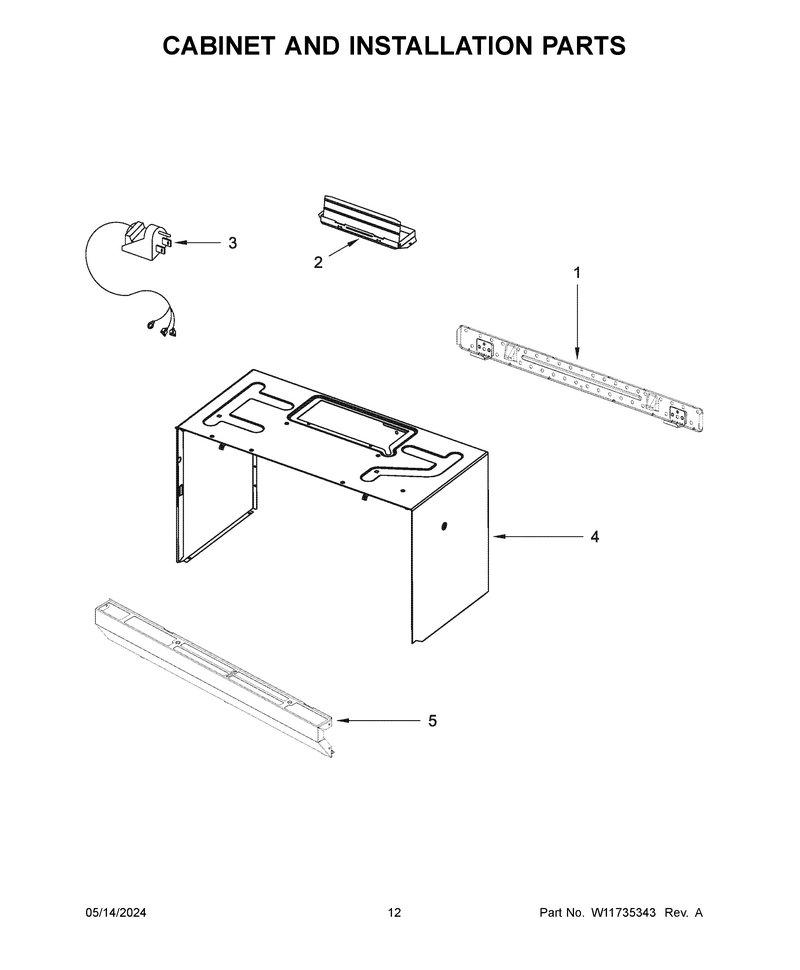

07 - Cabinet And Installation Parts

...
...
NI
Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer WPL-W11301790
...
1
Plate, Mounting WPL-W11025649
...
2
Damper WPL-W10843943
...
3
Cord, Power WPL-W10708076
...
4
Case, Outer (Black) WPL-W11446916
...
5
Grille, Vent (Black) WPL-W10845643
