Whirlpool YWFE745H0FH6

Model: YWFE745H0FH6

Save Part Not Listed?
product name

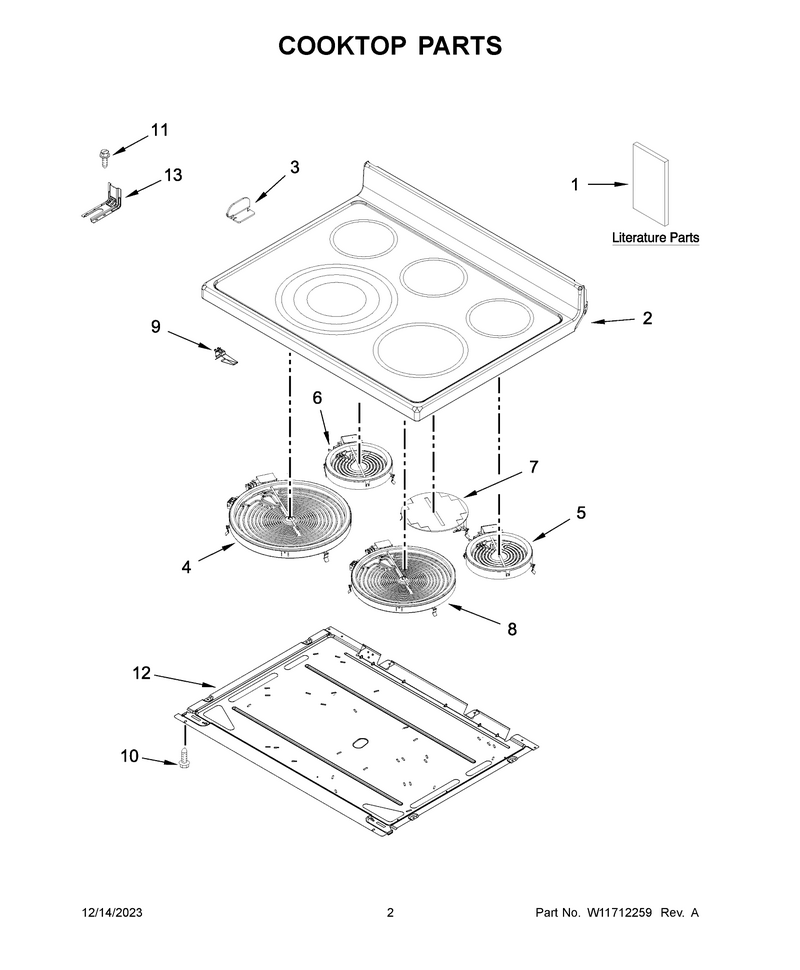

02 - Cooktop Parts

...
...
NI
Harness, Warm Zone WPL-W11134592
...
1
Owners Manual WPL-W11432242
...
1A
Quick Start Guide WPL-W11435579
...
1B
Tech Sheet WPL-W11503313
...
2
Cooktop WPL-W10872564
...
3
Bracket, Cooktop (Left) WPL-W10607641
...
3A
Bracket, Cooktop (Right) WPL-W10607642
...
4
Elmnt-Surf WPL-W10823720
...
5
Elmnt-Surf WPL-W11171119
...
6
Elmnt-Surf WPL-WPW10342780
...
7
Elmnt-Surf WPL-W11041453
...
8
Elmnt-Surf WPL-W11517959
...
9
Spring WPL-W11663556
...
10
Screw WPL-WP3196175
...
11
Anchor-Tip WPL-WP7101P485-60
...
12
Pan WPL-W11244088
...
13
Anchor-Tip WPL-W11447673

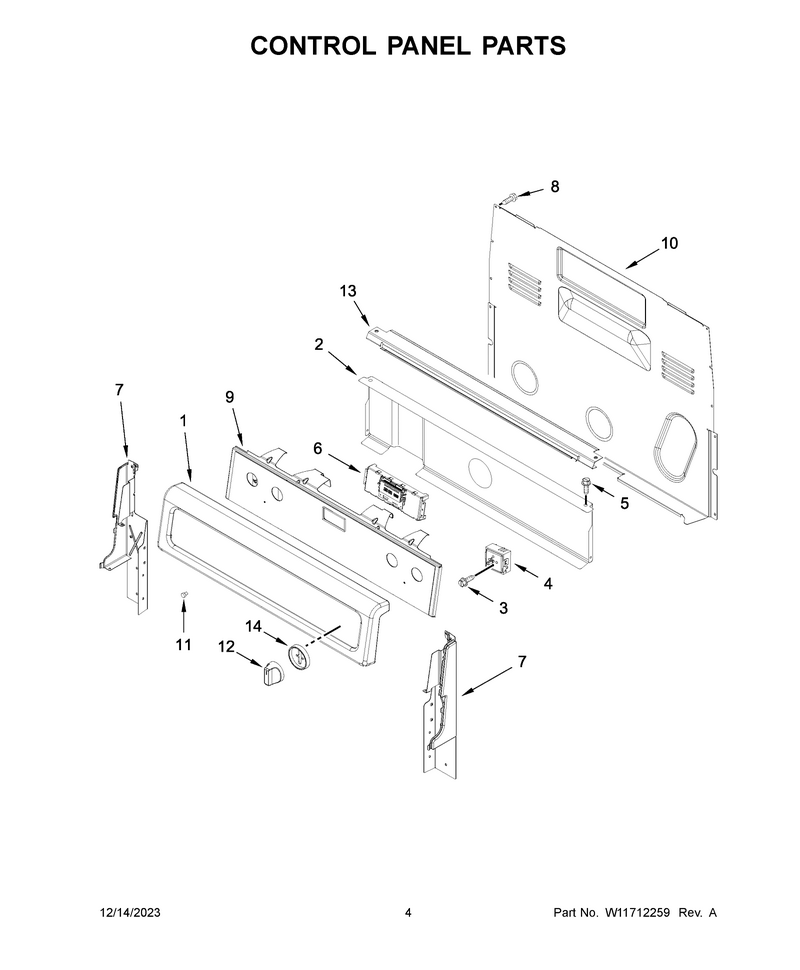

03 - Control Panel Parts

...
...
1
Panl-Cntrl WPL-WPW10318552
...
2
Shield, Heat WPL-W10134247
...
3
Screw WPL-WP3400882
...
4
Switch-Inf WPL-W11129442
...
4A
Switch-Inf WPL-W10917724
...
4B
Switch-Inf WPL-W10857622
...
4C
Switch-Inf WPL-W10911303
...
5
Screw WPL-W11233072
...
6
Cntrl-Elec WPL-W11594264
...
7
Endcap-Pnl WPL-W11219365
...
7A
Endcap-Pnl WPL-W11219370
...
8
Screw WPL-WP3196175
...
9
Assembly, Active Overlay (White) WPL-W11489572
...
10
Cover-Rear WPL-WP8272473
...
11
Lens-Light WPL-WP3196068
...
12
Knob WPL-W11517331
...
13
Bracket, Console Mounting WPL-W10525121
...
14
Bezel (Stainless) WPL-W10850042

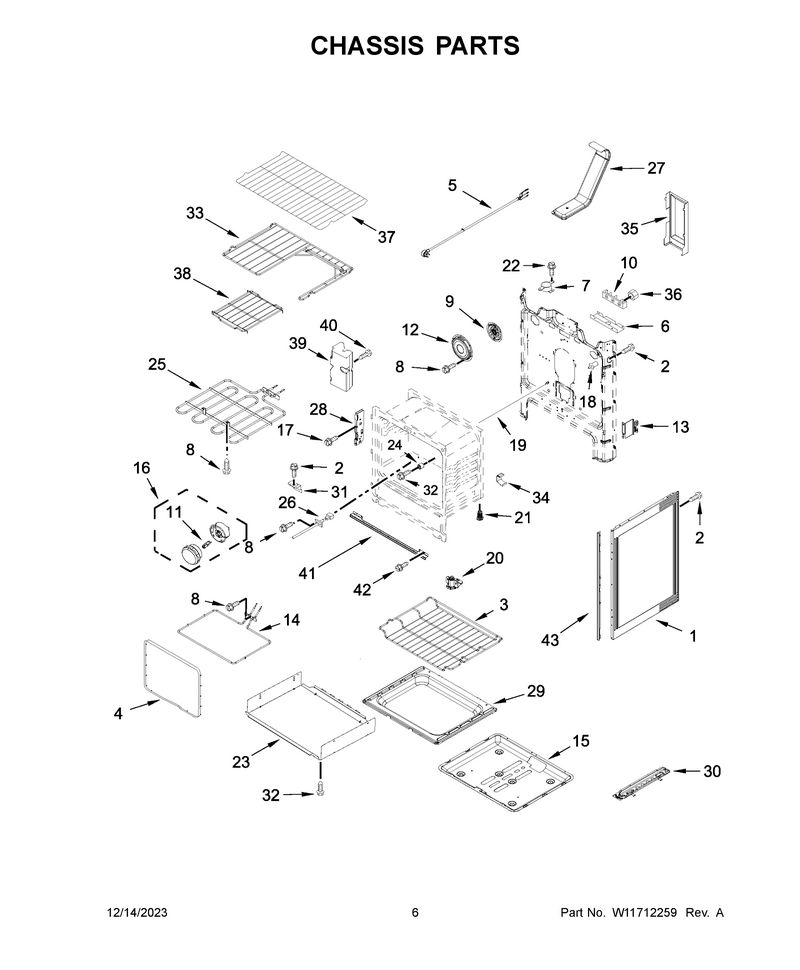

04 - Chassis Parts

...
...
NI
Rack-Oven WPL-WPW10205524
...
1
Panel-Side WPL-WPW10575396
...
2
Screw WPL-W11233072
...
3
Rack-Oven WPL-WPW10289145
...
4
Gaskt-Door WPL-W11562931
...
5
Cord-Power WPL-W11226497
...
6
Brkt-Srvce WPL-W11728255
...
7
Fuse-Thrml WPL-WP3196548
...
8
Screw WPL-W11233072
...
9
Fan-Convct WPL-W10903746
...
10
Block-Term WPL-WP8203546
...
11
Bulb-Light WPL-WPW10571723
...
12
Cover WPL-WPW10346154
...
13
Bracket, Oven Support WPL-W10273002
...
14
Elmnt-Bake WPL-W10779716
...
15
Bake Pan WPL-W11379357
...
16
Light-Oven WPL-W11707255
...
17
Screw WPL-W10777162
...
18
Swtch-Lite WPL-W11620712
...
19
Rod, Door Switch WPL-W10273192
...
20
Foot-Level WPL-WPW10341186
...
21
Foot-Level WPL-WPW10058460
...
22
Screw WPL-3196172
...
23
Shield, Heat WPL-W10726740
...
24
Spacer WPL-W10877054
...
25
Elmnt-Brol WPL-W11321472
...
26
Sensor WPL-W10833885
...
27
Tube-Vent WPL-WPW10134285
...
28
Hinge-Recv WPL-W10647259
...
29
Bottm-Oven WPL-W10777210
...
30
Rail-Base WPL-WPW10306546
...
30A
Rail-Base WPL-WPW10306546
...
31
Support, Oven Bottom WPL-W10035900
...
32
Screw WPL-WP3196175
...
33
Rack, Oven (Partial) WPL-W10205526
...
34
Clip, Panel WPL-W10137382
...
35
Cover-Blck WPL-WPW10326122
...
36
Nut WPL-WP3400029
...
37
Rack-Oven WPL-WPW10531060
...
38
Rack, Oven (Insert) WPL-W10186592
...
39
Anchor-Tip WPL-W11135752
...
40
Screw-Torx WPL-W11135756
...
41
Brkt-Suprt WPL-W11686853
...
42
Screw WPL-W11169708
...
43
Rail-Mtg WPL-W11594227

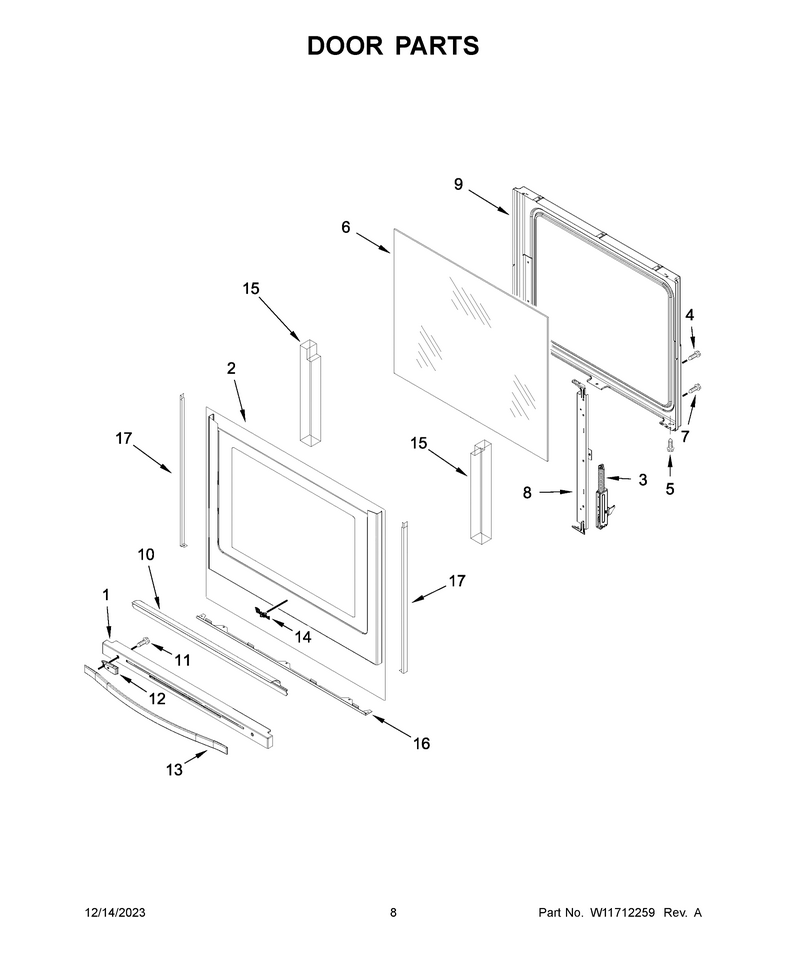

05 - Door Parts

...
...
1
Trim-Vent WPL-WPW10335331
...
2
Glass-Door WPL-WPW10289141
...
3
Hinge-Door WPL-WPW10440013
...
4
Screw WPL-WPW10031790
...
5
Screw WPL-WP3196175
...
6
Glass-Door WPL-WPW10300487
...
7
Screw WPL-W10777162
...
8
Brkt-Suprt WPL-W11116956
...
9
Liner-Door WPL-WPW10297318
...
10
Bracket, Glass Liner WPL-W10294853
...
11
Screw WPL-W11396735
...
12
Spacer WPL-WPW10429492
...
13
Hndle-Door WPL-WPW10618239
...
14
Nameplate WPL-W11178521
...
15
Insulation WPL-W11688565
...
16
Brkt-Glass WPL-WPW10333990
...
17
Trim, Door Side (White) WPL-W10334003

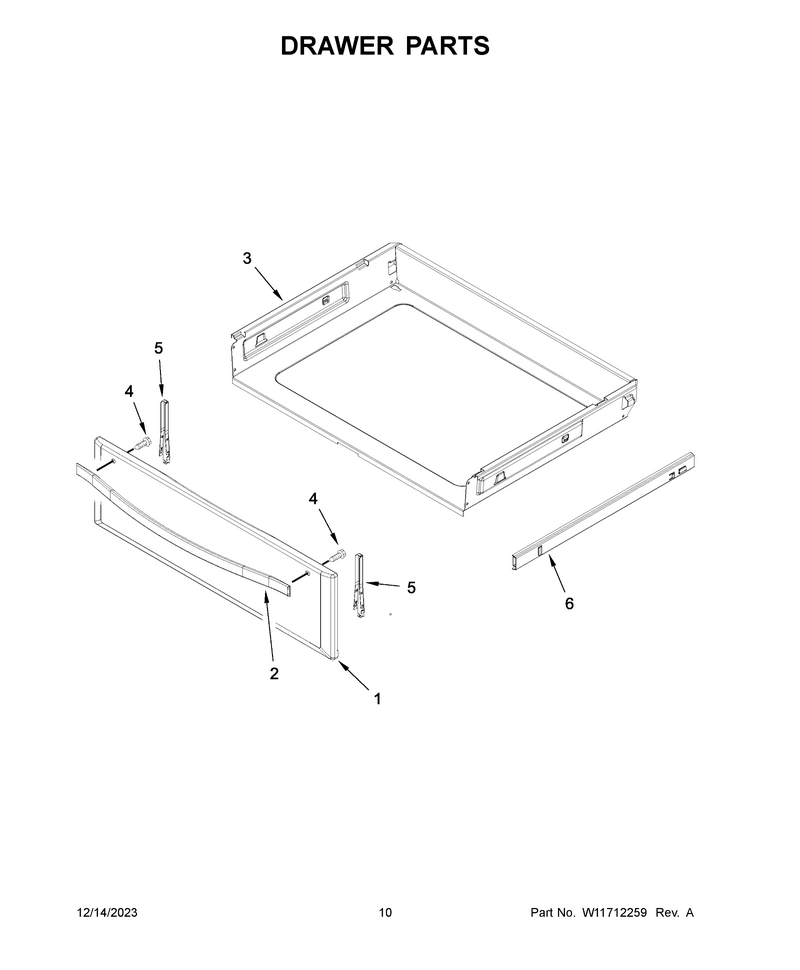

06 - Drawer Parts

...
...
1
Panel-Drwr WPL-W11307294
...
2
Hndle-Door WPL-WPW10618239
...
3
Drawr-Util WPL-W10813962
...
4
Screw WPL-WP3400882
...
5
Brkt-Mntg WPL-WPW10318027
...
6
Slide-Drwr WPL-WPW10441804
...
6A
Slide-Drwr WPL-WPW10441805

...
...
NI
Accessories, Rack, Broiler Pan And Roasting WPL-W10123240
