Whirlpool YWFE521S0HS5

Model: YWFE521S0HS5

Save Part Not Listed?
product name

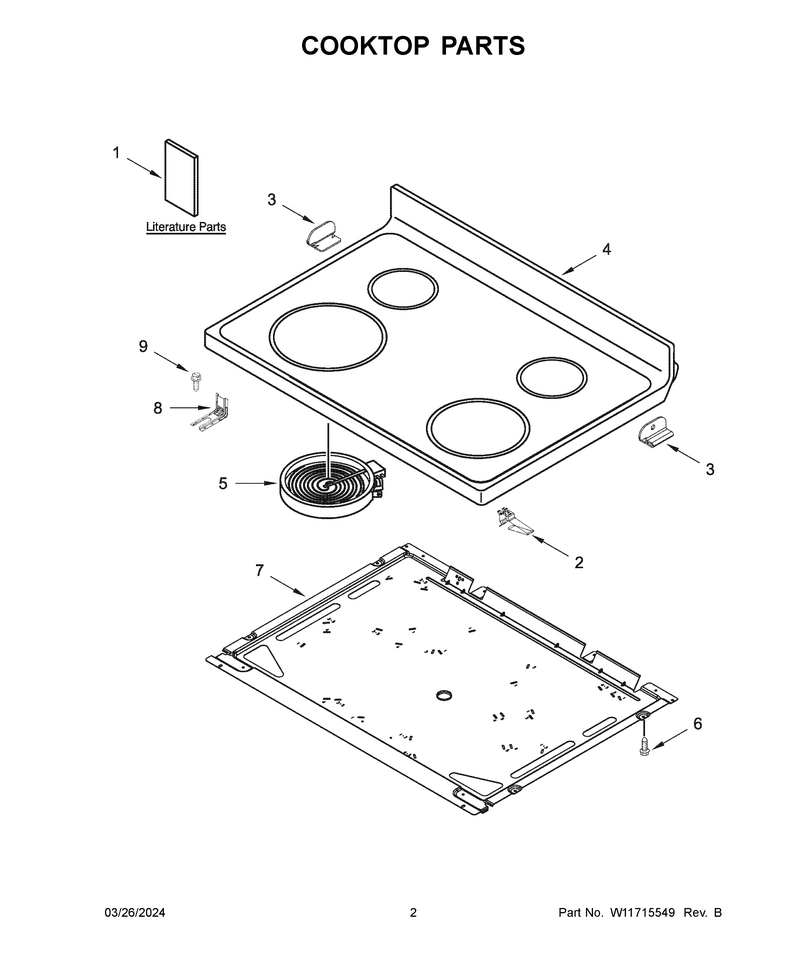

02 - Cooktop Parts

...
...
NI
Screw, Ground WPL-3400964
...
1
Quick Start Guide WPL-W11461147
...
1A
Owner's Manual WPL-W11509593
...
1B
Tech Sheet WPL-W11326986
...
1C
Wiring Diagram WPL-W11326981
...
2
Spring WPL-W11663556
...
3
Bracket, Cooktop (Left) WPL-W10607641
...
3A
Bracket, Cooktop (Right) WPL-W10607642
...
4
Cooktop WPL-W10245805
...
5
Elmnt-Surf WPL-W11517959
...
5A
Elmnt-Surf WPL-W11171119
...
5B
Elmnt-Surf WPL-W11047722
...
6
Screw WPL-WP3196557
...
7
Pan WPL-W11244088
...
8
Anchor-Tip WPL-W11447673
...
9
Anchor-Tip WPL-WP7101P485-60

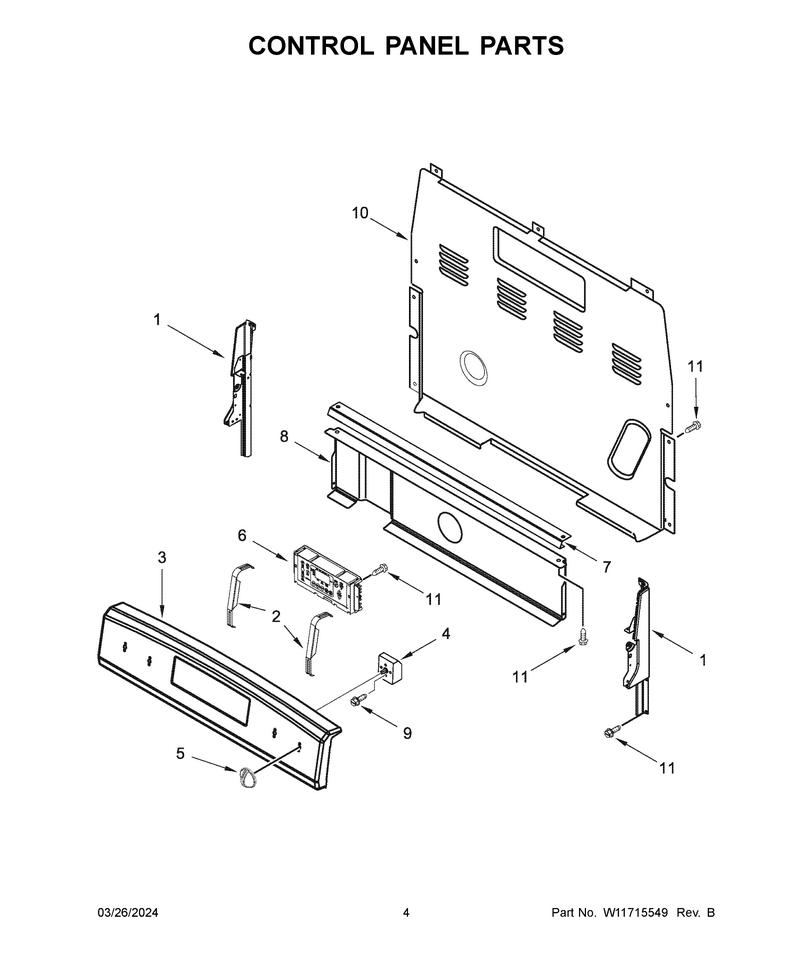

03 - Control Panel Parts

...
...
1
Endcap-Pnl WPL-W11219664
...
1A
Endcap-Pnl WPL-W11219665
...
2
Brkt-Mntg WPL-W11230932
...
3
Panl-Cntrl WPL-W11180283
...
4
Switch-Inf WPL-WPW10434452
...
4A
Switch-Inf WPL-WP3149404
...
4B
Switch-Inf WPL-WP3149400
...
5
Knob WPL-W11158168
...
6
Cntrl-Elec WPL-W11602270
...
7
Bracket, Console Mounting WPL-W10525121
...
8
Shield, Heat WPL-W10134247
...
9
Screw WPL-WP3400882
...
10
Cover-Rear WPL-WP8272473
...
11
Screw WPL-W11233072

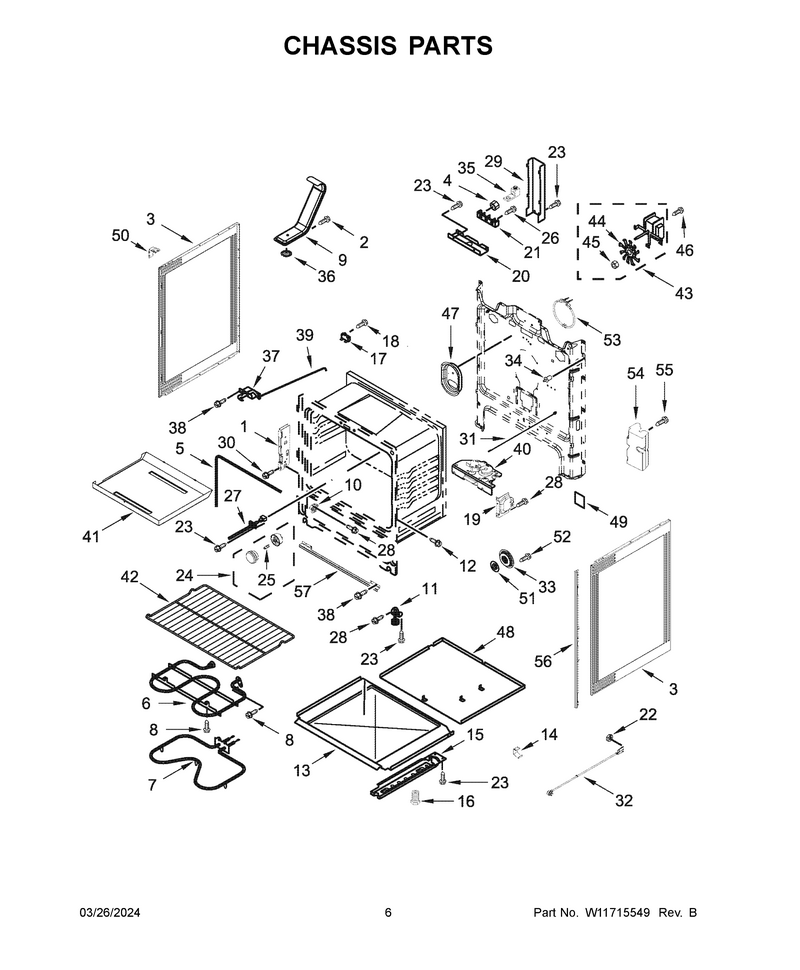

04 - Chassis Parts

...
...
NI
Insulation WPL-W11684918
...
1
Hinge-Recv WPL-W10647259
...
2
Screw WPL-WP3196154
...
3
Panel-Side WPL-W11730303
...
4
Nut WPL-WP3400029
...
5
Gaskt-Door WPL-W11542153
...
6
Elmnt-Brol WPL-W10856603
...
7
Elmnt-Bake WPL-WP9755770
...
8
Screw WPL-WP3196174
...
9
Tube-Vent WPL-WPW10134285
...
10
Glide-Drwr WPL-W10807823
...
11
Foot-Level WPL-WPW10341186
...
12
Screw WPL-WPW10067840
...
13
Tray, Insulation WPL-W10134121
...
14
Clip, Panel WPL-W10137382
...
15
Rail-Base WPL-WPW10306546
...
15A
Rail-Base WPL-WPW10306546
...
16
Foot-Level WPL-WPW10058460
...
17
Fuse-Thrml WPL-WP3196548
...
18
Screw WPL-3196172
...
19
Clip, Oven Support WPL-W10404688
...
20
Brkt-Srvce WPL-W11728255
...
21
Block-Term WPL-WP8203546
...
22
Nut WPL-WP7103P027-60
...
23
Screw WPL-W11233072
...
24
Light-Oven WPL-W11707255
...
25
Bulb-Light WPL-WPW10571723
...
26
Screw WPL-WP3400016
...
27
Sensor WPL-WPW10181986
...
28
Screw WPL-WP3196557
...
29
Cover-Blck WPL-WPW10326122
...
30
Screw WPL-W10777162
...
31
Rod, Door Switch WPL-9757239
...
32
Cord-Power WPL-W11226497
...
33
Cover-Fan WPL-WPW10134124
...
34
Swtch-Lite WPL-W11620712
...
35
Connector WPL-WPW10281322
...
36
Screen WPL-W11268772
...
37
Latch-Door WPL-WP9761013
...
38
Screw WPL-W11169708
...
39
Rod, Latch WPL-W10078380
...
40
Latch-Door WPL-WPW10107840
...
41
Tray, Hidden Bake WPL-W10183712
...
42
Rack-Oven WPL-W11520287
...
43
Fan-Convct WPL-W11582241
...
44
Fan-Convct WPL-W11548753
...
45
Nut WPL-W11548755
...
46
Screw WPL-WP4449809
...
47
Bracket, Fan WPL-W10134126
...
48
Shield, Heat WPL-W10134125
...
49
Card, Insulator WPL-W10646923
...
50
Clip, Spring Steel WPL-W10183541
...
51
Nut WPL-WP3400968
...
52
Screw WPL-W11233072
...
53
Element WPL-W11190125
...
54
Anchor-Tip WPL-W11135752
...
55
Screw-Torx WPL-W11135756
...
56
Rail-Mtg WPL-W11594227
...
57
Bracket, Front Frame WPL-W11464547

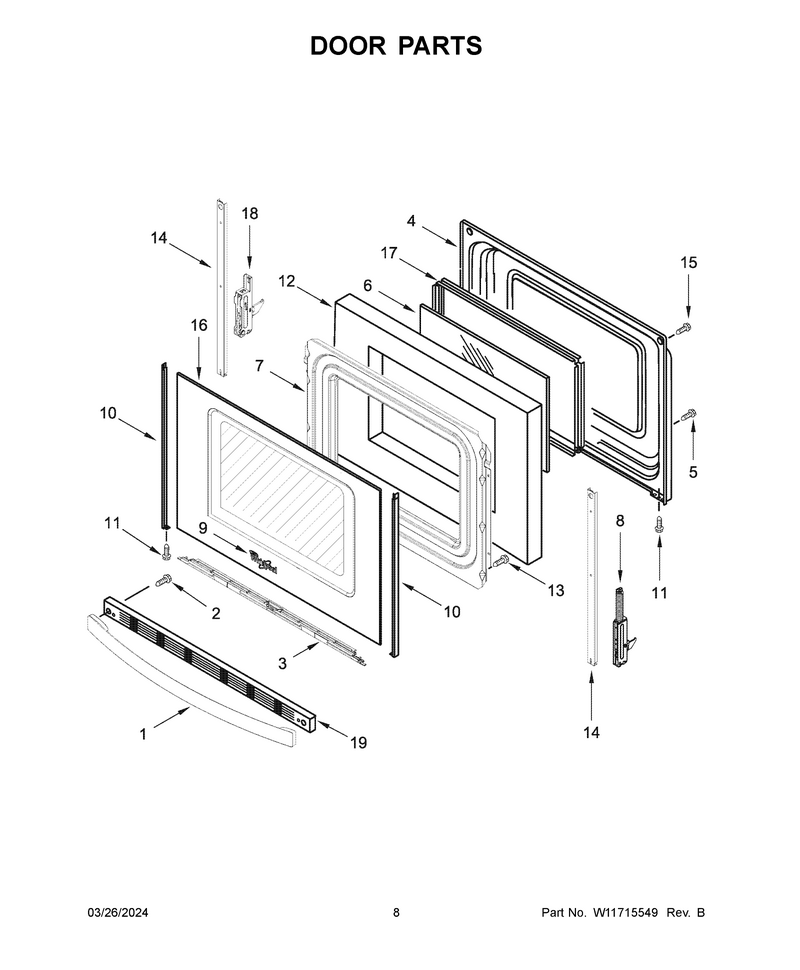

05 - Door Parts

...
...
1
Hndle-Door WPL-W11398742
...
2
Screw WPL-W10831019
...
3
Trim, Bottom Door WPL-W11440159
...
4
Liner-Door WPL-WP9761344
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-WP8053948
...
7
Retainer WPL-W11539580
...
8
Hinge-Door WPL-WPW10299224
...
9
Nameplate WPL-W11178521
...
10
Trim-Door WPL-W10761018
...
10A
Trim-Door WPL-W10761014
...
11
Screw WPL-WP355214
...
12
Insulation WPL-WPW10278991
...
13
Screw WPL-W10777162
...
14
Brkt-Suprt WPL-W11502236
...
15
Screw WPL-WPW10200660
...
16
Glass-Door WPL-W11219379
...
17
Frame-Wndw WPL-WPW10316950
...
18
Hinge-Door WPL-WPW10299227
...
19
Trim-Vent WPL-WPW10310922

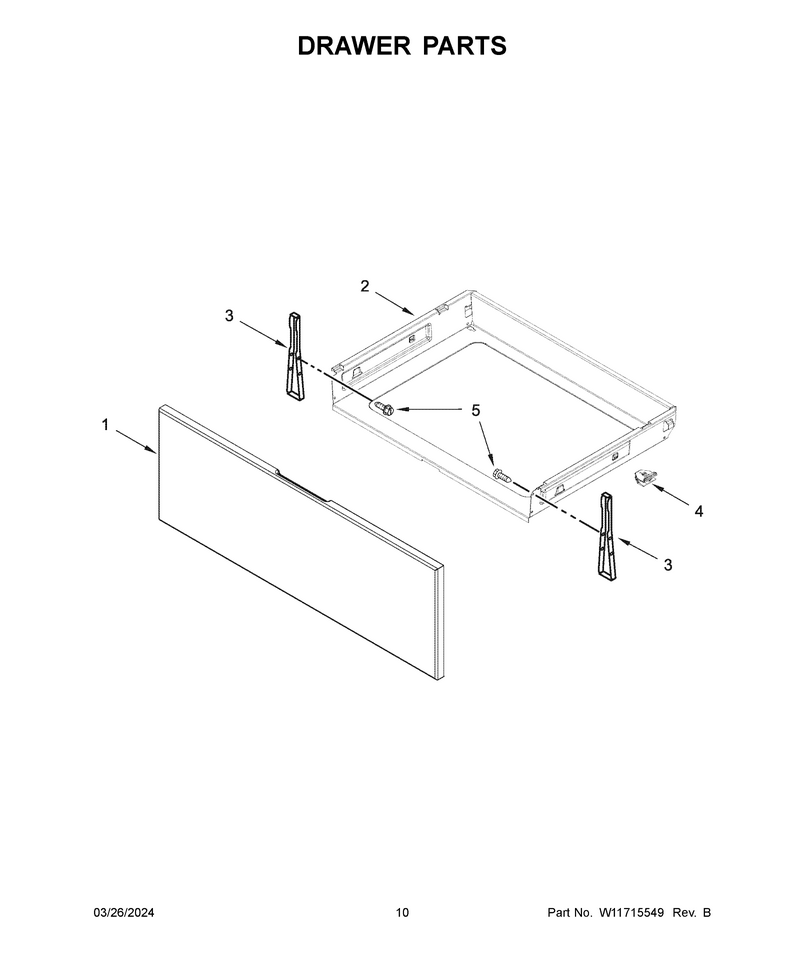

06 - Drawer Parts

...
...
1
Panel-Drwr WPL-WPW10330070
...
2
Drawr-Util WPL-W10813962
...
3
Brkt-Mntg WPL-W10838990
...
4
Glide-Drwr WPL-W10807828
...
5
Screw WPL-WP3196175

...
...
NI
Accessories, Rack, Broiler Pan And Roasting WPL-W10123240
