Whirlpool YWFE381LVB1

Model: YWFE381LVB1

Save Part Not Listed?
product name

...
...
NI
Wiring Harness Parts, Harness, Wire (Sensor/dr Switch) WPL-W10084710

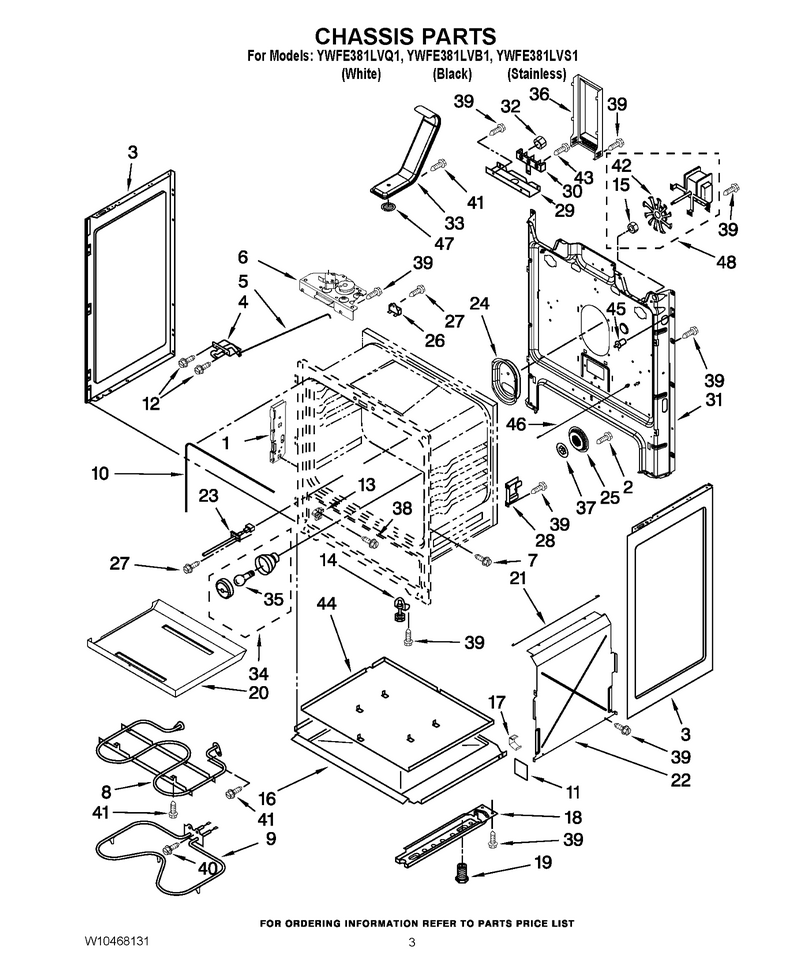

03 - Chassis Parts

...
...
NI
Insulation, Back WPL-W10326347
...
1
Hinge-Recv WPL-W10647259
...
2
Screw WPL-WP4449809
...
3
Panel-Side WPL-WPW10575396
...
4
Latch-Door WPL-WP9761013
...
5
Rod, Latch WPL-W10078380
...
6
Latch-Door WPL-WPW10107840
...
7
Screw WPL-WPW10067840
...
8
Elmnt-Brol WPL-W10856603
...
9
Elmnt-Bake WPL-WP9755770
...
10
Gaskt-Door WPL-W11542153
...
11
Card, Insulator WPL-W10646923
...
12
Screw WPL-W11169708
...
13
Glide-Drwr WPL-WPW10114344
...
14
Foot-Level WPL-WPW10341186
...
15
Nut WPL-W11548755
...
16
Tray, Insulation WPL-W10134121
...
17
Clip, Panel WPL-W10137382
...
18
Rail-Base WPL-WPW10306546
...
19
Foot-Level WPL-WPW10058460
...
20
Tray, Hidden Bake Element WPL-W10183712
...
21
Rod, Insulation Retainer WPL-W10465685
...
22
Retainer, Insulation WPL-W10450380
...
23
Sensor WPL-WPW10181986
...
24
Bracket, Fan WPL-W10134126
...
25
Cover-Fan WPL-WPW10134124
...
26
Fuse-Thrml WPL-WP3196548
...
27
Screw WPL-3196172
...
28
Clip, Oven Support WPL-W10404688
...
29
Brkt-Srvce WPL-W11728255
...
30
Block-Term WPL-WP8203546
...
31
Back, Main WPL-W10273169
...
32
Nut WPL-WP7103P027-60
...
33
Tube-Vent WPL-WPW10134285
...
34
Sockt-Lite WPL-W11594027
...
35
Light Bulb WPL-8009
...
36
Cover-Blck WPL-WPW10326122
...
37
Nut WPL-WP3400968
...
38
Screw WPL-W11233072
...
39
Screw WPL-WP3196557
...
40
Screw WPL-WP3196174
...
41
Screw WPL-WP3196154
...
42
Fan-Convct WPL-W10758272
...
43
Screw WPL-WP3400016
...
44
Shield, Heat WPL-W10134125
...
45
Swtch-Lite WPL-W11243424
...
46
Rod - Door Switch, Rear Mount WPL-9757239
...
47
Screen, Catalyst WPL-9761301
...
48
Fan-Convct WPL-W11582241

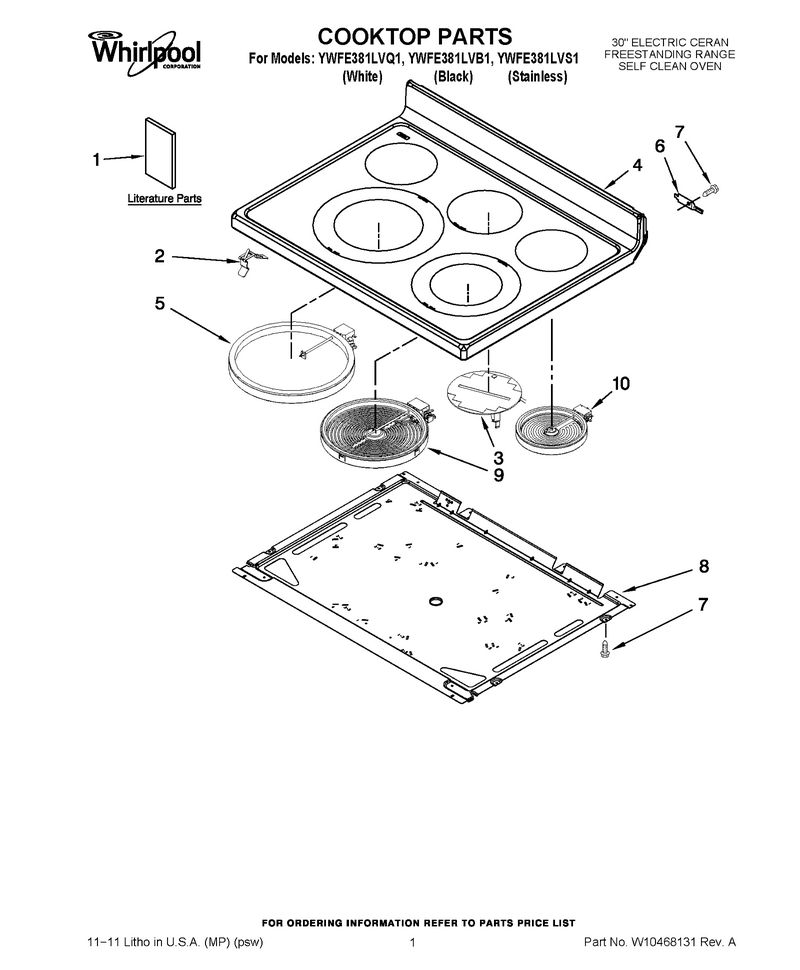

01 - Cooktop Parts

...
...
1
Tech Sheet (English) WPL-W10434987
...
2
Spring WPL-WPW10225448
...
3
Elmnt-Surf WPL-WP9762851
...
4
Cooktop WPL-W10651915
...
5
Elmnt-Surf WPL-W10823727
...
6
Pin-Cooktp WPL-WP3195060
...
7
Screw WPL-WP3196557
...
8
Pan, Radiant Elmt WPL-W10170526
...
9
Elmnt-Surf WPL-W11517959
...
10
Elmnt-Surf WPL-W10823711

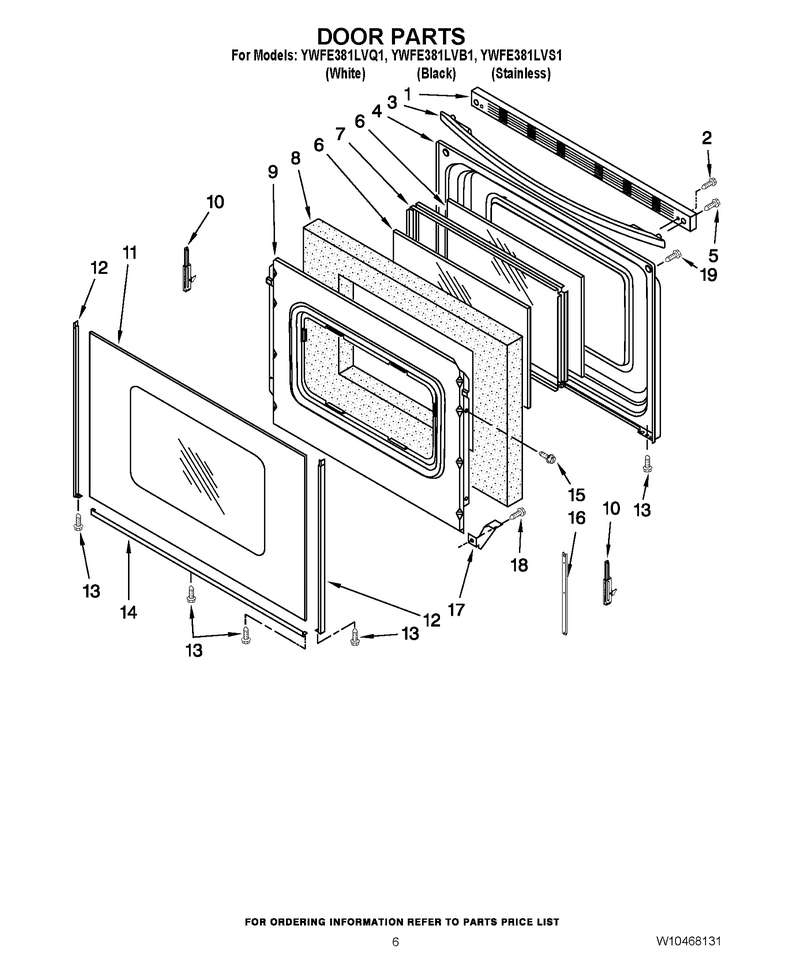

05 - Door Parts

...
...
1
Trim-Vent WPL-W10817433
...
2
Screw WPL-WPW10200660
...
3
Hndle-Door WPL-W10817434
...
4
Liner-Door WPL-WP9761344
...
5
Screw WPL-W10817436
...
6
Glass-Door WPL-WP8053948
...
7
Frame-Wndw WPL-WPW10316950
...
8
Insulation WPL-WPW10278991
...
9
Retainer WPL-W11539580
...
10
Hinge-Door WPL-WPW10299227
...
11
Glass-Door WPL-WPW10118455
...
12
Trim-Door WPL-WP8523166
...
13
Screw WPL-W10491985
...
14
Trim-Door WPL-WP8523175
...
15
Screw WPL-WPW10031790
...
16
Brkt-Suprt WPL-W11502236
...
17
Clip, Panel WPL-W10137382
...
18
Screw WPL-WP3196175
...
19
Screw WPL-W10777162

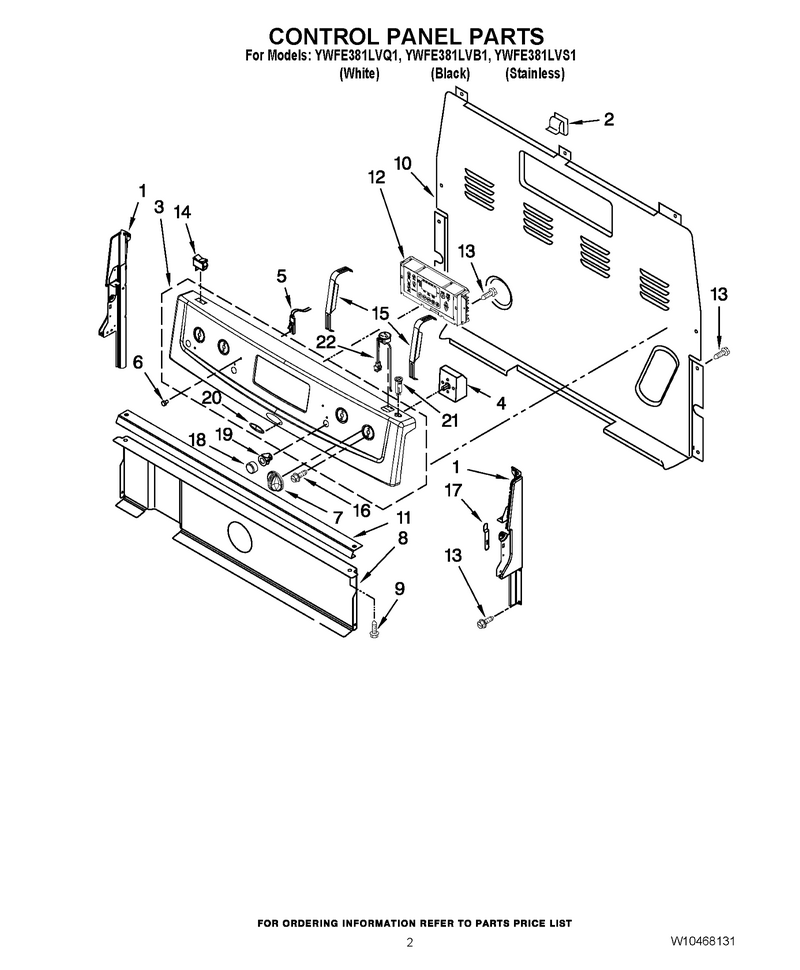

02 - Control Panel Parts

...
...
1
Endcap-Pnl WPL-W11219665
...
2
Clip WPL-WP8273564
...
3
Panel, Control (White) WPL-W10170682
...
4
Switch-Inf WPL-WP3149404
...
5
Light-Ind WPL-WP8523265
...
6
Lens-Light WPL-WP3196068
...
7
Knob WPL-WP9761964
...
8
Shield, Heat WPL-W10134247
...
9
Screw WPL-WP3196175
...
10
Cover-Rear WPL-WP8272473
...
11
Bracket, Console Mounting WPL-W10525121
...
12
Cntrl-Elec WPL-WPW10271739
...
13
Screw WPL-WP3196557
...
14
Switch, Rocker (White) WPL-3149360
...
15
Brkt-Mntg, Eoc WPL-9762078
...
16
Screw WPL-WP3400882
...
17
Clip, Spring WPL-3196200
...
18
Button, Keep Warm (Black) WPL-9758491
...
19
Bezel, Keep Warm (White) WPL-W10217760
...
20
Badge WPL-W10209617
...
21
Breaker WPL-WP9757601
...
22
Outlt-Elec WPL-W10849725

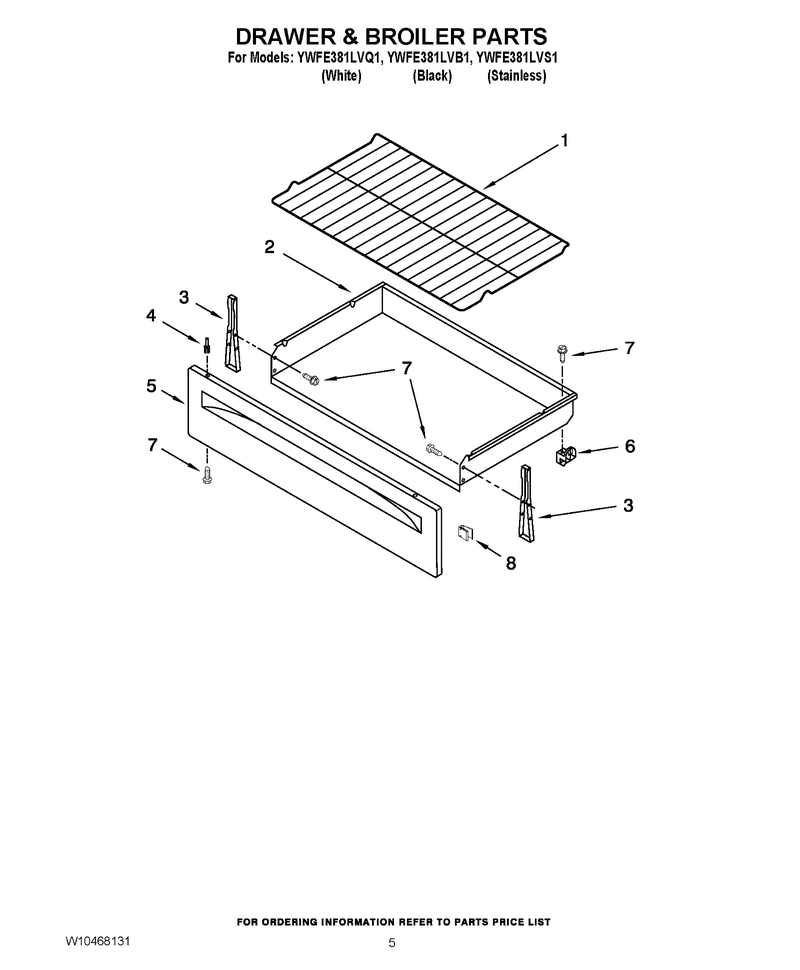

04 - Drawer & Broiler Parts

...
...
1
Rack-Oven WPL-W11520287
...
2
Drawer, Storage WPL-9761031
...
3
Brkt-Mntg WPL-WPW10462912
...
4
Rivet WPL-WP3196813
...
5
Panel-Drwr WPL-W11219377
...
6
Glide-Drwr WPL-WP8053334
...
7
Screw WPL-WP3196557
...
8
Clip WPL-W10787766
