Whirlpool YWFE361LVS1

Model: YWFE361LVS1

Save Part Not Listed?
product name

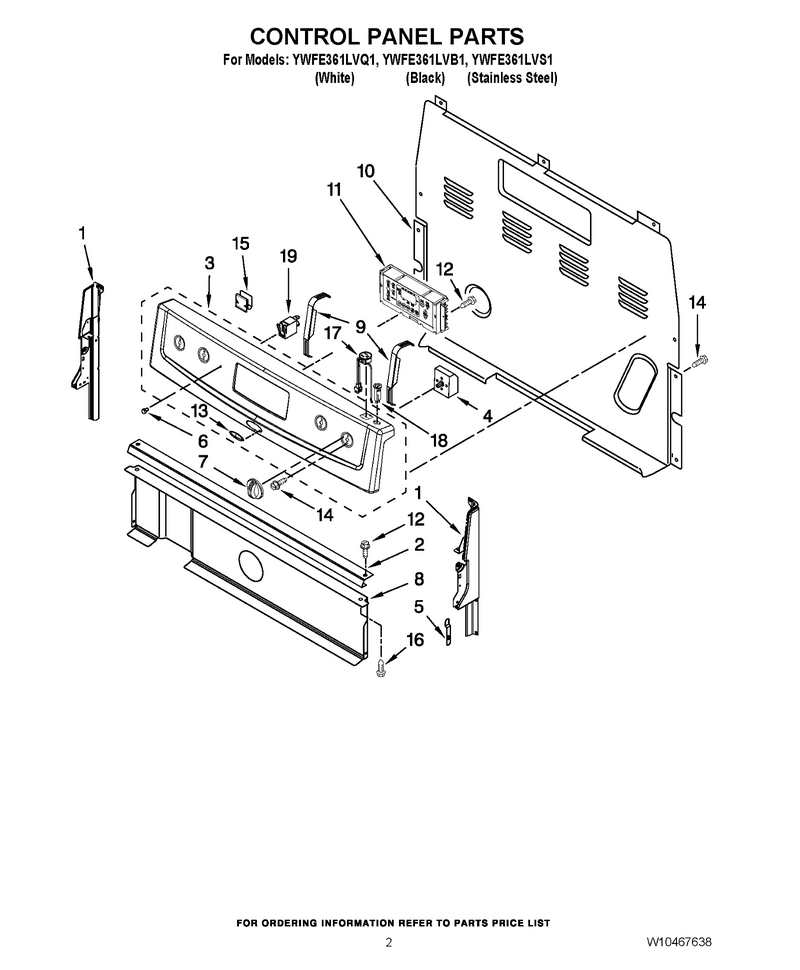

02 - Control Panel Parts

...
...
1
Endcap-Pnl WPL-W11219665
...
2
Bracket, Console Mounting WPL-W10525121
...
3
Panel, Control (Black) WPL-W10184059
...
4
Switch-Inf WPL-WPW10434452
...
5
Clip, Spring WPL-3196200
...
6
Lens-Light WPL-WP3196068
...
7
Knob WPL-WP9761962
...
8
Shield, Heat WPL-W10134247
...
9
Brkt-Mntg, Eoc WPL-9762078
...
10
Cover-Rear WPL-WP8272473
...
11
Cntrl-Elec WPL-WPW10476687
...
12
Screw WPL-W11233072
...
13
Nameplate WPL-W10209617
...
14
Screw WPL-WP3400882
...
15
Clip WPL-WP8273564
...
16
Screw WPL-WP3196175
...
17
Outlt-Elec WPL-W10861164
...
18
Breaker WPL-WP9757602
...
19
Indicator Light WPL-W10349712

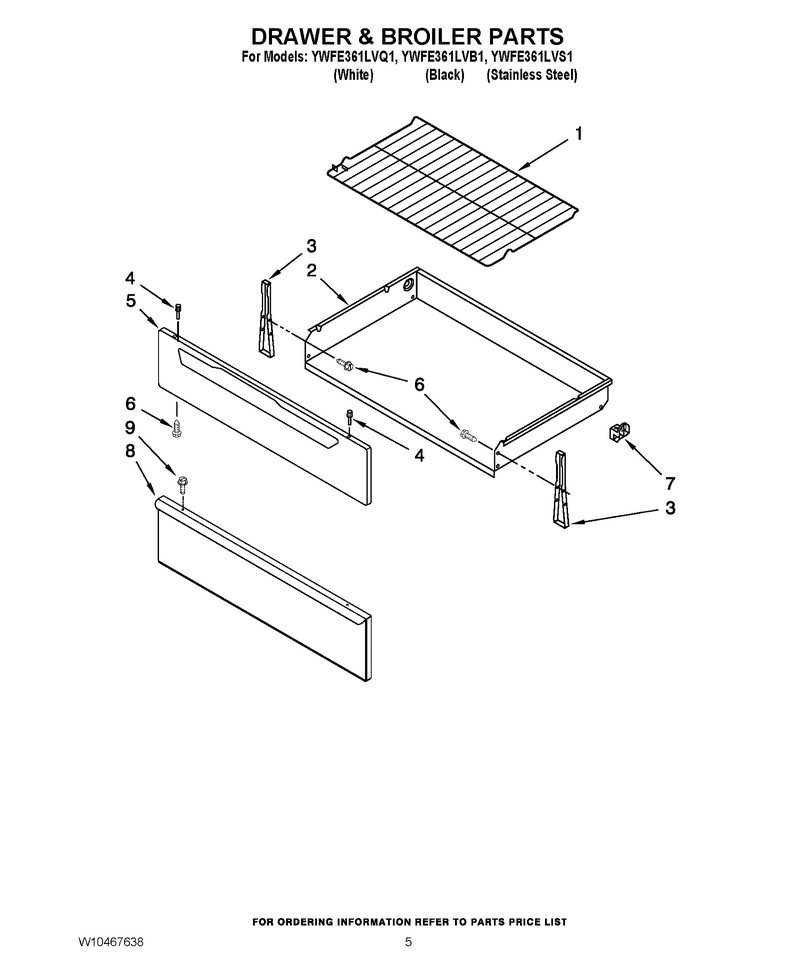

04 - Drawer & Broiler Parts

...
...
1
Rack-Oven WPL-W11520287
...
2
Drawer, Storage WPL-W10296838
...
3
Brkt-Mntg WPL-WPW10462912
...
4
Rivet WPL-WP3196814
...
5
Panel-Drwr WPL-W11219377
...
6
Screw WPL-WP3196557
...
7
Glide-Drwr WPL-WP8053334
...
8
Panel-Drwr WPL-WPW10237657
...
9
Screw WPL-W11233072

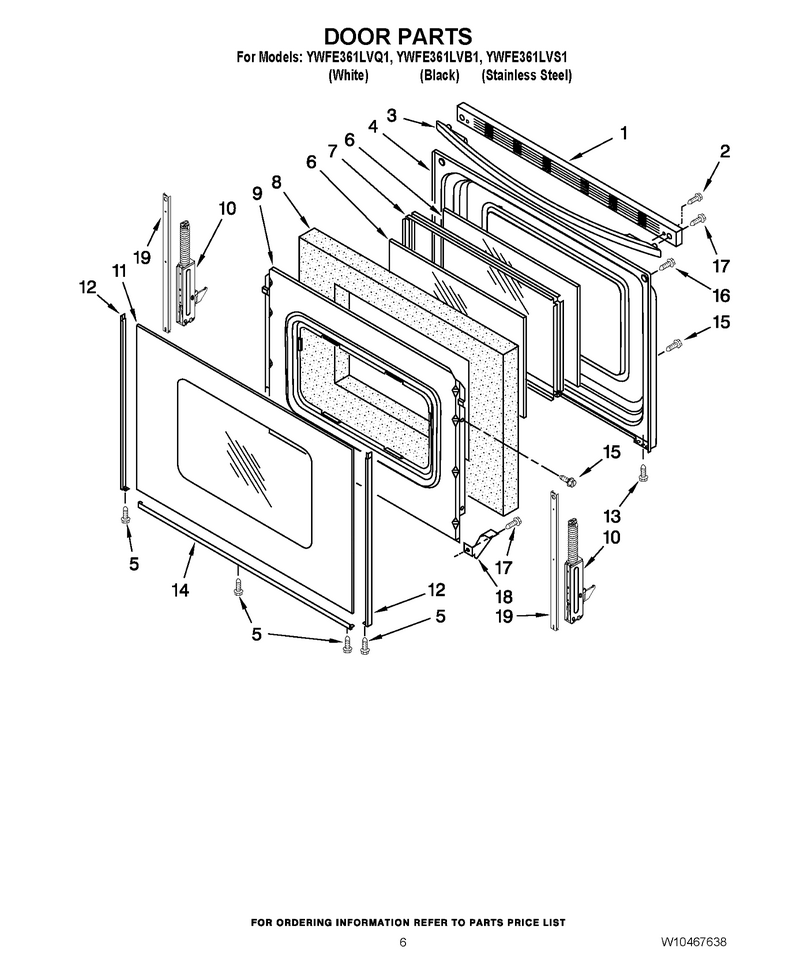

05 - Door Parts

...
...
1
Trim-Vent WPL-W10817433
...
2
Screw WPL-W10817436
...
3
Hndle-Door WPL-WPW10144883
...
4
Liner-Door WPL-WP9761344
...
5
Screw WPL-WP3196175
...
6
Glass-Door WPL-WP8053948
...
7
Frame-Wndw WPL-WPW10316950
...
8
Insulation WPL-WPW10278991
...
9
Retainer WPL-W11539580
...
10
Hinge-Door WPL-WPW10299227
...
11
Glass-Door WPL-WPW10118454
...
12
Trim-Door WPL-WP8523166
...
13
Screw WPL-W10491985
...
14
Trim-Door WPL-WP8523175
...
15
Screw WPL-WPW10031790
...
16
Screw WPL-W10777162
...
17
Screw WPL-WPW10200660
...
18
Clip, Window WPL-W10137382
...
19
Brkt-Suprt WPL-W11502236

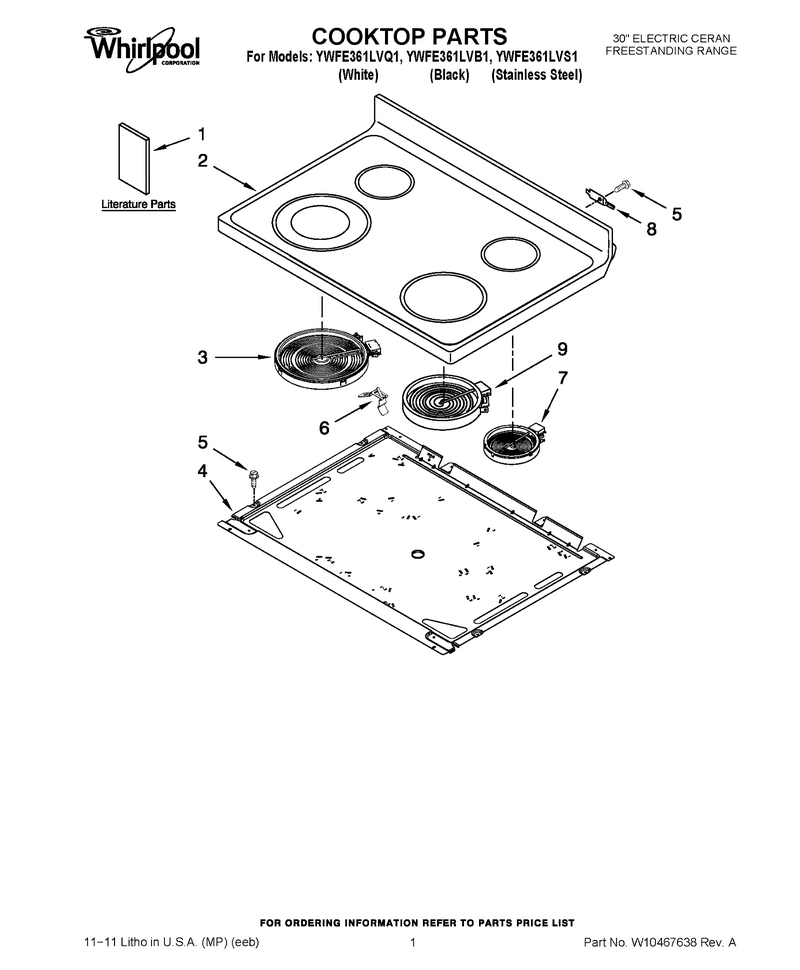

01 - Cooktop Parts

...
...
1
Tech Sheet (English) WPL-W10434979
...
2
Cooktop WPL-W10245804
...
3
Elmnt-Surf WPL-WPW10275049
...
4
Pan, Radiant Elmt WPL-W10170526
...
5
Screw WPL-WP3196557
...
6
Spring WPL-WPW10225448
...
7
Elmnt-Surf WPL-W10823711
...
8
Pin-Cooktp WPL-WP3195060
...
9
Elmnt-Surf WPL-W11047722

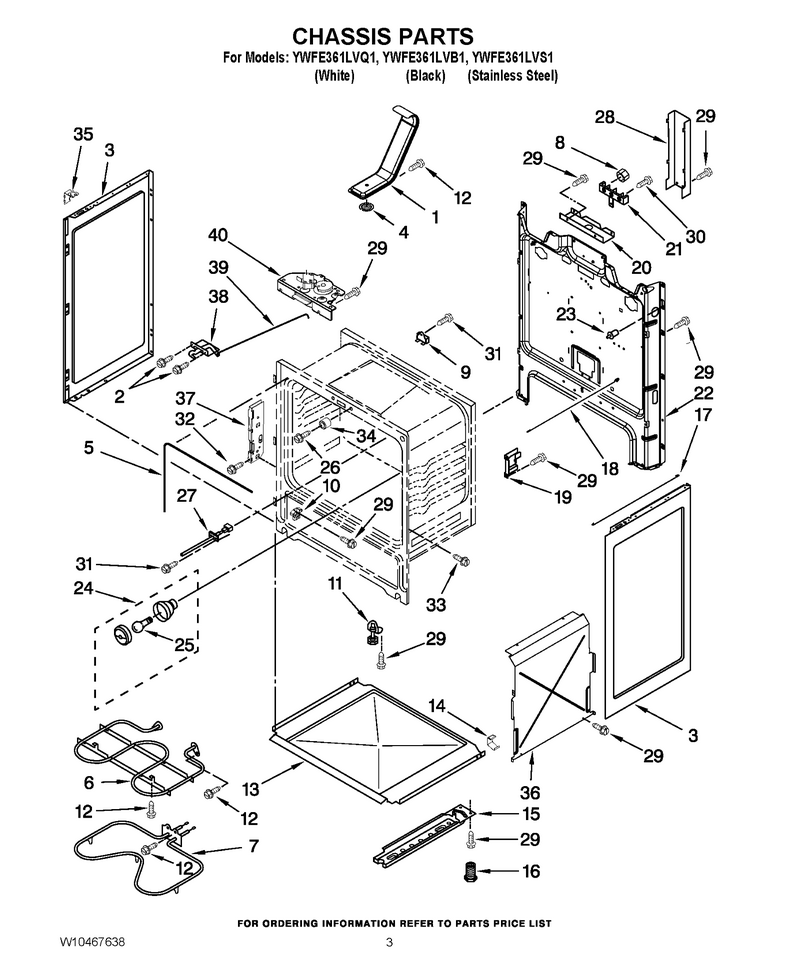

03 - Chassis Parts

...
...
NI
Insulation WPL-WP8272612
...
1
Tube-Vent WPL-WPW10134285
...
2
Screw WPL-W11169708
...
3
Panel-Side WPL-WPW10575396
...
4
Screen, Catalyst WPL-9761301
...
5
Gaskt-Door WPL-W11542153
...
6
Elmnt-Brol WPL-W10856603
...
7
Elmnt-Bake WPL-WPW10308477
...
8
Nut WPL-WP7103P027-60
...
9
Fuse-Thrml WPL-WP3196548
...
10
Glide-Drwr WPL-WPW10114344
...
11
Foot-Level WPL-WPW10341186
...
12
Screw WPL-WP3196154
...
13
Retainer WPL-WP8054068
...
14
Clip, Panel WPL-W10137382
...
15
Rail-Base WPL-WPW10306546
...
16
Foot-Level WPL-WPW10058460
...
17
Rod, Insulation Retainer WPL-W10465685
...
18
Rod - Dr Switch WPL-9757239
...
19
Clip, Oven Support WPL-W10404688
...
20
Brkt-Srvce WPL-W11728255
...
21
Block-Term WPL-WP8203546
...
22
Back, Main WPL-W10289149
...
23
Swtch-Lite WPL-WP9757262
...
24
Sockt-Lite WPL-W11594027
...
25
Light Bulb WPL-8009
...
26
Screw WPL-WP3196175
...
27
Sensor WPL-WPW10181986
...
28
Cover-Blck WPL-WPW10326122
...
29
Screw WPL-WP3196557
...
30
Screw WPL-WP3400016
...
31
Screw WPL-3196172
...
32
Screw WPL-W10777162
...
33
Screw WPL-WPW10067840
...
34
Spacer WPL-W10877054
...
35
Clip, Mounting WPL-W10137382
...
36
Retainer, Insulation WPL-W10450380
...
37
Hinge-Recv WPL-W10647259
...
38
Latch-Door WPL-WP9761013
...
39
Rod, Latch WPL-W10078380
...
40
Latch-Door WPL-WPW10107840

...
...
NI
Paint, Spray (White) WPL-350930
