product name

Whirlpool YWET3300SQ1 Laundry Center

Model: YWET3300SQ1

Save
 Part Not Listed?Part Not Listed?
product name

Whirlpool YWET3300SQ1

...
...

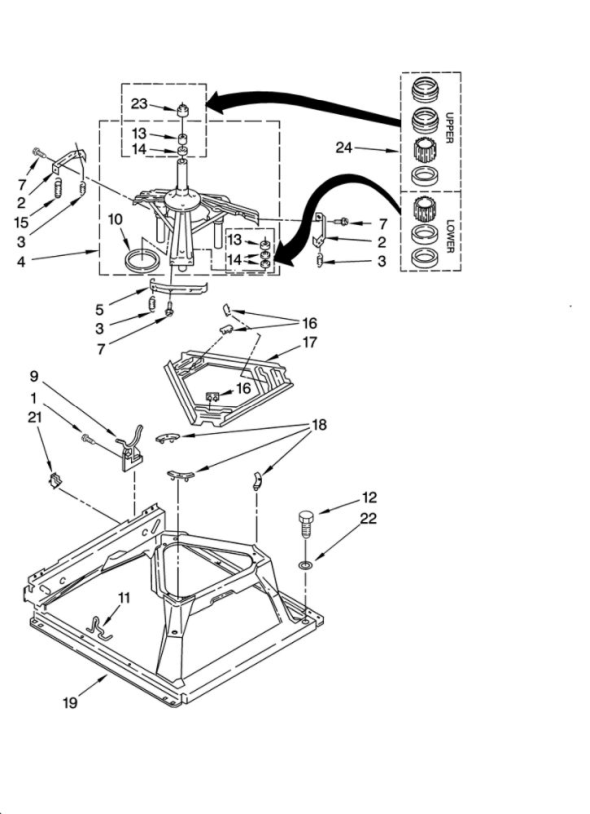

1
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
2
Washer Suspension Spring Bracket (Replaces 64067) WPL-WP64067
...
3
Washer Suspension Spring (Replaces 63907) WPL-WP63907
...
4
Washer Spinner Support (Replaces 3362087) WPL-280184
...
5
Washer Suspension Spring Bracket (Replaces 64065) WPL-WP64065
...
7
Washer Screw, #10-32 X 5/8-In WPL-W10846509
...
9
Retainer WPL-3350506
...
10
Washer Sound Dampening Ring (Replaces 63134) WPL-WP63134
...
11
Washer Suspension Spring Retainer (Replaces W10145155) WPL-WPW10145155
...
12
Screw WPL-WP3400501
...
13
Washer Center Post Bearing, Lower WPL-WP8546455
...
14
Washer Agitator Shaft Seal (Replaces Wp359449) WPL-W11095997
...
15
Washer Counterweight Spring (Replaces W10250667) WPL-WPW10250667
...
16
Washer Suspension Plate Friction Pad (Replaces 62568) WPL-285219
...
17
Washer Suspension Plate (Replaces 3946509) WPL-WP3946509
...
18
Washer Base Pad Set (Replaces 285220, 285661, 3363660) WPL-285744
...
19
Washer Base WPL-3349343
...
21
Restrainer WPL-3349749
...
23
Washer Top Agitator Shaft Seal (Replaces 8577376) WPL-WP8577376
...
24
Washer Bearing And Seal Kit WPL-285203

Whirlpool YWET3300SQ1

...
...

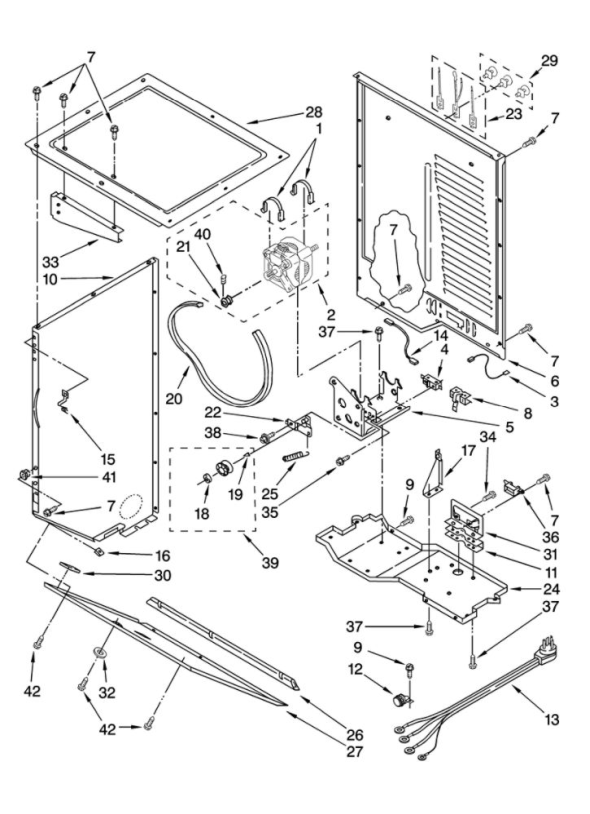

1
Dryer Motor Clamp WPL-WP660658
...
2
Dryer Drive Motor (Replaces 3391087, 3391892, 3395655, 8535932, 8538266, 8539559, W10396030, W10448888) WPL-279811
...
3
Dryer Belt Switch Jumper Wire WPL-3398948
...
4
Dryer Switch Kit (Replaces 3388223, 3394881, 8066134) WPL-279782
...
5
Motor-Bracke WPL-W11107903
...
7
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
8
Dryer Belt Switch Lever (Replaces 8066120) WPL-WP8066120
...
9
Range Screw WPL-W10850756
...
10
Panel WPL-3389264
...
10A
Panel WPL-3389256
...
12
Relief WPL-687000
...
14
Dryer Belt Switch Jumper Wire WPL-3394081
...
15
Clip WPL-3389231
...
16
Dryer Cabinet Clip (Replaces 98234) WPL-WP98234
...
17
Bracket WPL-3391639
...
18
Dryer Tri-Ring Retainer (Replaces W10512946) WPL-WPW10512946
...
19
Dryer Washer (Replaces W10121334) WPL-WPW10121334
...
20
Dryer Drum Belt (Replaces 661570) WPL-661570V
...
21
Dryer Drive Motor (Replaces 3391087, 3391892, 3395655, 8535932, 8538266, 8539559, W10396030, W10448888) WPL-279811
...
22
Laundry Center Dryer Idler Assembly WPL-WPW10547294
...
23
Dryer Terminal Block Wire Set (Replaces 339210, 339211, 348912, 348913) WPL-279318
...
25
Dryer Idler Spring (Replaces W10446781) WPL-WPW10446781
...
26
Washer Cover WPL-3389683
...
27
Panel WPL-3389272
...
29
Dryer Terminal Block Screw And Nut Set WPL-279393
...
30
Spacer Washer WPL-3389682
...
31
Bracket WPL-3393722
...
32
Laundry Center Washer Lid Hinge Bumper WPL-WP3389431
...
33
Shield WPL-3390722
...
34
Washer Screw WPL-3387485
...
35
Dryer Screw, #6-20 X 1.25-In WPL-WP98129
...
36
Dryer Terminal Block (Replaces 3397659) WPL-WP3397659
...
37
Washer Screw, #10-16 X 3/8-In (Replaces 3390631) WPL-WP3390631
...
38
Washer Screw WPL-WP3389420
...
39
Dryer Idler Pulley (Replaces 3388672, 697692, W10468057) WPL-279640
...
41
Washer Push Nut WPL-WP692400
...
42
Screw WPL-WP693304

Whirlpool YWET3300SQ1

...
...

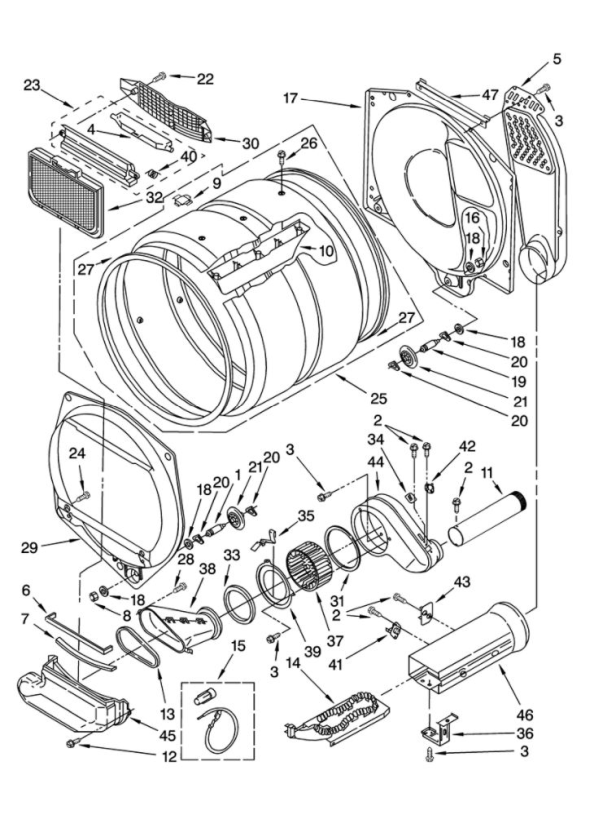

1
Dryer Drum Support Roller Shaft (Replaces W10359271) WPL-WPW10359271
...
2
Washer Screw (Replaces 90767, Y313559) WPL-WP90767
...
3
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
4
Dryer Lint Screen Cover WPL-W11222846
...
5
Dryer Heat Duct (Replaces 3387911) WPL-WP3387911
...
6
Dryer Lint Chute Seal (Replaces 697813) WPL-WP697813
...
7
Seal WPL-WP3391906
...
8
Dryer Nut WPL-WPW10080210
...
9
Dryer Drum Hole Plug WPL-8066086
...
10
Dryer Drum Baffle WPL-279982
...
11
Exten-Exht WPL-WP8563748
...
12
Appliance Screw WPL-WP488729
...
13
Dryer Blower Housing Seal (Replaces 697770) WPL-WP697770
...
14
Heater E WPL-8577299
...
15
Dryer Heating Element Wire Kit WPL-279457
...
16
Dryer Nut, 3/8-In WPL-WPW10080190
...
17
Dryer Bulkhead WPL-W11299300
...
18
Dryer Washer WPL-W11236646
...
19
Dryer Drum Support Roller Shaft (Replaces W10359272) WPL-WPW10359272
...
20
Dryer Tri-Ring Retainer (Replaces W10512946) WPL-WPW10512946
...
21
Dryer Drum Support Roller (Replaces W10314173) WPL-WPW10314173
...
22
Range Screw (Replaces 308685) WPL-WP308685
...
23
Dryer Lint Screen Housing (Replaces W10153414, W10685669) WPL-W11129408
...
24
Appliance Screw WPL-WP488729
...
26
Dryer Screw WPL-WPW10109200
...
27
Dryer Drum Seal Kit (Replaces 697694, W10116343, W10166807, W10521118) WPL-280114
...
28
Dryer Screw (Replaces 3387230) WPL-WP3387230
...
29
Dryer Front Bulkhead WPL-WP697557
...
30
Dryer Lint Screen Grille (Replaces W10692558, Wp8299979, Wpw10153412, Wpw10181926) WPL-W11086603
...
31
Dryer Blower Housing Seal (Replaces 697770) WPL-WP697770
...
32
Dryer Lint Screen (Replaces 3389644) WPL-WP3389644
...
33
Laundry Center Dryer Transition Duct Seal WPL-WP8566209
...
34
Laundry Center Dryer Thermal Fuse, 195-Degree F (Replaces 3403607) WPL-WP3403607
...
35
Dryer Clip WPL-3390935
...
36
Bracket WPL-3389647
...
37
Dryer Blower Wheel (Replaces 697772) WPL-WP697772
...
38
Dryer Lint Duct Transition WPL-279704
...
39
Cover Plate WPL-279780
...
40
Dryer Lint Screen Door Spring WPL-WP3394986
...
42
Dryer Operating Thermostat (Replaces 3387134) WPL-WP3387134
...
43
Dryer Thermal Cut-Off Fuse Kit, 352-Degree F (Replaces 2004, 80001) WPL-279769
...
44
Housing WPL-WP8544363
...
45
Dryer Lint Chute Assembly WPL-279700
...
46
Dryer Heater Box (Replaces W10608837, W11165874) WPL-W10802681
...
47
Bracket WPL-W10118337

Whirlpool YWET3300SQ1

...
...

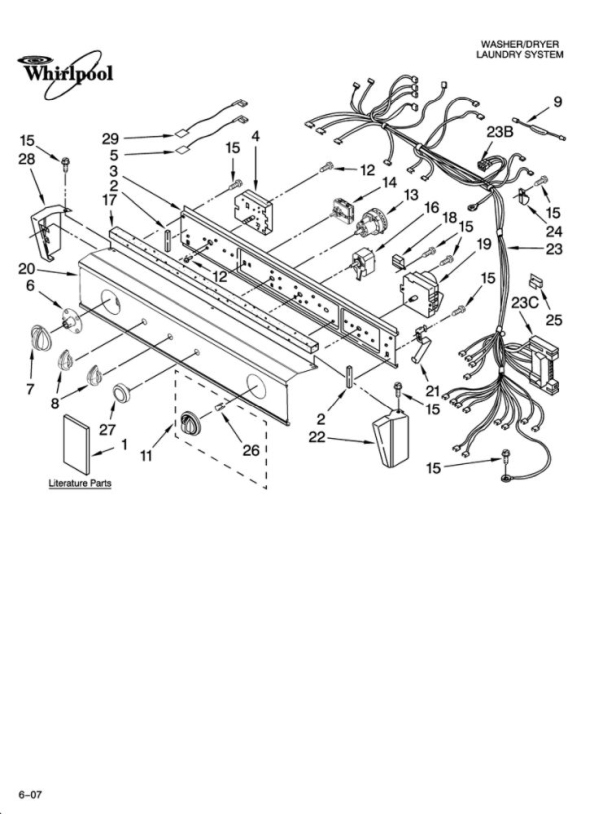

2
Bumper WPL-3390688
...
3
Control Assembly WPL-W10732070
...
4
Laundry Center Washer Timer (Replaces W10113804) WPL-WPW10113804
...
6
Washer Timer Dial WPL-WP8566018
...
7
Washer Control Knob (Replaces 8566022, Wpw10034730) WPL-WP8566022
...
8
Dryer Control Knob (Replaces 8565944) WPL-WP8565944
...
11
Dryer Control Knob WPL-WP8566061
...
12
Screw WPL-W10915367
...
14
Washer Water Temperature Switch WPL-W11103599
...
15
Washer Screw (Replaces 90767, Y313559) WPL-WP90767
...
16
Dryer Push-To-Start Switch (Replaces 3404233) WPL-WP3404233
...
17
Gasket WPL-8521965
...
18
Dryer Buzzer (Replaces 694419) WPL-WP694419
...
21
Hinge WPL-3389453
...
22
Cap-End-(R.H WPL-W10891648
...
23C
Dryer Motor Wire Harness Connector WPL-3395683
...
24
Clamp WPL-3390604
...
25
Clip WPL-W10134185
...
26
Laundry Appliance Control Knob Clip (Replaces 8536939) WPL-WP8536939
...
27
Dryer Push-To-Start Knob WPL-WP8566073
...
29
Wire Harness WPL-W10121648

Whirlpool YWET3300SQ1

...
...
NI
Laundry Center Dryer Side Exhaust Extension Kit WPL-279823
...
NI
Appliance Silicone Sealant (Red) (Replaces 285195) WPL-WP285195
...
NI
Washer Gear Case Oil (Replaces 89122) WPL-350572
...
NI
Appliance Spray Paint (Gray Primer) (Replaces 10955, 350338) WPL-350938
...
NI
Appliance Touch-Up Paint, 0.6-Oz (Biscuit) (Replaces 22002900, 4392899R, R9900463, W10831386) WPL-4392899
...
NI
Appliance Spray Paint (Biscuit) (Replaces 22002901) WPL-4392901
...
NI
Appliance Porcelain Touch-Up Paint, 1-Qt (White) WPL-799344
...
2
Washing Machine Washer WPL-WP16123
...
3
Hose Clamp WPL-STD316716
...
5
Washer Drain Hose Clamp WPL-WP3357331

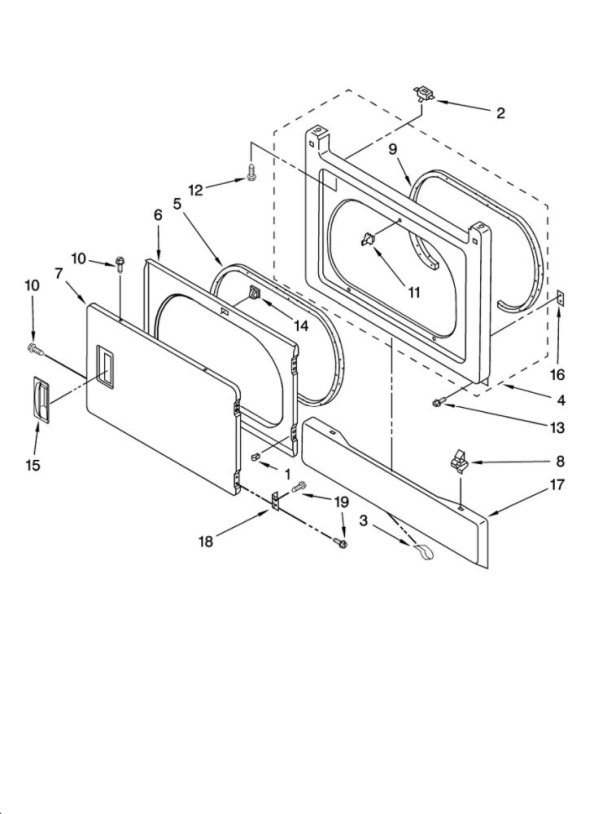

Whirlpool YWET3300SQ1

...
...
2
Dryer Door Switch WPL-WP3391902
...
3
Dryer Cabinet Clip (Replaces 98234) WPL-WP98234
...
4
Panel WPL-279718
...
5
Dryer Door Seal WPL-WP3390735
...
6
Dryer Door Inner Panel WPL-280083
...
7
Door WPL-WPW10322546
...
8
Dryer Toe Panel Clip (Replaces 3388229) WPL-WP3388229
...
9
Dryer Drum Felt Seal (Replaces 3387242) WPL-WP3387242
...
10
Dryer Screw WPL-WP694091
...
11
Dryer Door Latch Kit (Replaces 2003, 3392538, 3398175, 8208) WPL-279570
...
12
Appliance Screw, 6-20 X 1-In WPL-WP3395530
...
13
Range Screw (Replaces 308685) WPL-WP308685
...
14
Dryer Door Latch Kit (Replaces 2003, 3392538, 3398175, 8208) WPL-279570
...
15
Dryer Door Handle WPL-W10877261
...
16
Clip WPL-WP3390902
...
17
Panel WPL-3388958
...
18
Dryer Door Hinge WPL-W11175815
...
19
Refrigerator Screw WPL-WP488627

Whirlpool YWET3300SQ1

...
...

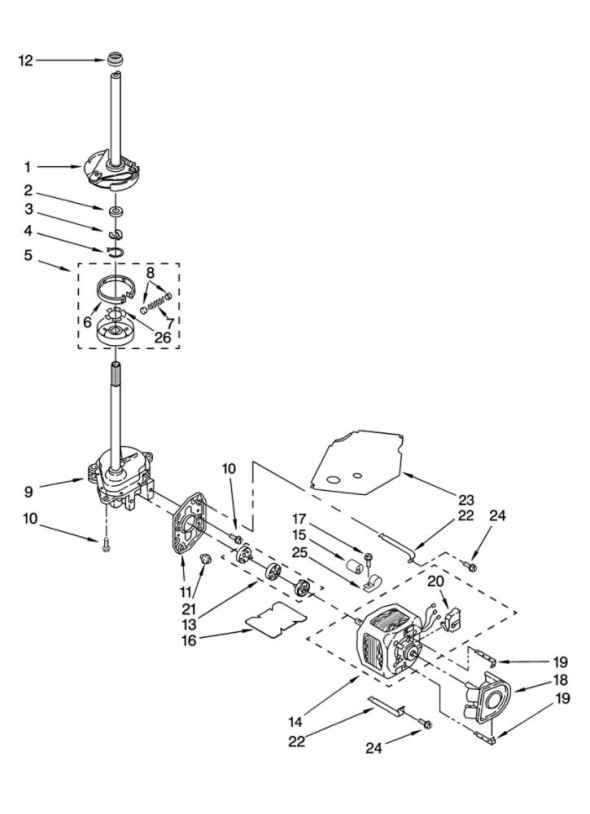

1
Washer Basket Drive Assembly (Replaces 285792) WPL-W10820043
...
2
Washing Machine Washer (Replaces 63292) WPL-WP63292
...
3
Washer Brake Retainer Clip WPL-WPW10080230
...
4
Washer Retainer Spring WPL-285353
...
5
Washer Clutch (Replaces 285761, 3951311, 3951312) WPL-285785
...
6
Washer Clutch Band (Replaces 285759, 387712, 3951308, W10817174) WPL-285790
...
7
Washer Clutch Spring WPL-WP3946792
...
8
Washer Clutch Spring Cap WPL-WP62646
...
9
Washer Gear Case (Replaces 285362, 3360630, 8532118, W10140307) WPL-3360629
...
10
Washer Screw WPL-WP3400516
...
11
Washer Motor Mounting Bracket WPL-WP62611
...
12
Washer Basket Drive Tube Seal (Replaces 8577374) WPL-WP8577374
...
13
Washer Motor Coupling (Replaces 280152, 285753, 8559748) WPL-285753A
...
14
Washer Drive Motor (Replaces 661600, Wp661599) WPL-WP661600
...
15
Washer Start Capacitor (Replaces 8572717) WPL-WP8572717
...
16
Shield WPL-8316060
...
17
Washer Screw, #10-16 X 3/8-In (Replaces 3390631) WPL-WP3390631
...
18
Washer Drain Pump (Replaces 3363892) WPL-WP3363892
...
19
Washer Drain Pump Retainer (Replaces 8546127) WPL-WP8546127
...
20
Washer Motor Switch (Replaces 8529896) WPL-WP8529896
...
21
Washer Drive Motor Grommet (Replaces 62691) WPL-WP62691
...
22
Washer Motor Retainer WPL-WPW10086010
...
23
Shield Tub WPL-W10838408
...
24
Washer Screw WPL-3387485
...
26
Washer Clutch Anti-Rattle Clip WPL-WP3355454

Whirlpool YWET3300SQ1

...
...

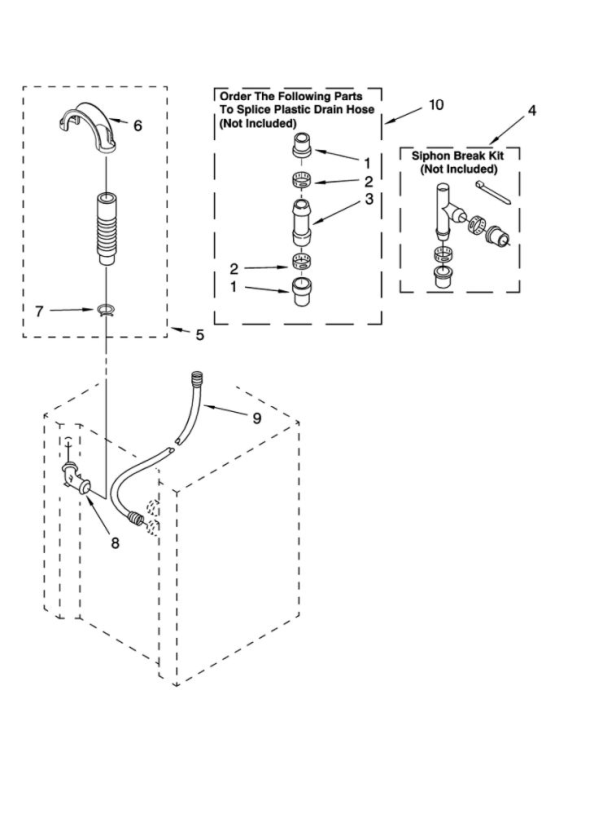

1
Washer Siphon Break Sleeve, 2-Pack WPL-285321
...
2
Washer Hose Clamp WPL-WP285655
...
3
Washer Drain Hose Coupling Kit WPL-WP16272
...
4
Washer Siphon Break Kit (Replaces 201112, 2-01112, 2-5662, Lp920) WPL-285320
...
5
Washer Drain Hose (Replaces 326033912, 3357092, 3357102, 388423, 3949556, 3951609, 661575) WPL-285664
...
5A
Hose WPL-WPW10108350
...
5B
Washer External Drain Hose (Replaces 3357089, 3357094, 3357104, 388418, 661577) WPL-285666
...
6
Washer Drain Hose U-Bend Bracket WPL-WP8577378
...
7
Washer Drain Hose Clamp WPL-WP3357331
...
8
Laundry Center Washer Drain Hose Connector WPL-W11213338
...
9
Washer Cold/Hot Water Fill Hose, 5-Ft (Replaces 89503) WPL-WP89503
...
10
Washer Drain Hose Coupling Kit WPL-285442

Whirlpool YWET3300SQ1

...
...

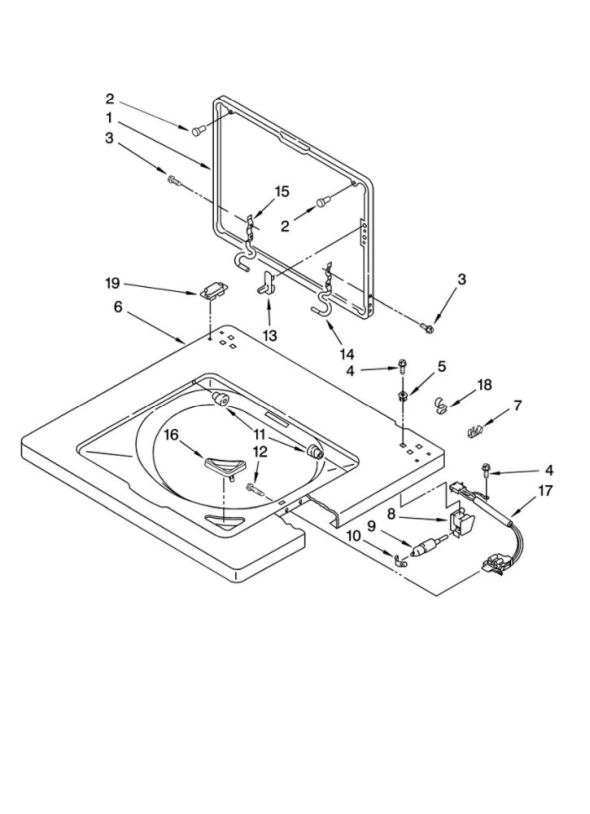

1
Washer Lid (Replaces W10193874, W10335932) WPL-WPW10193874
...
2
Washer Lid Bumper (Replaces 9724509) WPL-WP9724509
...
3
Washer Screw WPL-WPW10119828
...
4
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
5
Washer Push Nut WPL-WP692400
...
7
Clamp WPL-W10113937
...
8
Bracket WPL-3354020
...
9
Laundry Center Washer Lid Switch Actuator WPL-WP3350152
...
11
Washer Lid Hinge Bearing (Replaces 21258) WPL-WP21258
...
12
Washer Lid Switch Screw (Replaces 3356311) WPL-WP3356311
...
13
Washer Door Strike (Replaces 358684) WPL-WP358684
...
14
Washer Lid Hinge WPL-3350101
...
15
Washer Lid Hinge WPL-3350102
...
16
Washer Bleach Dispenser (Replaces 3362952) WPL-WP3362952
...
17
Washer Lid Switch (Replaces 3355458) WPL-WP3355458
...
18
Washer Wire Harness Retainer (Replaces 90016) WPL-WP90016
...
19
Locator WPL-W11116924

Whirlpool YWET3300SQ1

...
...
1
Washer Agitator Assembly WPL-WP3349743
...
2
Washer Agitator Cam Repair Kit (Replaces 3351019, 3947410) WPL-285751
...
3
Washer Agitator Dog Set (Replaces 285770, 3366877) WPL-80040
...
4
Washer Agitator Bolt (Replaces 358237) WPL-WP358237
...
5
Laundry Center Washer Agitator Cap WPL-285550
...
6
Washer Agitator Auger WPL-3349610
...
7
Washer Agitator Thrust Washer WPL-285620
...

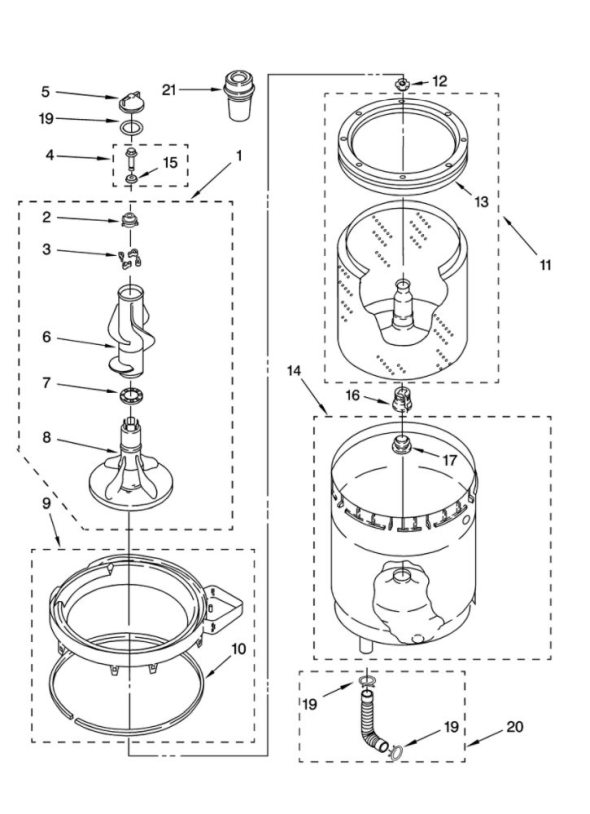

8
Washer Agitator WPL-WP3349578
...
9
Washer Tub Ring Assembly (Replaces W10388299, W10867468, Wpw10445870) WPL-W10880720
...
10
Washer Tub Ring Seal (Replaces 3976308) WPL-WP3976308
...
11
Laundry Center Washer Spin Basket (Replaces 3979385) WPL-3352234
...
12
Washer Spanner Nut (Replaces 21366) WPL-WP21366
...
13
Washer Basket Balance Ring (Replaces 387240) WPL-WP387240
...
14
Laundry Center Washer Outer Tub WPL-WP3349292
...
15
Washing Machine Washer (Replaces 3949550) WPL-WP3949550
...
16
Washer Drive Block (Replaces 389140) WPL-WP389140
...
17
Washer Tub Seal (Replaces 383727) WPL-W10814296
...
19
Washer O-Ring WPL-WPW10072840
...
19A
Hose Clamp WPL-3363366
...
20
Washer Tub-To-Pump Hose (Replaces 3951449, 8527049, W10116973) WPL-285871
...
21
Washer Fabric Softener Dispenser Cup WPL-W10864899

Whirlpool YWET3300SQ1

...
...
1A
Connector WPL-3350130
...
1C
Washer Wire Harness Connector WPL-W10876590
...
1E
Washer Wire Harness Connector (Replaces 62505) WPL-WP62505
...
2
Support WPL-3388851
...
3
Support WPL-3388850
...
4
Shield WPL-3390609
...
5
Hose WPL-W10834213
...
7
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
9
Machine Screw WPL-STD510805
...
13
Screw, Hex H WPL-Y015627
...
15
Shield-Front WPL-W11108181
...
17
Range Screw (Replaces 308685) WPL-WP308685
...
19
Washer Cold Water Inlet Valve Wire Connector WPL-3354925
...
20
Washer Pressure Switch Wire Connector WPL-WP3360056
...
21
Dryer Terminal Connector WPL-WP596797
...
21A
Crimp Terminal Connector WPL-STD374513

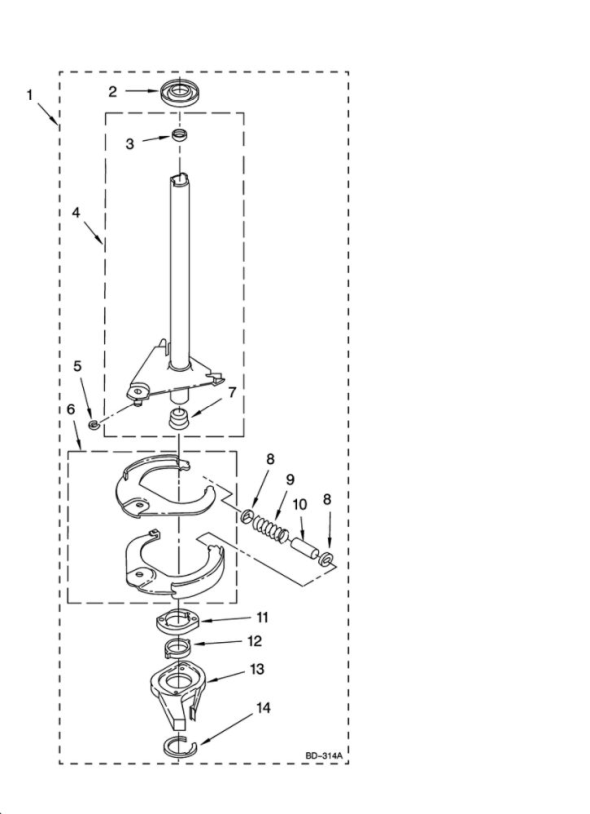

Whirlpool YWET3300SQ1

...
...
1
Washer Basket Drive Assembly (Replaces 285792) WPL-W10820043
...
2
Washer Drive Tube Thrust Ring (Replaces 62658) WPL-WP62658
...
3
Washer Basket Drive Tube Seal (Replaces 356427) WPL-WP356427
...
4
Washer Basket Drive Tube (Replaces 64208) WPL-WP64208
...
5
Washer Retainer Clip WPL-W10083190
...
6
Washer Brake Assembly (Replaces 285420, 64026, 64232, W10116995, W10150064) WPL-285438
...
7
Washer Spin Bearing (Replaces 8546462) WPL-WP8546462
...
8
Washer Brake Spring Sleeve Kit WPL-285658
...
9
Spring WPL-WP62647
...
10
Washer Brake Spring Sleeve Kit WPL-285658
...
11
Cam WPL-WP8546461
...
12
Washer Brake Cam Sleeve WPL-WP63022
...
13
Washer Clutch Band (Replaces 285759, 387712, 3951308, W10817174) WPL-285790
...
14
Washer Brake Cam Retainer Clip (Replaces 90368) WPL-W11033823

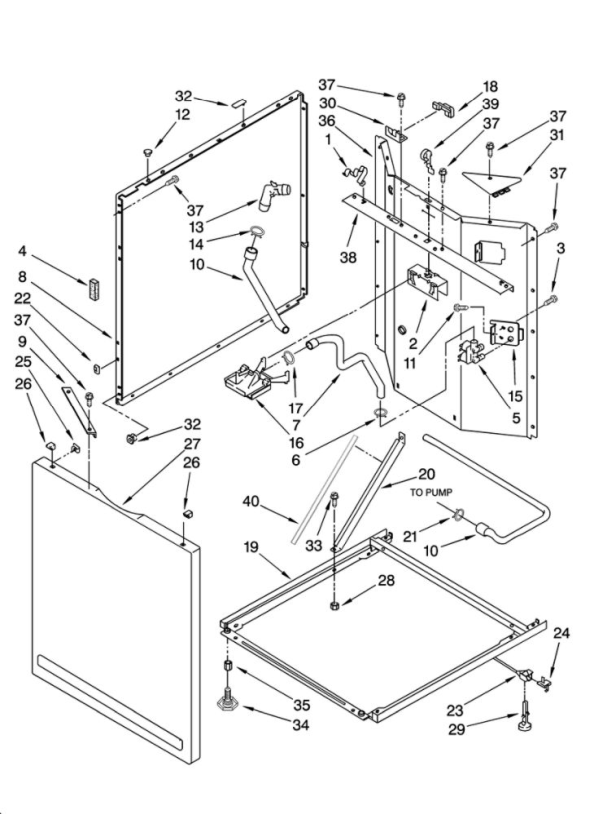

Whirlpool YWET3300SQ1

...
...
1
Laundry Center Cabinet Lock Clip WPL-3349770
...
2
Bracket WPL-3349767
...
3
Washer Screw, #10-16 X 3/8-In (Replaces 3390631) WPL-WP3390631
...
4
Foam Seal WPL-3350013
...
5
Washer Water Inlet Valve WPL-WP3979345
...
6
Appliance Hose Clamp (Replaces 22003072, 596669, W10286357) WPL-WP596669
...
7
Hose WPL-8521954
...
8
Panel WPL-WP3349455
...
9
Brace WPL-3350744
...
10
Laundry Center Washer Pump Drain Hose WPL-WP3353841
...
11
Dishwasher Screw WPL-WP9740848
...
12
Laundry Appliance Cabinet Hole Plug WPL-WP660975
...
13
Laundry Center Washer Drain Hose Connector WPL-W11213338
...
14
Hose Clamp WPL-STD316716
...
15
Bracket WPL-3349673
...
16
Washer Tub Fill Nozzle (Replaces 3360977) WPL-WP3360977
...
17
Appliance Hose Clamp (Replaces 22003072, 596669, W10286357) WPL-WP596669
...
18
Shield WPL-3350145
...
19
Washer Base WPL-WP3402724
...
20
Bracket WPL-3388857
...
21
Clamp WPL-WP371502
...
22
Dryer Front Panel Clip (Replaces 3394083, W10775448) WPL-W10854425
...
23
Link WPL-WP3349311
...
24
Washer Leveling Leg Clip WPL-WP359364
...
25
Dryer Cabinet Clip (Replaces 98234) WPL-WP98234
...
26
Laundry Center Cabinet Lock Clip WPL-WP345670
...
27
Laundry Center Washer Front Panel WPL-WP3349499
...
29
Washer Leveling Leg WPL-WP358594
...
30
Bracket WPL-3350144
...
31
Shield WPL-3390608
...
33
Screw, Hex H WPL-Y015627
...
34
Washer Leveling Leg (Replaces W10001130) WPL-WPW10001130
...
35
Jam Nut WPL-3400917
...
36
Panel WPL-3349493
...
37
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
38
Rail WPL-3349697
...
39
Lever Spring WPL-3350135

Whirlpool YWET3300SQ1

...
...
1
Washer Gear Case (Replaces 285362, 3360630, 8532118, W10140307) WPL-3360629
...
2
Washer Gear Case Cover, Upper WPL-285202
...
3
Washer Gear Case Cover Seal (Replaces 3349985) WPL-WP3349985
...
4
Appliance Silicone Sealant (Red) (Replaces 285195) WPL-WP285195
...
6
Washer Basket Drive Tube Seal (Replaces 356427) WPL-WP356427
...
7
Washer Agitator Drive Shaft (Replaces 285206, 285509, 389387, W10116913) WPL-WP389387
...
9
Washer Gear Case Spring Retainer WPL-62677
...
11
Washer Agitator Drive Shaft (Replaces 285206, 285509, 389387, W10116913) WPL-WP389387
...
12
Washer Gear Case Flat Washer WPL-62619
...
13
Washer Agitator Drive Shaft (Replaces 285206, 285509, 389387, W10116913) WPL-WP389387
...
14
Washer Agitator Drive Shaft (Replaces 285206, 285509, 389387, W10116913) WPL-WP389387
...
15
Washer Agitator Drive Shaft (Replaces 285206, 285509, 389387, W10116913) WPL-WP389387
...
17
Washer Agitator Cam Bearing WPL-285205
...
18
Washer Agitator Cam Bearing WPL-285205
...
21
Washer Gear Case Oil Seal (Replaces 286108, 63387, W10111745) WPL-285352
...
22
Washer Screw, #10-24 X 3/8-In WPL-WP3351614
...
25
Washer Gear Case (Replaces 285362, 3360630, 8532118, W10140307) WPL-3360629
...
26
Washer Neutral Drain Assembly (Replaces 285595, 388253) WPL-388253A
...
29
Washer WPL-WP388815
...
...
...
Processing
