Whirlpool XHP1550VW0

Model: XHP1550VW0

Save Part Not Listed?
product name

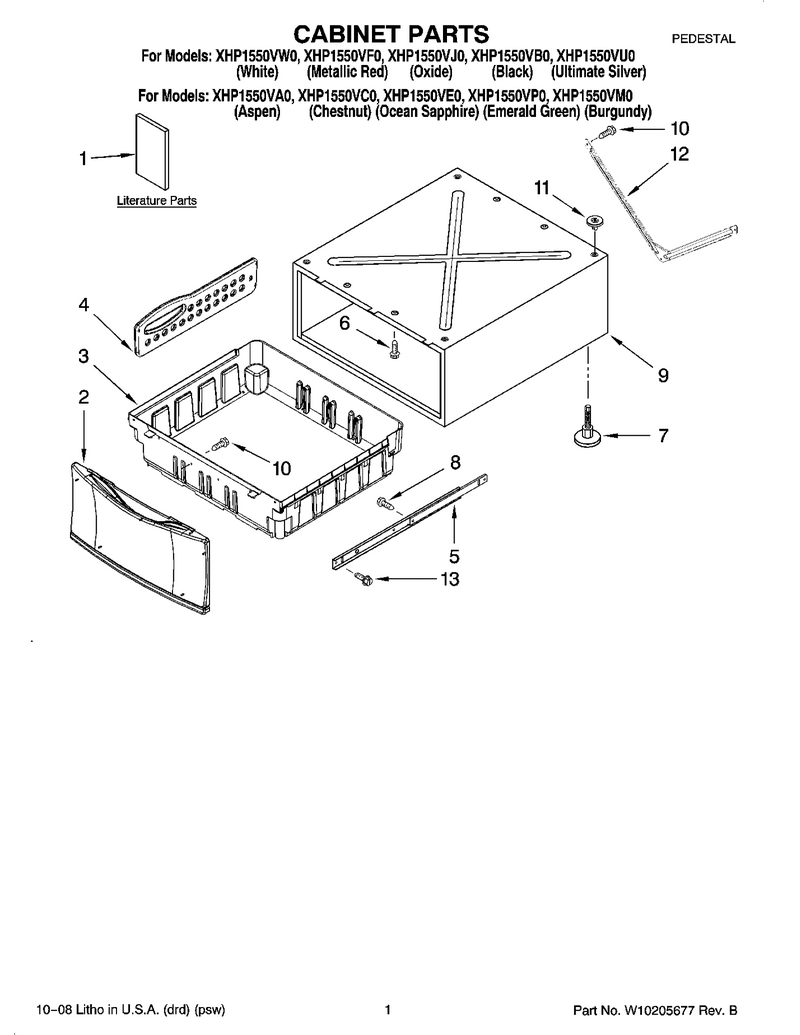

01 - Cabinet Parts

...
...
Paint, Touch-Up (1/2oz.) (Ocean Sapphire) WPL-W10202940
...
1
Installation Instructions WPL-W10198562
...
2
Drawer Front Assembly (White) WPL-W10172749
...
3
Drawer WPL-W11047790
...
4
Divider WPL-WPW10189999
...
5
Slide WPL-WP8578394
...
6
Screw WPL-WPW10346892
...
7
Foot WPL-WP8563585
...
8
Screw WPL-WP3388228
...
9
Cabinet (Not Serviced) WPL---
...
10
Screw WPL-WPW10213953
...
11
Pad WPL-WP8537982
...
12
Brace WPL-WPW10169550
...
13
Screw WPL-WP9740849
