Whirlpool WZF34X16DW10

Model: WZF34X16DW10

Save Part Not Listed?
product name

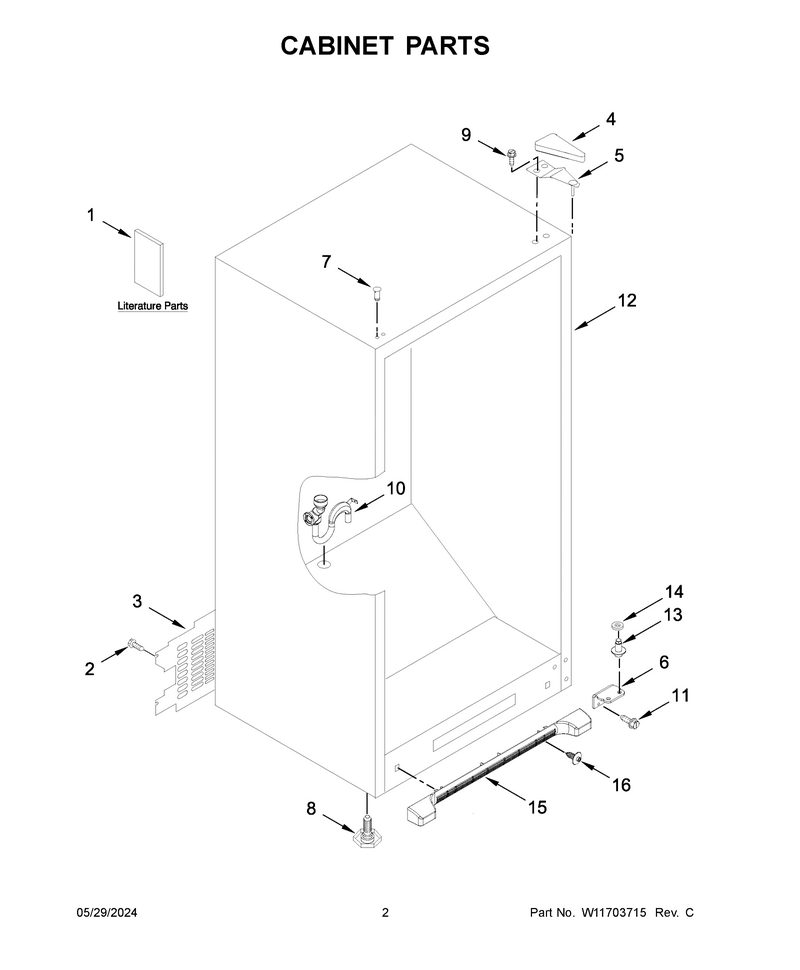

02 - Cabinet Parts

...
...
1
Owner's Manual WPL-W11507042
...
1B
Tech Sheet WPL-W11510230
...
1A
Energy Guide WPL-W11644307
...
2
Screw WPL-WP489478
...
3
Cover, Unit WPL-W11311062
...
4
Cover WPL-WP2213360
...
5
Hinge-Door WPL-W11728308
...
6
Plate, Bottom Hinge (White) WPL-W10574264
...
7
Button-Plg WPL-WPW10520304
...
8
Leveler WPL-WP3-82710-001
...
9
Screw WPL-WP489497
...
10
Tube-Drain WPL-W11673435
...
11
Screw (8) WPL-67006564
...
12
Cabinet (Not A Serviceable Part) WPL---
...
13
Hinge-Pin WPL-W11676609
...
14
Washer WPL-WP487576
...
15
Grille-Frt WPL-WPW10534166
...
16
Screw (White) WPL-W11546558

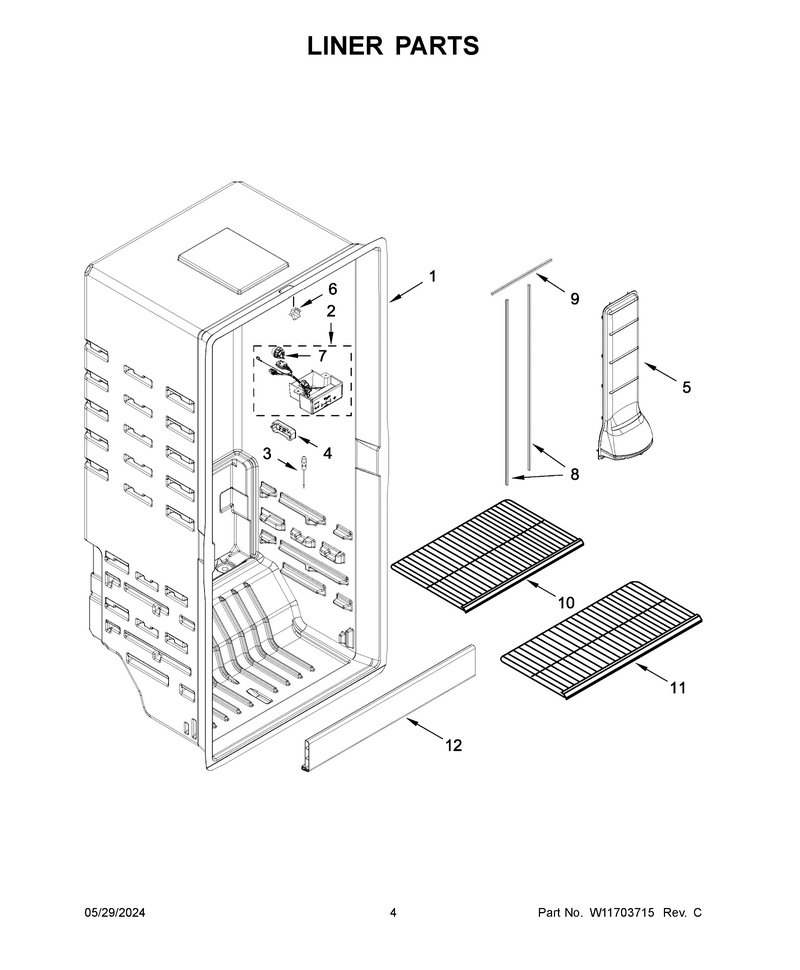

03 - Liner Parts

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Contrl-Box WPL-W11648345
...
3
Thermistor WPL-WPW10384183
...
4
Cover, Thermistor WPL-W10608692
...
5
Air Tower WPL-W10574403
...
6
Switch WPL-W11727836
...
7
Bulb-Light WPL-W11502762
...
8
Gasket WPL-WPW10574368
...
9
Gasket WPL-WPW10574368
...
10
Shelf-Wire WPL-W10838310
...
11
Shelf-Wire WPL-W10838313
...
12
Trim, Door WPL-W10581588

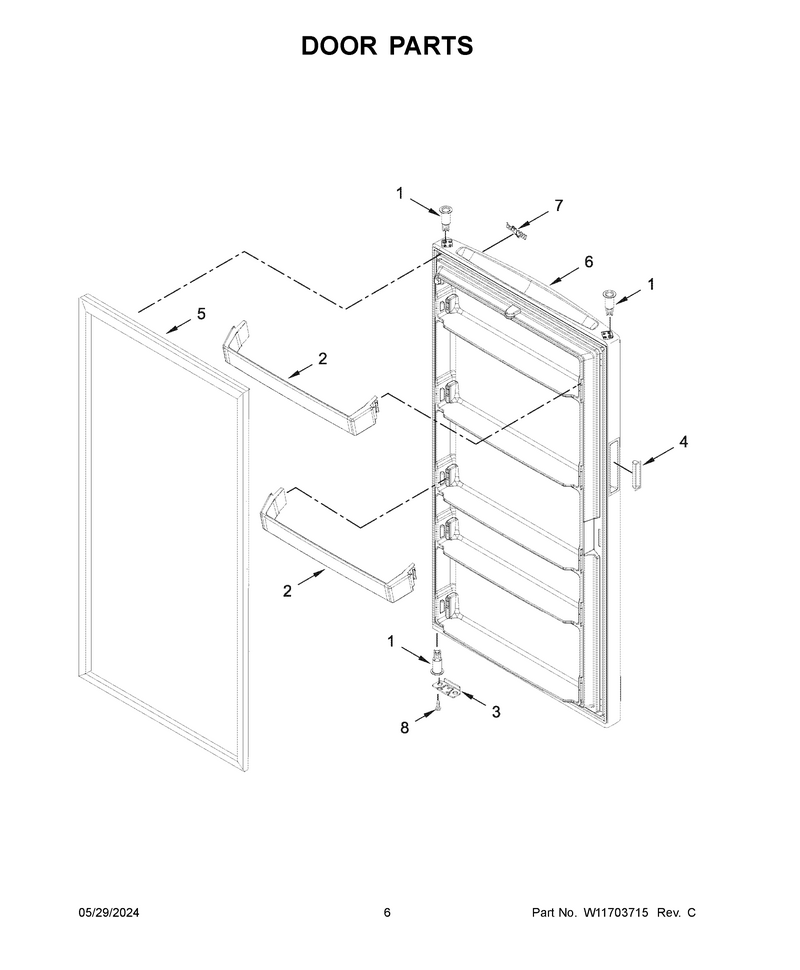

04 - Door Parts

...
...
1
Thimble WPL-WP2314293
...
2
Rail, Door Shelf WPL-W10737497
...
3
Bracket, Door Stop WPL-W10628869
...
4
Handle, Cup (White) WPL-W10352523
...
5
Gasket-Dor WPL-W10850441
...
6
Dor-Fmd WPL-W10746780
...
7
Nameplate WPL-W11178521
...
8
Screw WPL-WP7101P126-60

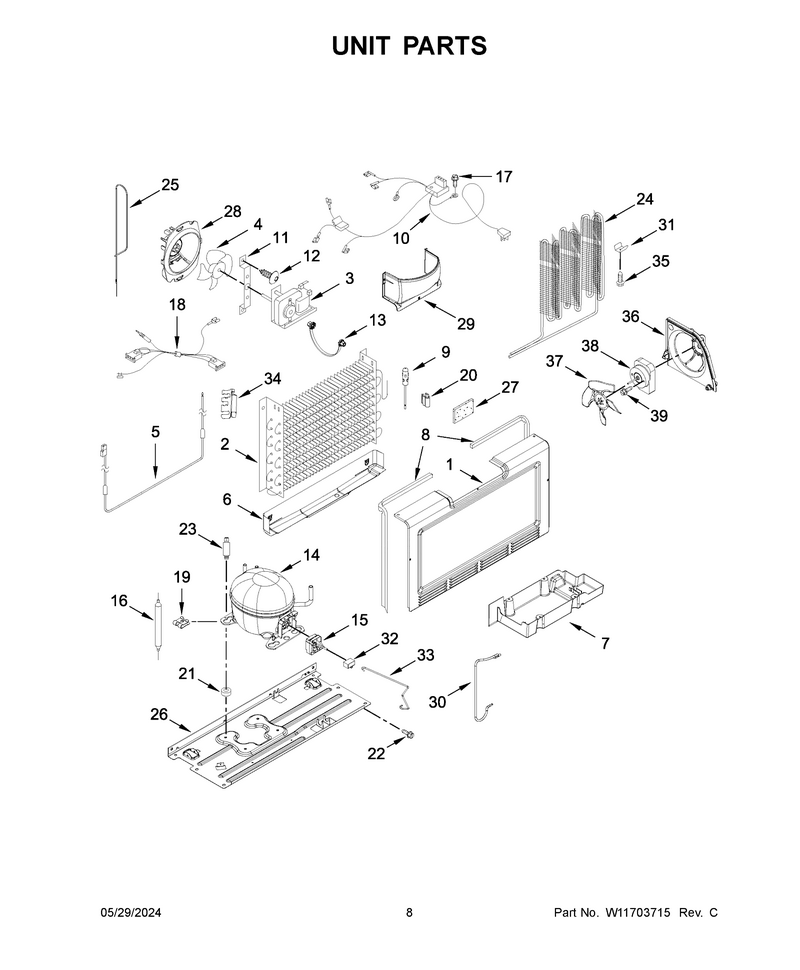

05 - Unit Parts

...
...
NI
Refrigerant Charge 40 Grams (R600a) WPL---
...
1
Cover-Evap WPL-W11551256
...
2B
8/6 Nr Ms 00 (Suction Line To Evaporator) WPL-W11504420
...
2A
4/1.8 Nr Ms 00 (Capillary Tube To Evaporator) WPL-W11504450
...
2
Evaporator WPL-W11572047
...
3
Motor-Evap WPL-W11499658
...
4
Blade-Fan WPL-WP2169142
...
5
Heater WPL-W11562215
...
6
Shield WPL-W11562216
...
7
Pan, Evaporator Drain WPL-W10574291
...
8
Gasket WPL-WPW10574368
...
9
Thermistor WPL-WPW10384183
...
10
Harns-Wire WPL-W11744514
...
11
Clip, Evaporator Motor WPL-13058002
...
12
Screw WPL-W11233072
...
13
Grommet WPL-W11690160
...
14
Compressor WPL-W11547313
...
14D
Tube, Charging (1/4 In W/ Schrader Valve) WPL-W11506635
...
14C
6.35 Nk Al 00 (Charging Tube To Compressor) WPL-W11506622
...
14B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
14A
8/6 Nr Ms 00 (Suction Line To Evaporator) WPL-W11504420
...
15
Start-Dev WPL-W11524472
...
16
Drier-Tube WPL-W11109499
...
16A
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
16B
5/1.8 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504448
...
17
Screw, 8-32 X 3/8 WPL-681390
...
18
Harness WPL-W11741458
...
19
Clip, Retaining WPL-W10697017
...
20
Clip WPL-W11546684
...
21
Grommet WPL-WPW10169124
...
22
Screw (6) WPL-3400524
...
23
Screw WPL-W11572046
...
24
Condenser WPL-W11507065
...
25
Exchanger, Heat (Not Serviced) WPL---
...
26
Pan, Compressor WPL-W10574278
...
27
Insulation WPL-W11553819
...
28
Shroud, Evaporator Fan WPL-W10574469
...
29
Cover, Evaporator Fan WPL-W10574274
...
30
Tube, Suction WPL-W11501825
...
31
Clip WPL-W10683556
...
32
Capacitor WPL-W11631831
...
33
Clip WPL-W11524474
...
34
Bracket, Evaporator WPL-W11452250
...
35
Screw WPL-W11544659
...
36
Baffle-Air WPL-W11605794
...
37
Blade-Fan WPL-WPW10139483
...
38
Motor-Cond WPL-W11127829
...
39
Screw WPL-W11501418

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
