Whirlpool WUR50X24HZ02

Model: WUR50X24HZ02

Save Part Not Listed?
product name

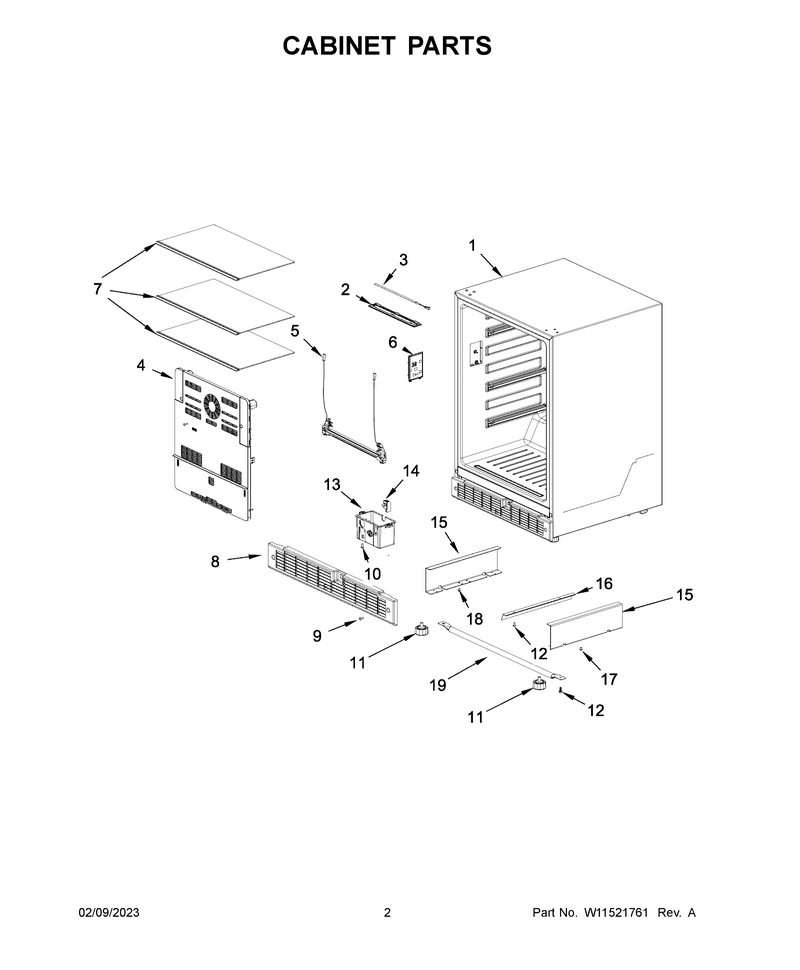

02 - Cabinet Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Cover, Led WPL-W11312450
...
3
Lens, Light WPL-W11263841
...
4
Cover Assembly, Evaporator WPL-W11633775
...
5
Control Box, Switch WPL-W11476540
...
6
Control WPL-W11265409
...
7
Shelf-Glas WPL-W11266373
...
8
Defrost Holder And Heater WPL-W11359416
...
9
Screw WPL-W11675284
...
10
Screw WPL-W11371097
...
11
Leveler WPL-W11106296
...
12
Screw WPL-W11371100
...
13
Control Box, Switch WPL-W11476540
...
14
Switch WPL-W11266082
...
15
Support, Side WPL-W11313093
...
16
Seal, Condenser WPL-W11265577
...
17
Screw WPL-W11371101
...
18
Screw WPL-W11371103
...
19
Brace WPL-W11265575

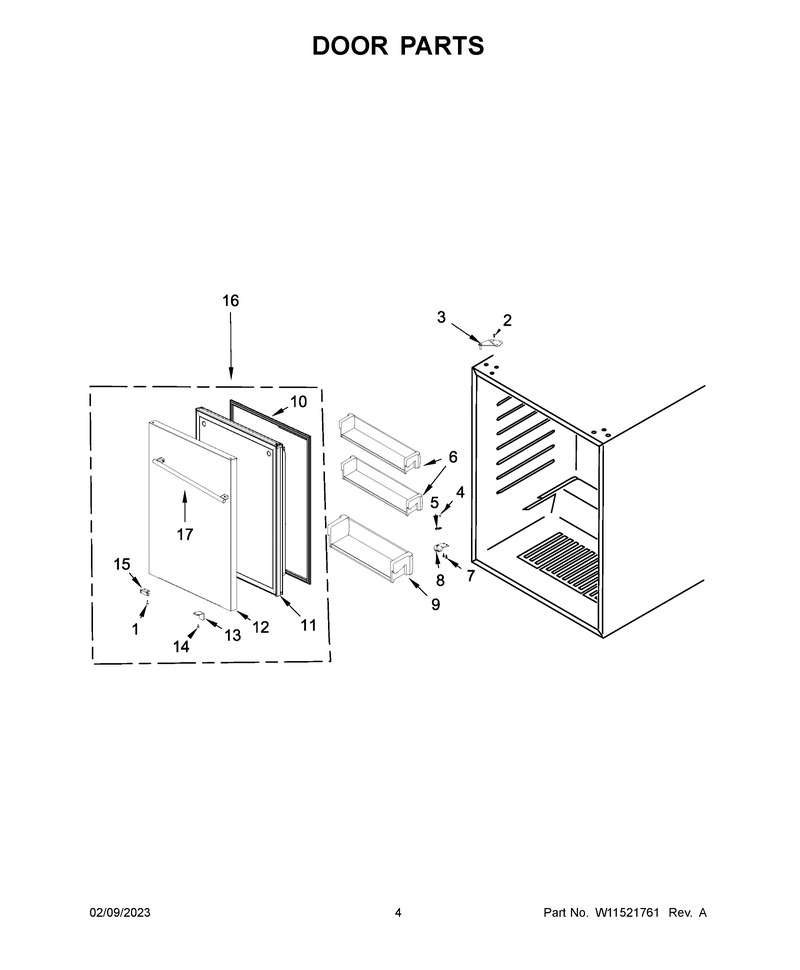

03 - Door Parts

...
...
1
Screw WPL-W11371345
...
2
Screw WPL-4344796
...
3
Hinge, Top WPL-W11264668
...
4
Screw WPL-W11371338
...
5
Washer WPL-W11265406
...
6
Door Bin, Middle WPL-W10319176
...
7
Screw WPL-W11371100
...
8
Hinge, Bottom WPL-W11312624
...
9
Door Bin, Lower WPL-W10319175
...
10
Gasket-Dor WPL-W11315259
...
11
Door Assembly WPL-W11264643
...
12
Door-Skin WPL-W11265413
...
13
Actuator, Switch WPL-W11264669
...
14
Screw WPL-W11371097
...
15
Door Stop WPL-W11264678
...
16
Door WPL-W11497277
...
17
Handle WPL-W11265408

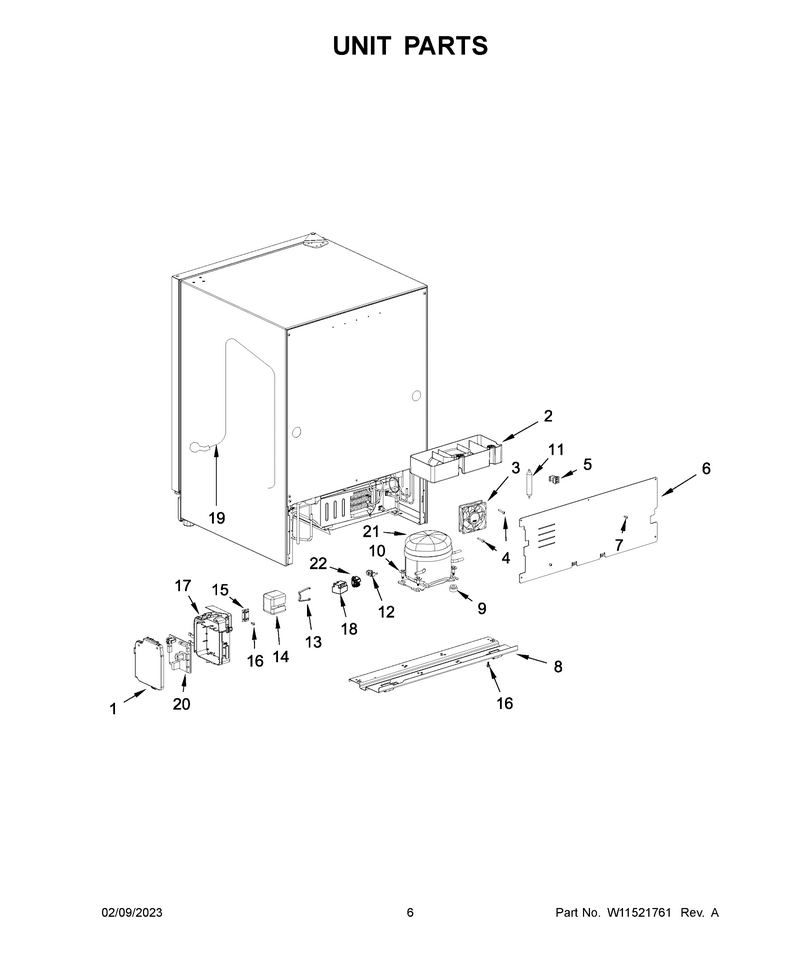

04 - Unit Parts

...
...
NI
Compressor WPL-W11512398
...
1
Cover, Pcb WPL-W11313206
...
2
Water Pan, Evaporator WPL-W11360241
...
3
Motor-Evap WPL-W11266081
...
4
Screw WPL-W11371341
...
5
Clamp WPL-W11266075
...
6
Cover, Rear WPL-W11264703
...
7
Screw WPL-W11371097
...
8
Brace WPL-W11265575
...
9
Grommet WPL-WP4344779
...
10
Bolt WPL-W10772873
...
11
Drier WPL-W10163273
...
12
Overload Relay WPL-W11422769
...
13
Spring Tab WPL-W11498144
...
14
Cover WPL-W11579581
...
15
Clamp, Cord WPL-W10270517
...
16
Screw WPL-W11371100
...
17
Pcb Box WPL-W11313209
...
18
Start-Dev WPL-W11596023
...
19
Cord, Power WPL-W11618463
...
20
Cntrl-Elec WPL-W11266080
...
21
Compressor WPL-W11422743
...
22
Overload WPL-W11579512
