Whirlpool WUI75X15HB02

Model: WUI75X15HB02

Save Part Not Listed?
product name

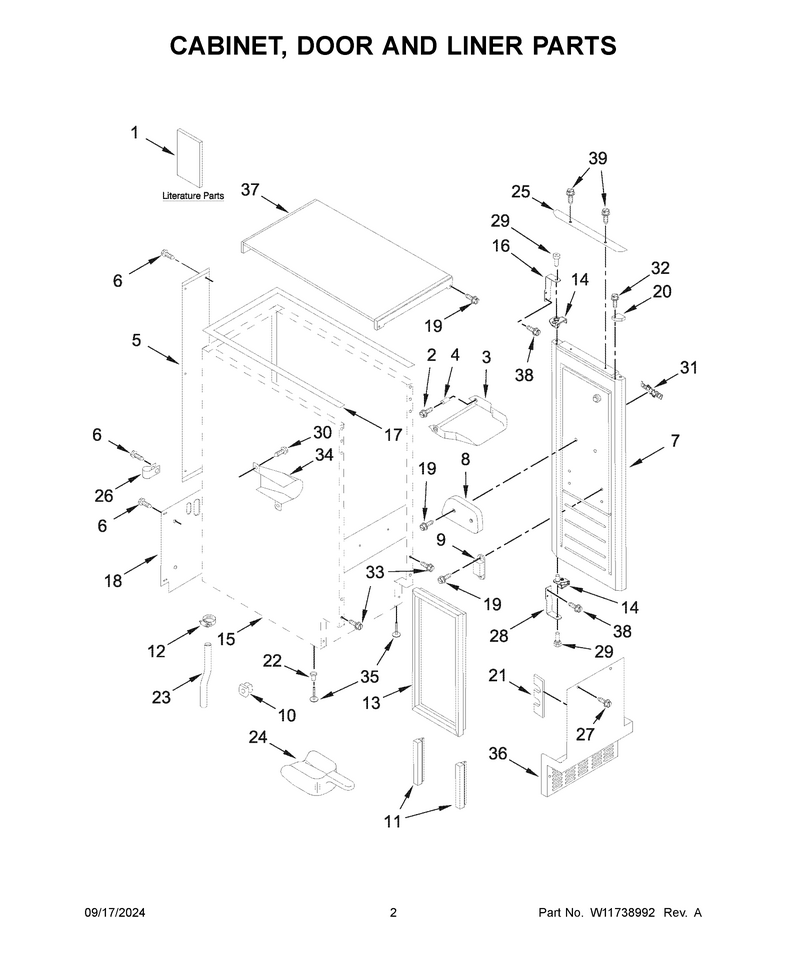

02 - Cabinet, Door And Liner Parts

...
...
1
Owners Manual WPL-W11686966
...
1A
Tech Sheet WPL-W10761657
...
2
Screw WPL-WP3400886
...
3
Bin, Door WPL-W10734102
...
4
Spacer WPL-2185678
...
5
Cover, Wiring WPL-2217394
...
6
Screw WPL-WP489442
...
7
Dor-Fip WPL-W10502166Q
...
8
Cam,door WPL-W11309649
...
9
Catch-Asm WPL-W11223751
...
10
Nut, Push-In WPL-W10136999
...
11
Gasket, Bottom WPL-W11165597
...
12
Clamp, Hose WPL-W10670799
...
13
Gasket-Dor WPL-WP2217294
...
14
Stop, Bottom Door (Black) WPL-W10486561
...
15
Cabinet And Liner (Not Serviced) WPL---
...
16
Hinge, Top (Black) WPL-W10476703
...
17
Gasket-Top WPL-W11624957
...
18
Cover-Unit WPL-W11367893
...
19
Screw (White) WPL-8534077
...
20
Filler, Top Endcap (Black) WPL-W11309706
...
20A
Filler, Bottom Endcap (Black) WPL-W11309712
...
21
Pad, Foam WPL-W10532250
...
22
Nut WPL-3400240
...
23
Tube, Drain WPL-W10737551
...
24
Scoop WPL-W11420408
...
25
Handle WPL-WP2208493B
...
26
Clamp WPL-WP488366
...
27
Screw (Black) WPL-W10531302
...
28
Hinge, Bottom (Black) WPL-W10476696
...
29
Pin, Hinge WPL-2185712
...
30
Screw WPL-WP489443
...
31
Nameplate WPL-W11178521
...
32
Screw WPL-348689
...
33
Screw WPL-W11573574
...
34
Holder, Scoop WPL-2185927
...
35
Levler-Leg WPL-8193716
...
36
Grille WPL-WP2185571B
...
37
Panel, Top (Black) WPL-W10320117
...
38
Screw (Black) WPL-W10495264
...
39
Screw (Black) WPL-8534075

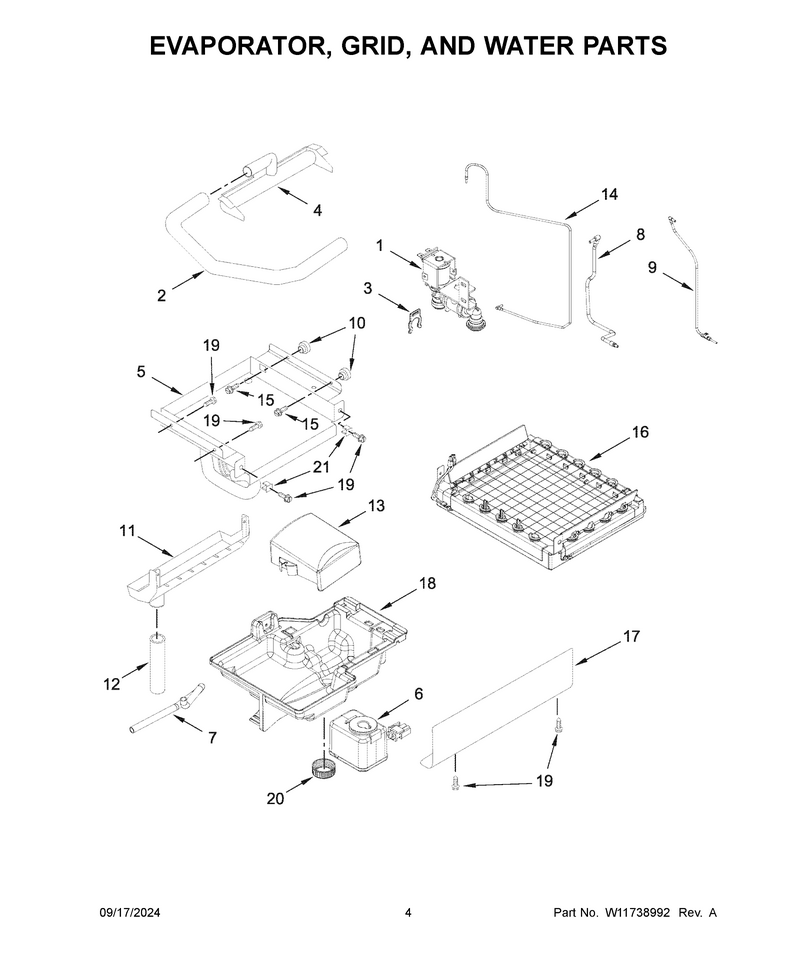

03 - Evaporator, Grid, And Water Parts

...
...
1
Valve WPL-W10881366
...
2
Tube WPL-W10863947
...
3
Locking Ring (1/4") WPL-W10782423
...
4
Tube WPL-W10863947
...
5
Evaporator WPL-W11748089
...
6
Pump WPL-W11542868
...
7
Tube WPL-W11097809
...
8
Waterline, Reservoir WPL-W11543901
...
9
Assembly, Plug Tube WPL-W11257368
...
10
Spacer WPL-836667
...
11
Pan-Water WPL-WP2185625
...
12
Hose WPL-W11033204
...
13
Cover, Bracket WPL-W10512292
...
14
Waterline, Valve WPL-W11543903
...
15
Screw WPL-WP3400886
...
16
Grid-Cuttr WPL-W10919199
...
17
Cover, Grid WPL-W10340986
...
18
Pan-Water WPL-W11614100
...
19
Screw WPL-WP3400884
...
20
Cap-Drain WPL-W11023835
...
21
Nut WPL-WP3400909

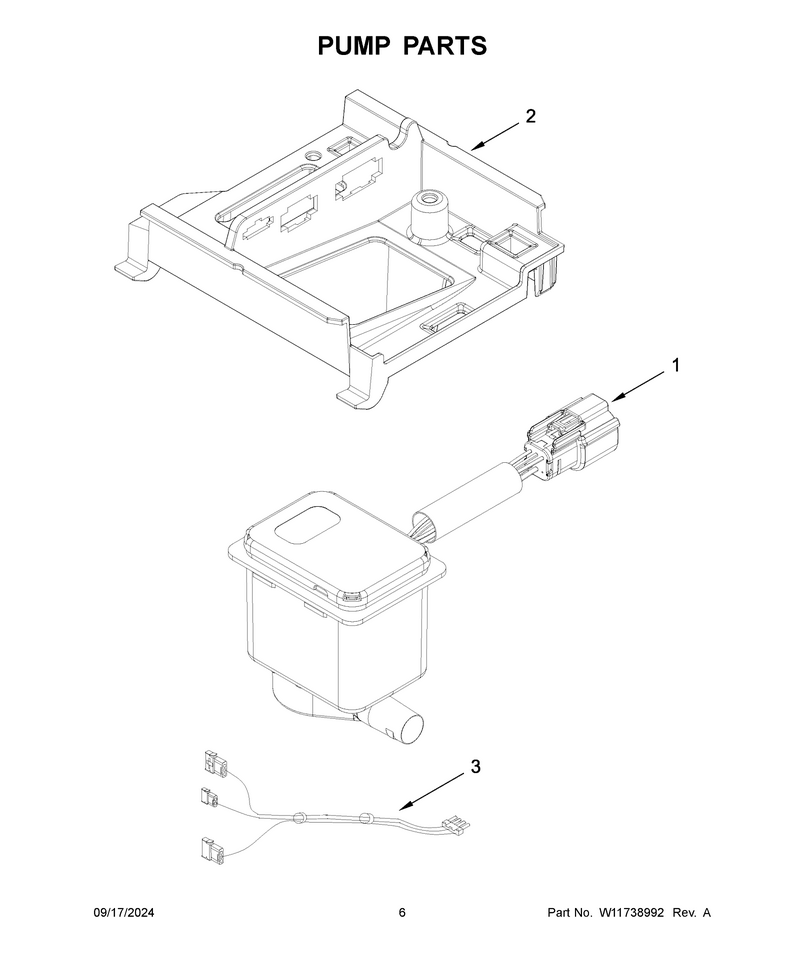

04 - Pump Parts

...
...
1
Pump WPL-W11542867
...
2
Bracket WPL-W11679650
...
3
Harns-Pump WPL-W11126268

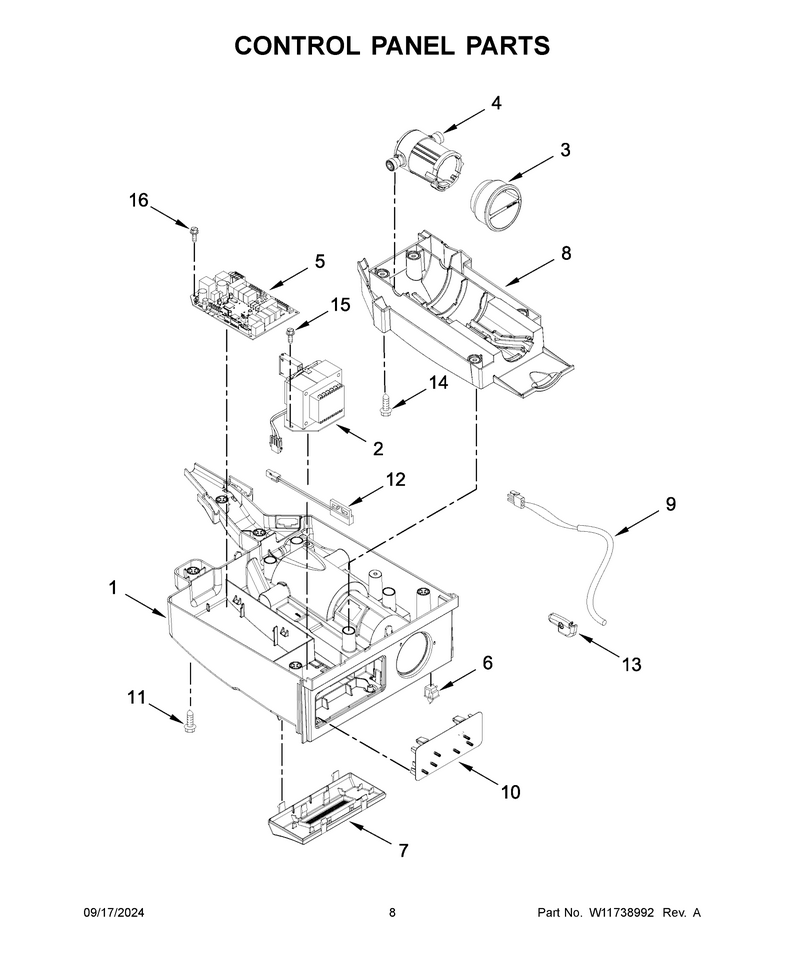

05 - Control Panel Parts

...
...
1
Housing, Control WPL-W10477560
...
2
Transformr WPL-WPW10485951
...
3
Filter Cap WPL-W10800356
...
4
Housing WPL-W11266112
...
5
Cntrl-Elec WPL-W11034363
...
6
Switch WPL-W11291138
...
7
Assembly, Diamond Led WPL-W10492487
...
8
Cover, Filter WPL-W10475416
...
9
Thermistor WPL-WPW10511923
...
10
Cntrl-Elec WPL-W11357230
...
11
Screw WPL-WP489474
...
12
Switch WPL-W11221357
...
13
Clamp, Thermistor WPL-W10526623
...
14
Screw WPL-WP9741232
...
15
Screw WPL-W10165274
...
16
Screw, 6-19 X .250 WPL-2006254

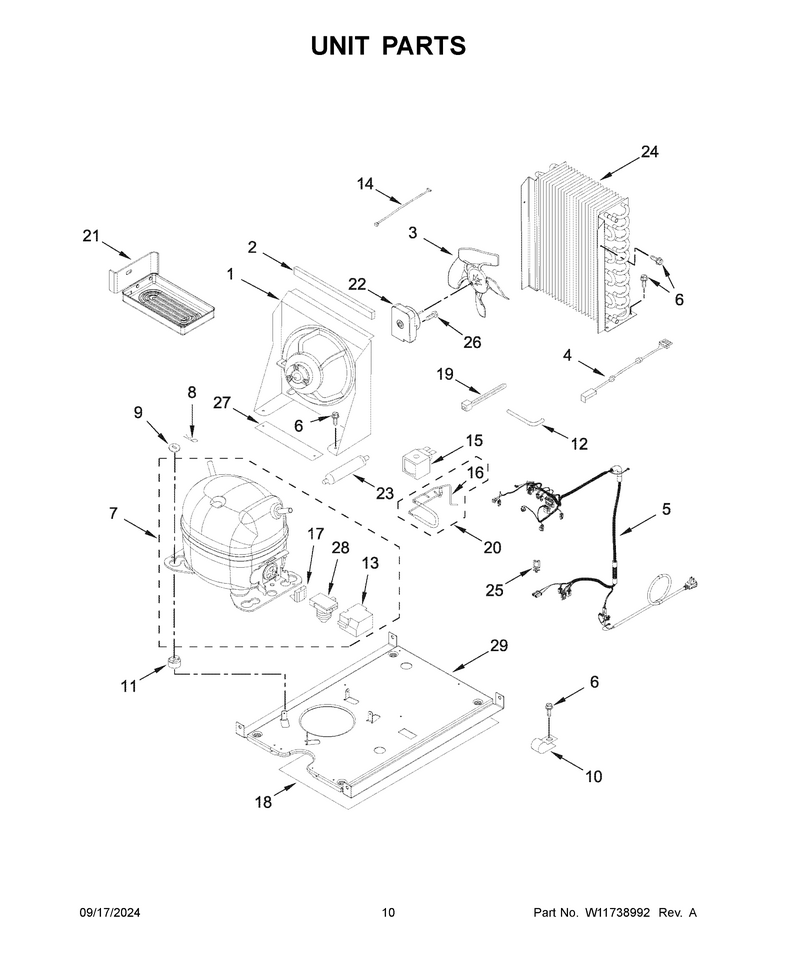

06 - Unit Parts

...
...
NI
Refrigerant Charge 5.75 Oz. (R-134a) WPL---
...
1
Bracket WPL-WP2185532
...
2
Pad, Foam WPL-2185675
...
3
Blade-Fan WPL-WP2188935
...
4
Wire-Jumpr WPL-WP2187629
...
5
Harness WPL-W11123917
...
6
Screw WPL-WP489069
...
7
Compressor WPL-W11735041
...
8
Clip, Compressor Mounting WPL-A201435
...
9
Shim WPL-A201441
...
10
Clamp, Power Cord WPL-2185960
...
11
Grommet (4) WPL-2185965
...
12
Tube, Process WPL-W10528572
...
13
Cover-Term WPL-WP2162358
...
14
Wire Assembly, Jumper WPL-W11086824
...
15
Coil-Solnd WPL-WPW10206473
...
16
Valve-Gas WPL-WP759113
...
17
Overload WPL-W11624931
...
18
Shield, Heat WPL-W10282061
...
19
Tie-Wire WPL-WP2262071
...
20
Valve-Gas WPL-W11748341
...
21
Tray, Drip WPL-W10615506
...
22
Motor-Cond WPL-W11613295
...
23
Drier-Tube WPL-W10843121
...
24
Condenser WPL-W11748160
...
25
Clamp WPL-W11233642
...
26
Screw WPL-WP8281196
...
27
Pad, Foam WPL-W11553219
...
28
Relay-Strt WPL-WP2217224
...
29
Base, Unit WPL-W11560928

...
...
NI
Miscellaneous, Water Filter WPL-F2WC9I1
