Models

Parts

product name

Whirlpool WTW6157PW0

Model: WTW6157PW0

Save Part Not Listed?
product name

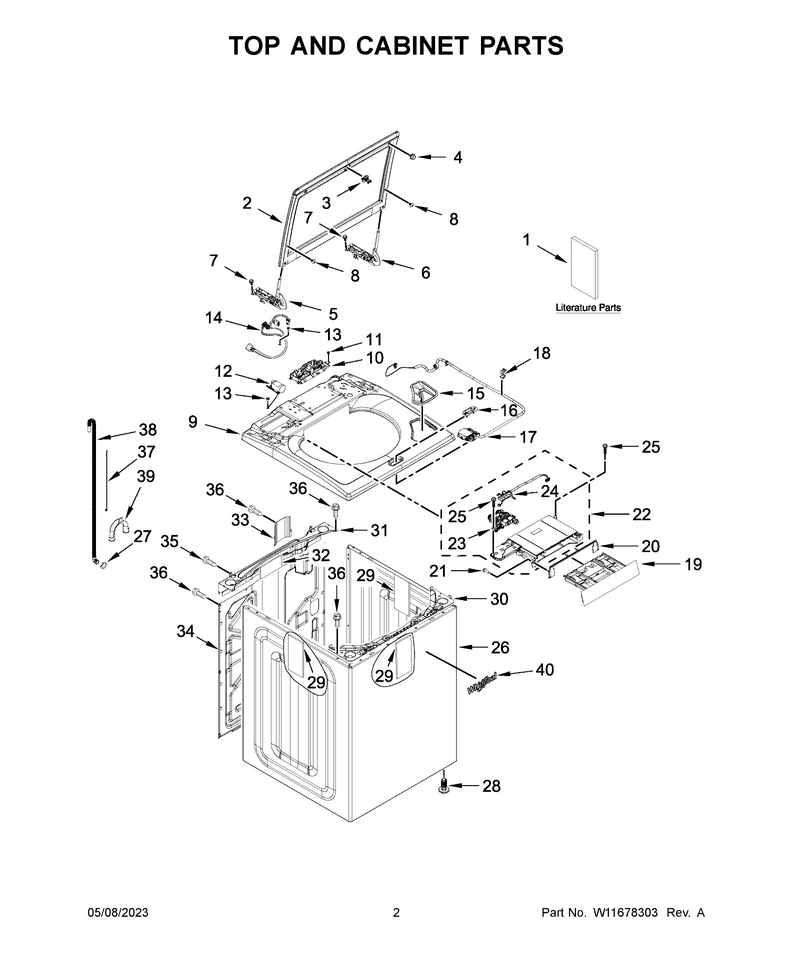

02 - Top And Cabinet Parts

...
...
1
Owners Manual WPL-W11436596
...
1C
Quick Start Guide WPL-W11657337
...
1A
Energy Guide WPL-W11670063
...
1B
Tech Sheet WPL-W11455149
...
2
Lid WPL-W11413336
...
3
Strike WPL-W11457841
...
4
Bumper WPL-W11398707
...
5
Hinge WPL-W11551369
...
6
Hinge WPL-W11551376
...
7
Screw WPL-WP489128
...
8
Bolt WPL-W11679612
...
9
Top WPL-W11423769
...
10
Cntrl-Elec WPL-W11627517
...
11
Screw WPL-WP693995
...
12
Filter WPL-W11614635
...
13
Screw WPL-W10846509
...
14
Cord-Power WPL-W11551294
...
15
Bezel, Bleach Dispenser (White) WPL-W11175757
...
16
Bezel WPL-W11545554
...
17
Latch WPL-W11700916
...
18
Clip WPL-WP90016
...
19
Drawer WPL-W10861667
...
20
Assembly, Dispenser Bezel (White) WPL-W10601845
...
21
Screw WPL-WP9740848
...
22
Housing WPL-W11627513
...
23
Valve WPL-W11595805
...
24
Harness, Water Inlet Valve WPL-W11524851
...
25
Screw WPL-WPW10109200
...
26
Cabinet (White) WPL-W10676680
...
27
Clamp WPL-WP356138
...
28
Feet-Lvlng WPL-W11213957
...
29
Absorber WPL-W11197416
...
30
Channel, Top Front WPL-W11381327
...
31
Brace WPL-W11712680
...
32
Absorber WPL-WP8564458
...
33
Cover, Harness WPL-W10676061
...
34
Panel, Rear WPL-W11417171
...
35
Screw WPL-W11568617
...
36
Screw WPL-W11685943
...
37
Tie-Wire WPL-WPW10339879
...
38
Hose WPL-W11244231
...
39
Retainer WPL-WPW10280024
...
40
Nameplate WPL-W11178521

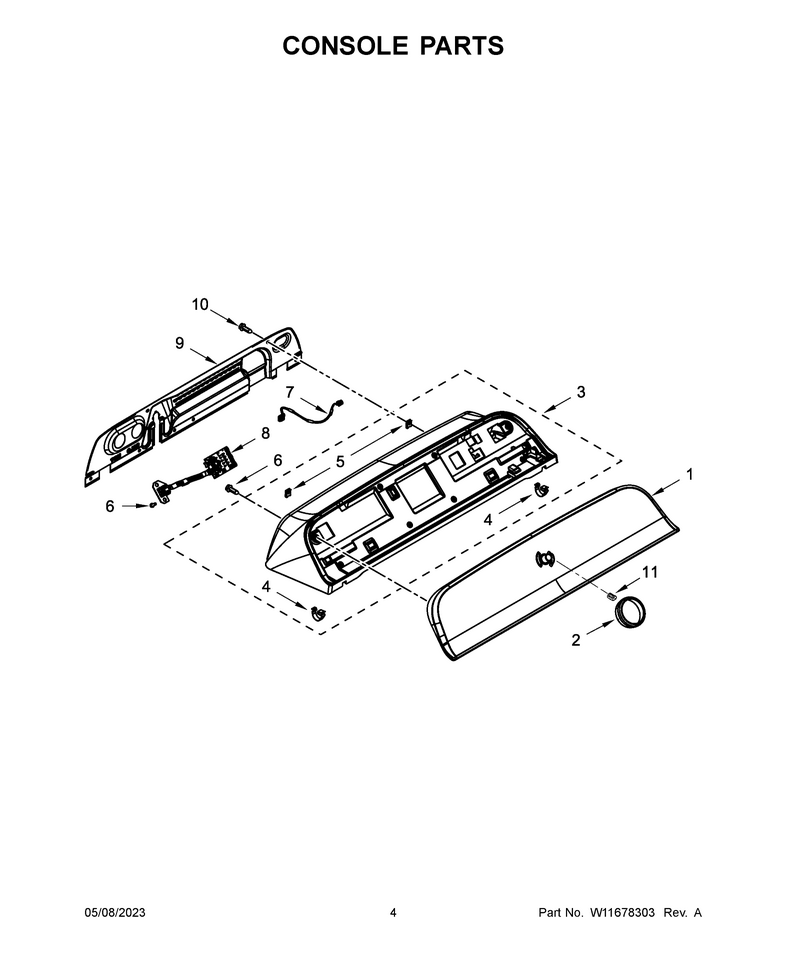

03 - Console Parts

...
...
1
Overlay WPL-W11680401
...
2
Knob WPL-W11662669
...
3
Console WPL-W11569437
...
4
Clip WPL-WP8312709
...
5
Nut WPL-W11213336
...
6
Screw WPL-WP9740848
...
7
Harns-Wire WPL-W11662667
...
8
Cntrl-Elec WPL-W11627516
...
9
Panel, Console Rear WPL-W11129559
...
10
Screw WPL-W11685943
...
11
Clip WPL-WP688805

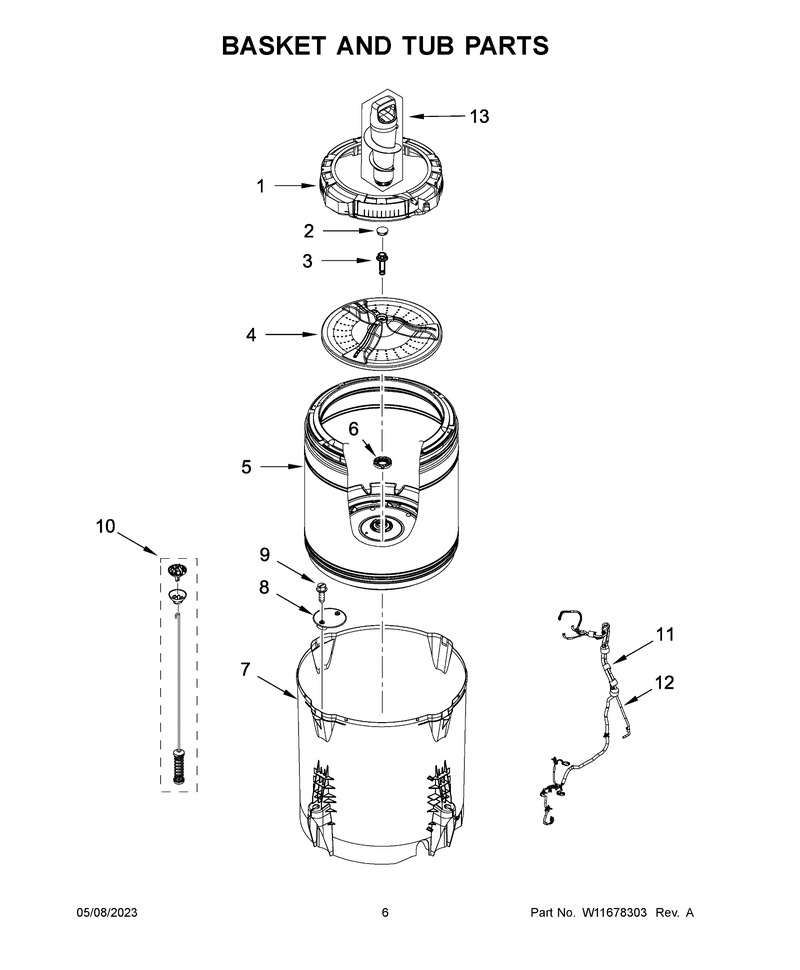

04 - Basket And Tub Parts

...
...
1
Ring-Tub WPL-W11590590
...
2
Cap WPL-W11510462
...
3
Screw WPL-W10752187
...
4
Washplate WPL-W11510461
...
5
Basket Assembly WPL-W11178227
...
6
Nut-Spaner WPL-W11551646
...
7
Tub WPL-W11219115
...
8
Filter WPL-W11568797
...
9
Screw WPL-WP8533928
...
10
Suspension WPL-W11400156
...
11
Harns-Wire WPL-W11731988
...
12
Hose WPL-WP353244
...
13
Agitator WPL-W11614636

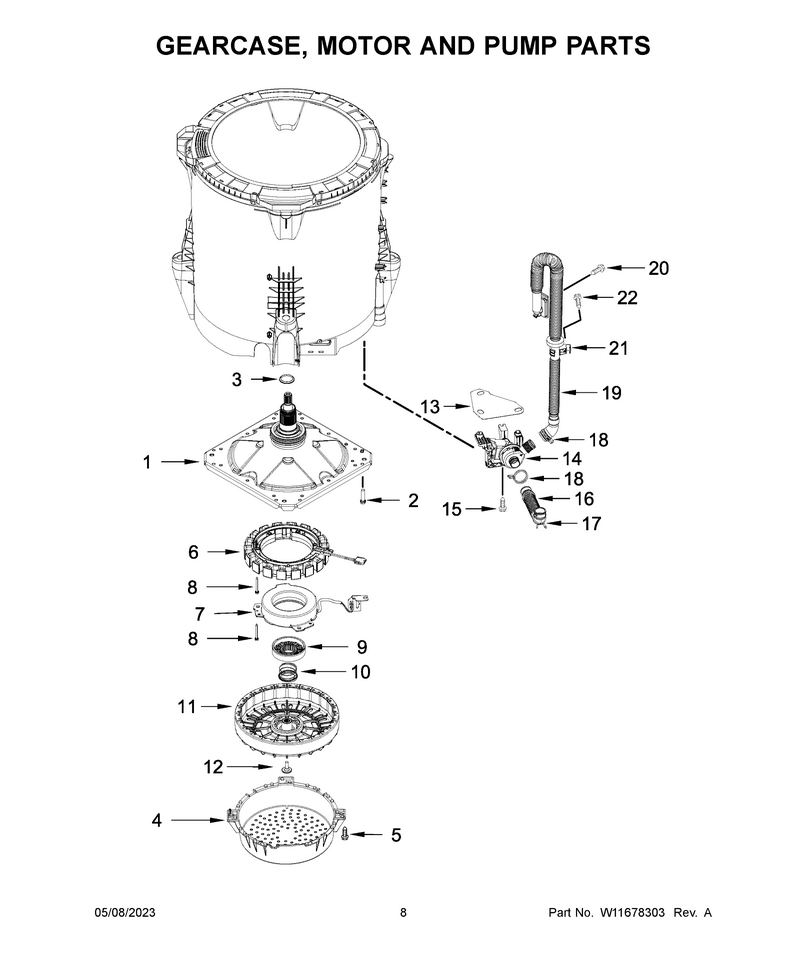

05 - Gearcase, Motor And Pump Parts

...
...
1
Gearcase WPL-W11449841
...
2
Screw WPL-WPW10249633
...
3
Washer WPL-W11553312
...
4
Cover WPL-W11627512
...
5
Screw WPL-W10846509
...
6
Stator WPL-W11195971
...
7
Clutch WPL-W10754448
...
8
Screw WPL-W11027980
...
9
Slider WPL-W10734521
...
10
Slider WPL-W10734521
...
11
Rotor WPL-W11260238
...
12
Screw WPL-W10752189
...
13
Shield, Heat WPL-W10894129
...
14
Pump-Water WPL-W10876600
...
15
Screw WPL-WPW10004910
...
16
Hose WPL-W10802689
...
17
Clamp WPL-WP285655
...
18
Clamp WPL-WP285655
...
19
Hose WPL-W11035296
...
20
Screw WPL-WP9740848
...
21
Clip, Hose WPL-W10652932
...
22
Screw WPL-WPW10109200

...
...
NI
Accessory Parts, 8' Drain Hose W/clamp WPL-285666
