Whirlpool WTW5015LW1

Model: WTW5015LW1

Save Part Not Listed?
product name

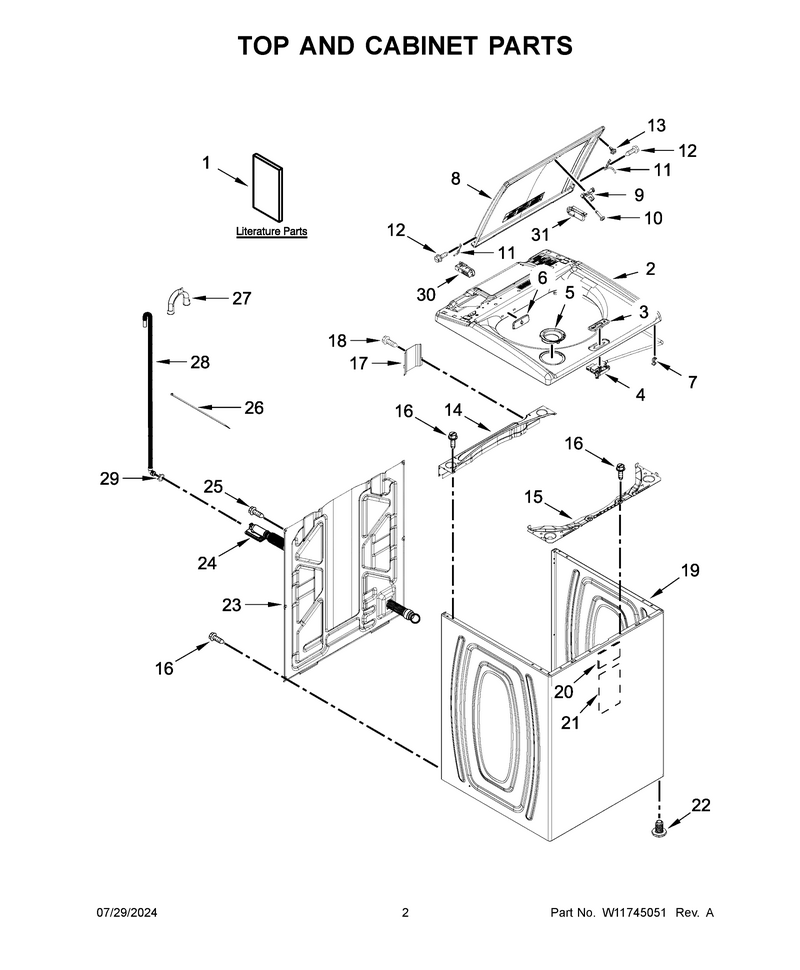

02 - Top And Cabinet Parts

...
...
1
Owners Manual WPL-W11646252
...
1B
Quick Start Guide WPL-W11646249
...
1A
Energy Guide WPL-W11720294
...
2
Top WPL-W11513251
...
3
Bezel WPL-W11643703
...
4
Latch WPL-W11513248
...
5
Dispenser WPL-W11234069
...
6
Bezel, Faucet WPL-W11396263
...
7
Clip WPL-WP90016
...
8
Lid WPL-W11513256
...
9
Strike WPL-W11513250
...
10
Screw WPL-WPW10273971
...
11A
Hinge WPL-W11513247
...
11
Hinge WPL-WP91770
...
12
Screw WPL-WPW10119828
...
13
Bumper, Door WPL-8572266
...
14
Brace WPL-W11712680
...
15
Channel, Top Front WPL-W11381327
...
16
Screw WPL-W11685943
...
17
Cover, Harness WPL-W10676061
...
18
Screw WPL-W10846509
...
19
Cabinet (White) WPL-W10676680
...
20
Absorber WPL-WP8564458
...
21
Absorber WPL-W11611669
...
22
Feet-Lvlng WPL-W11213957
...
23
Panel-Rear WPL-W11486091
...
24
Hose WPL-W11735315
...
25
Screw WPL-WP9740848
...
26
Tie-Wire WPL-WPW10339879
...
27
Retainer WPL-WPW10280024
...
28
Hose WPL-W11244231
...
29
Clamp WPL-WP356138
...
30
Bearing WPL-W11654274
...
31
Bearing WPL-W11654272

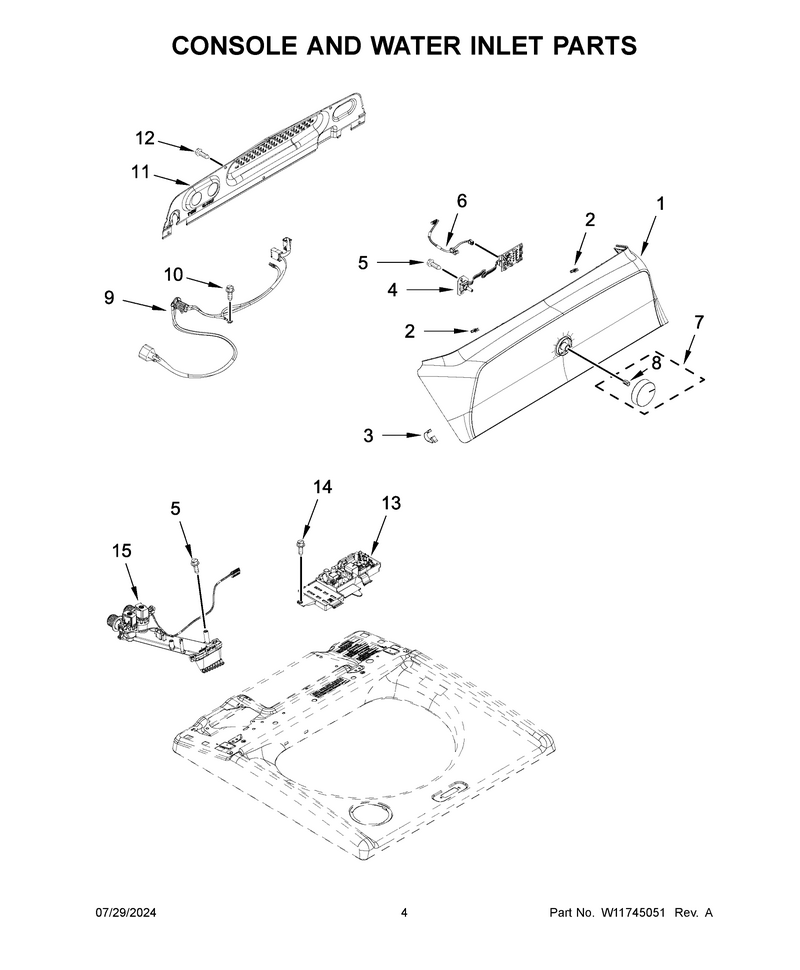

03 - Console And Water Inlet Parts

...
...
1
Panel-Cntl WPL-W11662366
...
2
Nut WPL-W11213336
...
3
Clip WPL-WP8312709
...
4
Cntrl-Elec WPL-W11627516
...
5
Screw WPL-WP9740848
...
6
Harns-Wire WPL-W11665945
...
7
Knob WPL-W11662669
...
8
Clip WPL-WP688805
...
9
Cord-Power WPL-W11513259
...
10
Screw WPL-W10846509
...
11
Panel, Console Rear Cover WPL-W10611544
...
12
Screw WPL-W11685943
...
13
Cntrl-Elec WPL-W11742939
...
14
Screw WPL-WP693995
...
15
Valve WPL-W11513255

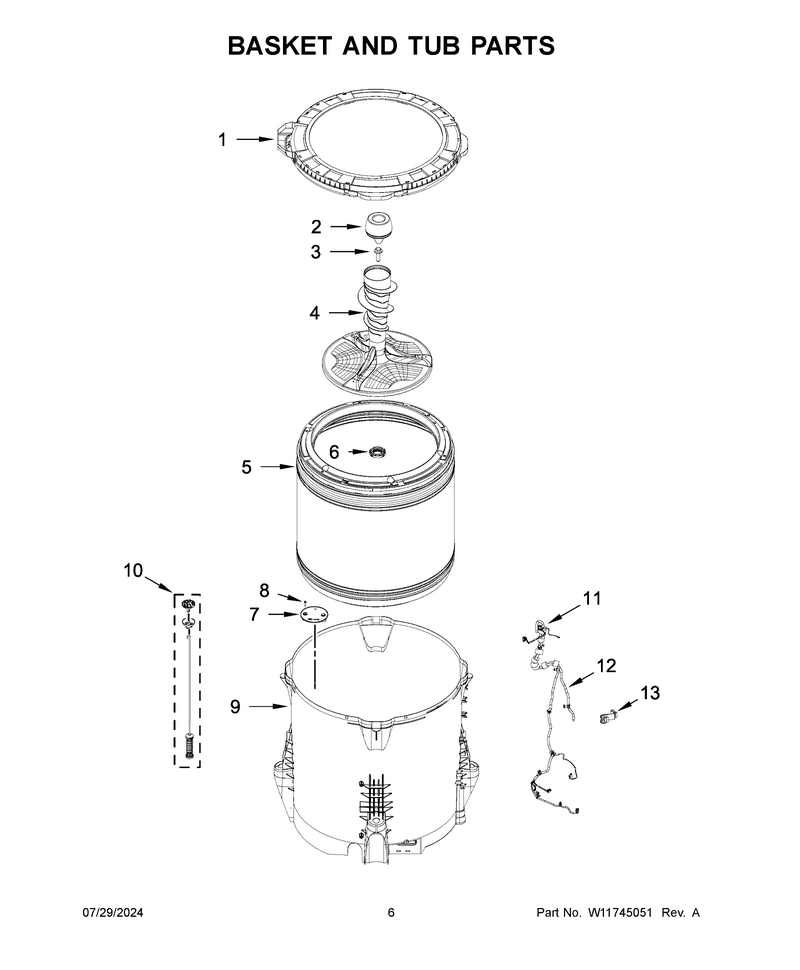

04 - Basket And Tub Parts

...
...
1
Ring-Tub WPL-W10849477
...
2
Dispenser WPL-W10793634
...
3
Screw WPL-W10752187
...
4
Agitator WPL-W11550891
...
5
Basket WPL-W11513244
...
6
Nut-Spaner WPL-W11551646
...
7
Filter WPL-W11568797
...
8
Screw WPL-WP8533928
...
9
Tub WPL-W11219115
...
10
Suspension WPL-W11130362
...
11
Harns-Wire WPL-W11643701
...
12
Hose WPL-WP353244
...
13
Clip WPL-W11755726

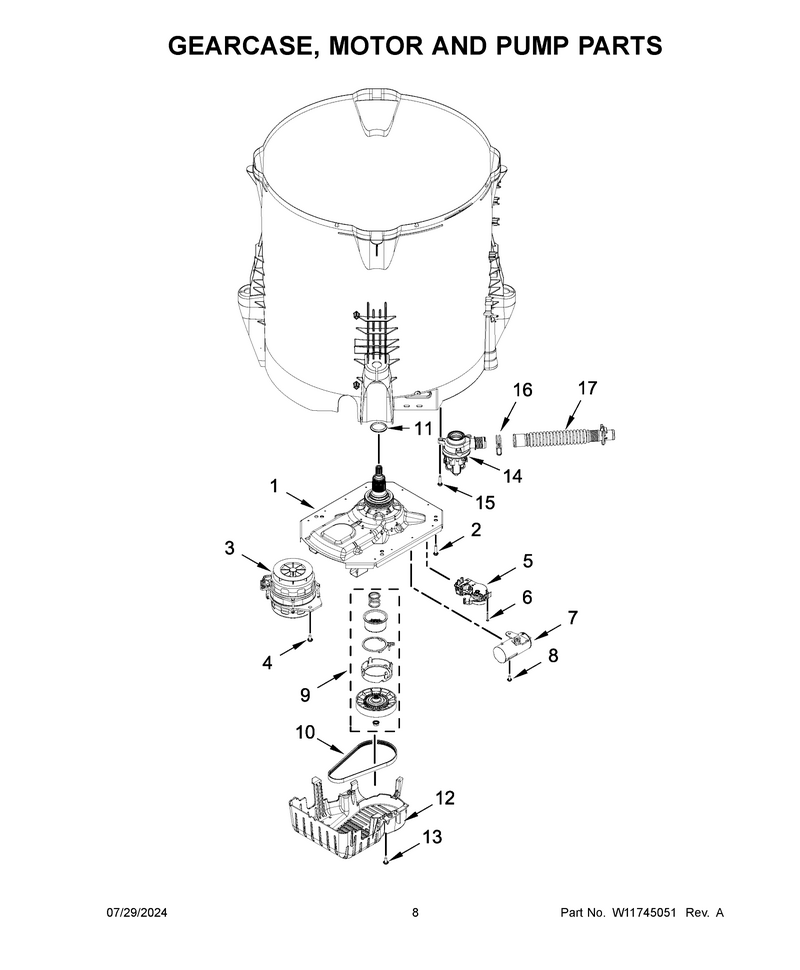

05 - Gearcase, Motor And Pump Parts

...
...
1
Gearcase WPL-W11449840
...
2
Screw WPL-WPW10249633
...
3
Motor-Drve WPL-W11026785
...
4
Screw WPL-W11685857
...
5
Actuator WPL-W11481722
...
6
Screw WPL-W11596033
...
7
Capacitor WPL-W11395618
...
8
Screw WPL-WP489128
...
9
Splutch Kit (60hz) WPL-W10721967
...
10
Belt WPL-W11239857
...
11
Washer WPL-W11553312
...
12
Shield WPL-W11409708
...
13
Screw WPL-W11573574
...
14
Pump-Water WPL-W11399437
...
15
Screw WPL-WPW10004910
...
16
Clamp WPL-WP285655
...
17
Hose WPL-W11735315

...
...
NI
Accessory Parts, Hose Screen (Package Of 2) WPL-285452A
